Revitalising Your Small Outboard: A Spring Tune-Up Essential
As the winter chill recedes and the call of the water beckons, many boaters find their trusty small outboard motors are less than enthusiastic about starting. After a long period of inactivity, a simple service can be the difference between a frustrating morning and a day spent enjoying the open water. This guide, inspired by the expertise of Bursledon Outboards' Steve Dawkins and demonstrated on Mariner 3.3hp and Suzuki 2hp models, will take you through the essential steps to get your 2-stroke outboard purring like new.
While European Union regulations mean new, small 2-stroke outboard motors are no longer available for purchase in Europe, the market for used engines remains incredibly strong. Their inherent lightweight design, compact dimensions, and proven longevity mean that tens of thousands of these workhorses are still in active service. The start of the boating season is precisely when any underlying issues, often exacerbated by winter storage, are most likely to surface. As Steve Dawkins wisely points out, the common assumption that an outboard can simply be stowed away and forgotten until spring is often the root cause of starting problems. Petrol, over time, evaporates, leaving behind a gummy residue that can quickly clog vital components like the carburettor.
Do It Yourself: A Step-by-Step Service Plan
For those with a reasonable degree of technical aptitude, servicing a small 2-stroke outboard is a manageable task. While specific models may have minor variations, the core principles and components remain largely consistent. Before you begin, however, it’s crucial to check if performing these maintenance tasks will invalidate any existing warranty on your engine, especially for newer models. If you have any doubts whatsoever, it’s always best to consult a qualified dealer.
Step 1: Draining the Old Fuel
As Steve Dawkins highlights, the most frequent complaint received by service centres is that an engine worked perfectly last season but refuses to start now. This is almost invariably down to stale fuel. Petrol degrades over time, leaving behind an oily, paraffin-like residue. This residue can gum up the intricate workings of the carburettor, preventing the correct fuel-air mixture from entering the combustion chamber. Therefore, the very first step in your service routine should be to completely drain all old fuel from the tank and fuel lines.
Step 2: Checking the Spark Plug
A faulty spark plug is another common culprit for starting issues. Remove the spark plug and inspect it for signs of wear, carbon build-up, or damage. Check the gap against the manufacturer's specifications and clean or replace it as necessary. A clean, correctly gapped spark plug ensures a strong, consistent spark, which is vital for ignition.
Step 3: Inspecting the Recoil Starter
The recoil starter, often referred to as the pull-start mechanism, can also develop issues. Ensure the cord retracts smoothly and that the internal mechanism engages correctly. If the cord feels stiff or doesn't retract properly, it may require lubrication or replacement of the spring mechanism.
Step 4: Carburettor Removal, Stripping, and Cleaning
The carburettor, typically located at the front of the engine, plays a critical role in mixing the 2-stroke fuel and oil with air in the correct proportions. A clogged carburettor will lead to rough running, poor idling, and difficulty starting. This is often the most involved part of the service but is crucial for engine performance. Carefully remove the carburettor, following the workshop manual for your specific model if available. Disassemble it, paying close attention to the order and orientation of the small parts. Use a dedicated carburettor cleaner and compressed air to thoroughly clean all jets, passages, and the float bowl. Reassemble the carburettor with care, ensuring all gaskets and seals are in good condition. If any parts appear excessively worn or damaged, they should be replaced.
Addressing the Lower Leg: Water Pump and Gearbox
The lower unit of your outboard houses the gearbox and, crucially, the water pump. Regular checks here are vital for preventing overheating and ensuring smooth operation.
Checking the Water Pump Impeller
The water pump impeller is responsible for circulating cooling water through the engine. Its condition directly impacts the engine's ability to dissipate heat. On engines with multiple gears, the pump is usually located on top of the gearbox unit. You may need to disconnect the gear linkage to access it. For smaller, single-gear engines, the impeller is typically found behind the propeller.
To access it:
- Remove the propeller.
- Remove the securing plate located directly behind the propeller.
- The water pump impeller will be visible behind this plate.
Inspect the impeller for any signs of wear, cracking, or missing vanes. Damaged impellers should be replaced immediately to prevent engine overheating. It's also a good idea to replace the impeller as a preventative measure every few years, even if it appears to be in good condition.
Checking and Replacing Gearbox Oil
The gearbox oil lubricates the gears and bearings within the lower unit. Professional mechanics often perform a pressure test to check the integrity of the seals. Without the proper equipment, this is difficult to achieve. A simple visual inspection can help identify potential problems. Place the engine on a clean piece of cardboard overnight. Any oil leaks in the morning will be clearly visible, indicating a potential seal issue.

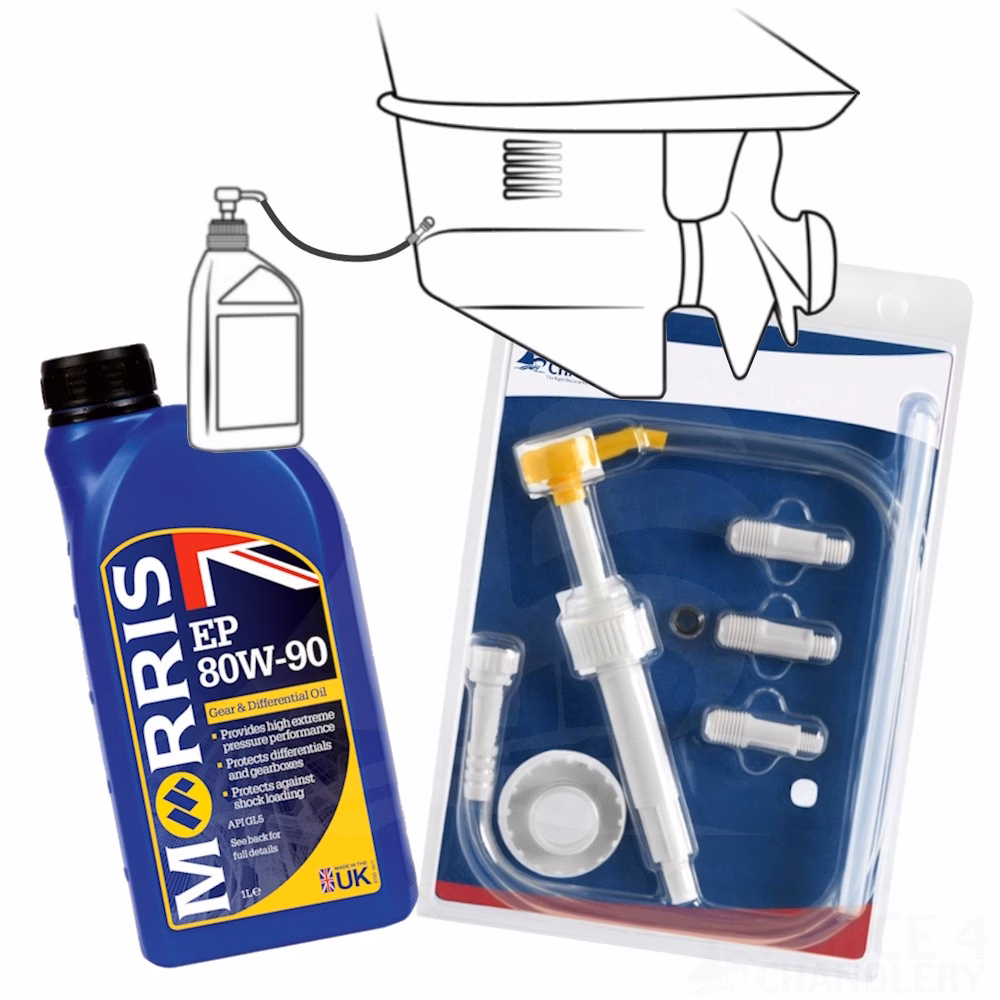

To change the gearbox oil, locate the drain and fill plugs on the lower unit. Using a suitable oil pump and gearbox oil, drain the old oil and refill with fresh oil until it reaches the fill hole. Replace the plugs securely.
The Anode: Sacrificial Protection
Your outboard will have at least one sacrificial anode, usually made of zinc or aluminium. This metal is designed to corrode preferentially, protecting the more expensive metal components of your engine from galvanic corrosion, especially in saltwater environments. Inspect the anode for significant wear or pitting. If it is more than half consumed, it should be replaced. Keeping the anode in good condition is a crucial part of preventative maintenance.
Steve's Top Tips for Outboard Longevity
Prevention truly is better than cure when it comes to maintaining your outboard motor. Here are Steve Dawkins' invaluable tips:
- Flush with Fresh Water: Saltwater is the archenemy of any outboard. After every use, especially in saltwater, thoroughly flush the engine with fresh water. This removes corrosive salt deposits and significantly extends the engine's lifespan.
- Regular Lubrication: Periodically remove the engine cover and apply a light spray of a water-resistant lubricant like WD-40 to external moving parts and electrical connections. This helps prevent seizing and corrosion.
- Fuel Starvation Before Storage: Before storing your outboard for an extended period, turn off the fuel tap while the engine is still running. Allow the engine to run until it stops naturally. This process empties the fuel lines and carburettor, preventing the build-up of stale fuel and oily deposits. This is a critical step for winterisation.
- Spare Shearpins: Always carry spare shearpins for your propeller. Taping a couple to the inside of the engine cover ensures you know exactly where to find them in an emergency, saving valuable time on the water.
Mariner Outboards: A Reputation for Reliability
Mariner outboards have long been a popular choice for boaters, known for their robust construction and dependable performance. While specific model reliability can vary, the brand generally enjoys a strong reputation within the marine industry. Accessing official service and owner manuals is essential for carrying out maintenance correctly. Many resources are available online, offering downloadable manuals organized by horsepower, year, and model variant. These often include detailed service, repair, and operation guides, ensuring you have the information needed to keep your Mariner running optimally. Whether you're looking for original vintage manuals or the latest OEM service guides, a wealth of information can be found to support your maintenance efforts.
Frequently Asked Questions
Q1: Are Mariner 3.3hp and Suzuki 2hp outboards the same?
While both are small 2-stroke outboards and share similar servicing principles, they are distinct models from different manufacturers. They will have specific parts and slight design differences. However, the general servicing steps outlined in this guide will apply to both.
Q2: How often should I service my outboard?
For regular use, an annual service is generally recommended. If the outboard is used intensively or in harsh conditions (like saltwater), more frequent checks and maintenance may be beneficial.
Q3: What is the most common problem with small outboards after winter storage?
The most common issue is a clogged carburettor due to stale fuel leaving behind gummy deposits. Draining the fuel before storage and performing a thorough carburettor clean in the spring are key preventative measures.
Q4: Can I service my outboard myself?
Yes, with basic mechanical skills and the right information, you can perform most routine servicing tasks. However, if you are unsure about any step or encounter significant issues, it's always best to seek professional help from a qualified marine mechanic.
Q5: Why is flushing with fresh water so important?
Flushing with fresh water removes corrosive salt, sand, and debris from the cooling system and internal engine components, preventing long-term damage and corrosion, especially crucial when operating in saltwater environments.
By following these steps and tips, you can ensure your small outboard motor remains a reliable companion on the water for many seasons to come. A little regular maintenance goes a long way in preserving the life and performance of your engine.
