Crankshaft Seal Replacement Guide

The crankshaft oil seal, whether it's the front or rear, plays a crucial role in preventing oil from leaking out of the engine. A worn or damaged seal can lead to significant oil loss, potentially causing serious engine damage if left unaddressed. While replacing a crankshaft oil seal might sound daunting, with the right knowledge and a bit of patience, it’s a task many DIY enthusiasts can tackle. This guide will walk you through the process, from identifying the need for a replacement to the final installation of a new seal.

Why Replace a Crankshaft Oil Seal?

Several signs can indicate that your crankshaft oil seal needs replacing:

• Oil Leaks: This is the most obvious sign. You might notice oil puddles under your car, especially after it's been parked for a while. The location of the leak can help pinpoint whether it's the front or rear seal. A front seal leak will typically appear near the crankshaft pulley at the front of the engine, while a rear seal leak will be visible at the back of the engine, often between the engine and transmission.
• Low Oil Level: If you find yourself frequently topping up your engine oil, and you can't see any obvious leaks elsewhere, a faulty crankshaft seal could be the culprit.
• Whining Noise: Sometimes, a failing front crankshaft seal can cause a whining or squealing noise, particularly when the engine is running. This is often due to the seal not being seated correctly or the rubber deteriorating.
• Visible Deterioration: If you have the opportunity to inspect the seals directly (which usually involves some disassembly), look for signs of cracking, hardening, or general wear on the rubber lip of the seal.

Front Crankshaft Oil Seal Replacement

Replacing the front crankshaft oil seal is generally more accessible than the rear one, though it can still be a fiddly job depending on the engine layout. Here’s a breakdown of the steps involved:

Tools and Materials Needed:

• New crankshaft oil seal (ensure it’s the correct part for your vehicle)
• Socket set and wrenches
• Pry tool or a small, sturdy screwdriver
• Appropriate sized PVC pipe or a seal driver kit
• Hammer
• Block of wood (optional, for protecting the PVC pipe)
• Gloves and eye protection
• Degreaser and rags
• Torque wrench (if specific torque values are required for reassembly)

Step-by-Step Guide:

1. Safety First: Ensure the engine is completely cool. Disconnect the negative battery terminal to prevent any electrical issues.
2. Access the Seal: This usually involves removing the serpentine belt. You may also need to remove other components such as the radiator fan, coolant reservoir, or engine covers to get clear access to the crankshaft pulley.
3. Remove the Crankshaft Pulley: This is often the most challenging part. The pulley is typically held in place by a large bolt. You'll need to prevent the crankshaft from turning while you loosen this bolt. Some methods include:
   • Using a dedicated crankshaft pulley holding tool.
   • Having a helper hold the brakes firmly while you are in a manual transmission car, and placing the car in a high gear to stop the engine from turning.
   • Using a breaker bar and socket, and resting the breaker bar against the chassis or a sturdy part of the engine bay to stop rotation when you apply force to the bolt.

   Once the bolt is loosened, you can remove the pulley. You might need a pulley puller if it's stuck.

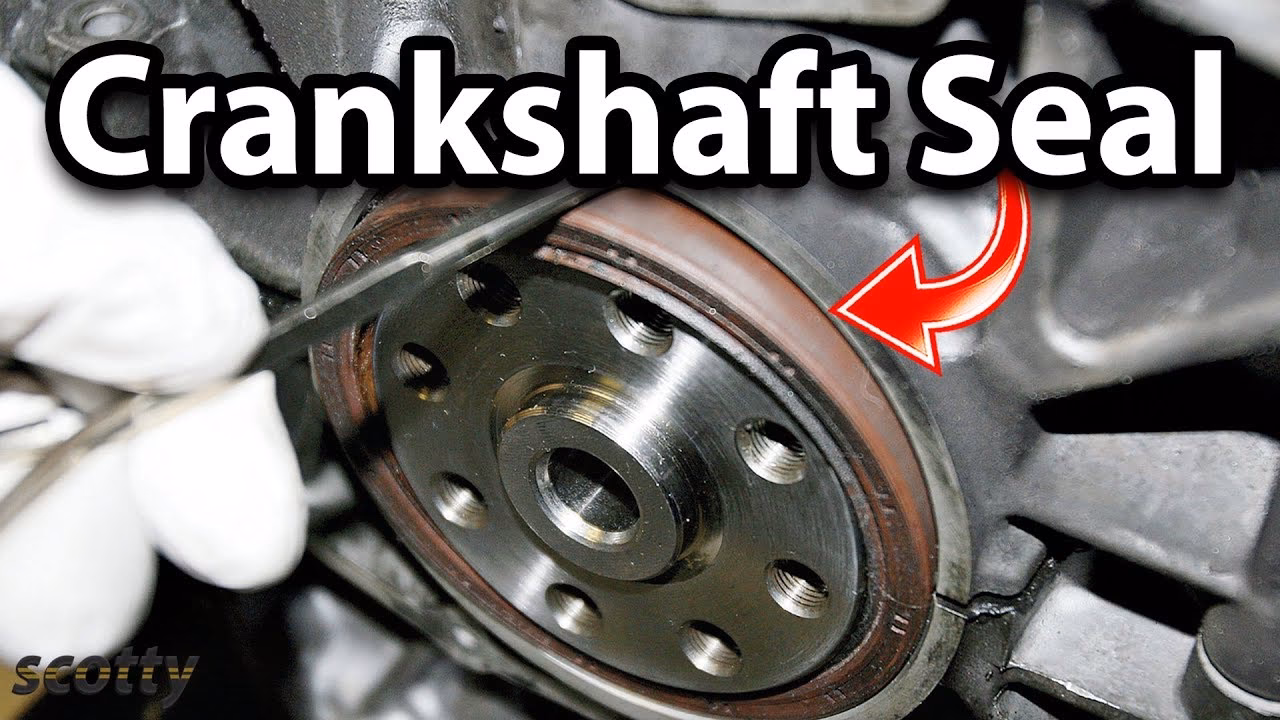

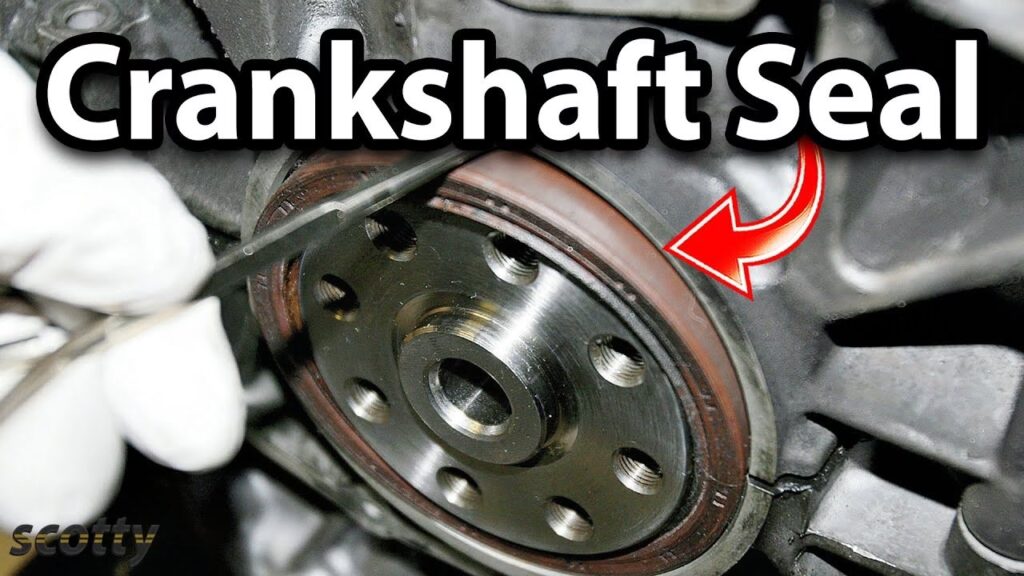

4. Pry out the Old Seal: With the pulley removed, you'll see the crankshaft oil seal. Carefully use a pick or a small, sturdy screwdriver to pry out the old seal. Be extremely careful not to scratch or damage the crankshaft itself, as this can lead to leaks even with a new seal.
5. Clean the Area: Once the old seal is out, clean the seal housing and the surface of the crankshaft where the seal lip rides with a degreaser and a clean rag. Ensure the area is free of any dirt, oil, or debris.
6. Install the New Seal: This is where the PVC pipe or seal driver comes in. You want to install the new seal squarely and evenly. Place the new seal into the housing. Then, place your appropriately sized PVC pipe over the crankshaft and against the outer edge of the new seal. Gently tap the PVC pipe with a hammer, using a block of wood on top of the pipe if desired to spread the impact. Work your way around the seal, tapping evenly until it is seated fully and flush with the housing. Even pressure is key to avoid damaging the new seal. A seal driver kit is ideal as it's designed to apply even pressure.
7. Reinstall the Crankshaft Pulley: Carefully slide the crankshaft pulley back onto the crankshaft. Reinstall the pulley bolt, tightening it to the manufacturer's specified torque.
8. Reassemble: Reinstall any components you removed to access the seal, including the serpentine belt. Reconnect the battery terminal.
9. Check for Leaks: Start the engine and let it run for a few minutes. Check for any signs of oil leaks around the new seal.

Rear Crankshaft Oil Seal Replacement

The rear crankshaft oil seal (also known as the main seal) is located at the back of the engine, between the engine block and the flywheel/flexplate. Replacing this seal is a more involved process, often requiring the removal of the transmission and sometimes the clutch or torque converter.

General Steps (May Vary Significantly by Vehicle):

1. Remove the Transmission: This is the most substantial step. It involves safely supporting the engine, unbolting the transmission, disconnecting driveshafts/axles, and carefully lowering the transmission.
2. Remove the Flywheel/Flexplate: With the transmission removed, you'll need to remove the flywheel (manual transmission) or flexplate (automatic transmission) to access the rear main seal. This will also likely require holding the crankshaft stationary.
3. Replace the Seal: Similar to the front seal, the old rear main seal will need to be carefully pried out without damaging the crankshaft or the seal bore. The new seal is then installed using a seal driver or an appropriately sized socket and hammer, ensuring it's driven in straight and flush. Proper alignment is critical for the rear main seal.
4. Reassemble: The flywheel/flexplate, transmission, and all associated components are then reinstalled in the reverse order of removal.

Tips for a Smooth Replacement

• Correct Seal: Always use the correct part number for your vehicle's make, model, and year.
• Cleanliness: A clean working environment is paramount. Any dirt or debris introduced during the process can cause premature seal failure.
• Lubrication: Lightly lubricate the lip of the new seal with clean engine oil before installation. This helps it slide into place easily and prevents damage during initial startup.
• Patience: Don't rush the process. Take your time, especially when removing the old seal and installing the new one.
• Specialised Tools: While a PVC pipe can work for the front seal, a dedicated seal driver kit is highly recommended for both front and rear seals to ensure perfect seating and prevent damage.

Common Issues and Troubleshooting

Even with careful work, issues can arise:

• Damaged Crankshaft: If the crankshaft surface where the seal rides is scratched or grooved, the new seal may not be able to seal effectively, leading to continued leaks. In such cases, a speedi-sleeve or crankshaft replacement might be necessary.
• Incorrectly Seated Seal: If the seal is installed crooked or not fully seated, it can leak. Double-check that it’s perfectly flush and square.
• Wrong Seal: Using an incorrect seal can lead to poor fitment and immediate leaks.

Frequently Asked Questions

Q1: Can I drive with a leaking crankshaft seal?

A1: It's not recommended. Significant oil loss can lead to severe engine damage, including bearing failure and seized components. Address the leak as soon as possible.

Q2: How long does a crankshaft seal typically last?

A2: Crankshaft seals are usually quite durable and can last for many years and miles, often exceeding 100,000 miles. However, they are subject to wear and tear over time, especially if exposed to extreme temperatures or contaminants.

Q3: Do I need to remove the crankshaft to replace the seal?

A3: No, you do not need to remove the crankshaft. The seal is an external component that can be accessed and replaced with the crankshaft in place.

Q4: What is the difference between a front and rear crankshaft seal?

A4: The front seal is located at the front of the engine, typically behind the crankshaft pulley, and seals the crankshaft where it exits the engine block to drive accessories. The rear seal is at the back of the engine, between the engine and transmission, sealing the crankshaft where it connects to the drivetrain.

Replacing a crankshaft oil seal is a critical maintenance task that can save your engine from costly damage. By following these steps and taking the necessary precautions, you can successfully perform this repair and keep your vehicle running smoothly and reliably.
