Front Fork Lubrication Guide

The Importance of Front Fork Lubrication

Your front fork is a critical component for both the safety and performance of your motorcycle or bicycle. It's responsible for absorbing shocks, maintaining tyre contact with the ground, and providing a comfortable ride. At the heart of its smooth operation lies effective lubrication. Over time, dirt, grime, and wear can degrade the seals and bushings, leading to increased friction, premature wear, and ultimately, a compromised suspension system. Regular lubrication is not just about keeping things running smoothly; it's about preserving the longevity and efficiency of your front fork, ensuring a safer and more enjoyable riding experience.

Understanding Front Fork Components

Before diving into the lubrication process, it's helpful to understand the basic components of a typical front fork:

When to Lubricate Your Front Fork

The frequency of lubrication depends on several factors, including the type of vehicle (motorcycle or bicycle), the type of fork (air or coil spring), riding conditions, and manufacturer recommendations. However, here are some general guidelines:

• Motorcycles: Many manufacturers recommend fork oil changes every 10,000 to 20,000 miles (16,000 to 32,000 km), or annually, whichever comes first. However, for riders who frequently engage in aggressive riding, off-road use, or ride in dusty/wet conditions, more frequent servicing might be beneficial.
• Bicycles: For mountain bikes, especially those used off-road, a light lubrication of the stanchions every few rides, or whenever you notice increased friction or hear noises, is a good practice. A full fork service (including oil changes and seal replacement) is typically recommended every 50 to 100 riding hours, or annually.
• Signs of Needing Lubrication: Listen for unusual noises such as creaking or knocking. Feel for increased resistance when compressing the fork, or a 'sticky' feeling. Visible dirt or grime around the seals is also a strong indicator.

Lubricating Bicycle Front Forks (Stanchion Lube)

For many bicycle forks, especially those with air springs or simpler coil designs, the primary external lubrication needed is for the stanchions and seals. This is a relatively straightforward process that can significantly improve performance and prevent seal stiction.

What You'll Need:

• Clean, lint-free rags
• Suspension-specific lubricant (often a light-weight suspension fluid or a dedicated fork lube spray). Avoid using WD-40 or general-purpose grease, as these can degrade rubber seals over time.
• Optional: A small brush or cotton swabs for cleaning around seals.

Step-by-Step Guide:

1. Clean the Stanchions: Start by thoroughly cleaning the exposed stanchions (the shiny inner tubes) with a clean, damp rag. Remove any visible dirt, mud, or grime.
2. Clean Around the Seals: Gently use a clean rag or a soft brush to clean around the fork seals (where the stanchions enter the lower fork legs). Remove any accumulated dirt or dust. This is crucial to prevent contaminants from being pushed into the fork.
3. Apply Lubricant: Apply a small amount of suspension-specific lubricant directly onto the stanchions, just above the seals. For spray lubricants, a short burst is usually sufficient. For liquid lubricants, a few drops are typically enough.
4. Compress the Fork: Gently compress the fork several times. This action will help to distribute the lubricant down into the seals and across the stanchion surface. You should feel the fork moving more smoothly.
5. Wipe Away Excess: Use a clean, dry rag to wipe away any excess lubricant from the stanchions and around the seals. This prevents dirt from sticking to the oily surfaces.
6. Repeat for Other Leg: If you have a dual-crown fork or are working on a motorcycle, repeat the process for the other fork leg.

This external lubrication helps to keep the seals supple and reduces friction, leading to a more responsive and smoother suspension. It's a quick and easy maintenance task that pays dividends.

Lubricating Motorcycle Front Forks (Fork Oil Change)

Lubricating the internal components of a motorcycle's front fork involves changing the fork oil. This is a more involved process that requires a greater degree of mechanical skill and specific tools. Fork oil not only lubricates but also provides the necessary damping resistance. Over time, this oil degrades, loses its viscosity, and can become contaminated.

What You'll Need:

• Appropriate weight fork oil (check your motorcycle's manual for the correct specification).
• New fork seals and dust wipers (highly recommended if the fork has significant mileage).
• Torque wrench
• Socket set and wrenches
• Screwdrivers
• Pliers (including snap ring pliers if applicable)
• Seal driver tool (specific to your fork's seal size)
• Oil catch pan
• Funnel
• Measuring jug or syringe for accurate oil measurement
• Clean rags and shop towels
• Bike stand or appropriate lifting mechanism
• Safety glasses and gloves

General Steps for a Motorcycle Fork Oil Change:

Note: The exact procedure can vary significantly between different motorcycle makes and models. Always consult your specific service manual.

1. Preparation: Safely lift the front of the motorcycle so the front wheel is off the ground. Remove the front wheel, front mudguard, and any other components obstructing access to the fork legs (e.g., brake calipers, headlight brackets).
2. Loosen Top Caps: Loosen the fork top caps. Some forks have internal damping adjustments that may need to be set to their softest setting before loosening the cap to relieve spring pressure.
3. Drain Old Oil: Locate the drain screws at the bottom of the fork legs (if present) and drain the old oil into a catch pan. If no drain screws are present, you'll need to carefully invert the fork leg (once separated from the bike) to drain the oil.
4. Disassemble Fork Leg: This is the most complex step and varies greatly. It typically involves unscrewing the bottom bolt (which holds the damper rod in place), carefully separating the outer and inner tubes, and removing the old fork seals and dust wipers. Be mindful of the springs inside, which will likely need to be removed or compressed.
5. Clean Components: Thoroughly clean all internal components, including the inner tubes, damper rods, springs, and inside of the outer tubes. Inspect for any damage or excessive wear.
6. Install New Seals: Carefully install new fork seals and dust wipers using a seal driver tool. Ensure they are seated correctly and squarely. This is a critical step for preventing leaks.
7. Reassemble Fork Leg: Reassemble the fork leg, ensuring all components are correctly positioned and secured. Reinstall the springs and top cap.
8. Add New Fork Oil: Measure the correct amount and type of new fork oil according to your service manual. Use a funnel to carefully pour the oil into the top of the fork leg.
9. Bleed the Fork: Slowly compress and extend the fork several times to bleed out any air bubbles trapped in the oil. This is crucial for proper damping performance.
10. Set Oil Level: After bleeding, set the final oil level (air gap) according to the manufacturer's specifications. This is often done by compressing the fork fully and measuring the distance from the top of the inner tube to the oil surface.
11. Final Assembly: Reinstall the fork legs onto the motorcycle, reattach all removed components, and torque everything to the manufacturer's specifications.

Choosing the Right Lubricant

Using the correct lubricant is paramount for both bicycle and motorcycle forks.

• Bicycles: Look for lubricants specifically designed for suspension forks. These are typically light-viscosity fluids (like 2.5wt or 5wt) or specialized spray lubricants. Avoid silicone-based lubes unless explicitly recommended by the fork manufacturer, as they can sometimes interfere with seal performance.

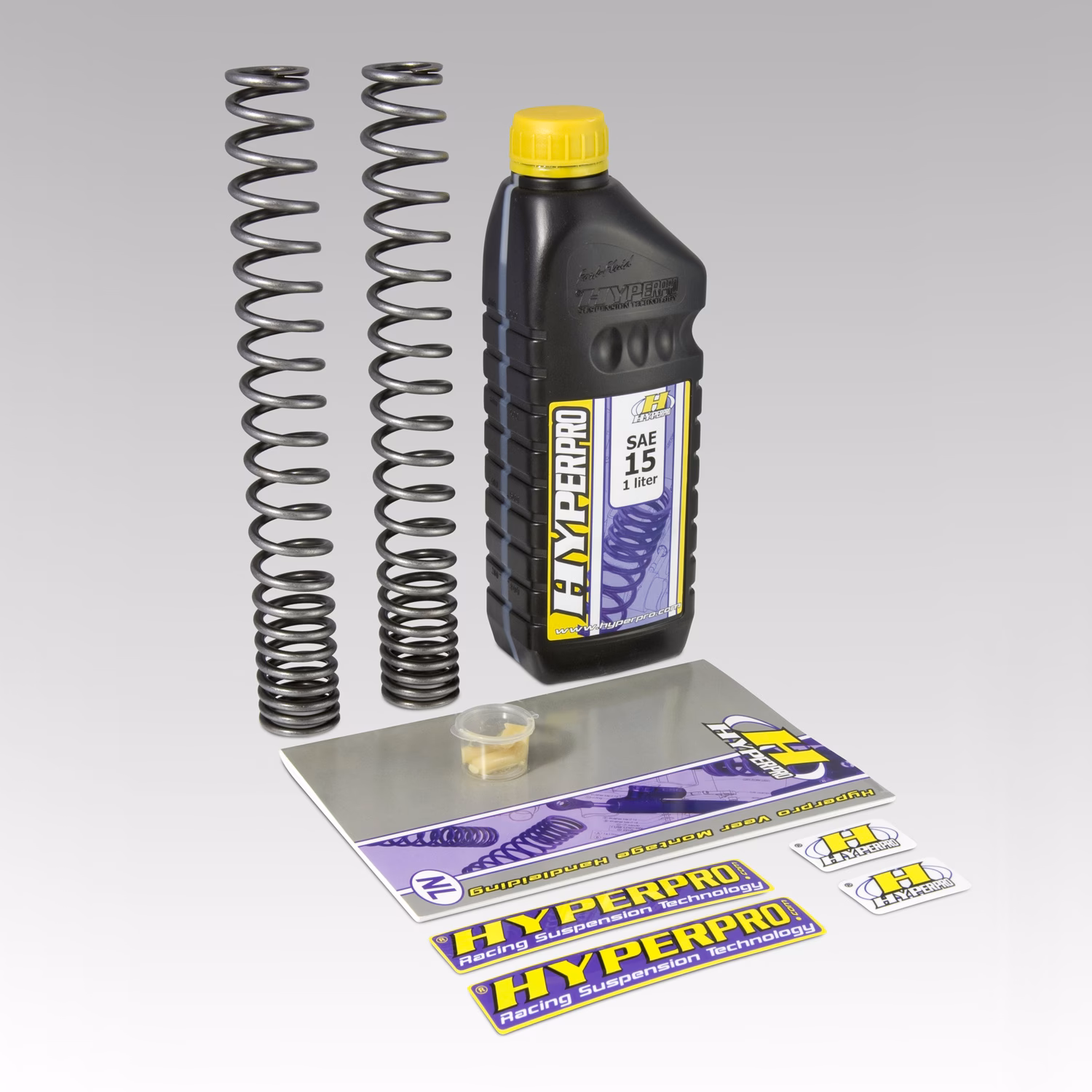

• Motorcycles: Motorcycle fork oil is available in various weights (e.g., 5wt, 10wt, 15wt). The weight dictates the damping characteristics. Heavier oil provides more damping resistance, while lighter oil provides less. Always refer to your motorcycle's owner's manual or a reputable service manual for the recommended oil weight and type. Some high-performance forks may also benefit from specific suspension greases for seal lubrication during servicing.

Common Mistakes to Avoid

When lubricating your front fork, be aware of these common pitfalls:

• Using the Wrong Lubricant: As mentioned, WD-40, petroleum jelly, or general-purpose grease can damage seals or not provide adequate lubrication and damping. Always use products specifically designed for suspension.
• Over-Lubrication (Bicycles): Applying too much external lubricant can attract excessive dirt and grime, potentially causing more harm than good. A small, controlled amount is best.
• Contaminating the Lubricant: Ensure your hands, tools, and the lubricant itself are clean before starting. Introducing dirt into the fork can quickly damage seals and bushings.
• Not Replacing Seals: When performing a full fork oil change on a motorcycle, it's highly recommended to replace the fork seals and dust wipers, especially if the fork has seen considerable use. Worn seals are a primary cause of leaks and poor performance.
• Incorrect Oil Level/Weight: For motorcycles, using the wrong weight or an incorrect oil level will significantly alter the damping characteristics and can lead to poor handling and premature wear.

Frequently Asked Questions

Q1: Can I use any oil to lubricate my bicycle fork stanchions?
No, it's best to use a suspension-specific lubricant or a light-weight suspension fluid (like 2.5wt or 5wt). Avoid household oils or general-purpose lubricants as they can degrade the seals.

Q2: How often should I change the fork oil on my motorcycle?
This varies by manufacturer and riding conditions. A general guideline is every 10,000-20,000 miles or annually. Consult your motorcycle's service manual for the most accurate recommendation.

Q3: My bicycle fork feels sticky. What should I do?
This is often a sign that the stanchions and seals need cleaning and lubrication. Follow the bicycle lubrication steps outlined above. If the problem persists, the fork may require a more thorough service.

Q4: Is it difficult to change motorcycle fork oil?
It requires mechanical aptitude and specific tools. If you are not comfortable with motorcycle disassembly and reassembly, it's best to have a qualified mechanic perform the service.

Q5: What happens if I don't lubricate my front fork?
Lack of lubrication leads to increased friction, premature wear of seals and bushings, degraded damping performance, and potentially costly damage to the fork internals.

Conclusion

Proper lubrication is fundamental to the performance, comfort, and longevity of your front fork, whether on a bicycle or a motorcycle. For bicycles, regular external stanchion lubrication is an easy yet effective maintenance task. For motorcycles, a fork oil change is a more involved but essential service that ensures optimal damping and smooth operation. By understanding your fork's needs and following the correct procedures, you can keep your suspension working at its best, providing a safer and more enjoyable ride for miles to come. Always prioritize using the correct products and refer to your vehicle's service manual for specific details.
