Gearbox Oil Explained

The gearbox, or transmission, is a complex and often overlooked component of any vehicle. It's responsible for transferring the power generated by the engine to the wheels, allowing you to accelerate, decelerate, and change gears. At the heart of this intricate system lies a crucial fluid: gearbox oil, also known as transmission fluid or gear oil. Without the correct type and sufficient quantity of this lubricant, your vehicle's gearbox would quickly suffer catastrophic damage. This article delves into the world of gearbox oil, explaining what it is, what it does, the different types available, and why its maintenance is paramount for the health and performance of your car.

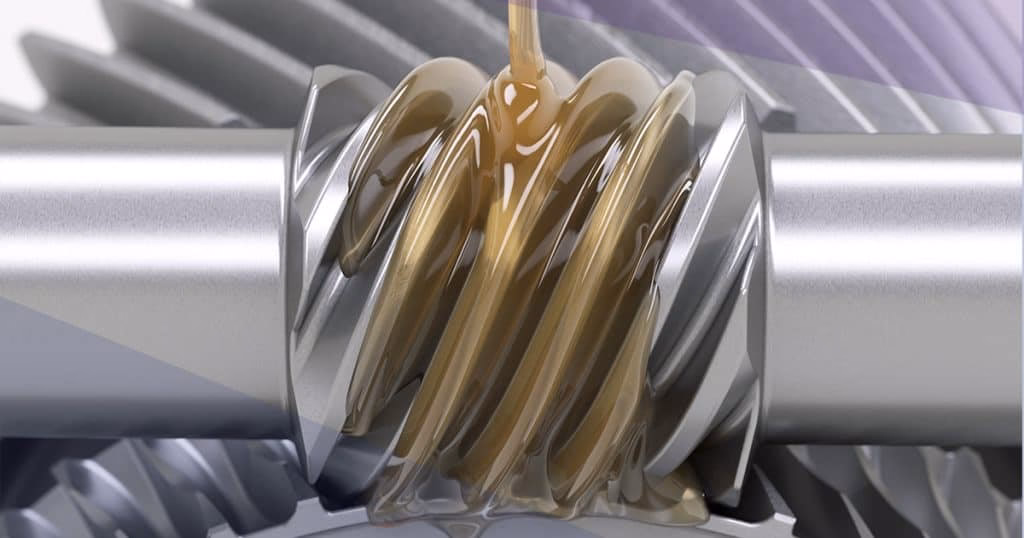

What Exactly is Gearbox Oil?

Gearbox oil is a specially formulated lubricant designed to protect and enhance the performance of a vehicle's gearbox. It's not just a simple oil; it's a sophisticated blend of base oils and additives, meticulously engineered to withstand the extreme pressures, temperatures, and shear forces encountered within the transmission. Its primary purpose is to reduce friction and wear between the moving metal parts, such as gears, bearings, and shafts, ensuring smooth and efficient operation.

The Multifaceted Roles of Gearbox Oil

Gearbox oil performs several critical functions within the transmission system:

• Lubrication: This is its most fundamental role. By creating a protective film between moving metal surfaces, it prevents direct contact, thereby minimising friction and wear. This ensures that gears mesh and unmesh smoothly, and bearings rotate with minimal resistance.
• Cooling: The constant movement of gears and bearings generates significant heat. Gearbox oil circulates through the transmission, absorbing this heat and carrying it away to be dissipated, preventing the components from overheating and seizing.
• Cleaning: As metal parts move against each other, microscopic particles can be generated. Gearbox oil suspends these particles and other contaminants, carrying them to the oil filter (if present) or preventing them from causing damage by keeping them suspended until the oil is changed.
• Corrosion Protection: The additives in gearbox oil protect the metal components from rust and corrosion, especially in the presence of moisture that may ingress into the system.
• Hydraulic Function (Automatic Transmissions): In automatic transmissions, the transmission fluid also acts as a hydraulic fluid. It transmits power from the engine to the gearbox via a torque converter and operates the clutch packs and bands that control gear changes.

Types of Gearbox Oil

The type of gearbox oil required depends heavily on the type of transmission your vehicle has. The two main categories are:

1. Manual Transmission Fluid (MTF)

Manual transmissions rely on the driver to select gears using a clutch and gear lever. MTFs are typically thicker than automatic transmission fluids and are designed to handle the high-pressure contact between gear teeth. They often contain extreme pressure (EP) additives that form a protective layer on gear surfaces under high loads, preventing scuffing and scoring.

Common specifications for manual gearbox oil include:

• API GL-4: Suitable for most manual transmissions, especially those with yellow metals (like brass or bronze synchroniser rings) which can be corroded by higher levels of sulphur-based EP additives found in GL-5.
• API GL-5: Designed for differentials and some manual transmissions that can tolerate higher EP additive levels. It offers superior protection under extreme pressure but can be corrosive to yellow metals.
• API GL-6: A higher rating than GL-5, intended for heavy-duty applications, but less common in passenger vehicles.
• SAE Viscosity Grades: These indicate the oil's thickness at different temperatures (e.g., 75W-90, 80W-90, 75W-140). The lower the first number, the better the cold-weather flow. The second number indicates viscosity at operating temperature.

Important Note: Always consult your vehicle's owner's manual to determine the correct API and SAE specifications for your manual gearbox.

2. Automatic Transmission Fluid (ATF)

Automatic transmissions shift gears automatically without driver intervention. ATFs are more complex than MTFs, as they need to perform hydraulic functions in addition to lubricating. They are generally thinner and have different additive packages designed for smooth clutch engagement and operation of valve bodies.

ATFs are often identified by proprietary specifications set by vehicle manufacturers, such as:

• Dexron (e.g., Dexron III, Dexron VI): Originally developed by General Motors.
• Mercon (e.g., Mercon V): Developed by Ford.
• LV Series (e.g., ATF+4, JWS 3309): Various manufacturer-specific fluids.

Crucial Point: Using the wrong type of ATF can cause significant damage to an automatic transmission, leading to slipping gears, harsh shifting, and eventual failure. Never substitute one ATF specification for another unless explicitly recommended by the manufacturer.

3. Other Transmission Fluids

While less common in standard passenger cars, some vehicles may use other specialized fluids:

• Continuously Variable Transmission (CVT) Fluid: CVTs use belts or chains to provide an infinite range of gear ratios. They require specific CVT fluids that differ significantly from ATFs and MTFs.
• Dual-Clutch Transmission (DCT) Fluid: DCTs combine aspects of manual and automatic transmissions and often require their own unique, specialized fluids.

When to Change Your Gearbox Oil

Like engine oil, gearbox oil degrades over time and with use. Contaminants build up, and the additive package becomes depleted, reducing its effectiveness. Regular oil changes are essential for maintaining the health of your transmission.

Here's a general guideline:

• Manual Transmissions: Typically recommended every 30,000 to 60,000 miles (50,000 to 100,000 kilometres), or as specified by the manufacturer.
• Automatic Transmissions: Often have longer service intervals, ranging from 60,000 to 100,000 miles (100,000 to 160,000 kilometres). However, some manufacturers may recommend changes sooner, especially under severe driving conditions (towing, stop-start traffic, high temperatures).

Signs your gearbox oil needs changing:

• Rough or delayed gear changes: Difficulty shifting or clunking noises.
• Whining or humming noises: Especially when in neutral or when changing gears.
• Leaking oil: A reddish or brownish fluid under your car.
• Burning smell: Often indicates overheating due to low or degraded fluid.
• Discoloured or burnt-smelling fluid: If you check the dipstick (if available) and the fluid looks dark, thick, or smells burnt, it's a clear sign it needs replacing.

Checking Your Gearbox Oil Level and Condition

Checking gearbox oil levels can vary depending on the vehicle and transmission type.

• Manual Transmissions: Most manual gearboxes do not have a dipstick. Instead, they have a fill plug and a drain plug. The oil level is typically checked by removing the fill plug and ensuring the oil is up to the bottom of the fill hole.
• Automatic Transmissions: Many automatic transmissions have a dipstick, usually located near the engine oil dipstick, though it may be labelled differently (e.g., 'ATF' or a specific colour). Check the level with the engine running and the transmission in Park or Neutral (refer to your owner's manual for the correct procedure). The fluid should be at the 'HOT' or 'COLD' mark as appropriate.

When checking the fluid, also pay attention to its condition. Clean, clear fluid is ideal. If it's dark, cloudy, or has a burnt smell, it indicates a problem and the need for a change.

The Importance of Using the Correct Fluid

This cannot be stressed enough: always use the specific gearbox oil recommended by your vehicle's manufacturer. Using the wrong type of oil can have severe consequences:

• Incorrect Viscosity: Too thick or too thin fluid can lead to poor lubrication, increased wear, and inefficient operation.
• Incompatible Additives: Additives in one type of fluid can react negatively with seals or other components designed for a different fluid type, causing them to degrade or fail. For example, using GL-5 oil in a transmission designed for GL-4 can damage synchroniser rings.
• Damage to Automatic Transmissions: As mentioned, ATFs have very specific properties. Using the wrong fluid can lead to clutch slippage, transmission shudder, and internal damage.

Gearbox Oil Change vs. Flush

When it's time to replace the gearbox oil, you might encounter the terms 'oil change' and 'oil flush'.

• Gearbox Oil Change: This involves draining the old oil and refilling with new fluid. In manual transmissions, this usually replaces most of the old oil. In automatic transmissions, a simple drain and fill often leaves a significant amount of old fluid in the torque converter and cooler lines.
• Gearbox Oil Flush: This is a more comprehensive service where a cleaning agent is circulated through the transmission system before draining the old fluid. This helps to remove sludge and deposits. After the flush, new fluid is added. While a flush can be beneficial, it should be performed cautiously, especially on older vehicles with high mileage, as it can sometimes dislodge debris that could then block fluid passages. Always follow manufacturer recommendations or consult a trusted mechanic.

Common Questions About Gearbox Oil

Conclusion

Gearbox oil is the lifeblood of your vehicle's transmission. Understanding its purpose, the different types available, and the importance of regular maintenance is key to ensuring smooth gear changes, optimal performance, and the longevity of this vital component. Always refer to your owner's manual for the correct specifications and recommended service intervals. Neglecting your gearbox oil is a false economy that can lead to costly repairs down the line. Treat your transmission right, and it will serve you well for many miles to come.
