The braking system in your Ford C-Max is arguably the most critical safety feature. Its reliable operation is paramount, and any compromise can lead to dangerous situations, potentially resulting in injury or worse. One common issue that can compromise braking performance is a sticking brake caliper. Understanding the symptoms and causes of this problem is essential for any C-Max owner.
Symptoms of Sticking Brakes on a Ford C-Max
Several indicators can alert you to a potential problem with your Ford C-Max's brake calipers. Being aware of these signs can help you address the issue before it escalates.
The Smell of Trouble
One of the most noticeable symptoms of overheating brakes, often caused by a sticking caliper, is a distinct smell. As the brakes work harder and harder due to the constant friction from a caliper that isn't releasing properly, they can reach extremely high temperatures. This intense heat can cause the brake pad material to 'glaze'. Glazing reduces the effectiveness of your brakes, meaning your C-Max won't stop as efficiently. Crucially, this glazing process also emits a strong, unpleasant odour. Many people describe this smell as being similar to rotten eggs. If you detect this smell after driving, it's a strong indicator that your brakes are not functioning as they should.
Reduced Fuel Efficiency
If your Ford C-Max's brake calipers are sticking, even slightly, it will inevitably impact your fuel economy. A caliper that isn't fully retracting means the brake pads are in constant, albeit slight, contact with the brake rotor. This creates a continuous drag on the wheels. Your C-Max's engine then has to work significantly harder to overcome this drag and maintain speed, directly leading to a noticeable drop in your fuel mileage. Over time, this can become a costly issue.
Pulling to One Side
A sticking brake caliper, particularly on the front axle, can cause your vehicle to pull noticeably to one side when you're driving or braking. Imagine one front wheel is being held back by a dragging brake while the others are turning freely. This imbalance will create a steering effect. If the sticking caliper is on the passenger side, for instance, your C-Max will feel as though it is veering or steering towards the passenger side. This can be a particularly alarming sensation and a clear sign of a braking system malfunction. You might also notice uneven wear on your brake pads and rotors if this is the case.
Visible Smoke
The most dramatic and concerning symptom of severely sticking brakes is visible smoke. When brakes are subjected to prolonged and excessive friction due to a stuck caliper, they can generate an immense amount of heat. This heat can become so intense that it causes smoke to visibly billow out from behind the wheels. If you witness smoke emanating from your C-Max's wheels after parking, it's almost a certainty that your brakes are stuck. In such a scenario, it is extremely important that you do not drive the vehicle further. It requires immediate attention and repair to prevent further damage and ensure safety.
Common Causes of Sticking Brakes in a Ford C-Max
Several components within the braking system can contribute to a caliper sticking. Identifying the root cause is key to an effective repair.
Caliper Bolts and Boots
The brake caliper is mounted to the vehicle using caliper bolts. These bolts are designed to secure the caliper while allowing for slight movement, facilitating the retraction of the brake pads. To protect these crucial bolts from the harsh elements – such as water, dirt, and road salt – they are typically housed within rubber boots. These boots also help to maintain lubrication around the bolts. However, over time, these rubber boots can degrade, tear, or become damaged. When this happens, contaminants can enter the boot, leading to corrosion and seizing of the caliper bolts. If the bolts seize, they can prevent the caliper from moving freely, causing the brakes to stick. Fortunately, replacing caliper bolts and their associated boots is often a straightforward repair.
Caliper Slides and Shims

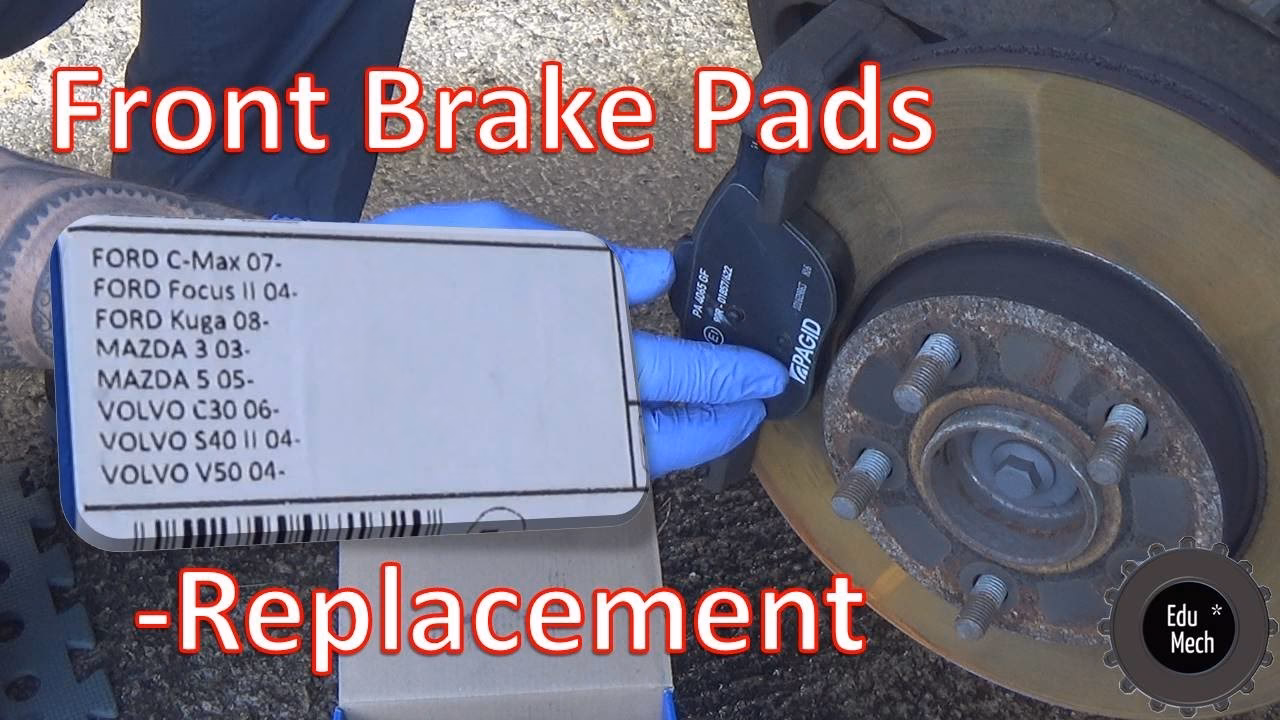

Your Ford C-Max's brake pads are designed to slide within the caliper bracket. This sliding action allows the pads to move into and out of contact with the brake rotor when the brakes are applied and released. Notches on the brake pads facilitate this movement. However, debris, rust, or even worn-out shims (thin metal plates that help seat the brake pads) can obstruct these slides. When the caliper slides become contaminated or corroded, they can hinder the smooth movement of the brake pads. This can result in the pads not fully retracting from the rotor after braking, leading to drag and overheating. When addressing this issue, it's advisable to clean the slides thoroughly and replace any worn shims. It's also a good opportunity to replace the brake pads, as they are likely to have suffered uneven wear due to the sticking caliper.
Caliper Pistons and Seals
The heart of the disc brake caliper is the piston. When you press the brake pedal, hydraulic fluid forces the piston outwards, pushing the brake pads against the rotor to create friction and slow the vehicle. A rubber seal surrounds this piston, preventing brake fluid from leaking out and keeping contaminants from entering the caliper bore. If this rubber seal becomes damaged, hardened, or cracked due to age or heat, it can cause the piston to lose its free movement. The seal can bind around the piston, preventing it from retracting fully. In many cases where the caliper piston is seized or the seal has failed, the entire brake caliper will need to be replaced. This is a more involved repair than just replacing bolts or cleaning slides.
Damaged Brake Hoses
The flexible rubber brake hose that connects the rigid brake line to the caliper can also be a source of sticking brakes. While the exterior of the hose might appear perfectly fine, the internal structure can degrade over time. The rubber lining inside the hose can break apart and form internal obstructions. When you apply the brakes, the hydraulic pressure travels through the hose to the caliper. However, if there's an internal blockage, this pressure can become trapped in the line after you release the brake pedal. This trapped pressure essentially keeps the caliper applied, preventing the brakes from releasing completely. Replacing a brake hose is a relatively simple job, but it's important to note that brake hoses are a critical safety component. It is highly recommended that if one brake hose fails, you replace all of them on the vehicle simultaneously. Following the replacement, the entire brake system will need to be bled to remove any air and ensure proper hydraulic function.
Crimped Brake Lines
Accidental damage to the rigid metal brake lines can also cause braking issues. A common cause of a crimped brake line is careless use of a floor jack. If a jack is positioned incorrectly or the vehicle is lowered onto a brake line, it can cause a severe bend or 'crimp' in the line. This crimp acts as a restriction, impeding the flow of brake fluid. Similar to a damaged hose, a crimped line can trap pressure, preventing the caliper from releasing properly. Repairing a crimped brake line typically involves replacing the entire affected section of the metal brake line. This can be a more complex repair, often requiring flaring tools and careful routing of the new line to match the original setup.
When to Replace Your Ford C-Max Brake Caliper
Deciding whether to repair or replace a brake caliper depends on the specific problem. Here's a general guideline:
| Problem | Likely Solution | Consideration |
|---|---|---|
| Seized caliper bolts/slides | Clean, lubricate, and replace boots/shims. | If corrosion is severe, replacement may be necessary. |
| Damaged rubber boots | Replace boots and lubricate bolts. | Ensure boots are correctly fitted. |
| Sticking caliper piston (due to seal failure) | Caliper replacement is usually required. | Can sometimes be rebuilt, but replacement is often more cost-effective and reliable. |
| Internal brake hose blockage | Replace the affected brake hose(s). | Replace all hoses on the same axle at the same time. |
| Crimped metal brake line | Replace the damaged section of the brake line. | Requires specialized tools and knowledge. |
If you experience any of the symptoms mentioned above, it's crucial to have your Ford C-Max's braking system inspected by a qualified mechanic. While some issues might be fixable with cleaning and minor part replacements, a seized caliper piston or severely damaged caliper housing often necessitates a complete caliper replacement. It's always better to err on the side of caution when it comes to your brakes.
Frequently Asked Questions (FAQ)
Q1: How much does it cost to replace a brake caliper on a Ford C-Max?
The cost can vary significantly depending on your location, the specific C-Max model year, and whether you opt for genuine Ford parts or aftermarket alternatives. Generally, you can expect to pay anywhere from £150 to £400 per caliper, including parts and labour. It’s advisable to get quotes from a few different reputable garages.
Q2: Can I drive my C-Max if the brake caliper is sticking?
While you might be able to drive short distances, it's not recommended. A sticking caliper compromises your braking ability, reduces fuel efficiency, and can lead to further damage to your brake system, including rotors and pads. In severe cases, it can even cause the wheel to seize. It's best to address the issue as soon as possible.
Q3: How can I tell if it's the front or rear caliper that's sticking?
If your C-Max pulls to one side when braking or driving, it usually indicates a problem with a front caliper. If you notice smoke or a burning smell, it could be either front or rear. A mechanic can accurately diagnose which caliper is causing the problem using specialized tools.
Q4: Should I replace both front or both rear calipers at the same time?
While not always strictly necessary, it is often recommended, especially for front calipers, to replace them in pairs. This ensures even braking performance and prevents potential issues with one side braking more effectively than the other. If you replace only one, you might notice a slight difference in braking feel.
Q5: Is it possible to rebuild a brake caliper?
Yes, it is possible to rebuild a brake caliper by replacing the internal seals and sometimes the piston. However, this requires specific tools and expertise. For many C-Max owners, replacing the entire caliper unit is often a more straightforward, reliable, and sometimes even more cost-effective solution, especially considering the labour involved in a rebuild.
Conclusion
Your Ford C-Max's braking system is a vital safety component. Recognizing the symptoms of a sticking brake caliper – such as unusual smells, reduced fuel economy, pulling to one side, or smoke – is crucial for timely intervention. Whether the cause is corroded caliper bolts, obstructed slides, a faulty piston seal, or a damaged brake hose, addressing these issues promptly will ensure your C-Max remains safe and reliable on the road. If you're unsure about diagnosing or repairing brake system problems, always consult a trusted mechanic. Your safety is paramount.
