DIY Brake Pad Replacement Guide

Replacing your car's brake pads is a crucial maintenance task that, when done correctly, can significantly improve your vehicle's stopping power and ensure your safety on the road. While it might seem daunting at first, with the right tools and a step-by-step approach, most DIY enthusiasts can tackle this job themselves. This guide will walk you through the process of replacing brake pads on the same axle, ensuring you maintain proper braking balance and performance.

Why Replace Brake Pads?

Brake pads are wear items, meaning they degrade over time with use. They are designed to create friction against the brake discs (rotors) to slow and stop your vehicle. As this friction occurs, the pad material gradually wears away. Ignoring worn brake pads can lead to:

• Reduced braking performance: Your car will take longer to stop, increasing the risk of accidents.
• Damage to brake rotors: If the pads wear down to the metal backing plate, they can severely damage the more expensive brake rotors.
• Brake judder or noise: Worn pads can cause vibrations and squealing noises when braking.
• Complete brake failure: In extreme cases, severely worn pads can lead to a loss of braking capability.

When to Replace Brake Pads

Several indicators suggest it's time for new brake pads:

• Squealing or grinding noises: Most pads have a wear indicator that produces a high-pitched squeal when the pads are low. A grinding sound often means the pads have worn down to the metal backing.
• Increased stopping distance: If you notice your car taking longer to stop than usual.
• Brake pedal feels spongy or sinks to the floor: This could indicate a problem with the brake fluid or the entire braking system, but worn pads can contribute.
• Visual inspection: You can often see the thickness of the brake pad material through the spokes of your wheels. If it's less than 3-4mm (about the thickness of a coin), it's time for replacement.

Tools and Materials You'll Need

Before you begin, gather all the necessary tools and materials. Having everything ready will make the process smoother and safer:

Step-by-Step Brake Pad Replacement

It is crucial to replace brake pads on both sides of the same axle at the same time. This ensures even braking force and prevents the vehicle from pulling to one side. Follow these steps carefully:

1. Prepare the Vehicle

Park your car on a flat, level surface. Engage the parking brake firmly. Loosen the lug nuts on the wheel you'll be working on, but do not remove them yet. For safety, place wheel chocks behind the wheels on the opposite axle.

2. Lift and Secure the Vehicle

Using your jack, lift the vehicle at the designated jacking point for the wheel you are working on. Once the wheel is off the ground, place a jack stand securely under a strong point of the chassis or frame, such as the subframe or a designated support point. Slowly lower the vehicle onto the jack stand. Remove the jack, then repeat the process for the other side of the same axle. Ensure both sides are securely supported.

3. Remove the Wheel

Now, completely remove the lug nuts and take off the wheel. Set it aside.

4. Locate the Brake Caliper

The brake caliper is the component that clamps down on the brake disc (rotor) to slow the wheel. It's usually located on the inside of the hub, enclosing the rotor.

5. Remove the Caliper Bolts

Brake calipers are typically held in place by two bolts, often called caliper slider pins or bolts. These bolts are usually located on the back of the caliper. You might need to hold the slider pin itself with a wrench while loosening the bolt. The number and size of these bolts can vary between vehicles. Sometimes, only the lower bolt needs to be removed to allow the caliper to pivot upwards, while other designs require both bolts to be removed.

6. Remove the Brake Caliper

Once the caliper bolts are removed, carefully lift the caliper off the brake disc. If it's stuck, you might need to gently pry it with a screwdriver. Do not let the caliper hang by the brake hose, as this can damage the hose. Use a piece of wire or a bungee cord to hang the caliper from the suspension component (like the strut or spring) to relieve stress on the brake line.

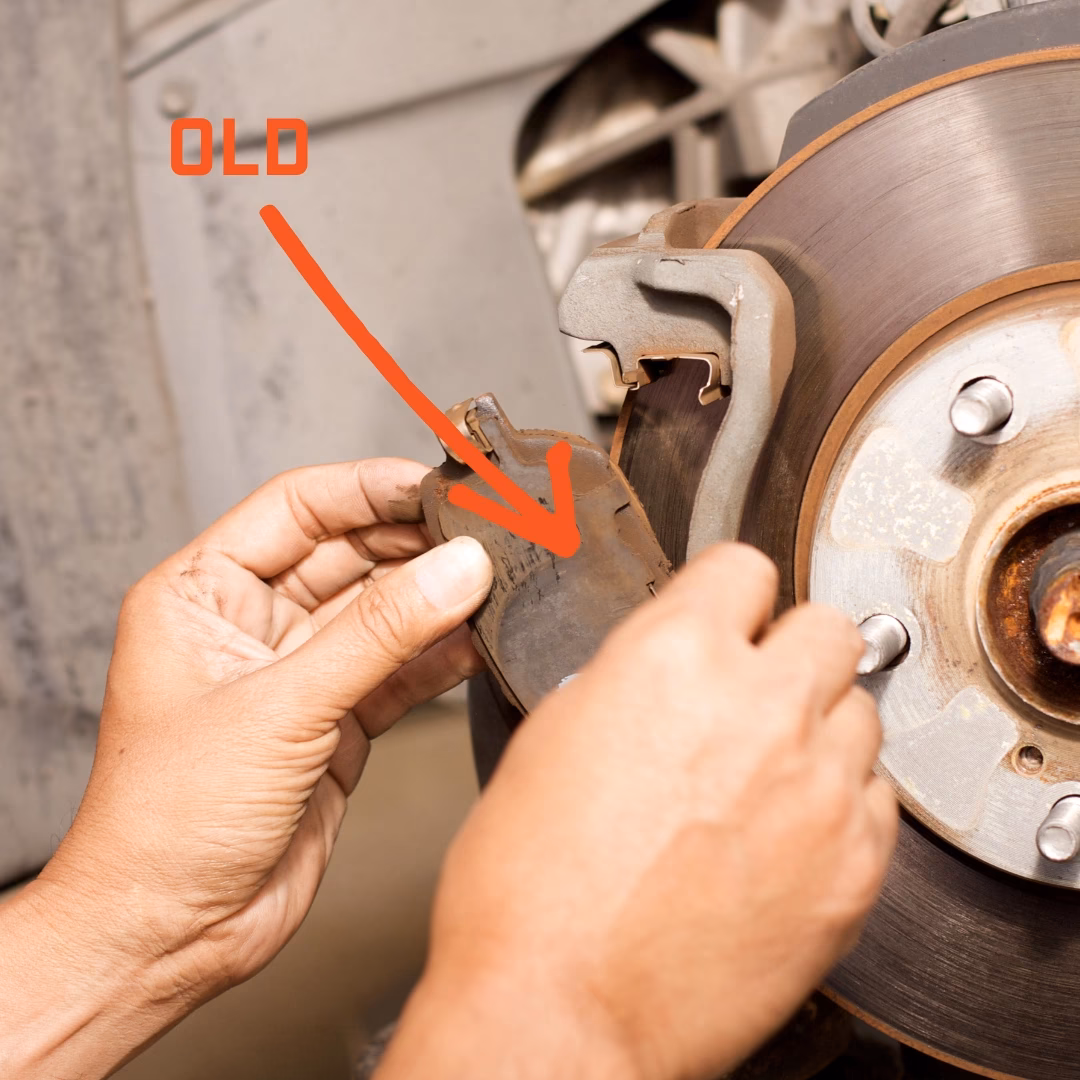

7. Remove the Old Brake Pads

The old brake pads should now be visible. They are usually held in place by clips or simply rest in the caliper bracket. You may need to use a flathead screwdriver or pry bar to gently lever them out. Note how the old pads are oriented, as the new ones will need to be installed in the same way. Pay attention to any shims or anti-rattle clips; these should be transferred to the new pads or replaced with new ones if supplied.

8. Compress the Caliper Piston

Before installing the new, thicker brake pads, you need to push the caliper piston back into its housing. This creates the necessary space. You can use a C-clamp for this. Place the clamp against the piston and the back of the caliper bracket, then slowly tighten the clamp to push the piston back. If there's a lot of resistance, you may need to open the brake fluid reservoir cap (located under the bonnet) slightly to allow fluid to return. Be careful not to overfill the reservoir. You might want to place a rag under the reservoir cap to catch any overflow.

9. Clean and Lubricate

Use a wire brush to clean any rust and debris from the caliper bracket where the brake pads sit. Also, clean the slider pins if you removed them. Apply a small amount of high-temperature brake lubricant to the slider pins and the areas where the brake pads will contact the caliper bracket and the caliper itself (where the shims or clips touch). Avoid getting lubricant on the friction material of the pads or the rotor surface, as this will severely compromise braking. Many new pads come with new hardware clips; clean the old ones and install the new ones if applicable.

10. Install the New Brake Pads

Slide the new brake pads into the caliper bracket, ensuring they are seated correctly and facing the right direction. Make sure any shims or clips are in place.

11. Reinstall the Brake Caliper

Carefully place the brake caliper back over the new brake pads and rotor. Align the bolt holes and reinsert the caliper bolts. Tighten them securely, but use a torque wrench to tighten them to the manufacturer's specified torque. If you removed the slider pins, ensure they are also properly seated and secured.

12. Reinstall the Wheel

Place the wheel back onto the hub and thread on the lug nuts. Tighten them by hand as much as possible. Lower the vehicle off the jack stands.

13. Final Tightening

With the wheel back on the ground, use your lug wrench to tighten the lug nuts in a star pattern. Then, use the torque wrench to tighten them to the manufacturer's specified torque. This ensures the wheel is mounted evenly and securely.

14. Repeat for the Other Side

Repeat steps 3 through 13 for the other side of the same axle. It is absolutely essential to replace both pads on an axle simultaneously.

15. Bed-In the New Brake Pads

After replacing the pads, you need to 'bed them in'. This process helps the new pad material transfer evenly to the rotor surface, ensuring optimal braking performance and preventing premature wear or noise. The procedure can vary depending on the type of brake pad, so consult the manufacturer's instructions. A common method involves a series of moderate stops from around 30-40 mph, followed by a few harder stops from higher speeds, without coming to a complete halt. Allow the brakes to cool down afterwards without holding the pedal down.

16. Check Brake Fluid

Before driving, pump the brake pedal several times until it feels firm. This ensures the caliper pistons are fully extended and the brake fluid is circulating properly. Check the brake fluid level in the reservoir and top it up if necessary with the correct type of brake fluid specified in your owner's manual. Never use a different type of brake fluid.

Common Mistakes to Avoid

• Not replacing pads in pairs: This is the most critical mistake.
• Forgetting to compress the caliper piston: You won't be able to fit the new pads.
• Overfilling the brake fluid reservoir: This can damage components.
• Getting grease or oil on the rotor or pad friction material: This will ruin both and compromise braking.
• Not using jack stands: Extremely dangerous.
• Not tightening lug nuts and caliper bolts to the correct torque: Can lead to wheel detachment or caliper issues.
• Forgetting to pump the brake pedal: You'll have no brakes until you do.

Frequently Asked Questions (FAQs)

Q1: How long does it take to replace brake pads?

For an experienced DIYer, replacing brake pads on one axle can take anywhere from 30 minutes to 1.5 hours. For a beginner, it might take longer, perhaps 2-3 hours per axle. The complexity of your vehicle's braking system can also affect the time.

Q2: Can I replace just one brake pad?

No, you must always replace brake pads in pairs on the same axle. This ensures even braking pressure and prevents uneven wear on the brake disc (rotor).

Q3: What is 'bedding in' brake pads?

'Bedding in' is a process of breaking in new brake pads and rotors to ensure optimal performance and longevity. It involves a series of controlled stops to transfer a thin, even layer of pad material onto the rotor surface.

Q4: Do I need to replace the brake rotors?

You should inspect your brake rotors for wear, scoring, or warping. If they are significantly worn beyond the minimum thickness specification, have deep grooves, or exhibit signs of warping (causing pulsation when braking), they should be replaced along with the pads. Many mechanics recommend replacing rotors when replacing pads if they show significant wear.

Q5: What is brake fade?

Brake fade is a temporary loss of braking effectiveness, usually caused by overheating the brake system. This can happen during prolonged or heavy braking, such as descending a long hill. While new pads can help prevent fade, proper bedding-in and ensuring the rest of the brake system (fluid, lines, calipers) is in good condition are also crucial.

By following these comprehensive steps, you can confidently replace your brake pads, ensuring your vehicle remains safe and reliable. Remember, if you are ever unsure about any part of the process, it is always best to consult a qualified mechanic.
