Rear Brake Pad & Caliper Replacement Explained

Maintaining your vehicle's braking system is paramount for safety and performance. While often overlooked in favour of the front brakes, the rear brakes play a crucial role in stabilising your vehicle during deceleration and are vital for effective emergency stopping. For many, the idea of tackling brake maintenance can seem daunting, but with the right guidance, tasks like changing rear brake pads can be surprisingly straightforward, particularly on models like the Suzuki C90. This article will delve into the nuances of both rear brake pad replacement and, for those more complex issues, the process of changing the entire brake caliper, providing a comprehensive guide to keep your vehicle stopping safely.

It's important to distinguish between replacing brake pads and replacing the entire brake caliper. While the provided information highlights the remarkable ease of changing rear brake pads on a C90, changing the caliper itself is a more involved procedure. We'll cover both scenarios to ensure you're fully equipped with the knowledge needed, whether you're performing routine maintenance or addressing a more significant braking issue.

Understanding Your Rear Braking System

Before diving into the replacement process, a basic understanding of how your rear braking system works is beneficial. Most modern vehicles utilise a disc brake system on all four wheels. The rear brake caliper houses the brake pads and pistons. When you press the brake pedal, hydraulic fluid is pushed through the brake lines, forcing the caliper pistons to extend and press the brake pads against the brake disc (rotor). This friction slows the wheel down. Over time, the brake pads wear down, necessitating replacement. Less commonly, the caliper itself may fail due to seized pistons, fluid leaks, or damage, requiring a full replacement.

Changing Rear Brake Pads on a Suzuki C90: A Swift Job

The Suzuki C90 is renowned for its user-friendly design when it comes to rear brake pad replacement. What might be a lengthy job on other vehicles can be surprisingly quick here, often taking less than 10 minutes for those familiar with the process. This ease is largely due to a clever design that minimises the number of fasteners and simplifies access.

Tools You'll Likely Need for Pad Replacement:

• Socket set or combination spanners (for wheel nuts, if removing the wheel)
• Hex key set (specifically for the pad retaining pin and protective cap bolts)
• Flat-head screwdriver or a brake caliper piston compression tool
• Wire brush (for cleaning)
• Brake cleaner spray
• High-temperature brake grease (for contact points, not friction surfaces)
• New rear brake pads

Step-by-Step C90 Rear Brake Pad Replacement:

1. Preparation and Safety First: Park your C90 on a level, firm surface. Engage the parking brake. If you need more access or space, consider jacking up the rear of the vehicle and supporting it securely with axle stands. Removing the rear wheel can provide better access, though it might not be strictly necessary for the C90's design.
2. Locate the Caliper and Protective Cap: The rear brake caliper will be visible near the rear wheel. On the C90, you'll notice an aluminium protective cap positioned on the top of the caliper. This cap shields the internal components and pad retaining pin.
3. Remove the Protective Cap: This cap is typically secured by two small hex bolts. Using the appropriate size hex key, carefully loosen and remove these two bolts. Once they are out, gently lift off the aluminium protective cap to expose the pad retaining pin and the brake pads themselves.

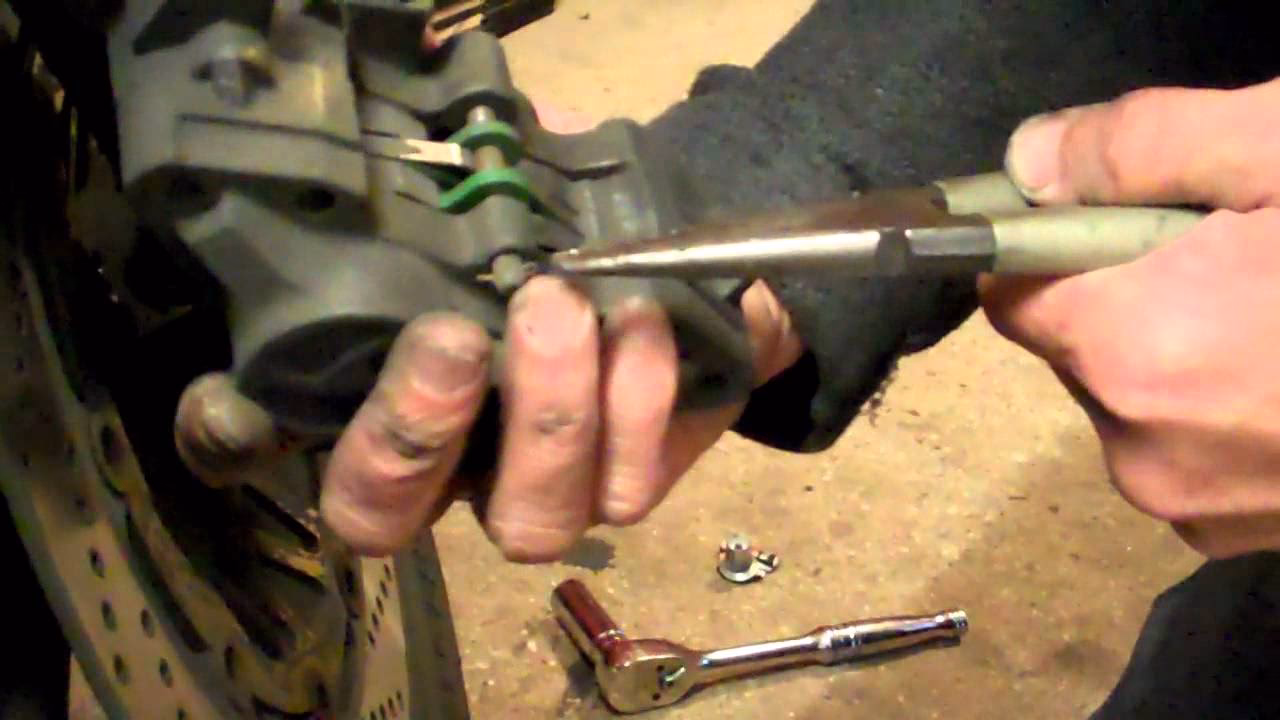

4. Remove the Pad Retaining Pin: This is the key component holding your brake pads in place. The C90's design uses a single hex bolt, which acts as a pin, running through the top of the pads. Using the correct hex key, loosen and completely remove this pin. It should slide out with relative ease.
5. Decompress the Caliper Pistons: Before you can remove the old pads, you'll need to create a little space by pushing the caliper pistons back into their bores. This is crucial as new pads are thicker than worn ones. You can often do this gently with a flat-head screwdriver, carefully prying between the old pad and the caliper, or by using a dedicated brake caliper piston compression tool. Push them back just enough to allow the pads to move freely. Be careful not to damage the piston boots.
6. Remove the Old Brake Pads: With the retaining pin removed and the pistons slightly decompressed, the old brake pads will literally "fall through" the calipers and onto the floor below. This is a testament to the C90's straightforward design. Collect them for proper disposal.
7. Clean and Inspect: Now is a good time to clean the caliper thoroughly. Use a wire brush to remove any accumulated brake dust and debris. Follow up with brake cleaner spray to degrease and clean all surfaces. Inspect the brake disc for any scoring, deep grooves, or excessive wear. Also, check the caliper pistons and their rubber boots for any signs of damage or leaks.
8. Install the New Brake Pads: Carefully slide the new brake pads into position within the caliper. Ensure they are correctly oriented and sit flush. The pads will naturally hang on the internal structure, ready for the pin.
9. Reinstall the Pad Retaining Pin: Slide the single hex bolt (pin) back through the caliper and the new pads, securing them in place. Tighten it securely, but do not overtighten, as this is a critical component.
10. Reinstall the Protective Cap: Place the aluminium protective cap back over the caliper and secure it with the two small hex bolts you removed earlier. Tighten these bolts gently.
11. Final Checks: Before driving, pump the brake pedal several times until it feels firm. This re-seats the pistons against the new pads. Check the brake fluid reservoir level and top it up if necessary (use the correct fluid type).
12. Bedding In: New brake pads require a 'bedding-in' period. Drive gently for the first 100-200 miles, avoiding harsh braking. This allows the pad material to transfer evenly onto the disc, optimising braking performance and longevity.

As you can see, for the C90, changing the rear brake pads is indeed a remarkably quick and straightforward task once you understand the simple mechanism. It truly is about a 5-minute job for an experienced hand.

When to Consider a Full Rear Brake Caliper Change

While pad replacement is routine, changing the entire brake caliper is a less frequent but sometimes necessary repair. This is a more involved process as it deals directly with the hydraulic system.

Signs You Might Need a New Caliper:

• Leaking Brake Fluid: Visible fluid leaks around the caliper indicate a seal failure.
• Seized Piston: The caliper piston fails to retract or extend properly, leading to uneven pad wear, pulling to one side, or a dragging brake.
• Damaged Caliper Body: Physical damage from an impact or corrosion can compromise the caliper's integrity.
• Soft or Spongy Brake Pedal: Can be a symptom of internal caliper issues, though often related to air in the system.
• Excessive Noise: Persistent grinding or squealing even with new pads can sometimes point to a faulty caliper.

Tools You'll Need for Caliper Replacement (More Extensive):

• All tools from pad replacement list
• Flare nut wrench (for brake line fittings)
• Brake bleeding kit (one-person bleeder or a helper)
• Drain pan for old brake fluid
• New brake caliper (ensure it matches your vehicle's specifications)
• New banjo bolt washers (if applicable)
• Torque wrench
• Brake fluid (correct DOT rating)

General Steps for Rear Brake Caliper Replacement:

1. Safety and Preparation: As with pad replacement, ensure the vehicle is safely supported on axle stands. Remove the rear wheel.
2. Disconnect the Brake Line: Place a drain pan underneath the caliper. Using a flare nut wrench, carefully loosen and disconnect the brake line from the caliper. Be prepared for brake fluid to drip out.
3. Unbolt the Caliper: The caliper is typically held to the caliper mounting bracket (or directly to the hub assembly) by two large bolts. Loosen and remove these bolts. The caliper should then be free to remove.
4. Install the New Caliper: Position the new caliper over the brake disc. Reattach the two mounting bolts and torque them to the manufacturer's specifications.
5. Reconnect the Brake Line: Carefully reattach the brake line to the new caliper. Ensure the fitting is clean and threads properly. If your caliper uses a banjo bolt, use new sealing washers on either side of the banjo fitting. Tighten securely, but do not overtighten.
6. Install New Brake Pads: Insert new brake pads into the caliper. Refer to the pad replacement steps above for guidance.
7. Bleed the Brake System: This is perhaps the most critical step. Air will have entered the brake line when you disconnected the old caliper. You must bleed the air out to restore proper hydraulic pressure. This involves opening the bleed nipple on the caliper while a helper pumps the brake pedal, or using a vacuum/pressure bleeder. Continue until no more air bubbles are visible in the fluid exiting the bleed nipple. Start with the caliper furthest from the master cylinder and work your way closer.
8. Final Checks: Pump the brake pedal until firm. Check the brake fluid reservoir level and top up if needed. Inspect all connections for leaks. Reinstall the wheel and lower the vehicle.
9. Test Drive: Perform a cautious test drive in a safe area, gradually increasing brake pressure to ensure proper function.

Changing an entire brake caliper is a more involved task, often requiring specialised tools and a good understanding of hydraulic systems. If you're unsure, it's always best to consult a qualified mechanic.

Comparative Table: Pad vs. Caliper Replacement

Frequently Asked Questions (FAQs)

Q: How often should I change my rear brake pads?

A: The lifespan of brake pads varies significantly based on driving style, vehicle type, and pad material. Generally, rear brake pads last longer than front pads, often between 20,000 to 60,000 miles. It's best to inspect them at least annually or every 10,000 miles.

Q: Do I need to bleed the brakes when only changing pads?

A: No, you typically do not need to bleed the brakes when only replacing pads. You only push the fluid back into the reservoir. Bleeding is necessary when the hydraulic system has been opened, such as during a caliper replacement or when replacing brake lines.

Q: Can I change just one caliper, or do I need to change both rear calipers at the same time?

A: While it's generally recommended to replace brake components in pairs (axle sets) to ensure balanced braking, if only one caliper has failed and the other is in perfect working order, you can often get away with replacing just the faulty one. However, always inspect the other caliper thoroughly for any signs of wear or impending failure.

Q: What is 'bedding in' new brake pads, and why is it important?

A: Bedding in, or 'break-in', is the process of gently using new pads to transfer a thin, even layer of friction material onto the brake disc. This process ensures optimal braking performance, reduces noise, and extends the life of both the pads and discs. It typically involves a series of moderate stops from increasing speeds without coming to a complete stop, allowing the brakes to cool between cycles.

Q: My brake pedal feels spongy after changing my caliper. What could be wrong?

A: A spongy brake pedal after a caliper change almost certainly indicates that there is still air trapped in the brake lines. You will need to re-bleed the brake system thoroughly until all air bubbles are expelled and the pedal feel is firm. This is a common issue and highlights the importance of proper bleeding technique.

Q: Is the process for a C50 similar to a C90 for rear brake pads?

A: While many Suzuki models share similar design philosophies, it's not guaranteed that the C50's rear brake pad replacement process will be identical to the C90's. Always consult your specific vehicle's service manual or a trusted repair guide for the most accurate and model-specific instructions. While the general principles of disc brake pad replacement are similar across many vehicles, the exact fastener types, locations, and unique features like the C90's 'floating pad' design can differ significantly.

Conclusion

Whether you're tackling a simple rear brake pad replacement on a Suzuki C90 or embarking on the more involved task of changing an entire brake caliper, understanding the process is key. With the right tools, a methodical approach, and a focus on safety, you can confidently maintain your vehicle's braking system, ensuring reliable and safe stops for miles to come. Remember, when in doubt, especially concerning critical safety components like brakes, it's always wise to seek professional assistance. However, for the straightforward C90 rear pad change, you might just surprise yourself with how quickly and easily you can get the job done!
