Tiger 1050 Brakes: Stopping Power Unveiled

When you're out on the open road, whether it's for a spirited ride through winding country lanes or a long-distance tour, the confidence that comes from reliable stopping power is absolutely paramount. The Triumph Tiger 1050, a motorcycle that elegantly transitioned from its dual-purpose roots to embrace a more sport/street-oriented persona, is no exception. This evolution wasn't just about its powerful three-cylinder engine or its agile 17-inch cast wheels; it was fundamentally underpinned by a sophisticated braking system designed to handle its dynamic capabilities. Understanding the intricacies of your Tiger 1050's brakes isn't just for mechanics; it's essential for every rider who values safety, performance, and the longevity of their cherished machine.

The Triumph Tiger 1050, launched in 2007 as the successor to the Tiger 955i, marked a significant shift in Triumph's adventure-touring line-up. It retained the robust 1,050 cc, liquid-cooled, DOHC, in-line 3-cylinder engine, but its focus moved squarely towards on-road performance. This re-orientation necessitated a braking system that could match its enhanced acceleration and handling. The engineers at Hinckley equipped the Tiger 1050 with components that scream performance, ensuring that this capable sport-tourer could stop as effectively as it accelerated and cornered.

The Core of Your Stopping System: Tiger 1050 Brake Specifications

The braking system on the Triumph Tiger 1050 is a testament to its sport-oriented design. It features a robust setup at both the front and rear, engineered to provide excellent feel, powerful deceleration, and consistent performance under various riding conditions. This focus on high-performance braking is a key indicator of the bike's shift away from purely off-road capabilities.

Front Brakes: Precision and Power

At the business end of the Tiger 1050, you'll find a pair of impressive components designed for maximum stopping force. The front braking system consists of:

• Twin 320 mm Floating Discs: These large diameter discs provide a substantial surface area for the brake pads to grip, contributing to immense stopping power. The 'floating' design allows the disc to move slightly relative to the hub, which helps to prevent warping under extreme heat and ensures the pads make full, even contact across the disc face, improving both performance and longevity.
• 4-Piston Radial Callipers: The use of four-piston callipers means that each calliper has four pistons to push the brake pads against the discs, distributing the clamping force more evenly and efficiently. The 'radial' mounting of these callipers is a direct nod to racing technology. Radial callipers are bolted directly to the fork leg, running parallel to the wheel's radius. This mounting method reduces flex in the calliper under heavy braking, leading to a more direct and consistent feel at the lever, and ultimately, superior stopping power. This is a significant upgrade from more conventional axial-mounted callipers and clearly signifies the Tiger 1050's sportier intentions.

Rear Brake: Stability and Control

While the front brakes handle the majority of the stopping workload, the rear brake plays a crucial role in stability, fine-tuning speed, and low-speed manoeuvring. The Tiger 1050's rear braking system is equally well-equipped:

• Single 255 mm Disc: A generously sized single disc provides ample braking surface for the rear wheel.
• 2-Piston Calliper: This calliper, while smaller than its front counterparts, is perfectly adequate for the rear wheel's braking demands, offering balanced stopping power and control.

The combination of these components ensures that the Triumph Tiger 1050 provides a confident and controlled braking experience, whether you're shedding speed rapidly for a tight corner or simply coming to a smooth stop at traffic lights.

The Advantage of ABS

Recognising the importance of enhanced safety features, Triumph offered an Anti-lock Braking System (ABS) as an option on the Tiger 1050 from its initial launch in 2007. Furthermore, for the 2009 special edition version, ABS brakes were included as standard, alongside a two-box pannier kit and handguards. ABS is a critical safety feature, especially in unpredictable road conditions. It prevents the wheels from locking up under hard braking, allowing the rider to maintain steering control and reduce the risk of skidding, particularly on wet or slippery surfaces. This makes the Tiger 1050 an even more appealing and safer choice for riders covering significant mileage.

Key Brake Specifications at a Glance

To provide a clear overview of the Triumph Tiger 1050's braking system, here's a comparative table:

Maintaining Your Tiger 1050's Braking System

To ensure your Triumph Tiger 1050 continues to provide optimal stopping performance, regular maintenance is absolutely crucial. This includes routine inspections, proper cleaning, and timely replacement of wear components like brake pads. Neglecting your brakes can compromise safety and lead to costly repairs down the line.

Removing a Brake Calliper on Your Tiger 1050

Whether you're replacing pads, inspecting the system, or performing a deeper clean, knowing how to remove a brake calliper is a fundamental skill. Here's a general guide for the rear calliper, based on common practices:

1. Prepare the Motorcycle: First and foremost, ensure your motorcycle is stable and secure. Use a paddock stand or centre stand to raise the rear wheel off the ground. This provides clear access to the calliper and prevents the bike from moving unexpectedly. Safety first!
2. Locate the Mounting Bolt: Identify the bolt (or bolts) that secure the brake calliper to the swingarm or frame. On the Tiger 1050, this is typically a single, robust bolt for the rear calliper.
3. Remove the Mounting Bolt: Using a suitably sized socket wrench, carefully loosen and remove the mounting bolt. Keep track of any washers or spacers associated with the bolt.
4. Clear the Calliper: Once the bolt is removed, gently pull the calliper away from the brake disc. You may need to wiggle it slightly to disengage it from the mounting bracket or slide pins.
5. Position the Calliper Safely: Once free, push the calliper to one side, ensuring it hangs clear of the rear wheel. Be extremely careful not to put any strain on the brake hose. It's often advisable to use a bungee cord or zip tie to secure the calliper to the swingarm or frame, preventing it from dangling and potentially damaging the brake hose or itself.

Always consult your Triumph Tiger 1050's official workshop manual for precise torque specifications and any model-specific instructions.

Replacing Piston Pads and Calliper Care

When it comes to replacing brake pads, proper technique and cleanliness are paramount. One often overlooked step that can lead to future problems is thoroughly cleaning the brake pistons before pushing them back into the calliper body. If you don't do this, any grime, brake dust, or corrosion that has accumulated on the exposed part of the piston will be forced past the delicate seals as the piston is compressed, potentially damaging them and leading to fluid leaks or sticky pistons.

Steps for Clean Pad Replacement:

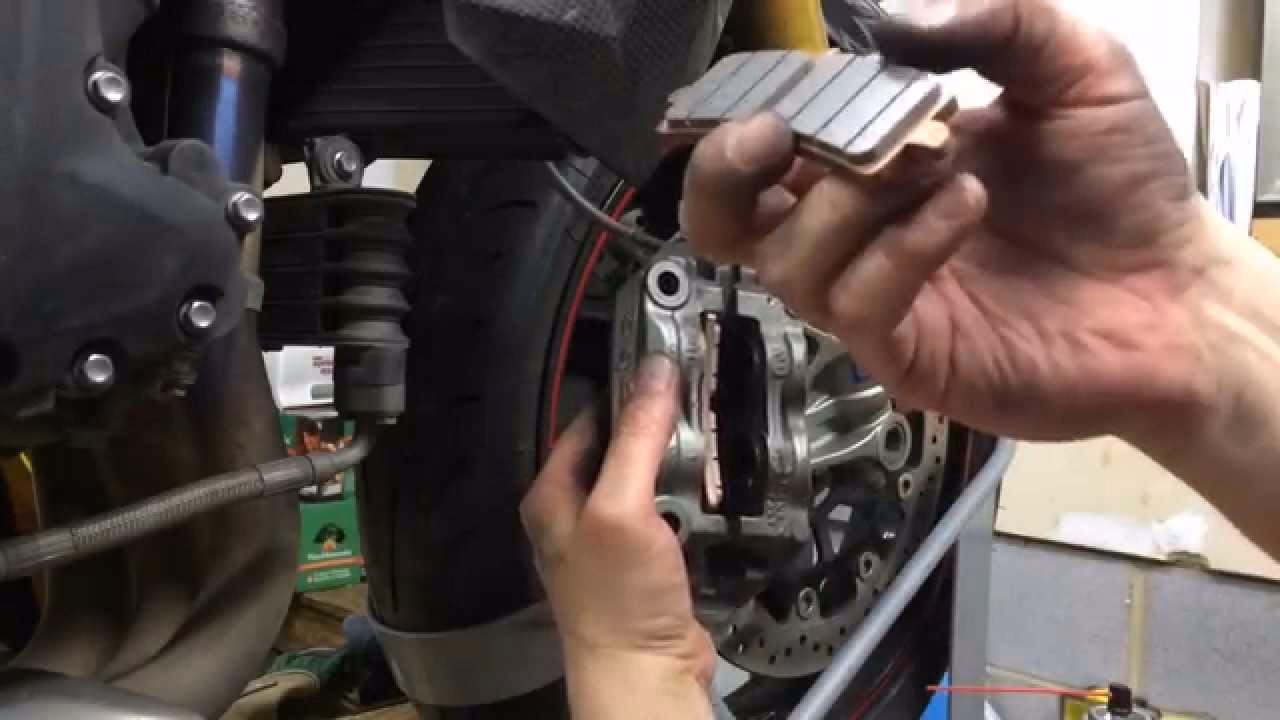

1. Remove Old Pads: With the calliper off the disc (or with enough clearance), remove the retaining pin(s) and slide out the old brake pads. Observe how they are fitted, as the new ones will go in the same way.
2. Clean the Pistons: Before attempting to push the pistons back, spray them generously with a dedicated brake cleaner. Then, using an old toothbrush or a non-abrasive brush, scrub away any visible dirt or residue from the exposed piston surfaces. You might need to gently pry the pistons out a millimetre or two to expose more of the dirty surface, but do not fully remove them. Repeat until the pistons are visibly clean.
3. Compress Pistons: Using a brake piston spreader tool or a suitable lever (like a large flat-blade screwdriver, carefully applied), gently and evenly push the pistons back into the calliper bore. This makes space for the new, thicker brake pads. Be slow and controlled to avoid damaging the seals.
4. Install New Pads: Insert the new brake pads, ensuring they are correctly seated and aligned. Reinsert the retaining pin(s).
5. Grease the Retaining Pin Thread: A crucial tip for longevity and ease of future maintenance is to apply a small amount of high-temperature grease (such as copper grease or a specific brake grease) to the thread of the retaining pin. While the shaft of the pin doesn't necessarily need greasing, the thread is highly susceptible to seizing due to heat and corrosion. Greasing this thread will make future pad changes significantly easier and prevent seized pins.
6. Reinstall Calliper: Carefully slide the calliper back over the brake disc, ensuring the pads straddle the disc correctly. Reinsert and tighten the mounting bolt to the manufacturer's specified torque.
7. Pump the Brake Lever: Once everything is reassembled, pump the brake lever (or pedal for the rear) several times until firm pressure is restored. This pushes the pistons out and seats the new pads against the disc.

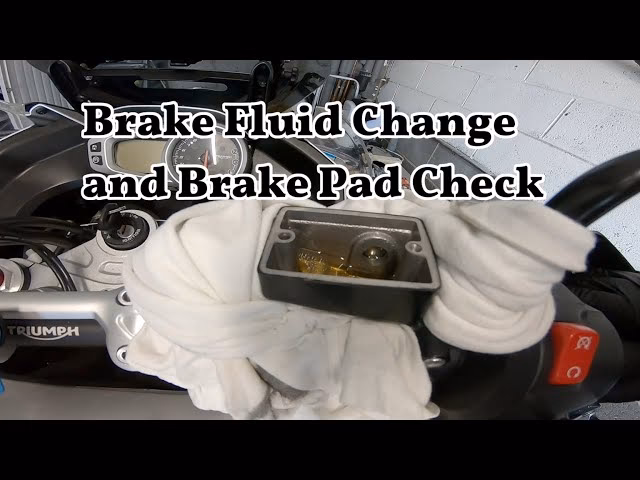

8. Check Fluid Level: Verify the brake fluid level in the reservoir and top up if necessary with the correct DOT-rated fluid.

Impact of Suspension on Braking Performance

While this article focuses on the brakes themselves, it's worth noting that your motorcycle's suspension setup significantly influences braking effectiveness and feel. The Triumph Tiger 1050 features 43 mm upside-down forks at the front with adjustable pre-load, rebound, and compression damping, and a monoshock at the rear with adjustable preload and rebound damping. These adjustments aren't just for comfort or cornering; they directly impact how the bike behaves under braking.

For instance, if your front suspension is too soft, it can 'dive' excessively under braking, transferring too much weight forward too quickly, which can destabilise the bike. Conversely, a well-tuned suspension allows for a controlled weight transfer, keeping both wheels optimally loaded for maximum grip during deceleration. Adjusting the ride height, whether through 'jack up' or 'lowering' kits, also alters the bike's geometry (rake and trail), which affects steering response and high-speed stability. A higher rear can quicken steering and turn-in, while a lower rear generally increases high-speed stability. These characteristics, in turn, influence how confidently and effectively you can apply the brakes in different scenarios. Therefore, a holistic approach to motorcycle maintenance includes ensuring your suspension is properly set up for your riding style and the road conditions, complementing your robust braking system.

Frequently Asked Questions About Triumph Tiger 1050 Brakes

What type of brakes does the Triumph Tiger 1050 have?

The Triumph Tiger 1050 features a high-performance braking system. At the front, it is equipped with twin 320 mm floating discs paired with 4-piston radial callipers. The rear brake consists of a single 255 mm disc with a 2-piston calliper. This setup is designed for strong, consistent stopping power, reflecting the bike's sport/street orientation.

Does the Triumph Tiger 1050 come with ABS?

Yes, ABS (Anti-lock Braking System) was available as an option on the Triumph Tiger 1050 from its launch in 2007. For the 2009 special edition model, ABS was included as a standard feature, enhancing rider safety by preventing wheel lock-up during hard braking.

How do I remove a brake calliper on my Tiger 1050?

To remove a brake calliper, particularly the rear one, first, secure your motorcycle on a stand so the wheel is off the ground. Then, locate and remove the bolt(s) mounting the calliper to the frame or swingarm using a socket wrench. Once the bolt is out, gently pull the calliper away from the brake disc and carefully secure it out of the way, ensuring not to strain the brake hose.

What should I do when replacing brake pads on my Tiger 1050?

When replacing brake pads, it's crucial to clean the calliper pistons thoroughly before compressing them back into the calliper body. Use brake cleaner and a brush to remove any grime. Additionally, always apply a small amount of high-temperature grease to the threads of the brake pad retaining pins to prevent them from seizing, making future maintenance much easier.

Can I upgrade the brakes on my Triumph Tiger 1050?

While the standard braking system on the Tiger 1050 is already very capable, some riders opt for upgrades such as aftermarket brake pads with different compounds (e.g., sintered for more aggressive braking), braided steel brake lines for a firmer lever feel, or higher-performance brake fluid. Any modifications should be done by a qualified technician and ensure compatibility and safety standards are met.

Conclusion

The braking system of your Triumph Tiger 1050 is a critical component that underpins its performance and, more importantly, your safety on every ride. With its advanced twin floating discs and radial callipers at the front, complemented by a capable rear setup, the Tiger 1050 is equipped to deliver confident and controlled stopping power. Understanding these components, coupled with regular and meticulous maintenance, including proper cleaning and lubrication during pad changes, will not only ensure your bike performs optimally but also significantly extends the life of your braking system. Always remember, well-maintained brakes are not just about stopping; they're about control, confidence, and the pure joy of riding.
