Peugeot 3008 Parking Brake Faulty? Here's Why.

It's a moment no car owner wants to experience: you hop into your Peugeot 3008 or 5008, turn the ignition, and instead of the familiar hum of the engine, you're greeted by an ominous 'Parking Brake Faulty' message emblazoned across your Multi-Function Display (MFD). This often comes hand-in-hand with a jarring 'STOP - Brake error' warning, leaving your car stubbornly immobile. If you've found yourself in this predicament, perhaps even having to resort to a tow, you're certainly not alone. This particular issue, while alarming, frequently points to a common, yet often overlooked, suspect.

The Unexpected Culprit: Your Car Battery

While a 'Parking Brake Faulty' message might immediately lead your thoughts to the complex braking system itself, the experience of many Peugeot 3008 and 5008 owners, including those who've faced this exact scenario, suggests a much simpler, yet critically important, component is often to blame: your car's battery. It might seem counterintuitive, but in modern vehicles, especially those equipped with Electronic Parking Brakes (EPB), a weak or failing battery can trigger a cascade of seemingly unrelated fault messages.

Consider the case of a 3008 owner whose two-month-old battery (an INCOE brand) was diagnosed as 'leaking and weak' after their car refused to start, displaying the very 'Parking Brake Faulty' and 'STOP - Brake error' messages. Despite the initial panic and a tow to the dealership, the car eventually started, with the fault appearing only intermittently during testing. This strongly indicates that insufficient voltage or current from the battery was causing the electronic systems to malfunction.

This isn't unique to Peugeot. Owners of other vehicles with EPBs, such as the Renault Grand Scenic, report similar fault messages appearing when their car battery is weak or dying. A low battery can cause the car's sophisticated electronic control units (ECUs) to behave erratically. The EPB system, being entirely electronic, is particularly sensitive to voltage fluctuations. When the battery isn't providing consistent, adequate power, the EPB module might not receive enough voltage to properly engage or disengage, leading it to report a 'fault' even if the mechanical components are sound. It can even make the car behave as if the parking brake is engaged, even when it has been manually or automatically released.

Diagnosing the Battery Issue

If you encounter the 'Parking Brake Faulty' message and your Peugeot 3008 won't start, the first step should always be to check your battery. Even if it's relatively new, as in the example above, a faulty cell or an internal leak can compromise its performance. Here's what to consider:

• Voltage Check: A healthy car battery should read around 12.6 volts when fully charged and the engine is off. Anything significantly lower, especially below 12.0 volts, indicates a weak battery.
• Load Test: This is crucial. A battery might show good voltage but fail under load, meaning it can't deliver enough current to crank the engine and power the complex electronics simultaneously. Most garages and auto parts stores can perform a load test for you.
• Visual Inspection: Look for any signs of leakage (corrosion around the terminals), bulging, or cracks in the battery casing.
• Age: While the example shows a two-month-old battery failing, car batteries generally have a lifespan of 3-5 years. If yours is older, it's a prime suspect.

Replacing a weak or faulty battery often resolves these seemingly complex electronic issues. It's a relatively straightforward and less expensive fix compared to delving into the EPB system itself.

Beyond the Battery: Other Potential EPB Issues

While the battery is a frequent cause, it's important to acknowledge that other issues can genuinely affect your Peugeot's electronic parking brake. These are typically more complex and require professional diagnosis:

• EPB Motor Malfunction: Each rear brake caliper has a small electric motor that engages and disengages the parking brake. These can fail over time.
• Wiring and Connectors: Damaged wiring or corroded connectors leading to the EPB module or motors can disrupt communication and cause faults.
• EPB Control Module: The brain of the system, the EPB control module, can sometimes malfunction, requiring replacement or reprogramming.
• Brake Fluid Level/Pressure: While less common for an EPB-specific fault, low brake fluid or issues with the hydraulic system can sometimes trigger general brake warnings.

If a new, fully charged battery doesn't resolve the issue, or if the fault persists, it's time to seek assistance from a qualified Peugeot specialist. They have the diagnostic tools to read specific fault codes from the EPB system and pinpoint the exact problem.

Understanding Your Peugeot 3008's Electronic Parking Brake (EPB)

The Electronic Parking Brake in your Peugeot 3008 replaces the traditional handbrake lever with a simple button or switch. When activated, electric motors at the rear calipers clamp the brake pads onto the discs, holding the car securely. It offers convenience, often disengaging automatically when you drive off, and can also integrate with hill-start assist systems.

While highly convenient, the EPB's reliance on electronics means it's susceptible to electrical glitches. Unlike a mechanical handbrake, which provides direct feedback, an EPB relies on sensors and control units to confirm its state. Any disruption to this electronic communication, often caused by insufficient power, can lead to the 'Parking Brake Faulty' warning.

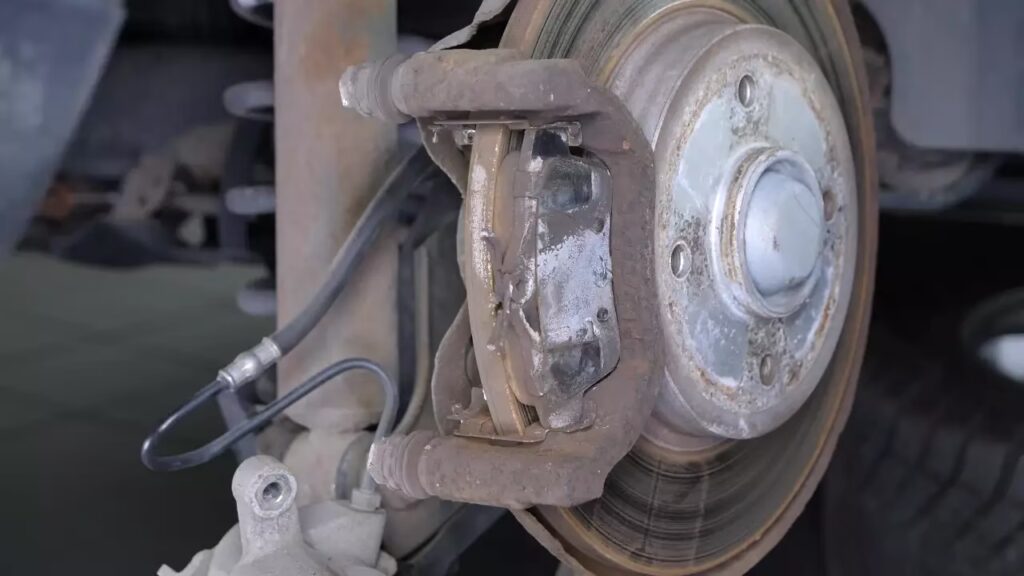

Rear Brake Pad Maintenance on Your Peugeot 3008

While we're discussing brakes, it's a good time to touch on general brake maintenance. Your Peugeot 3008, like any vehicle, requires regular inspection and replacement of its brake pads. Rear brake pads on the 3008 are known to be quite durable, but their lifespan depends heavily on driving style and conditions. They are also compatible with other PSA group vehicles like the Peugeot RCZ, Citroen C4, and Citroen DS4, which can be useful to know for parts availability.

The cost for just the rear brake pads themselves for a Peugeot 3008 is approximately £30, making it a relatively affordable component. However, the overall cost of a rear brake pad change will include labour, which can vary significantly between garages. Many competent DIY mechanics find changing them at home to be a manageable task, saving on labour costs.

Regular checks of your brake pads and discs are crucial for safety. Most manufacturers recommend inspection at every service interval. Listen for squealing noises, feel for vibrations when braking, and pay attention to any changes in brake pedal feel – these are all indicators that your pads might need attention. Neglecting worn brake pads can lead to damage to the brake discs, significantly increasing repair costs.

Your Peugeot 3008 "Profile": A Digital Assistant

Modern cars, like your Peugeot 3008, are increasingly integrated with digital features designed to assist the owner. One such feature is your personal 'profile'. This digital assistant can be incredibly useful for managing your vehicle's upkeep. It allows you to:

• Track Car Expenses: Log fuel costs, maintenance bills, and other expenditures to get a clear picture of your running costs.
• Keep a Car Log: Record trips, mileage, and specific events related to your vehicle's history.
• Manage Replacement Schedule: Set reminders for routine maintenance, such as oil changes, tyre rotations, and, crucially, brake pad replacements. This can help you stay on top of recommended service intervals for components like brake pads, ensuring timely replacements.
• Save Favourite Materials, Notes, and Documents: Keep important vehicle documents, service records, or even notes about specific issues (like a recurring 'Parking Brake Faulty' message) organised and easily accessible.

Utilising your Peugeot 3008's profile can be a great way to proactively manage your vehicle's health and potentially identify patterns in issues before they become major problems.

Frequently Asked Questions (FAQs)

Can a weak battery really cause a 'Parking Brake Faulty' message?

Absolutely, yes. This is one of the most common causes for electronic parking brake (EPB) fault messages in modern cars, including the Peugeot 3008. The EPB system is highly sensitive to voltage fluctuations. A weak or dying battery can lead to insufficient power reaching the EPB control module, causing it to report an error, even if the mechanical components are fine. It can also prevent the car from starting due to insufficient power for the engine's ECU and starter motor.

How much does a rear brake pad change cost for a Peugeot 3008?

The cost of the rear brake pads themselves for a Peugeot 3008 is typically around £30. This price is for the parts only. If you have the work done by a garage, you will also incur labour charges, which can vary depending on the workshop's rates. It's often a task that can be tackled by a confident DIY mechanic.

What should I do first if my Peugeot 3008 shows a 'Parking Brake Faulty' error?

Your first step should be to check your car battery. Ensure it's fully charged and, if possible, have it load-tested. Many issues like this are resolved simply by replacing a weak or faulty battery. If the problem persists after confirming battery health, then it's advisable to seek professional diagnosis from a qualified mechanic or Peugeot specialist.

What is the 'profile' feature in a Peugeot 3008?

The 'profile' in your Peugeot 3008 is a personal digital assistant integrated into your car's infotainment system. It allows you to track vehicle expenses, maintain a car log, manage replacement schedules for parts like brake pads, and save important notes and documents related to your vehicle. It's designed to help you organise and manage your car's maintenance and history effectively.

Are electronic parking brakes in Peugeot 3008s prone to issues?

Electronic parking brake systems, in general, are more complex than traditional mechanical handbrakes and can be susceptible to electrical issues. While they offer convenience, their reliance on sensors, motors, and control modules means they can be affected by factors like battery health, wiring problems, or component failure. However, they are generally reliable when properly maintained and powered.

In Conclusion

The 'Parking Brake Faulty' message on your Peugeot 3008 or 5008 can be incredibly frustrating, especially when it prevents your car from starting. However, as we've explored, the solution is often much simpler than anticipated, frequently pointing to a weak or dying car battery. Given the crucial role of the battery in modern vehicle electronics, ensuring its optimal health is paramount.

Always start your troubleshooting with the battery. If that doesn't resolve the issue, or if you're uncomfortable performing checks yourself, don't hesitate to consult a professional. Regular maintenance, including diligent battery checks and timely brake pad replacements, will help ensure your Peugeot 3008 remains a reliable and enjoyable vehicle for years to come.
