Kia Sportage Brake Pad Wear Bar: A DIY Guide

Ensuring your vehicle's braking system is in top condition is paramount for safety on the road. For owners of a Kia Sportage, particularly the 2011 to 2016 third-generation models, understanding the signs of wear and knowing how to address them is a valuable skill. One critical component in this system is the brake pad wear indicator, often referred to as a 'squeal' bar or wear bar. This small but mighty device is designed to alert you when your brake pads are nearing the end of their lifespan, preventing more severe damage and costly repairs. This guide will specifically pinpoint the location of the wear bar on a 2014 Kia Sportage and provide a detailed, practical walkthrough of how to undertake a front brake pad replacement, empowering you to tackle this essential maintenance task with confidence.

Understanding Your Kia Sportage's Brake Pad Wear Bar

The wear bar is a simple, yet ingenious, mechanism designed to give you an audible warning when your brake pads are worn down to a critical level. It's typically a small metal tab attached to the brake pad itself. As the friction material of the pad wears away, this metal tab eventually comes into contact with the brake rotor, creating a distinctive high-pitched squealing sound. This sound is your cue that it's time to inspect and likely replace your brake pads.

For a 2014 Kia Sportage AWD (all-wheel drive) model, the wear bar is specifically located at the top of the inner brake pad. When you remove your old pads, it's a good practice to take note of its position to ensure correct installation of the new ones. While the wear bar provides an excellent warning, it's always advisable to perform regular visual inspections of your brake pads to catch wear before the squealing begins, especially if you drive frequently in stop-and-go traffic or carry heavy loads, which can accelerate wear.

Why Timely Brake Pad Replacement is Crucial

Brake pads are a consumable part of your braking system, designed to wear down over time. Their primary function is to create friction against the brake rotors, slowing and stopping your vehicle. Ignoring worn brake pads can lead to several dangerous and expensive consequences:

• Reduced Braking Performance: Worn pads lose their ability to create sufficient friction, significantly increasing stopping distances.
• Rotor Damage: If pads wear completely, the metal backing plate will grind directly against the rotor, causing deep grooves and potentially requiring costly rotor replacement in addition to new pads.
• Noise and Vibration: Beyond the wear bar squeal, metal-on-metal contact can lead to grinding noises and vibrations felt through the pedal, indicating severe wear.
• Safety Hazard: Ultimately, compromised braking ability puts you, your passengers, and other road users at severe risk.

Regular maintenance checks and promptly addressing wear bar warnings are vital for safe and efficient driving.

Gathering Your Tools and Parts

Before you begin the front brake pad replacement on your Kia Sportage, ensure you have all the necessary tools and replacement parts. Having everything ready will make the process smoother and safer.

Essential Tools:

• Lug nut wrench (tyre iron)
• Floor jack
• Two jack stands
• 14mm socket with a 3/8" drive ratchet
• "C" or "F" clamp (for compressing the caliper piston)
• Brake parts lubricant grease (specifically for caliper slider pins and metal-to-metal contact points)
• Brake parts cleaner spray
• Clean rags or shop towels
• Wheel chocks (for rear wheels)
• Rubber mallet (optional, for rotor removal)
• Torque wrench (highly recommended for accurate tightening)

Compatible Replacement Front Brake Pads:

Always verify the correct part number for your specific Sportage model year, trim level (2WD or AWD), and transmission by consulting your dealership, an automotive parts store, or using a reliable online parts finder. Here are some commonly compatible part numbers:

It's also a good idea to purchase new brake hardware (anti-rattle clips) if your new pads don't include them, as these components play a role in reducing noise and ensuring proper pad movement.

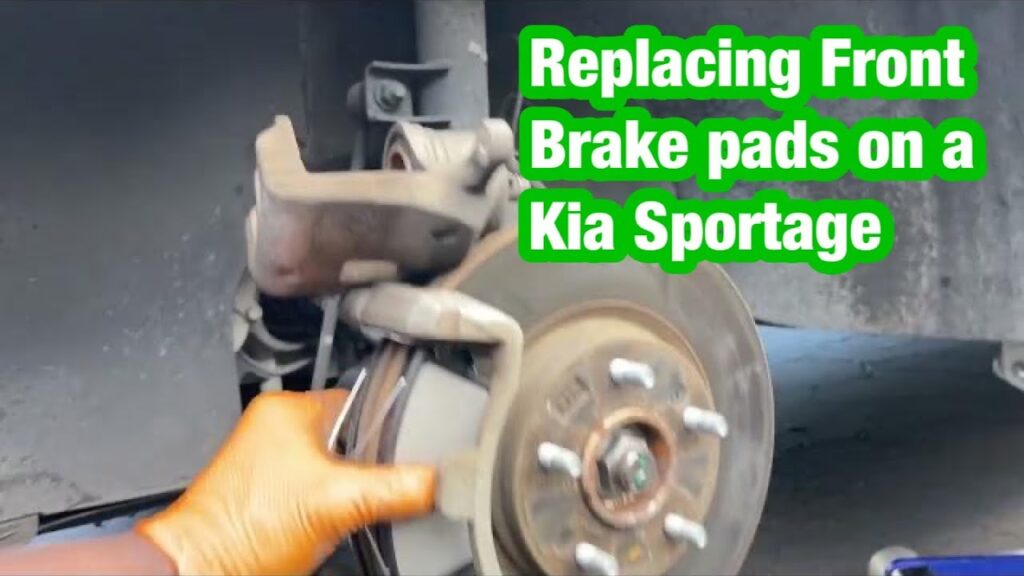

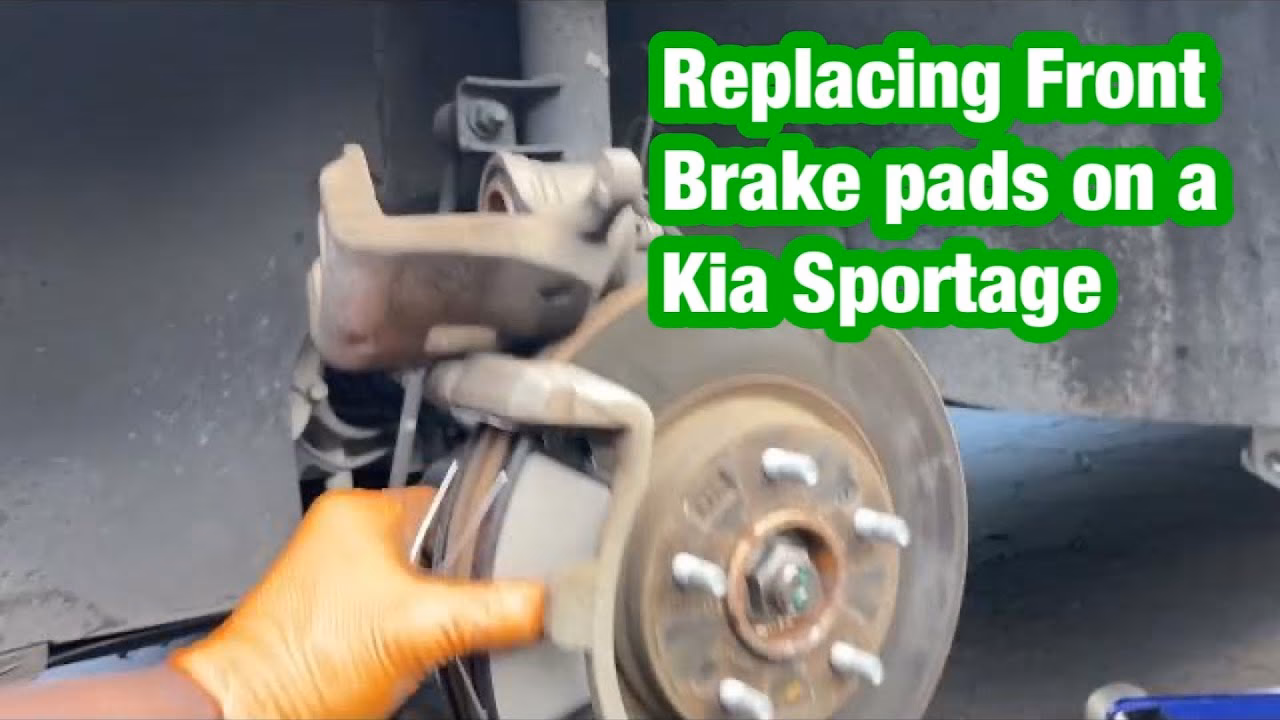

Step-by-Step Front Brake Pad Replacement Guide

Follow these steps carefully to replace your Kia Sportage's front brake pads safely and effectively. Remember, safety is paramount.

1. Preparation and Safety First

Park your Kia Sportage on a firm, level surface. Engage the emergency/parking brake fully. Place wheel chocks on both sides of the rear wheels to prevent any movement of the vehicle while it's lifted. This is a crucial safety step.

2. Loosen Lug Nuts and Lift the Vehicle

Using your lug nut wrench, slightly loosen the five lug nuts on the front wheel you plan to work on first. Turn them counterclockwise about half a turn to break them free. Do not remove them completely yet. Position your floor jack under a strong point on the front frame of the SUV, as indicated in your owner's manual. Raise the front of the vehicle until the wheel is off the ground. Once lifted, place two jack stands securely under designated support points on the chassis, lowering the vehicle onto them. I always recommend working on one side at a time, keeping three wheels on the ground for enhanced stability and safety.

3. Remove the Wheel and Access the Brakes

With the vehicle safely supported, spin off the five lug nuts you previously loosened and set them aside in a safe place where they won't roll away. Carefully remove the front wheel to expose the brake caliper, brake bracket, brake rotor, and suspension components.

4. Removing the Caliper and Old Pads

Locate the upper and lower 14mm caliper bolts. Using your 14mm socket and ratchet, loosen both bolts by turning them counterclockwise (as viewed from the outside of the vehicle). Once loosened, spin out both caliper bolts completely and place them in a safe, clean spot. Carefully pull the brake caliper straight out of the bracket and off the old brake pads. Do not let the caliper hang by the brake hose, as this can damage the hose. Rest it gently on the suspension component or, ideally, suspend it from the coil spring using a bungee cord or strong wire. Now, pull the old inner and outer brake pads out of the caliper bracket. Take note of the wear indicator bar's position on the old inner pad – it should be at the top.

5. Replacing Brake Hardware and Lubricating Pins

If your new brake pads came with replacement brake hardware (the metal pad abutment or "anti-rattle" clips), carefully pull the old clips out from the top and bottom of the caliper bracket. Install the new ones in their place, ensuring they sit flush and correctly. Next, address the caliper slider pins (sometimes called "guide pins"). These pins allow the caliper to move smoothly. Pull them out of their rubber dust boots. Apply a thin, even layer of brake parts grease to each pin. Push them back into their dust boots, ensuring they slide freely.

6. Compressing the Caliper Piston

This is a critical step. The caliper piston needs to be compressed back into the caliper body to make room for the thicker new brake pads. First, move to the engine bay and locate the brake fluid reservoir. Twist off the cap counterclockwise and set it aside. This allows the fluid to displace back into the reservoir as the piston is compressed. Attach your "C" or "F" clamp to the caliper, using the back of one of the old brake pads against the piston to distribute the pressure evenly. Slowly turn the clamp's handle clockwise to push the piston back. As you do this, repeatedly check the brake fluid level in the reservoir to ensure it doesn't overflow. If it approaches the 'MAX' line, you may need to siphon out a small amount of fluid using a turkey baster or similar tool. Clean up any spilled brake fluid immediately with a towel and flush the area with water, as brake fluid can damage painted surfaces. Continue compressing the piston until it is flush with the rubber dust boot surrounding it. Be careful not to pinch or damage the rubber dust boot during this process.

7. Rotor Inspection and Optional Replacement

At this point, it's wise to inspect your brake rotors. If your Sportage previously exhibited shuddering, pulsating, or vibrations in the front end during braking, your rotors might be warped or unevenly worn. While you can have them "turned" (resurfaced) by a machine shop, it's often more convenient and sometimes less expensive to simply replace them with new rotors, especially if they are close to their minimum thickness specification. If this is your SUV's first front brake job and the rotors appear smooth, free of deep grooves, and in good condition, you should be able to just change the pads for excellent results. If replacing rotors, you'll need to remove the two larger bolts on the rear of the caliper bracket that attach it to the steering knuckle, and sometimes two Phillips head set screws on the rotor face. Then, use a rubber mallet to gently tap the old rotor off. Slide the new one into place.

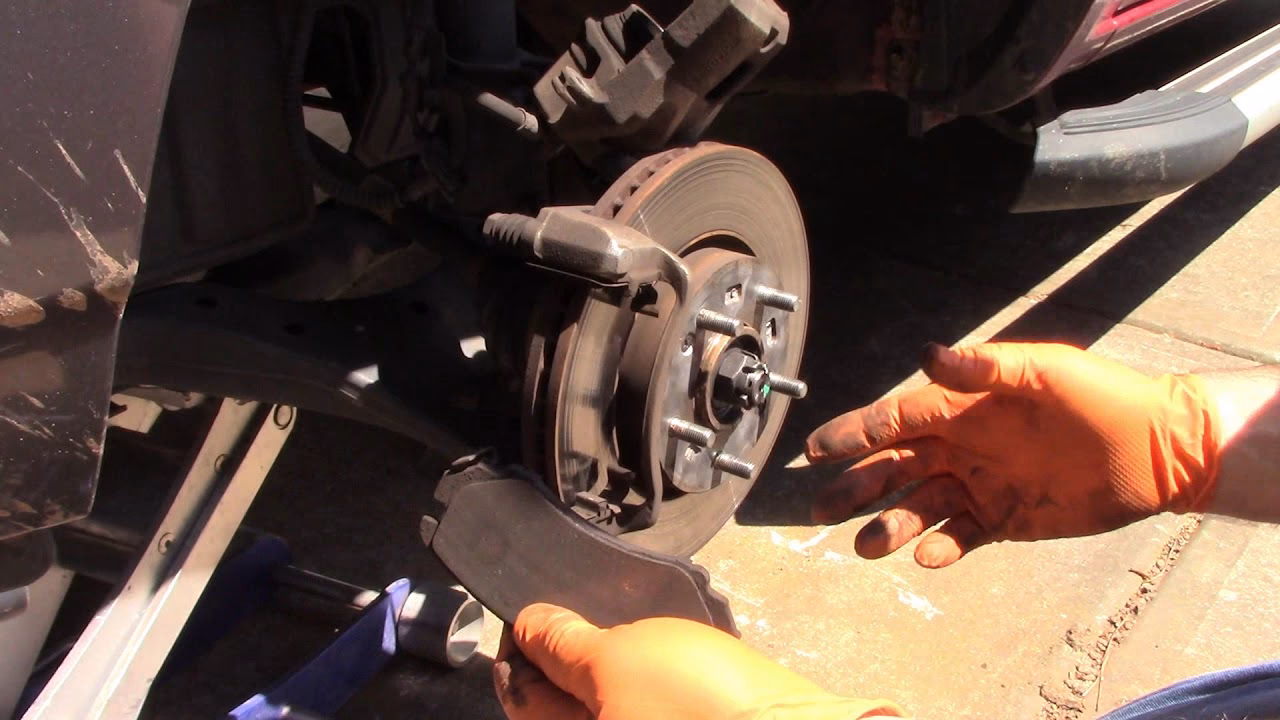

8. Installing New Brake Pads

Thoroughly clean off the brake rotor, caliper bracket, brake caliper assembly, and the lug nut studs with brake parts cleaner spray. Important: Do not use compressed air or blow with your mouth to clean off brake parts, as breathing in brake dust can be harmful and carcinogenic. Apply a thin layer of brake caliper grease to any area where there will be metal-to-metal contact, such as the outer lip of the caliper piston and the contact points on the new brake pads where they slide within the anti-rattle clips. Crucially, do not apply brake parts lubricant to the friction surface of the new pads or to the rotor. Install the new brake pads into the caliper bracket, ensuring the wear indicator bar is situated at the top of the inner brake pad, just as you noted with the old one. Push the two pads together until they are flush with the rotor.

9. Reassembling the Caliper

Carefully lower the caliper down over the new brake pads and into the bracket. If the caliper doesn't fit over the new pads, you may need to compress the piston back a bit further. Line up the bolt holes in the caliper with their corresponding bolt holes in the slider pins within the bracket. Re-insert the two caliper bolts. Spin them in a few turns by hand in the clockwise direction (as viewed from the outside of the vehicle) to prevent them from becoming cross-threaded. Once hand-tight, tighten the upper and lower caliper bolts using your 14mm socket and ratchet. The service manual's torque specification for tightening the front 14mm caliper bolts is typically 15.9 to 23.1 lb-ft (or 21.6 to 31.4 N*m). A torque wrench is highly recommended for this to ensure correct tightness without over-tightening. Double-check that both caliper bolts are tight before proceeding.

10. Final Checks and Brake Fluid

Replace the brake fluid reservoir cap as soon as possible after compressing the piston, as brake fluid is hygroscopic and readily absorbs moisture from the air, which can degrade its performance. If your brake pedal previously felt soft or spongy, or if the brake fluid appears dark and contaminated, the brake lines may contain some air bubbles or old fluid. It would be best to bleed the brake lines at this time to flush out the old fluid and replace it with fresh DOT 3 or DOT 4 brake fluid, as specified for your Sportage. The brake fluid bleeder valve is located underneath a rubber cap on the back side of the caliper, just below the upper caliper bolt. After reassembly, pump the brake pedal several times before starting the engine to seat the new pads against the rotor and restore pedal pressure. The pedal should feel firm.

11. Reinstall the Wheel

Replace the front wheel and spin on the five lug nuts in the clockwise direction by hand to prevent them from becoming cross-threaded. Lower the vehicle off the jack stands and floor jack. Once the wheel is on the ground, tighten the lug nuts in a star pattern to the manufacturer's specified torque, typically around 80-90 lb-ft (108-122 N*m). This ensures even pressure and prevents warping of the brake rotor.

Frequently Asked Questions (FAQs)

How often should I check my Kia Sportage's brake pads?

It's generally recommended to inspect your brake pads every 10,000 to 15,000 miles, or at least once a year, as part of your routine vehicle maintenance. If you hear any unusual noises from your brakes, check them immediately.

What's the difference between DOT 3 and DOT 4 brake fluid?

DOT 4 brake fluid has a higher boiling point than DOT 3, making it more resistant to brake fade under heavy use. Always use the type of brake fluid specified in your Kia Sportage's owner's manual. They are generally compatible if you need to top up, but for a full flush, stick to the recommended type.

Can I just replace one brake pad?

No, brake pads should always be replaced in pairs for each axle (both front wheels or both rear wheels). This ensures even braking force and prevents uneven wear, which could lead to pulling to one side when braking.

Why does my brake pedal feel soft after replacing pads?

A soft or spongy brake pedal after a pad replacement usually indicates that air has entered the brake lines, or the caliper piston wasn't fully compressed. Pumping the pedal several times before driving helps to seat the pads. If the problem persists, you will need to bleed the brake system to remove any trapped air.

Do I need to "bed in" new brake pads?

Yes, bedding in new brake pads is important for optimal performance and longevity. This involves a series of moderate stops from various speeds (e.g., 5-7 stops from 35 mph down to 5 mph, then 2-3 harder stops from 45 mph down to 5 mph) without coming to a complete stop, followed by a period of driving without braking to allow the brakes to cool. This process transfers a thin, even layer of friction material to the rotor, improving braking effectiveness and reducing noise.

Conclusion

Performing your own brake pad replacement on your Kia Sportage can be a highly rewarding and cost-effective maintenance task. By understanding the function and location of the wear bar, gathering the correct tools and parts, and diligently following each step, you can ensure your vehicle's braking system remains safe and reliable. Regular inspections and timely replacements are key to extending the life of your brake components and, most importantly, ensuring your safety on every journey. Drive confidently, knowing your Sportage's brakes are in excellent working order.
