Changing Rear Brakes on Your Kia Ceed

Hearing that dreaded grinding noise from your Kia Ceed's rear brakes, or worse, finding a pad worn right down to the metal, can be a daunting discovery. It's a clear sign that your brakes need urgent attention, not just for performance but, critically, for your safety and that of others on the road. While the prospect of tackling such a job yourself might seem intimidating, especially with specific challenges like obscured bolts or unfamiliar piston types, it's a perfectly manageable task for the keen DIY mechanic with the right guidance and tools.

This article will demystify the process of replacing your rear brake pads and discs on a vehicle like your Kia Ceed 1.6 GS Diesel (57 plate). We'll address those tricky areas you've identified, ensuring you have the confidence and knowledge to get the job done correctly, restoring your car's stopping power and your peace of mind.

Understanding Your Brake System and Why Replacement is Crucial

Your car's braking system is arguably its most vital safety feature. Rear brakes, while often doing less work than the front, are essential for stability, especially during heavy braking or when the vehicle is loaded. When a brake pad wears down to the metal backing plate, it no longer provides effective friction. Instead, the metal grinds against the brake disc, causing significant damage to the disc itself, leading to deep grooves, warping, and an alarming noise. This severely compromises braking efficiency and can lead to dangerous situations.

In your case, with the pad worn to metal and the disc damaged, replacing both components is not just recommended, it's absolutely essential. Attempting to fit new pads onto a damaged disc will result in poor braking performance, accelerated wear of the new pads, and continued noise.

When to Replace Your Brake Pads and Discs

Knowing when to replace these crucial components is key to preventative maintenance and safety. While your current situation is critical, understanding the general indicators can help you avoid such severe wear in the future.

• Brake Pad Thickness: Most pads have a minimum thickness of around 3mm. Anything below this, or if your pads have an integrated wear indicator that's squealing, it's time for replacement.
• Warning Lights: Some modern vehicles have electronic wear sensors that illuminate a warning light on your dashboard when pads are low.
• Audible Cues: A high-pitched squeal often indicates the wear indicator rubbing against the disc. A grinding noise means the pad material is gone, and metal is rubbing on metal.
• Reduced Braking Performance: A spongy pedal, increased stopping distances, or the car pulling to one side under braking can all be symptoms of worn brakes.
• Disc Condition: Brake discs have a minimum thickness stamped on their edge. If they are below this, or show signs of deep scoring, excessive rust, or warping (which causes a pulsation through the pedal), they must be replaced.
• Visual Inspection: Regularly inspect your pads and discs through the wheel spokes. Look for uneven wear, cracks, or excessive lip formation on the disc edge.

It's always recommended to replace pads and discs on both sides of an axle (e.g., both rear wheels) simultaneously to ensure balanced braking and even wear.

Essential Tools and Materials

Before you begin, gather all the necessary tools and replacement parts. Having everything to hand will make the job smoother and safer.

Tools You'll Need:

• Hydraulic jack and sturdy axle stands
• Wheel brace/nut wrench
• Socket set (including larger sockets for caliper and cradle bolts)
• Spanner set (combination spanners can be useful for tight spots)
• Caliper rewind tool (absolutely essential for rear pistons)
• Wire brush
• Brake cleaner spray
• Copper slip grease or specialised brake grease
• Torque wrench
• Large C-clamp or old brake pad (for front pistons, though not needed for rear)
• Flat-head screwdriver or pry bar
• Pliers
• Safety glasses and protective gloves
• Container for old brake fluid (if bleeding is necessary, though usually not)

Parts You'll Need:

• New rear brake pads (ensure correct fitment for Kia Ceed 1.6 GS Diesel)
• New rear brake discs (ensure correct fitment)
• New caliper retaining bolts (often recommended as they are torque-to-yield)

Step-by-Step Guide: Replacing Rear Brake Pads and Discs

This procedure is designed to be as comprehensive as possible, addressing your specific concerns.

1. Preparation and Safety First

Safety is paramount. Always work on a flat, level surface. Engage the handbrake (if it's still effective) and put the car in gear (or Park for automatics). Chock the front wheels to prevent any movement. Slightly loosen the wheel nuts on the rear wheel you're working on while the car is still on the ground. This prevents the wheel from spinning when you try to loosen them later.

2. Lifting the Vehicle and Removing the Wheel

Place your hydraulic jack under the designated jacking point near the rear wheel. Lift the vehicle until the wheel is clear of the ground. Position your axle stands securely under the vehicle's chassis, never just rely on the jack. Once the car is safely supported, fully remove the wheel nuts and then the wheel itself. Place the wheel under the vehicle's chassis as an extra safety measure.

3. Initial Inspection and Assessment

With the wheel off, you'll have a clear view of the brake assembly. Confirm the damage to the disc and the wear on the pad. Take a moment to familiarise yourself with the caliper, the caliper cradle, and the brake line.

4. Removing the Brake Caliper

The caliper typically attaches to the caliper cradle with two slider pins/bolts. These are usually smaller bolts than the main cradle bolts. Use a suitable socket or spanner to remove these. Once the bolts are out, the caliper should pivot or slide off the pads. Be careful not to damage the brake hose. Do not let the caliper hang by the brake hose; this can damage the line. Use a piece of strong wire, a bungee cord, or a zip tie to suspend the caliper securely from the suspension spring or another sturdy part of the chassis. Remove the old brake pads from the caliper cradle.

5. Removing the Caliper Cradle (The Tricky Part)

You correctly identified that the caliper cradle (or caliper carrier) needs to be removed to get the brake disc off. This cradle is bolted directly to the vehicle's hub assembly. There are typically two large bolts holding it in place.

• The Front Bolt: This is usually straightforward to access.
• The Rear Bolt (Obscured by Suspension Link): This is a common challenge on many vehicles, including likely your Kia Ceed. You asked if the suspension link needs to be removed. In most cases, no, the suspension link does not need to be removed. Instead, you'll need the right tools and a bit of patience. A long extension bar for your socket wrench, possibly with a universal joint or a 'wobble' extension, can provide the necessary clearance and angle. Sometimes, a cranked or 'swan neck' spanner can also reach where a straight socket cannot. Take your time, ensure the socket is fully seated on the bolt head to avoid rounding it off, and apply steady pressure. These bolts can be very tight, so a breaker bar might be necessary.

Once both cradle bolts are removed, carefully lift the caliper cradle off the hub.

6. Removing the Brake Disc and The Rubber Plug

With the caliper and cradle removed, the brake disc should now be exposed. Your question about the rubber plug in the wheel hub is excellent and points to a common feature on vehicles with a 'drum-in-hat' handbrake system, which your Kia Ceed likely has. This means the handbrake operates via small brake shoes inside a mini-drum that's integrated into the centre of the brake disc (the 'hat').

• Purpose of the Rubber Plug: This plug typically covers an access hole for adjusting or releasing the handbrake shoes. If the disc is stuck, it's often because the handbrake shoes inside the drum are expanded and catching on the drum's inner lip.
• Removing the Disc: You might see a small retaining screw on the disc face that holds it to the hub (remove this if present). If the disc is stuck, try tapping around the hub face with a rubber mallet to free it from rust. If it's still stuck, remove the rubber plug. Inside, you'll usually find a star wheel adjuster for the handbrake shoes. Using a flat-head screwdriver, you can often rotate this star wheel to retract the handbrake shoes, which should then allow the disc to slide off freely. If you're unsure which way to turn it, try both directions until you feel the shoes retracting.

Once the disc is free, remove it from the hub.

7. Cleaning and Preparation

This is a critical step often overlooked. Use a wire brush to thoroughly clean the hub face where the new disc will sit. Remove all rust, dirt, and old anti-seize compound. A clean mating surface is essential for the new disc to sit perfectly flat and prevent run-out (wobbling) which can cause brake pulsation. Apply a thin layer of copper slip or high-temperature brake grease to the clean hub face (avoiding the wheel studs) to prevent future rust and seizing.

8. Installing the New Brake Disc

Carefully place the new brake disc onto the clean hub. If there was a retaining screw, replace it now to hold the disc in place temporarily. Ensure the disc sits flush against the hub.

9. Reinstalling the Caliper Cradle

Position the caliper cradle back onto the hub assembly. Insert the two large retaining bolts. Start them by hand to ensure they are not cross-threaded. Then, tighten them using your socket wrench. Finally, use your torque wrench to tighten these bolts to the manufacturer's specified torque setting. This is incredibly important for safety and proper function. (You'll need to look up the specific torque values for your Kia Ceed's rear caliper cradle bolts in a workshop manual).

10. Rewinding the Caliper Piston (The Special Tool Needed)

This is another crucial area you asked about. Rear brake pistons, especially on vehicles with integrated handbrake mechanisms (like your Kia Ceed most likely has), do not simply push back. They typically need to be screwed back in while simultaneously being pushed. This is because the handbrake mechanism is built into the caliper piston itself.

• Special Tool: You absolutely need a caliper rewind tool. This tool has various adapters that fit into the notches or slots on the piston face. You attach the correct adapter, place it against the piston, and then rotate the tool while applying inward pressure. As you turn it, the piston will retract.
• Process: Before rewinding, open the brake fluid reservoir cap in the engine bay (place a rag around it). Slowly rewind the piston until it's fully retracted, flush with the caliper body. Keep an eye on the brake fluid level in the reservoir; it will rise as the piston retracts. If it's close to overflowing, you may need to siphon off a small amount (dispose of brake fluid responsibly).

Never force a rear piston with a C-clamp or pry bar if it's designed to screw in, as you'll damage the internal mechanism.

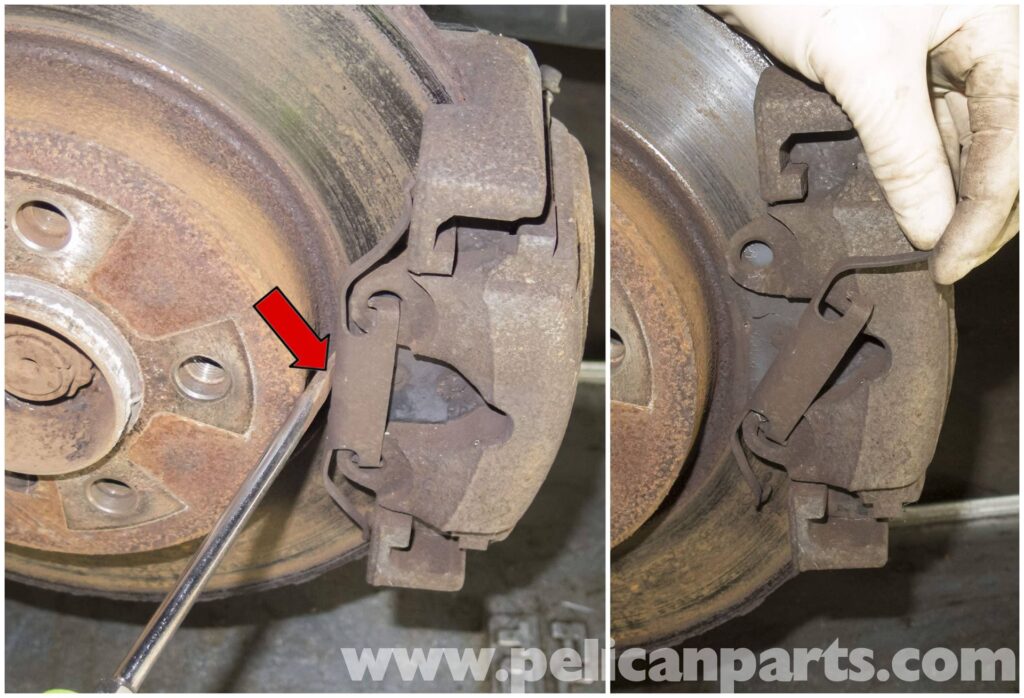

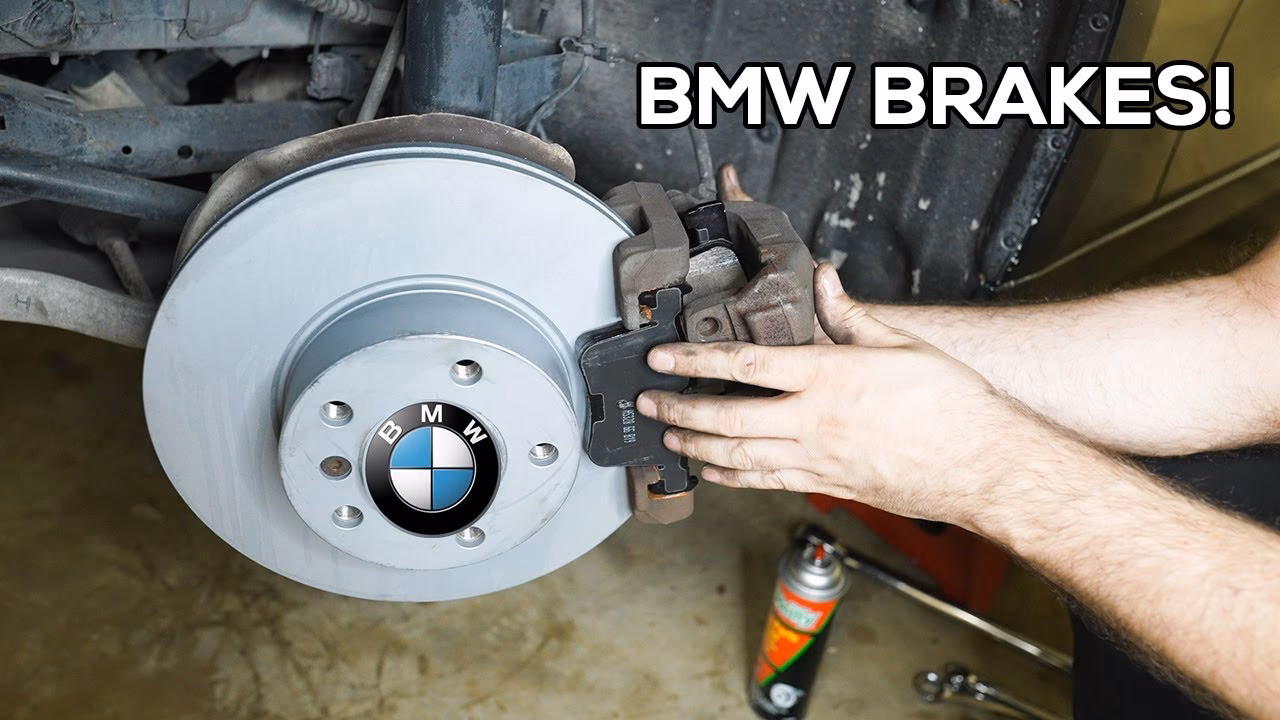

11. Installing the New Brake Pads

Apply a thin layer of brake grease (specifically designed for brakes, not copper slip) to the metal contact points on the back of the brake pads and to the caliper slider pins (if they are being reused, or new ones if provided). Ensure no grease gets on the friction material of the pad or the disc. Place the new pads into the caliper cradle, ensuring they sit correctly.

12. Reassembling the Caliper

Carefully slide the caliper back over the new pads and disc. Align the caliper with the slider pin holes on the cradle. Insert the caliper retaining bolts (the smaller ones) and tighten them. Again, use your torque wrench to tighten these to the manufacturer's specifications. Ensure the brake hose is not twisted or kinked.

13. Final Checks and Road Test

• Replace the Wheel: Put the wheel back on, hand-tighten the wheel nuts, and then lower the vehicle until the wheel just touches the ground. Fully tighten the wheel nuts in a star pattern to the correct torque specification.
• Brake Pedal Pump: Before starting the car, get inside and pump the brake pedal repeatedly. It will feel soft at first. Continue pumping until the pedal becomes firm. This pushes the piston out and seats the pads against the disc.
• Brake Fluid Level: Check the brake fluid reservoir. Top it up to the MAX line if necessary, using the correct type of brake fluid specified for your Kia Ceed. Replace the reservoir cap.
• Road Test: Drive the car slowly in a safe area (e.g., quiet street or industrial estate). Gently apply the brakes several times to bed in the new pads and discs. Avoid hard braking initially. You might notice a slight burning smell and reduced effectiveness for the first few miles; this is normal as the pads and discs are bedding in.

Common Pitfalls and Tips

• Torque Settings: Always use a torque wrench for all critical brake components. Overtightening can strip threads or stretch bolts, while undertightening can lead to bolts coming loose, both of which are extremely dangerous.
• Cleanliness: Keep everything clean. Brake dust and dirt can compromise performance.
• Brake Fluid: Brake fluid is corrosive to paint. If you spill any, wipe it up immediately with a damp cloth.
• Bedding-in Period: New pads and discs require a 'bedding-in' period, typically 200-300 miles, where they adapt to each other. During this time, avoid harsh braking and sudden stops.
• One Axle at a Time: Always replace pads and discs on both sides of the same axle (both rears or both fronts) at the same time to ensure balanced braking.

Frequently Asked Questions (FAQs)

Q: Do I really need a special tool for the rear brake pistons?

A: Yes, for most modern vehicles with integrated handbrake mechanisms in the rear calipers, a caliper rewind tool is essential. Trying to force them in with a C-clamp will damage the internal mechanism and render the caliper useless.

Q: My brake disc is stuck on the hub. What's wrong?

A: This is usually due to rust seizing the disc to the hub, or the handbrake shoes (if it's a drum-in-hat system) being expanded and catching on the inside of the disc's 'hat'. Use a rubber mallet to tap the disc around the hub, and if it's a drum-in-hat, use the access hole (often covered by a rubber plug) to retract the handbrake shoes' star wheel adjuster.

Q: Does the suspension link really need to be moved to access the rear caliper cradle bolt?

A: In most cases, no. While the bolt may be obscured, you can usually access it with the right tools, such as a long socket extension with a universal joint, or a cranked spanner. Removing suspension components unnecessarily adds complexity and requires realignment.

Q: What is the rubber plug in the wheel hub for?

A: On vehicles with a drum-in-hat handbrake system, this rubber plug provides access to the handbrake shoe adjuster (a 'star wheel'). You use a screwdriver through this hole to adjust the handbrake shoes or to retract them to facilitate disc removal.

Q: Can I just replace the worn pad on one side?

A: Absolutely not. Brake pads and discs should always be replaced in pairs across an axle (e.g., both rear wheels) to ensure even braking performance and prevent dangerous pulling or instability when braking.

Replacing your rear brake pads and discs is a significant maintenance task, but with the right tools, patience, and this comprehensive guide, it's well within the capabilities of a dedicated DIY enthusiast. Remember, your safety on the road depends on a fully functional braking system. By taking the time to understand each step and addressing those specific challenges, you'll not only save money but gain invaluable experience and confidence in maintaining your Kia Ceed.
