DIY Guide: Removing Your Handbrake Caliper

Removing a handbrake caliper might seem like a daunting task, especially for the uninitiated. Unlike standard brake calipers, those integrated with a handbrake mechanism present a unique challenge, particularly when it comes to retracting the piston. However, with the right preparation, tools, and a clear understanding of the process, it’s a perfectly achievable DIY project. This detailed guide will walk you through each step, ensuring you approach the job with confidence and, most importantly, safely.

Before you even think about touching a spanner, safety must be your absolute priority. Working underneath a vehicle without proper support can lead to serious injury or worse. Always ensure your car is stable and secure before proceeding.

Safety First: Preparing Your Vehicle

Proper preparation is half the battle when undertaking any automotive maintenance. Skimping on these initial steps not only makes the job harder but significantly increases the risk of an accident.

• Loosen Wheel Nuts: Before jacking the car, use a wheel brace to slightly slacken all the wheel nuts on the wheel you intend to remove. This is much easier to do while the wheel is still on the ground and cannot spin freely.
• Jack the Car: Carefully jack up the vehicle using a suitable jack, ensuring it’s placed on a strong, stable point, typically indicated in your car’s owner’s manual.
• Support with Axle Stands: This is non-negotiable. Once the car is lifted, immediately position sturdy axle stands securely under the vehicle’s chassis or designated jacking points. Never rely solely on a jack to support the car while you are working underneath it. Give the car a good shake to confirm its stability on the stands before you begin any work.
• Remove the Wheel: With the car safely supported, you can now fully remove the wheel nuts and carefully take off the wheel, setting it aside.

Disconnecting the Handbrake Cable: A Tricky Start

One of the first hurdles you’ll encounter is freeing the handbrake cable from the caliper actuator. This step can be surprisingly fiddly due to the strong return spring on the lever.

The Traditional Method (and its challenges)

The ‘good book’ (often a Haynes manual) might suggest pushing the lever forward to release the cable nipple. However, in practice, this is rarely straightforward. The spring tension is substantial, making it incredibly difficult to simply 'push' it by hand.

A more practical approach involves using leverage. A large screwdriver or pry bar can be inserted between the actuator arm and the lower end of the caliper. By carefully levering the arm forward, you can create enough slack to lift the cable nipple from its location. Once the nipple is free, slowly release the lever.

A Simpler Approach (and a crucial alternative)

An alternative, often less frustrating, method is to grasp the end of the cable nipple with a pair of pliers. Gently pulling the cable backwards and downwards can often release it from the lever without the need to push the lever forwards. Once the nipple is free, the outer part of the cable is typically held by a spring clip or a plastic grommet. If it’s a clip, pull it sideways from the groove in the cable outer, allowing the now-free cable to be withdrawn clear of the caliper.

Crucial Alternative: Some experienced mechanics argue that you don't even need to release the handbrake cable at this stage. Instead, you can simply undo the upper and lower caliper mounting bolts. If you choose this route, it’s absolutely essential to support the caliper once the bolts are removed to prevent it from hanging by the brake hose or handbrake cable, which could cause damage or distortion. This method can save significant time and frustration if you find the cable release particularly stubborn.

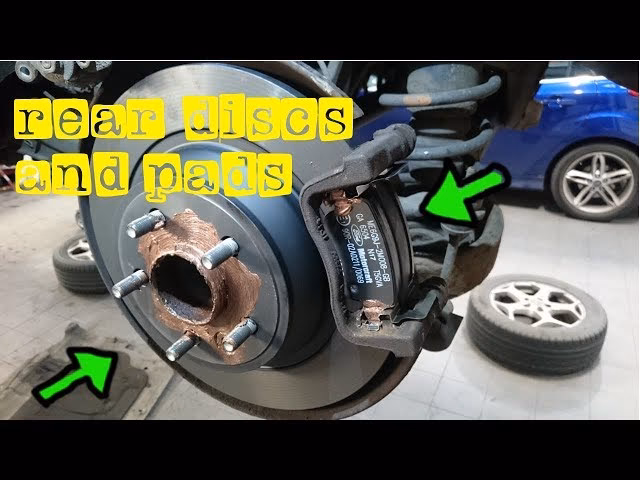

Unmounting the Caliper

Once the handbrake cable (if you chose to disconnect it) is free, the next step is to physically remove the caliper from its mounting bracket. Calipers are usually held in place by one or two guide pin bolts.

• Locate and Remove Bolts: Typically, a lower guide pin bolt (often 1/2 inch AF) needs to be removed. Once this bolt is out, the inner caliper frame can usually be hinged upwards, leaving the brake pads in position on either side of the disc.
• Full Caliper Removal for Thoroughness: For a more comprehensive job, especially if there's significant rust or corrosion on the caliper assembly, it's often easier to remove both guide bolts. This allows you to remove the entire caliper completely. Many replacement pad kits even come with new guide bolts, so don't be afraid to replace them. Removing the caliper fully provides much better access to clean rusty surfaces with a scraper, ensuring that new pads will move smoothly and freely within the caliper frame.

The Piston Predicament: Winding It Back

This is arguably the most challenging part of the entire process. Unlike standard brake calipers where the piston can simply be pushed back using a C-clamp or similar tool, handbrake calipers are different. They incorporate a self-adjusting handbrake mechanism that operates on a threaded piston located behind the main front piston. This threaded piston rotates as the handbrake is applied, automatically taking up any wear in the pads.

Why It's Different

Because of this internal threaded mechanism, the front piston cannot be merely pushed back. It must be pushed AND rotated simultaneously to screw the threaded rear piston back into its housing. Attempting to force it without rotation can damage the internal mechanism.

The Right Tools for the Job

The piston typically has a 12mm hexagon socket in its centre, specifically designed for this purpose. Therefore, a 12mm Allen key is required. If a 12mm Allen key isn't readily available, a sturdy pair of long-nosed pliers can sometimes be used, gripping the internal hexagon and providing sufficient leverage to rotate the piston.

Pro Tip: To aid the retraction process, some mechanics find that a sharp, firm blow with a hammer on the end of the Allen key (once it's engaged in the piston socket) can help to jar the piston slightly before you begin rotating it. This can often loosen it and make the turning process significantly easier.

Directional Rotation: A Critical Detail

The direction of rotation is crucial and varies depending on which side of the vehicle you are working on:

• Right Hand (Driver's Side UK) Caliper: The piston must be pushed hard while rotating it clockwise to screw it back into the housing.
• Left Hand (Passenger's Side UK) Caliper: The piston must be pushed hard while rotating it counter-clockwise to retract it.

This task requires persistence and considerable force. You will need to push very hard while simultaneously rotating. Having an assistant to hold the caliper steady can make this process much easier.

Estate Car Variations

It's important to note that estate car models often have different specifications. For instance, the passenger side of an estate car may require anti-clockwise rotation to screw the piston in. Furthermore, estate cars frequently use different calipers altogether compared to hatchback and saloon models, and these calipers are typically NOT interchangeable. They may also have a different cable attachment arrangement. Always consult your vehicle's specific repair manual if you own an estate model.

Investing in a Caliper Winding Tool

Given the difficulty of manually retracting these pistons, a specialised 'caliper winding in tool' is highly recommended. These tools are designed to push and rotate the piston simultaneously, significantly reducing the effort and frustration involved. Tools from retailers like Halfords are available (though prices can vary, previously around £12, now potentially £21 or more). Be aware that some of the more affordable tools might only wind in one direction (e.g., clockwise), meaning you might still need to manually retract the other side or purchase a bi-directional tool.

Cleaning, Lubrication, and Reassembly

Once the piston is fully retracted, it’s time for a thorough clean-up. This is vital for ensuring smooth operation and preventing future issues.

• Clean Surfaces: Use dedicated brake cleaner fluid to thoroughly clean the caliper, piston, and any contact points. Remove all old grease, dirt, and rust.
• Apply Copper Grease: A light, even application of copper grease (or a suitable brake lubricant) should be applied to all brake pad contact points within the caliper frame. Be careful not to get any grease on the brake disc or pad friction material. This lubrication ensures the pads can slide freely, preventing binding and uneven wear.

Piston Alignment: Don't Skip This Step

Before fitting the new pads, the retracted piston needs to be correctly aligned. The piston will have a long and a short cut-out on opposite sides. These cut-outs must be aligned with a raised casting pip on the outer rim of the piston housing.

• Right Hand Caliper: Align the long cut-out with the pip.
• Left Hand Caliper: Align the short cut-out with the pip.

Use your 12mm Allen key (or pliers) to rotate the piston into its correct aligned position. Correct alignment is crucial for the new brake pads to seat properly and for the handbrake mechanism to function correctly.

Now, fit your new brake pads into their respective positions. Carefully hinge the caliper inner frame back down over the pads and disc, aligning it with the mounting bracket. Secure it with the guide pin bolt(s) you removed earlier. It's good practice to apply a small amount of Loctite threadlock to the bolt threads before tightening them to the manufacturer's specified torque.

Final Checks and Completion

With the caliper reassembled, you’re almost done. These final steps ensure everything is working as it should and that your brakes are safe to use.

• Reconnect Handbrake Cable: If you disconnected the handbrake cable earlier, now is the time to reattach it. This is essentially the reverse of the removal process.
• Take Up Slack: Once the cable is reconnected, apply the handbrake several times. You might hear clicks as the self-adjusting mechanism takes up any slack. This ensures the handbrake is properly tensioned.
• Pump Brake Pedal: Get into the car and pump the brake pedal a few times. This will push the brake fluid through the system and seat the piston against the new pads. You should feel the pedal firm up after a few pumps.
• Check Disc Movement: With the handbrake released and the car still on axle stands, manually try to spin the brake disc. It should move freely without excessive resistance. If it feels stiff or binds, you may need to re-examine the caliper for proper seating, ensure the pads are moving freely, and check that the piston is fully retracted and aligned.
• Refit Wheel: Carefully refit the wheel, loosely tightening the wheel nuts.
• Lower Vehicle & Torque Nuts: Lower the car completely to the ground. Then, using a torque wrench, tighten the wheel nuts to your vehicle manufacturer's specified torque settings in a star pattern.

While the first time undertaking a handbrake caliper removal can be quite an involved affair, requiring patience and a bit of elbow grease, you’ll find that the second wheel can often be completed in as little as 30 minutes. The learning curve is steep but rewarding, saving you money and providing valuable insight into your vehicle's mechanics. Always remember, if you're unsure at any point, it's best to consult a professional mechanic.

Frequently Asked Questions (FAQ)

Q1: Can I just push the piston back without rotating it?

A: No, you absolutely cannot. Handbrake calipers have an internal threaded mechanism for self-adjustment. Forcing the piston back without rotating it will damage this mechanism, leading to brake failure or a non-functional handbrake. Always use the correct winding method.

Q2: Why is the piston so hard to push back?

A: The primary reason is the strong internal spring and the resistance of the threaded mechanism. Over time, rust and debris can also make the piston stiff. Using a caliper winding tool or the "jarring" technique with an Allen key can significantly help.

Q3: Do I need a special tool to wind back the piston?

A: While a 12mm Allen key or long-nosed pliers can sometimes work, a dedicated caliper winding tool is highly recommended. It pushes and rotates simultaneously, making the job much easier and reducing the risk of damage. Be mindful of tools that only wind in one direction.

Q4: What's the difference between estate car calipers and others?

A: Estate cars often have different, non-interchangeable calipers compared to hatchback and saloon models. They may also have different handbrake cable attachment points and, critically, the piston rotation direction for retraction might be opposite to that of non-estate models on certain sides. Always verify for your specific model.

Q5: What is copper grease used for?

A: Copper grease (or a similar high-temperature brake lubricant) is applied to the metal-on-metal contact points where the brake pads slide within the caliper frame. It prevents corrosion, reduces friction, and ensures the pads move freely, which is essential for even braking and preventing squeal. It should never be applied to the friction surface of the pads or the disc.

Q6: Why do I need to pump the brake pedal after reassembly?

A: Pumping the brake pedal after reassembly is crucial to push the brake fluid back into the caliper, reseat the piston, and bring the new pads into contact with the disc. This builds up hydraulic pressure in the system, ensuring the brakes are firm and responsive before you drive the vehicle.
