VW TDI Brake Pad and Rotor Replacement Guide

Understanding VW TDI Brake Wear: Why Your Rotors Might Wear Faster

It's a common observation among Volkswagen TDI owners that the rear brake rotors can sometimes show signs of wear more rapidly than their front counterparts. This phenomenon is often attributed to the sophisticated braking system employed in these vehicles, particularly the electronic distribution of braking force. In everyday driving, especially during light braking situations, the TDI's system tends to utilise the rear brakes more predominantly. This can lead to increased wear on the rear rotors and pads over time, even if the front brakes still appear to have plenty of life left. Therefore, when undertaking a brake service, it's crucial to inspect both the front and rear braking components to ensure optimal safety and performance.

This comprehensive guide will walk you through the process of replacing both the front and rear brake pads and rotors on your Volkswagen Jetta, Golf, or New Beetle TDI, specifically focusing on the mk4 platform (1998-2005/6). While the task is rated as a 2/5 difficulty, meaning it's manageable for a DIY enthusiast with basic mechanical knowledge, it's always paramount to prioritise safety and refer to your vehicle's factory service manual. If at any point you feel unqualified or unsure, it is strongly recommended to seek the assistance of a certified professional mechanic. Faulty brakes can have severe consequences, and a lapse in judgment could lead to an accident or loss of control.

When to Consider a Brake Fluid Flush

While you're delving into the intricacies of your braking system, it presents an opportune moment to consider flushing the hydraulic brake fluid. This is a vital maintenance task that should ideally be performed every two years, regardless of mileage, or as indicated by your vehicle's service schedule. A fresh brake fluid flush ensures the system remains free of moisture and contaminants, which can degrade braking performance and potentially damage components. For a detailed walkthrough of this procedure, you can refer to specialised guides on bleeding the brake and clutch hydraulic system.

Enhancing Your Braking Performance

When it comes to improving your TDI's braking capabilities, there are several avenues to explore. While high-performance brake pads can certainly enhance the 'feel' of the brakes, offering a more responsive and direct pedal input, the most effective way to increase actual stopping power is by applying more force to the brake pedal and ensuring you have high-quality, well-maintained tyres. Tyres play a critical role in grip and braking efficiency, so don't overlook their condition.

For those seeking quiet operation and minimal dust, brands like Mintex Redbox or Axxis Deluxe are often recommended as they offer OEM-level performance. However, it's worth noting that aggressive performance pads can sometimes lead to increased rotor wear or produce squealing noises, particularly when cold. Choosing the right pads depends on your driving style and priorities.

Inspecting and Replacing Rotors: What You Need to Know

As mentioned, rear rotors on VW TDIs can wear faster. When you're replacing your brake pads, it's essential to also inspect the condition of your rotors. Check for sufficient thickness to last until your next scheduled brake service. Rotors have specific wear limits, and driving with rotors below this minimum thickness can compromise safety.

Often, rotors can be 'turned' (resurfaced) if they have minor warping or surface imperfections, provided there's enough material remaining. This process involves using a brake lathe to create a flat, smooth surface. However, turning rotors reduces their mass, which can make them more susceptible to warping in the future due to heat buildup during braking. While turning is a cost-effective option, the labour involved is minimal, and purchasing new rotors is often just as straightforward, especially if the existing ones are close to their wear limit or show signs of significant damage.

If you've experienced persistent rotor warping issues, consider investing in higher-quality aftermarket rotors or investigating potential causes such as hub runout (improperly seated hubs).

Upgrading Your Brake System

For TDI and 2.0L engine variants, there's the possibility of upgrading to larger brakes and calipers. This typically involves changing a few components. If you have a 1.8T or VR6 model, you might have removable brake carriers, which simplifies the process of fitting larger brake setups. For in-depth information on such upgrades, consult specific guides detailing mk4 big brake upgrades.

Essential Parts and Tools for a DIY Brake Job

Before you begin, gather all the necessary parts and tools to ensure a smooth and efficient replacement process:

Parts:

• New front and rear brake pads (ensure they are compatible with your model and have wear indicators if applicable)
• New front and rear brake rotors
• Brake cleaner fluid
• Brake grease (high-temperature, silicone-based is recommended)
• Antiseize compound
• DOT 4 brake fluid (if flushing the system)
• Optional: New caliper bolts (especially for rear brakes, as per factory recommendation)

Tools:

• Large Phillips head screwdriver
• Large flat head screwdriver or pry bar
• 7mm Allen wrench
• 8mm Allen wrench
• 13mm and 15mm wrenches
• 17mm socket for lug nuts
• Torque wrench
• Wire brush or rough scrubbing pad
• File
• C-clamp or brake caliper piston tool (a special tool is needed for rear calipers)
• Jack and jack stands
• Wheel chocks
• Penetrating lubricant (e.g., PB Blaster, Liquid Wrench)

Front and Rear Brake Rotor Wear Specifications (mk4 1.9L VW TDI)

Understanding the specifications is key to a successful replacement:

Note: The front rotors are typically larger and vented. Front pads usually feature a wear sensor, while rear pads might have a spring mechanism.

Step-by-Step Guide: Replacing Front Brakes

1. Preparation: Chock the rear wheels, engage the parking brake, and put the car in gear (manual transmission). Loosen the lug nuts on the front wheel you'll be working on while the car is still on the ground. Then, jack up the vehicle using the factory jack points and secure it with jack stands. Ensure the wheel is just barely touching the ground. Remove the center cap and fully remove the lug nuts.
2. Remove Wheel and Caliper: If equipped, disconnect the brake pad wear sensor wire. Pry off the rubber dust cap covering the caliper guide pin bolt (usually a 7mm Allen bolt). Remove the guide pin bolts (both top and bottom). Gently pry the brake pads out and slide the caliper off the rotor. Crucially, do not let the caliper hang by the brake line. Secure it with a piece of string or rest it on the removed wheel.
3. Piston Compression: The new pads are thicker than the old ones, so the caliper piston needs to be retracted. Open the brake fluid reservoir cap to relieve pressure. Using a C-clamp or a dedicated brake caliper tool, carefully press the piston back into the caliper body. Avoid opening the bleeder nipple unless you are performing a brake fluid flush and are prepared to bleed the system afterwards.
4. Rotor Removal: Locate and remove the Phillips head set screw securing the rotor to the hub. If it's rusted, apply penetrating lubricant and allow it to soak. Be cautious not to strip the screw head. If the rotor is stubborn, a few light taps with a rubber mallet or a piece of wood can help break it free.
5. Hub Preparation: Thoroughly clean the hub surface with a wire brush, removing any rust or debris. Apply a thin layer of antiseize compound around the lug holes and the set screw hole to prevent future corrosion. This ensures the new rotor seats properly.
6. Installation: Clean the new rotor and pads with brake cleaner. Place the new rotor onto the hub, aligning the set screw hole. Reinstall the set screw, tightening it lightly. Install the new brake pads into the caliper bracket. Lubricate the slide pins and the back of the brake pads with a small amount of brake grease. Do not get grease on the pad friction material or the rotor surface.
7. Reassembly: Slide the caliper back over the new pads and rotor. Reinstall the guide pin bolts, applying a touch of antiseize to the threads, and torque them to the specified value. Reconnect the brake pad wear sensor wire, if applicable.
8. Final Steps: Reinstall the wheel, hand-tighten the lug nuts, and lower the vehicle. Torque the lug nuts to the specified value. Repeat the process for the other side.
9. Testing: Pump the brake pedal several times to set the pistons and pads. Go for a short test drive at low speed, checking for proper braking function and listening for any unusual noises. Check for fluid leaks around the caliper and lines.

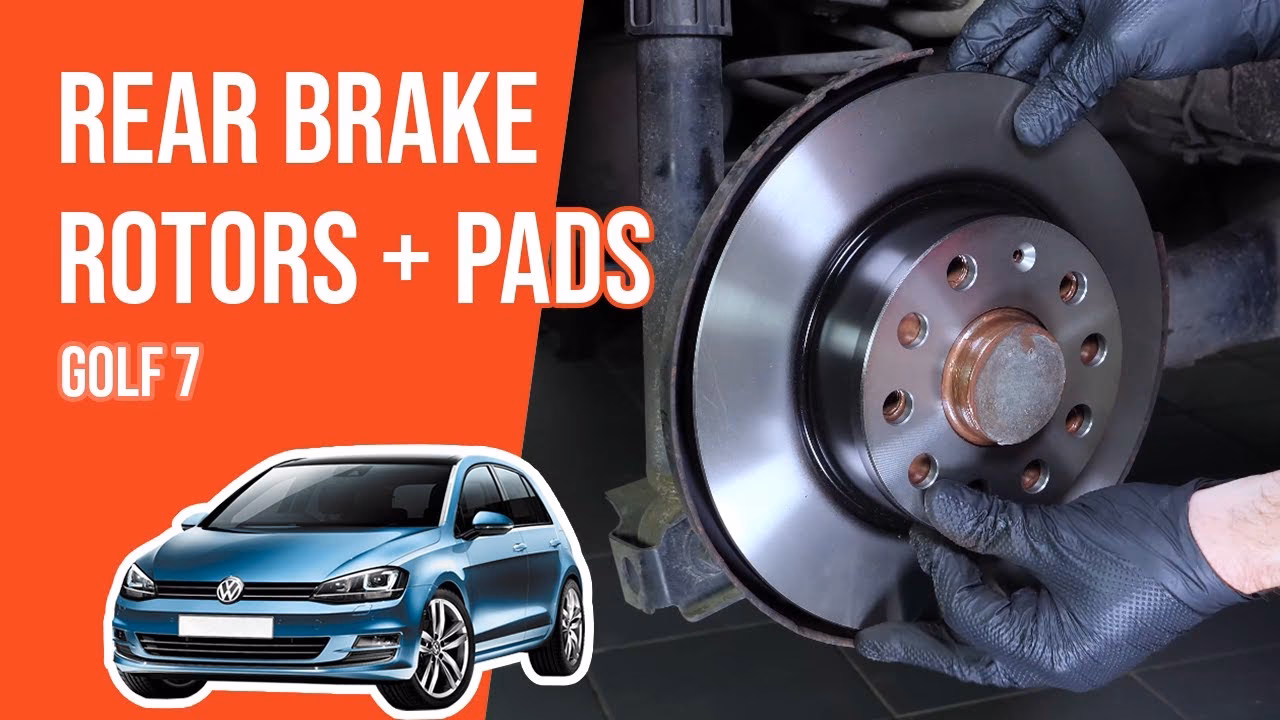

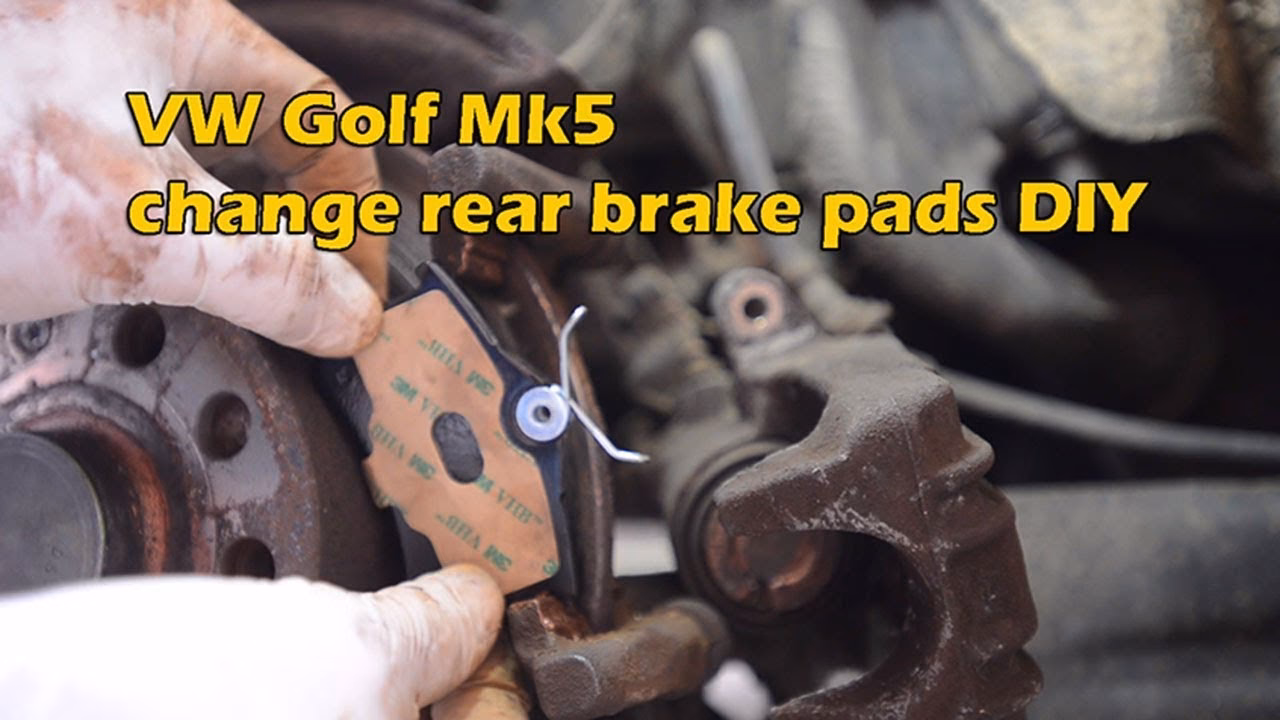

Replacing Rear Brakes: Key Differences

The rear brake replacement process is largely similar to the front, but with a few key distinctions:

1. Parking Brake Cable: You'll need to release the tension on the parking brake cable. This usually involves removing a retaining clip and carefully slipping the cable out of its mounting point on the caliper. Ensure the parking brake lever in the cabin is disengaged.
2. Caliper Bolts: The rear caliper bolts (often 13mm) are typically self-locking and the factory service manual recommends replacing them with new ones each time. The caliper bolts usually require counter-holding with a 15mm wrench on the guide pin nuts.
3. Piston Retraction: Unlike the front caliper pistons that can be pushed back with a C-clamp, the rear caliper pistons often require a special tool that both pushes and turns the piston simultaneously to retract it. This is due to the integrated parking brake mechanism.
4. Caliper Carrier: You may need to remove the caliper carrier bolts (8mm Allen) to get the rotor off. Inspect the carrier pins for smooth movement, torn boots, and lubricate them as needed.
5. Reassembly and Testing: Reassemble in reverse order, ensuring all bolts are torqued correctly. After reassembly, it's crucial to pump the brake pedal and engage the parking brake several times to reset the caliper pistons and parking brake mechanism. Perform a test drive, checking both the service brakes and the parking brake function.

Important Torque Specifications

Adhering to the correct torque specifications is vital for safety and proper component function:

Front Brakes:

• Guide Pins: 22 ft-lbs
• Rotor Set Screw: 3 ft-lbs (tighten lightly)
• Lug Nuts: 89 ft-lbs (dry spec)

Rear Brakes:

• Caliper Bolts: 26 ft-lbs (if replacing with new bolts, or reuse with caution and threadlocker)
• 8mm Brake Carrier Bolts: 48 ft-lbs
• Rotor Set Screw: 3 ft-lbs (tighten lightly)
• Lug Nuts: 89 ft-lbs (dry spec)

Frequently Asked Questions (FAQ)

Q1: Do VW TDI rotors wear out faster than other cars?

While not universally true for all driving conditions, the electronic brake force distribution in TDIs can lead to quicker wear on the rear rotors compared to the front, especially with lighter braking habits.

Q2: Can I turn my rotors instead of replacing them?

Yes, if the rotors have sufficient material thickness and only minor surface imperfections or warping. However, turning reduces rotor mass, potentially making them more prone to future warping. If they are close to the minimum thickness or significantly damaged, replacement is recommended.

Q3: What kind of brake fluid do I need?

For most VW TDIs of this era, DOT 4 brake fluid is the correct specification.

Q4: Why do I need a special tool for the rear caliper pistons?

The rear caliper pistons often incorporate the parking brake mechanism, requiring a tool that can both push and rotate the piston to retract it, unlike the front pistons which can usually be compressed with a simple C-clamp.

Q5: What happens if I don't replace the rear caliper bolts?

The factory service manual specifies replacing these bolts due to their self-locking nature. Reusing them carries a risk, though many DIYers do so successfully if the bolts are in good condition. Using new bolts with threadlocker is the safest approach.

Final Safety Reminder

Brake maintenance is critical for your safety. If you have any doubts or concerns about performing this procedure, please consult the myturbodiesel.com forums or seek professional assistance. Always prioritise safety and ensure your braking system is in optimal working order.
