13/07/2019
Regular engine oil and filter changes are arguably the most critical routine maintenance tasks you can perform for your Fiat Ducato van. It's the lifeblood of your engine, lubricating moving parts, reducing friction, and dissipating heat. Over time, oil degrades, losing its protective properties, and accumulates contaminants. A fresh supply ensures optimal performance, fuel efficiency, and significantly extends your engine's longevity. While seemingly daunting, changing the oil and filter on your Ducato (models 250_ and 290_) is a straightforward process that many DIY enthusiasts can tackle with the right tools and a little patience. This guide will walk you through each step, ensuring you keep your trusty workhorse in prime condition.
Before you begin, gather all necessary tools and materials. This preparation is key to a smooth and efficient job. You'll need: fresh engine oil (refer to your Ducato's owner's manual for the correct type and quantity, typically a low-ash synthetic or semi-synthetic oil meeting specific ACEA standards like C2 or C3, and a viscosity like 5W-30 or 0W-30), a new oil filter, an oil filter wrench, a drain pan (large enough to hold all the old oil, usually 6-7 litres for a Ducato), a funnel, a socket or wrench for the drain plug (often 12mm or 13mm, but verify for your specific model), a torque wrench (for precise tightening), disposable gloves, rags or shop towels, and a fender protection cover.
Safety First: Preparing for the Job
Your safety first is paramount when working under any vehicle. Never rely solely on a jack. Always use sturdy axle stands once the vehicle is raised, or ensure it is securely positioned over an inspection pit. The ground should be level and firm. Wear appropriate personal protective equipment, including gloves and eye protection, to guard against hot oil and debris. Ensure the engine has been run briefly to warm the oil, making it flow more easily, but not so hot that it presents a burn risk. Allow it to cool for 10-15 minutes after running.
Begin by opening the bonnet of your Fiat Ducato. This allows access to the oil filler plug and the oil filter housing. It's also a good practice to place a fender protection cover over the wings of your van. This simple step prevents accidental scratches or damage to the paintwork and plastic components while you're leaning over the engine bay, ensuring your vehicle looks as good as it runs.
Locate the oil filler plug on top of the engine, typically marked with an oil can symbol. Unscrew it and set it aside. This action helps to ventilate the crankcase, allowing the old oil to drain more freely once the drain plug is removed. Do not replace it until you are ready to add the new oil.
Lifting and Draining the Old Oil
Now, it's time to lift the front of your Ducato. If using a jack, position it carefully under a sturdy jacking point (refer to your owner's manual for specific locations). Slowly raise the vehicle until you have sufficient clearance to comfortably work underneath. Once raised, immediately place axle stands under secure chassis points and gently lower the vehicle onto them. Give the vehicle a slight shake to ensure it's stable on the stands. If you're fortunate enough to have access to an inspection pit, simply drive your Ducato carefully over it, ensuring it's centred and stable.
Slide your drain pan underneath the engine, positioning it directly below the oil pan's drain plug. The drain plug is usually located at the lowest point of the oil pan, often facing towards the rear or side. Using the correct size socket or wrench, carefully loosen the drain plug. Be prepared for the oil to start flowing immediately. Once loosened, remove the plug by hand, being careful not to drop it into the hot oil. Allow the old oil to drain completely into the pan. This can take anywhere from 10 to 20 minutes, depending on the oil's temperature and viscosity. While the oil is draining, inspect the drain plug and its washer. It's highly recommended to replace the drain plug washer (often a crush washer) with a new one every time to ensure a leak-free seal. Some drain plugs are magnetic, designed to capture metallic particles, so clean any debris from the magnet if present.

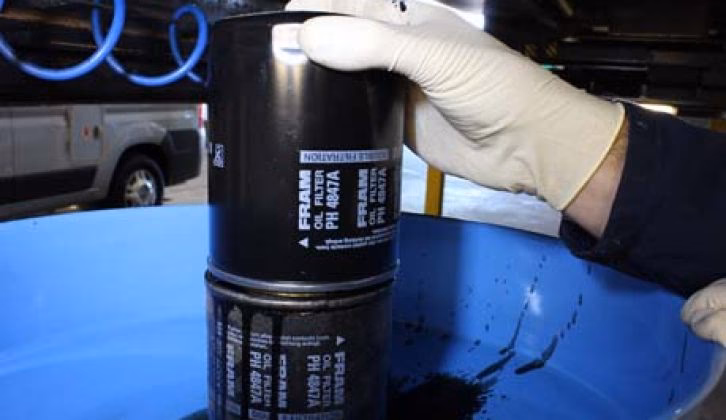

Replacing the Oil Filter
Once the old oil has finished draining, you can proceed to replace the oil filter. The location of the oil filter varies slightly between Ducato models and engine variants, but it's typically a canister-style filter located near the front or side of the engine block. It might be accessible from above or below. Place a few rags or a small secondary drip pan directly under the oil filter housing, as some residual oil will spill when it's removed.
Use your oil filter wrench to loosen the old filter. Once it's loose, you can usually unscrew it by hand. Be prepared for a small amount of oil to spill. Carefully remove the old filter and dispose of it responsibly along with the old engine oil. Before installing the new filter, take a small amount of fresh engine oil and apply a thin film to the rubber gasket of the new filter. This helps create a good seal and prevents the gasket from binding or tearing during installation. Screw the new oil filter on by hand until the gasket makes contact with the engine block. Then, tighten it an additional three-quarters to one full turn, or as specified by the filter manufacturer (usually printed on the filter itself). Do not overtighten, as this can damage the filter or housing.
Refilling with Fresh Oil and Final Checks
With the new filter in place and the old oil drained, it's time to reinstall the drain plug. Ensure you use a new crush washer if applicable. Tighten the drain plug to the manufacturer's specified torque setting using a torque wrench. Overtightening can strip the threads of the oil pan, leading to costly repairs, while undertightening will result in leaks. Consult your Ducato's service manual for the exact torque specification (it's often around 25-30 Nm, but always verify).
Now, carefully lower your Fiat Ducato back down to the ground. Use a funnel to slowly pour the correct oil into the engine through the oil filler opening. Refer to your owner's manual for the precise oil capacity of your engine. It's always better to add slightly less than the full capacity initially, then check the level. For example, if your Ducato takes 6.5 litres, add 6 litres first. Once the oil has been added, replace the oil filler cap securely.
Start the engine and let it idle for a minute or two. This allows the new oil to circulate throughout the engine and fill the new oil filter. While the engine is running, quickly check underneath the van for any signs of leaks around the drain plug or oil filter. If no leaks are visible, switch off the engine and wait for about 5-10 minutes to allow the oil to settle back into the sump.
Finally, check the oil level using the dipstick. Remove the dipstick, wipe it clean, reinsert it fully, then remove it again. The oil level should be between the 'MIN' and 'MAX' marks. If it's below 'MAX', add small amounts of oil gradually, rechecking the dipstick each time, until the correct level is reached. Do not overfill, as this can cause aeration of the oil and potential engine damage. Once the level is correct, ensure the dipstick is fully seated.
Choosing the Right Engine Oil for Your Ducato
Selecting the correct engine oil is paramount for your Ducato's health. Fiat Ducato vans are robust vehicles, but they require specific oil formulations to meet the demands of their engines, especially modern diesel engines with Diesel Particulate Filters (DPFs). Using the wrong oil can lead to DPF clogging, reduced engine life, and poor performance. Always consult your vehicle's owner's manual for the exact specifications, but here's a general guide:
| Oil Specification | Description & Common Viscosity | Suitability for Ducato (250_, 290_) |
|---|---|---|
| ACEA C2 / C3 | Low SAPS (Sulphated Ash, Phosphorus, Sulphur) oil, typically 5W-30 or 0W-30. Essential for vehicles with DPFs. | Highly Recommended for most modern Ducato diesel engines (Euro 4, 5, 6) to protect the DPF and catalytic converter. |
| ACEA A3/B4 | High SAPS oil, generally 5W-40, 10W-40. Designed for engines without DPFs or older designs. | Potentially suitable for older Ducato diesel engines without DPFs, or certain petrol variants. Check manual carefully. |
| Viscosity (e.g., 5W-30) | 'W' denotes 'Winter' viscosity (cold start performance). The second number is hot operating viscosity. | 5W-30 is a common recommendation for balanced performance across various temperatures. 0W-30 for colder climates. |
| Brand & Quality | Always choose reputable brands (e.g., Shell, Castrol, Mobil 1) that explicitly state compliance with ACEA or Fiat specifications. | Quality oil ensures proper lubrication, thermal stability, and engine cleanliness. Never compromise on quality. |
Common Mistakes to Avoid
* Not warming the oil: Cold oil drains slowly and incompletely. * Not using axle stands: Extremely dangerous. * Overtightening the drain plug/filter: Can cause damage and leaks. * Not replacing the crush washer: Leads to leaks from the drain plug. * Using the wrong type of oil: Can damage the engine or DPF. * Overfilling the oil: Can cause frothing, pressure issues, and engine damage. * Not disposing of old oil properly: It's a pollutant and must be recycled.
When to Change Your Ducato's Oil
Your Fiat Ducato's owner's manual will provide the definitive service intervals. However, as a general rule, most modern Ducato diesel engines require an oil and filter change every 12,000 to 18,000 miles or every 12 months, whichever comes first. If your van is used for heavy-duty applications, frequent short journeys, or in dusty conditions, more frequent changes might be beneficial. Regular maintenance is key to preventing costly repairs down the line.
Benefits of Regular Oil Changes
Beyond just keeping your engine running, regular oil and filter changes offer numerous advantages. They ensure optimal engine performance, leading to better fuel economy and smoother operation. They prevent the buildup of sludge and deposits, which can clog oil passages and reduce efficiency. Crucially, clean oil protects vital engine components from wear, extending the overall lifespan of your Ducato. It also helps in maintaining the vehicle's resale value, as a well-documented service history is a significant asset.
Frequently Asked Questions (FAQs)
Q: How often should I change the oil in my Fiat Ducato?
A: Consult your owner's manual for precise intervals, but typically every 12,000 to 18,000 miles or annually, whichever comes first. Heavy usage or adverse conditions may warrant more frequent changes.
Q: What type of oil does my Fiat Ducato need?
A: Modern Ducato diesel engines (Euro 4, 5, 6) generally require a low SAPS oil, such as ACEA C2 or C3, with a viscosity like 5W-30 or 0W-30. Always check your specific model's manual for the exact Fiat specification (e.g., FIAT 9.55535-S1).
Q: Can I use a universal oil filter?
A: No, always use an oil filter specifically designed for your Fiat Ducato's engine. Aftermarket filters from reputable brands are usually fine, but ensure they match the OEM specifications for fit and filtration efficiency.
Q: What should I do with the old engine oil?
A: Old engine oil is a hazardous waste and must be disposed of responsibly. Most local recycling centres or authorised garages will accept used engine oil for free. Never pour it down drains or onto the ground. This demonstrates environmental responsibility.
Q: My oil light is on after the change, what should I do?
A: First, recheck the oil level immediately. If the level is correct, the light might be indicating low oil pressure or a faulty sensor. If the light persists, do not drive the van and seek professional assistance.
Q: Is it worth changing the oil myself, or should I take it to a garage?
A: If you have the right tools, space, and a basic understanding of mechanics, changing the oil yourself can save you money and give you satisfaction. However, if you're unsure or uncomfortable, a professional garage will ensure the job is done correctly and safely.
