P334B Fault Code: VAG Turbo Actuator Woes Explained

That dreaded check engine light, often accompanied by a noticeable drop in power, can send shivers down any car owner's spine. For many Volkswagen Audi Group (VAG) vehicle owners, particularly those with TSI or TFSI engines, the fault code P334B is becoming an increasingly familiar, and frustrating, sight. This code, officially defined as 'Charge Pressure Actuator Mechanical Malfunction', points directly to issues within your turbocharger's delicate control system. But what exactly does it mean for your beloved Golf, A1, Leon, or Octavia, and how can you effectively address it?

Understanding P334B requires a brief dive into how your turbocharger works. A turbocharger uses exhaust gases to spin a turbine, which in turn spins a compressor, forcing more air into the engine. This 'boost' significantly increases power output. To prevent over-boosting and potential engine damage, a component called a wastegate is employed. The wastegate is a flap that diverts exhaust gases away from the turbine when boost pressure becomes too high. An electronic actuator controls this wastegate, opening and closing it precisely as required by the engine's control unit (ECU).

The P334B fault code indicates that this actuator, or the mechanism it controls, isn't operating correctly. While the code specifically flags the actuator, the real culprit often lies deeper within the turbocharger assembly itself.

The Root Cause: A Seized Wastegate Spindle

Despite the code's focus on the 'actuator mechanical malfunction', the overwhelming evidence from countless VAG owners and specialists points to a more fundamental issue: the wastegate spindle seizing within the turbine housing. This phenomenon is particularly prevalent in VAG's 1.0, 1.2, 1.4, and 1.5 TSI/TFSI engines, affecting models from 2012 onwards, including the 2013 Golf and even newer 2017 Audi A1s.

When the wastegate spindle seizes, typically due to corrosion or carbon build-up from exhaust gases, it prevents the wastegate flap from moving freely. The electronic actuator, still attempting to operate the wastegate as instructed by the ECU, is then put under immense strain. This excessive force often leads to the internal gears of the actuator stripping or breaking, as they are not designed to overcome a completely seized mechanism. You might even hear a distinctive wastegate rattling sound, especially on a drive-by, indicating the actuator struggling or the wastegate flap being loose due to a worn spindle.

Another less common, but still plausible, cause of the P334B code is corrosion on the control arm itself – the small rod connecting the actuator to the wastegate lever. If this arm corrodes significantly, it can restrict movement, mimicking a seized wastegate, even if the wastegate spindle itself is free.

Recognising the Symptoms of P334B

The symptoms associated with the P334B fault code are quite distinct and can significantly impact your driving experience:

• EPC (Electronic Power Control) Light: This warning light on your dashboard is a common indicator of engine management issues, especially those affecting power delivery or electronic control systems.
• Engine Management Light (EML) / Check Engine Light: As with most fault codes, the EML will illuminate, signalling a problem detected by the ECU.
• Reduced Power / Limp Mode: This is perhaps the most noticeable symptom. Your car will feel significantly down on power, struggling to accelerate, particularly uphill. The engine's control unit often puts the car into a 'limp home' mode to prevent further damage, severely limiting performance.
• Wastegate Actuator Rattling: As mentioned, a metallic rattling sound, especially audible from the engine bay, can be a direct indication of the actuator struggling or the wastegate arm having excessive play due to a seized spindle.

The Diagnostic Process: Peering into the Turbo's Heart

Diagnosing the P334B code accurately requires more than just reading the fault code itself. While a basic code reader can confirm P334B, it won't tell you whether the actuator is faulty, the wastegate is seized, or both. A proper diagnosis involves:

1. Advanced Diagnostics: A VAG-compatible diagnostic tool can perform output tests on the actuator, attempting to cycle it and monitor its response. This can reveal if the actuator itself is responding, but not necessarily if the wastegate is moving freely.

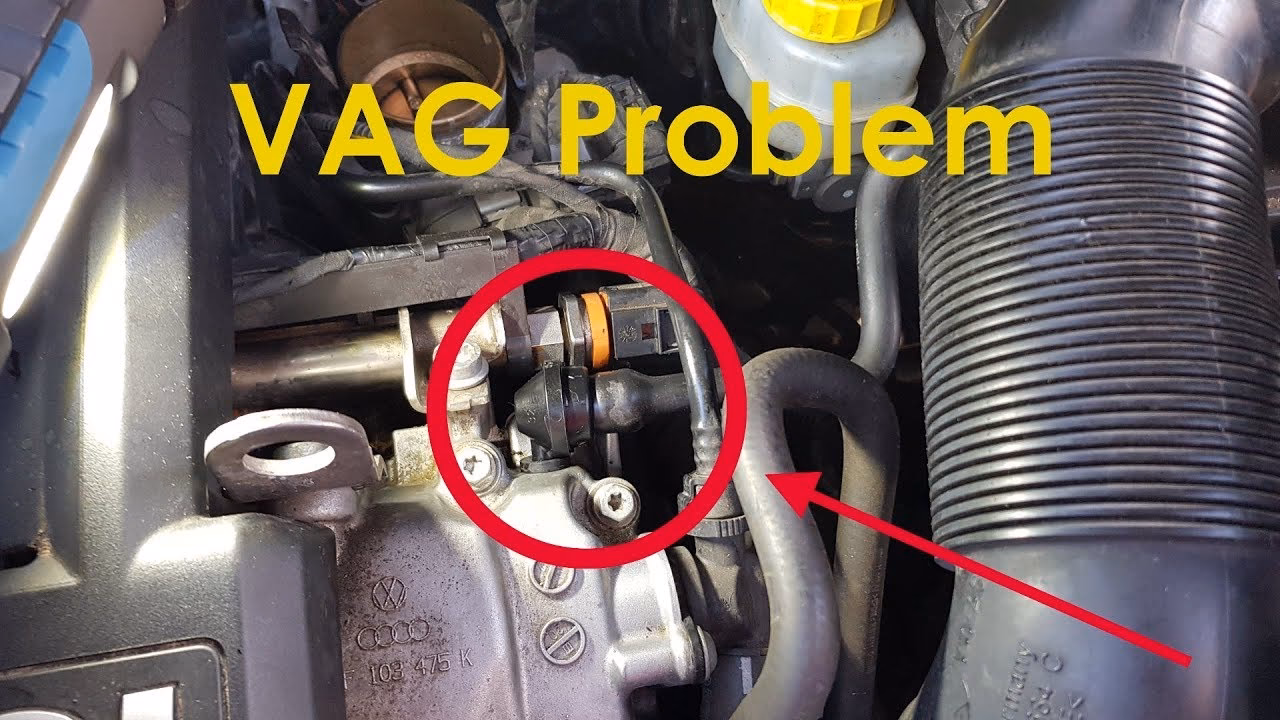

2. Manual Inspection of the Wastegate: This is the crucial step. With the engine stone cold, the actuator arm needs to be disconnected from the wastegate lever. This usually involves removing a small, often fiddly, circlip or retaining washer. Once disconnected, the wastegate lever on the turbocharger should be manually checked for smooth, free movement. If it's tight, stiff, or completely seized, then the problem lies with the wastegate spindle within the turbo, not just the actuator. This is a challenging task due to the actuator's awkward location at the back of the engine, often requiring mirrors and working by feel.

Repair Pathways and Associated Costs

Addressing the P334B fault can range from a relatively simple fix to a significant expense, depending on the precise nature of the failure. Here's a breakdown of the common repair options:

1. Actuator Replacement Only

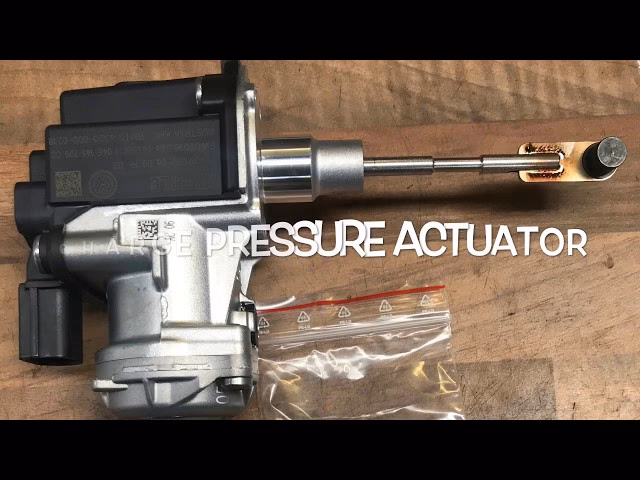

If the diagnostic points solely to a faulty actuator (e.g., its internal gears are stripped, but the wastegate moves freely), replacing just the electronic actuator (part number 04E 198 725 G, often sold as a servo motor kit) might seem like the logical choice. The part itself can cost around £200-£300. However, this is frequently a temporary solution. If the underlying issue is a stiff or seizing wastegate spindle, a new actuator will quickly succumb to the same strain and fail again. Crucially, many suppliers and garages will refuse warranty on a new actuator if it's fitted to a turbo with a seized wastegate, as the root cause hasn't been addressed.

2. Control Arm Replacement

In rare cases, only the connecting control arm between the actuator and the wastegate lever is seized due to corrosion, while the wastegate spindle itself remains free. This is the cheapest potential fix, with the control arm costing as little as £28. This repair involves carefully freeing the seized arm from the turbo end, installing a new arm, and reconnecting it. It requires delicate work and patience, especially given the tight access.

3. Turbo Rebuild

When the wastegate spindle is confirmed to be seized, a turbo rebuild is often the most effective and cost-efficient long-term solution. This involves removing the turbocharger, disassembling it, repairing or re-engineering the seized spindle and its bore, and replacing any other worn components. Specialist turbo repair shops often provide this service. An independent garage typically charges around £800-£1,200 for a turbo rebuild, offering a guaranteed repair that addresses the fundamental problem.

4. Full Turbo Replacement

Audi and VW main dealerships often opt for a complete turbocharger replacement, citing it as the most straightforward and guaranteed solution for them. While this certainly resolves the issue, it is by far the most expensive option, often costing upwards of £1,800 to £2,500 or more. This route might be pushed even if a simple rebuild would suffice, as it's less labour-intensive for the dealer and guarantees a new part, albeit at a premium.

Comparative Repair Options

To help you weigh your choices, here's a comparative table of typical repair scenarios:

Should You DIY?

While the idea of saving money by tackling the repair yourself is appealing, especially with online guides, the P334B repair is generally not recommended for the average home mechanic. The reasons are numerous:

• Difficult Access: The actuator and wastegate are located in a very confined space at the back of the engine, making access incredibly challenging. Professional mechanics often work blind, using mirrors and feeling their way around.
• Specialised Tools: Removing the small circlips that hold the actuator arm can be tricky without the right tools, and losing them in the engine bay is a real possibility.
• Risk of Damage: Forcing a seized wastegate or improperly installing components can lead to further, more expensive damage, including total turbo failure.
• Calibration: After replacing an actuator, it often needs to be calibrated or 'matched' to the car using specialist diagnostic equipment, which basic code readers cannot do.
• Safety: As one expert highlighted, a wastegate left disconnected or malfunctioning could lead to uncontrolled turbo speed and catastrophic engine damage.

Choosing the Right Mechanic

Given the complexities, selecting the right professional is key. While your local garage might be able to read the code, they may not have the specific VAG expertise or the tools to properly diagnose the seized wastegate. It's often best to consult:

• VAG Specialist: An independent garage specialising in Volkswagen and Audi vehicles will have the necessary diagnostic tools and experience with these common issues.
• Turbo Specialist: Companies that specialise solely in turbocharger repair and rebuilding are often the best choice for a cost-effective and lasting solution to a seized wastegate. Many independent garages will send turbos to these specialists for rebuilds.

As one lucky owner discovered, sometimes your local garage might even utilise the services of highly competent turbo specialists, such as Midland Turbo in the UK, even if they aren't explicit turbo experts themselves.

Frequently Asked Questions (FAQs)

Can I drive my car with a P334B fault code?

While your car might still drive, it will be in limp mode with significantly reduced power. Continued driving is not recommended as it puts undue stress on the turbocharger and engine components, potentially leading to more severe and costly damage. The risk of sudden, complete turbo failure increases.

Does P334B always mean I need a new turbo?

No, not always. While main dealerships often recommend full turbo replacement due to a seized wastegate, a turbo rebuild is frequently a viable and much more affordable option. In rare cases, if only the control arm is corroded and the wastegate spindle is free, a simple control arm replacement can resolve the issue.

Why did my turbo actuator fail?

The actuator itself rarely fails in isolation. Its failure (e.g., stripped gears) is almost always a secondary symptom of a seized or stiff wastegate spindle. The actuator is simply overworked trying to move a stuck component, leading to its internal mechanical failure.

What is the difference between an actuator replacement and a turbo rebuild?

An actuator replacement involves swapping the electronic motor that controls the wastegate. A turbo rebuild, however, addresses the core problem by repairing or re-engineering the wastegate spindle and its housing within the turbocharger itself. A rebuild is a more comprehensive and often necessary fix when the wastegate is seized.

How can I prevent the P334B fault?

Unfortunately, there isn't a definitive preventative measure against wastegate spindle seizing, as it's often linked to design or material properties. However, regular servicing, using high-quality engine oil, and avoiding prolonged periods of vehicle inactivity (which can lead to corrosion) might help mitigate the risk, though this is not guaranteed.

The P334B fault code, while concerning, is a well-known issue within the VAG community. By understanding its true cause – typically a seized wastegate spindle – and exploring the various repair options, you can make an informed decision to get your car back to full health without necessarily breaking the bank. Always seek a thorough diagnosis from a trusted mechanic, preferably a VAG or turbo specialist, to ensure the correct and most cost-effective repair is carried out.
