DIY Brake Caliper Removal & Pad Replacement Guide

There's nothing quite like the feeling of the open road, especially after a successful bouldering trip to stunning Dartmoor. That freedom, however, relies heavily on one crucial component: your brakes. I recently had a stark reminder of this coming off the hills, as my front brakes began to grind ominously. It was a clear sign that my brake pads had finally given up the ghost.

Luckily, changing brake pads is a fairly straightforward job for the home mechanic with some basic tools. It's a vital piece of maintenance that not only ensures your safety but also saves you a tidy sum on garage labour. This guide will walk you through the process, focusing on how to remove a brake caliper and replace your pads, drawing on my own recent experience with my van.

Safety First: Preparing Your Vehicle

Before you even think about touching a spanner, safety must be your absolute priority. Working under a vehicle can be incredibly dangerous if not done correctly. Always ensure your vehicle is stable and secure.

The first step is to loosen the wheel nuts on the front wheel you intend to work on while the vehicle is still on the ground. Just a quarter turn should suffice. Once loosened, you'll need to jack up one side of your van. The jacking point is typically a reinforced area on the sill, easily spotted just behind the front wheel. Position your jack securely here and raise the vehicle until the wheel is clear of the ground.

Crucially, once the vehicle is lifted, never rely solely on the jack. Immediately place an axle stand beneath a sturdy part of the chassis or suspension, such as the wishbone mounting point, to support the vehicle's weight. For added security, I often back this up with a bottle jack under another strong point, ensuring multiple fail-safes. Give the vehicle a good shake to confirm it's absolutely stable before proceeding. Once secure, you can fully remove the wheel nuts and the wheel itself, setting it aside.

A vital note: Always replace brake pads as a complete axle set – never just on one side. Discrepancies in braking performance between sides can lead to dangerous instability, especially under hard braking.

Understanding Your Brake Caliper and Pads

Before diving into the removal process, it's helpful to understand what you're looking at. The brake caliper is the component that houses the brake pads and the piston(s). When you press the brake pedal, hydraulic pressure forces the piston to extend, pushing one brake pad against the disc. The caliper body then slides, pulling the other pad against the opposite side of the disc, creating friction and slowing the vehicle.

Worn brake pads are the most common reason for needing to remove the caliper. Over time, the friction material on the pads wears down, eventually leading to metal-on-metal contact with the brake disc, causing that tell-tale grinding sound and significantly reduced braking efficiency. Ignoring this can lead to expensive damage to your brake discs and potentially catastrophic brake failure.

Tools and Materials You'll Need:

• Wheel Brace/Socket Set
• Trolley Jack
• Axle Stands (essential!)
• Socket Set (typically 13mm for caliper bolts, plus others for wheel nuts)
• Spanners (to hold nuts if bolts spin)
• G-Clamp (for piston retraction on some calipers)
• Brake Rewind Tool (for screw-back pistons)
• Copper Grease
• Brake Cleaner
• Wire Brush
• New Brake Pads (ensure they are the correct ones for your vehicle, I sourced mine from GSF)
• Brake Fluid (optional, for topping up if needed)
• Container for old brake fluid (if bleeding)
• Safety Glasses and Gloves

Removing the Brake Caliper and Old Pads

With the wheel off, you'll have a clear view of the brake assembly. On my van, the caliper is held in place by two 13mm bolts. These bolts are typically located on the backside of the caliper, holding what are often called 'slider pins' or 'guide pins'. These pins allow the caliper to float and ensure even pressure on both sides of the disc when braking.

Carefully locate these bolts. They might be covered by rubber boots. Using the correct size socket or spanner, begin to loosen them. In my case, they came off easily enough. However, it's common for these bolts, or more accurately, the pins they secure, to become seized due to dirt and corrosion. If they're stiff, a good penetrating oil like Plus Gas (far superior to WD-40 for seized parts in my experience) can be a lifesaver. Apply it liberally and let it soak for a while, then try again. Sometimes, a gentle tap with a hammer on the end of the bolt, while being careful not to damage the threads, can help break the corrosion free.

Once the bolts are undone, the entire caliper should slide off the brake disc. If it's reluctant to move, it's likely the slider pins are seized. Gently pry it outwards, being careful not to damage the brake hose. Once the caliper is free, the old brake pads might even drop out on their own. If not, they'll easily lift out of their retaining clips or slots.

With the caliper removed, you'll see the difference between your brand new brake pads and the very worn ones you've just taken off. It's often a shocking contrast, highlighting just how much material has worn away. The next critical step is to retract the brake piston to make room for the thicker new pads.

Retracting the Brake Piston: A Crucial Step

This is where brake calipers can differ. There are generally two main types of brake pistons you'll encounter:

On my van, I was fortunate to have the push-back type. This meant the piston could be pressed back into the caliper using a large G-clamp and a small off-cut of wood (to protect the piston face and distribute pressure evenly). Position the wood against the piston and the G-clamp against the back of the caliper, then slowly tighten the clamp, watching the piston retract.

Regardless of the piston type, it is absolutely essential to loosen or remove the lid to the brake fluid reservoir, which is typically located under the bonnet. As you push the piston back, brake fluid will be displaced and flow back up the pipes into the reservoir. If the lid is on, this fluid has nowhere to go, creating immense pressure that can damage your brake system components, including the master cylinder or hoses. Opening the reservoir allows air to escape and the fluid to return freely. Keep an eye on the fluid level in the reservoir; ensure it doesn't overflow, and if it's exceptionally high, you might need to syringe a small amount out (dispose of it responsibly, as brake fluid is corrosive).

Cleaning, Lubricating, and Fitting New Pads

With the piston retracted, now is the perfect time for some critical cleaning and lubrication. The slider pins (the bar the caliper slides along) are often overlooked. Clean them thoroughly with a wire brush and brake cleaner, removing any old grease, rust, and grime. Once clean, apply a liberal coating of copper grease to these pins before reinserting them. This ensures the caliper can move freely, allowing both pads to apply equal pressure and preventing uneven wear or sticking.

It's also worth inspecting the rubber dust seal around the piston. If it's torn or damaged, it should be replaced to prevent dirt and moisture from entering the caliper, which can lead to corrosion and seizing of the piston itself. While not always necessary for a simple pad change, it's a good preventative measure.

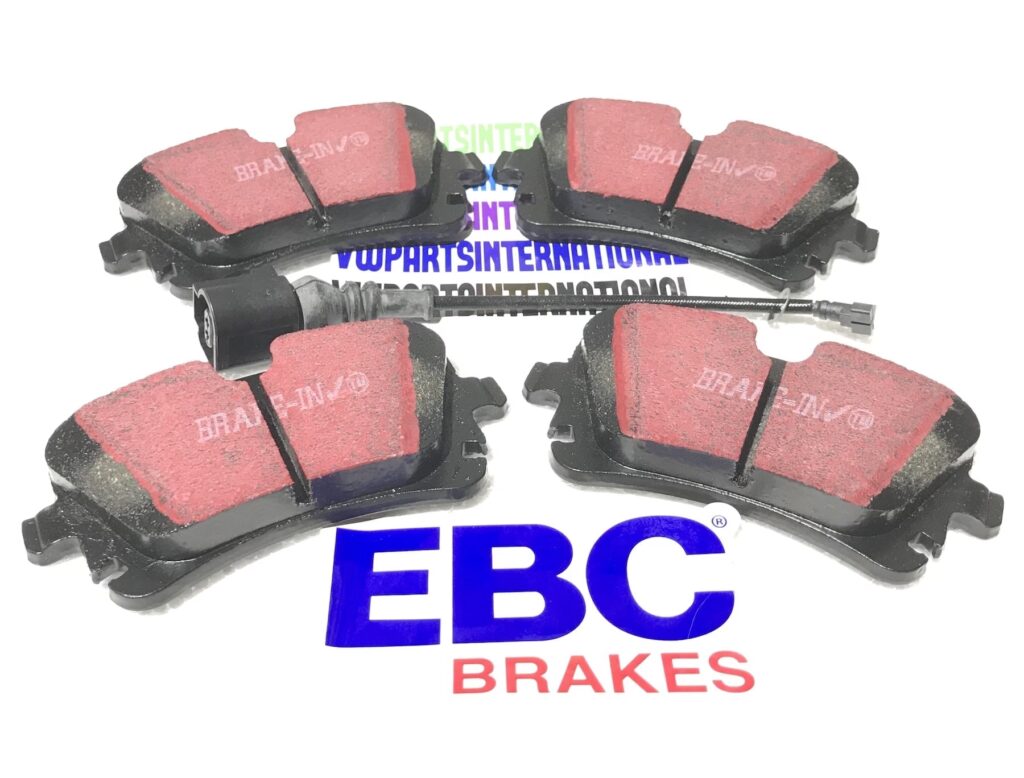

Now you're ready to fit the new brake pads. Before inserting them, apply a small amount of copper grease to the back of the pads – the metal backing plate that contacts the piston and the caliper body. This helps prevent brake squeal by dampening vibrations between the pad and the caliper/piston. However, and this is crucial, absolutely do not get any grease on the actual friction surface of the pad or the brake disc itself! Grease on these surfaces will severely compromise braking performance and can be very dangerous.

Carefully slide the new pads into their respective slots or clips within the caliper bracket. Ensure they are seated correctly and facing the right way (the friction material towards where the disc will be). They should sit snugly without being forced.

Reassembly and Final Checks

With the new pads in place and the piston fully retracted, you can now carefully slide the brake caliper back over the brake disc and align it with the mounting points. This might require a little wiggling to get the pads to sit correctly around the disc. Once aligned, reinsert the two 13mm bolts that hold everything in place. Tighten these bolts securely, but do not overtighten them, as you could strip the threads or damage the caliper. Consult your vehicle's service manual for specific torque settings if you have a torque wrench, otherwise, tighten firmly.

Double-check that everything is secure: the caliper bolts are tight, the pads are seated correctly, and there's no visible damage to the brake lines. Once satisfied, replace the wheel, tighten the wheel nuts by hand, and lower the vehicle until the wheel just touches the ground. Then, fully tighten the wheel nuts in a star pattern to the manufacturer's specified torque (or as tight as you can get them with a wheel brace). Finally, lower the vehicle completely and remove the jack and axle stand.

Don't forget to replace the lid on your brake fluid reservoir!

Bedding In Your New Brakes

Your new brake pads will not perform optimally straight away. They need a 'bedding in' period, typically within the first 100-200 miles. During this time, the pads and discs are mating surfaces, and small amounts of friction material are transferred to the disc, creating an optimal braking surface. During this period, you might experience slightly increased stopping distances and a different pedal feel. It's crucial to take it easy:

• Avoid hard braking or emergency stops where possible.
• Perform several moderate stops from around 30-40 mph down to 10 mph, allowing the brakes to cool between each stop.
• Avoid prolonged, heavy braking (like descending a long hill aggressively) which can overheat and glaze the pads.

After a little 3-mile test drive to check for any problems, I was happy to report no issues. The pedal felt noticeably firmer, and the braking started further up the pedal travel, which gave a nice reassuring feeling. Another good job done!

Troubleshooting Common Issues

Seized Caliper Retaining Bolts/Slider Pins:

As mentioned, these are a common headache. If Plus Gas and patience don't work, sometimes gentle heat from a blowtorch (carefully, avoiding rubber and brake lines!) can help expand the metal, allowing the bolt to free up. Alternatively, a long breaker bar for more leverage might be needed. If all else fails, a professional might need to drill out the bolt, which is a last resort.

Sticky/Seized Piston:

If the piston won't retract even with significant force (and the reservoir cap off), it might be seized due to internal corrosion or a damaged seal. In this case, the caliper will need to be rebuilt with a new seal kit or replaced entirely. Do not force it excessively, as you could damage the caliper bore.

Brake Squeal After Pad Change:

Often caused by vibrations. Ensure you applied copper grease to the back of the pads. Also, check that the anti-squeal shims (thin metal plates that sit between the pad and piston/caliper) are present and correctly installed. Improper bedding-in can also contribute to squeal.

Spongy Brake Pedal:

If your brake pedal feels soft or spongy after the job, it usually indicates air in the brake lines. This requires bleeding the brake system, a process that removes air bubbles by forcing fluid through the system. While not always necessary for a simple pad change (especially if you didn't open any hydraulic lines), it's a possibility if the piston was difficult to retract or if the fluid level dropped too low.

Frequently Asked Questions (FAQs)

How often should I change brake pads?

Brake pad life varies greatly depending on driving style, vehicle weight, and type of driving (city vs. motorway). Generally, front pads last between 20,000 to 60,000 miles, and rear pads can last even longer. Always inspect them regularly, typically during tyre rotations or servicing, and change them when the friction material is down to 3mm or less, or if you hear grinding/squealing.

Can I change just one brake pad or one side?

No, absolutely not. Always replace brake pads as a complete axle set (both front wheels or both rear wheels). Uneven wear or different friction characteristics between sides can lead to dangerous pulling or instability under braking.

What type of grease should I use for brakes?

For the back of the pads and slider pins, copper grease or a high-temperature ceramic brake grease is recommended. These are designed to withstand the high temperatures of the braking system and prevent seizing and squealing. Never use petroleum-based greases on rubber components or near the friction surfaces.

Why is my brake pedal soft after changing pads?

A soft or spongy brake pedal after a pad change usually indicates air in the brake lines. This can happen if the piston was pushed back too quickly, if the brake fluid reservoir was allowed to run low, or if a bleed nipple was opened. The solution is to bleed the brake system.

What are the signs of worn brake pads?

Common signs include a grinding or squealing noise when braking, a prolonged stopping distance, a vibrating brake pedal, the vehicle pulling to one side when braking, or a warning light on your dashboard (if your vehicle has brake pad wear sensors).

What is brake "bedding in"?

Bedding in is the process of properly conditioning new brake pads and discs. It involves a series of moderate stops that gradually heat the pads and discs, allowing a thin layer of friction material from the pads to transfer onto the disc surface. This creates an optimal contact patch, improving braking performance and reducing noise and vibration. Skipping this step can lead to reduced performance and premature wear.
