Generator Power for Home Heating

A malfunctioning heating system can be a significant inconvenience, especially during colder months. When your primary heating source fails, a reliable backup plan is crucial to maintain a comfortable temperature within your home. Fortunately, a generator can provide the necessary power to keep your heating system operational. This guide will delve into the practicalities of using a generator to power your home's heating, exploring different generator types, connection methods, and vital considerations to ensure you stay warm and cosy.

Understanding Generator Types for Home Heating

Not all generators are created equal, and understanding the different types available will help you choose the most suitable option for your needs. The primary distinction lies between conventional generators and inverter generators.

Conventional Generators

These are the more traditional generators, often powered by diesel or petrol engines. They produce a raw electrical output that can fluctuate in frequency and voltage. While powerful enough to run most appliances, the inconsistent power output can be a concern for sensitive electronics, although most modern central heating boilers are designed to be robust. However, conventional generators are also known for their noise. As experienced in some remote locations, the loud operation can be a significant drawback, particularly if you need to run the generator for extended periods or during the night. The placement of these generators becomes a key consideration: either close enough for the engine's heat to contribute to warming the house, or far enough away to minimise disruptive noise.

Inverter Generators

Inverter generators represent a more advanced technology. They produce a clean, stable sine wave of electricity, similar to what you get from the mains supply. This makes them ideal for sensitive electronic components, including the control boards in many modern boilers. A significant advantage of inverter generators is their ability to 'idle' or run at lower speeds when the power demand is low. This not only reduces fuel consumption but also significantly lowers the noise level. Even with these improvements, it's important to note that 'quiet' is a relative term, and some neighbours may still find even inverter generators intrusive, especially in densely populated areas or during unsociable hours.

Connecting a Generator to Your Heating System

The method of connecting a generator to your heating system is a critical aspect. Safety and efficiency are paramount. There are several approaches, ranging from simple manual connections to more sophisticated automatic transfer systems.

The Simple Plug-In Method

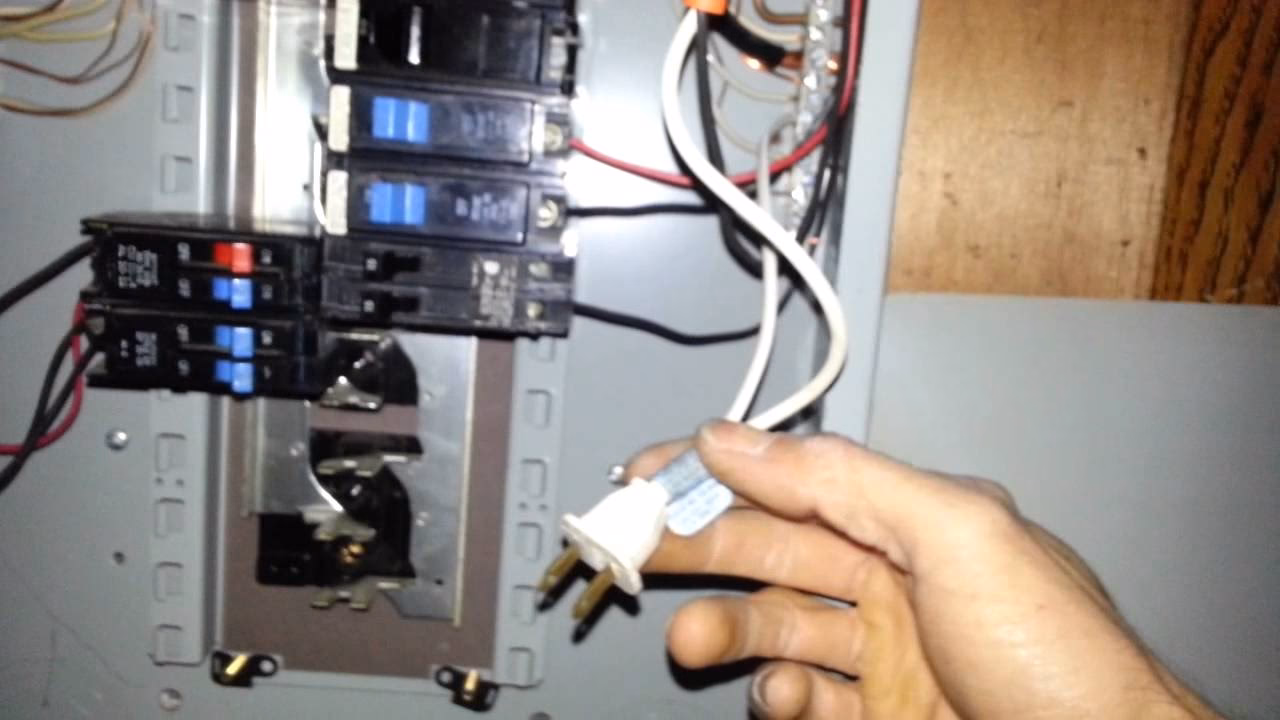

For many homeowners, the most straightforward way to connect a generator is through a dedicated consumer unit for vital services. This unit can be designed to plug into a standard 16A or 32A socket that is fed from your main household consumer unit. In the event of a power cut, you would simply unplug your home's supply from the mains and plug it into the generator. This method is versatile and can accommodate any type of generator, including those you might hire. It's essential to ensure that the generator is properly earthed with an earth electrode, which is a standard safety requirement.

Using an Inverter and Battery System

Another option, particularly for those concerned about noise, is to power the central heating system from a battery bank via an inverter. The battery is kept charged by a charger connected to the mains. When the mains power fails, the inverter seamlessly switches to battery power, providing a continuous supply to the heating system. This approach offers a virtually silent operation. The Eberspächer heater mentioned in some contexts is a good example of a low-power heating unit that can run off a 12V or 24V supply, making it suitable for battery operation. Such a system can often be integrated with standard central heating systems, potentially requiring a 12V or 24V pump to circulate the water.

Automatic Transfer Switches (ATS)

For a more seamless transition, an Automatic Transfer Switch (ATS) is the preferred solution. An ATS unit automatically detects when the mains power has failed and signals the generator to start. Once the generator is running and stabilised, the ATS switches the home's electrical supply from the mains to the generator. When the mains power is restored, the ATS switches the supply back and signals the generator to shut down. This provides an uninterrupted power supply, ensuring your heating system never misses a beat. Some sophisticated systems might involve a UPS (Uninterruptible Power Supply) in conjunction with a generator. A UPS can keep critical systems running for a short period, allowing the generator to start up and take over without any interruption. However, integrating all functions into a single unit can be costly; often, a combination of smaller, specialised units is more economical.

Key Considerations for Generator Use

Beyond the type of generator and connection method, several other factors are crucial for effective and safe operation.

Noise Levels

As highlighted earlier, noise is a significant consideration. Lister diesel generators are notoriously loud. Even modern generators, including inverter types, produce some level of noise. Careful placement, acoustic enclosures, or choosing an inverter generator with an eco-mode that adjusts engine speed to load can mitigate noise issues. If your generator is located near your home, consider the impact on your own comfort and that of your neighbours.

Runtime and Fuel

Determine how long you anticipate needing the generator to run. Central heating systems, especially in well-insulated homes, can maintain a reasonable temperature for several hours after the heating has stopped. However, in older or less insulated properties, the temperature can drop significantly overnight. This will influence the size of the generator and the amount of fuel you need to store. For instance, a house that cools from 21°C to 16°C in 7 hours without heating might require the generator to run for extended periods, potentially through the night. Ensure you have a safe and adequate fuel supply, adhering to local regulations for fuel storage.

Power Output (kVA)

The power output of your generator, measured in kVA (kilovolt-amperes) or kW (kilowatts), must be sufficient to power your heating system and any other essential appliances you intend to run simultaneously. A 3.5 kVA generator might be adequate for a small heating system and a few lights, while a larger 12 kVA unit would offer more capacity for multiple appliances or a more demanding heating setup. It's wise to calculate the total wattage required by your heating system (including pumps, fans, and control units) and add a buffer for other essential items.

Safety and Regulations

Connecting a generator to your home's electrical system requires careful attention to safety. Improper connections can lead to back-feeding, where power from the generator flows back into the utility grid, posing a severe risk to utility workers. This is why using a proper transfer switch or a professionally installed connection is vital. Always ensure your generator is properly grounded with an earth rod. Familiarise yourself with local regulations and electrical codes regarding generator installation and use.

Maintenance

Like any mechanical equipment, generators require regular maintenance to ensure they are ready to operate when needed. This includes checking oil levels, fuel lines, air filters, and spark plugs. Running the generator periodically (e.g., once a month for 15-30 minutes) under load helps keep the engine and generator components in good working order.

Alternative Heating Solutions During Power Outages

While a generator is a primary solution, some homes benefit from complementary or alternative heating methods that can reduce reliance on the generator or provide a buffer during power interruptions.

Wood Burners and Multifuel Stoves

These can be excellent primary or backup heating sources. They generate significant heat and do not rely on electricity to operate, although some modern stoves may have an electric fan for heat distribution. Having a readily available supply of dry firewood is essential.

Solar Thermal Systems

While primarily for hot water, some solar thermal systems can contribute to space heating. More importantly, they can pre-heat water stored in a large water store, which can then be circulated by a low-power 12V or 24V pump powered by a battery or small generator, effectively bridging gaps in power supply.

LPG Boilers

LPG (Liquefied Petroleum Gas) boilers can be an alternative to gas or oil boilers. Like conventional central heating systems, they require electricity to run pumps and controls. However, if your primary heating system fails due to a gas supply issue, an LPG boiler could be a viable alternative, and still require a generator for its electrical components.

Water Stores

A large insulated water store can act as a thermal buffer. If multiple heat sources, such as a wood burner, solar panels, or even a generator-powered boiler, feed into this water store, it can retain heat for extended periods. A small, low-voltage pump can then circulate this stored hot water through your radiators, providing heat even when the main heating system and generator are off.

Frequently Asked Questions

Q1: Can I power my entire house with a generator during a heating system failure?

A: It depends on the generator's capacity (kVA/kW) and your home's total power consumption. You'll need to calculate the wattage of your heating system and essential appliances. It's often more practical to power only critical systems like heating, lighting, and refrigeration.

Q2: How long will a generator run on a tank of fuel?

A: This varies greatly depending on the generator's size, engine efficiency, and the load it's supporting. Larger generators or those running at higher loads will consume fuel more rapidly. Check the manufacturer's specifications for estimated runtimes.

Q3: Is it safe to connect a generator directly to my home's wiring?

A: Absolutely not. Direct connection without a transfer switch is dangerous and illegal in most places. It can cause electrocution hazards for utility workers and damage your generator and home's electrical system.

Q4: How much does a backup generator cost?

A: Costs vary widely. Small portable generators suitable for powering a few circuits might start from a few hundred pounds, while whole-house standby generators with automatic transfer switches can cost several thousand pounds, plus installation.

Q5: Do I need a special type of generator for my boiler?

A: Modern boilers often have sensitive electronic control boards. An inverter generator is recommended as it provides a clean and stable power output (pure sine wave). Conventional generators might be usable, but there's a higher risk of damaging the boiler's electronics due to voltage and frequency fluctuations.

Conclusion

A generator can be an invaluable asset when your home heating system fails. By understanding the different types of generators, appropriate connection methods, and key operational considerations like noise, fuel, and safety, you can ensure your home remains warm and comfortable during any power outage. Whether you opt for a simple manual connection or a sophisticated automatic transfer system, preparedness is key to weathering the cold.
