Replacing Brake Pads on Your Volvo XC90 Mk1

Ensuring your Volvo XC90 Mk1's braking system is in peak condition is paramount for safety, not just for you and your passengers, but for everyone else on the road. Brake pads are a critical component of this system, designed to wear down over time as they convert kinetic energy into heat through friction, bringing your substantial SUV to a halt. While many opt for professional service, replacing brake pads on your XC90 Mk1 is a manageable task for the keen DIY enthusiast, offering significant cost savings and the satisfaction of knowing the job was done right. This comprehensive guide will walk you through the process, providing the essential steps and crucial considerations to ensure a successful and safe brake pad replacement.

Before you even begin, it's vital to understand the signs that your brake pads are worn. These can include a squealing or grinding noise when braking, a vibrating or pulsating brake pedal, your vehicle pulling to one side when braking, or simply a visual inspection revealing thin pads. Modern vehicles often have wear indicators that produce a high-pitched squeal when the pads are low. Ignoring these warnings can lead to more severe damage to your brake discs (rotors) and compromise your vehicle's stopping power, creating a dangerous situation.

Essential Tools and Materials You'll Need

To undertake this job safely and efficiently, gather all your tools and materials beforehand. Having everything at hand will prevent unnecessary delays and ensure a smooth process.

• New brake pads (ensure they are specific to your Volvo XC90 Mk1 and the correct axle - front or rear)
• Floor jack
• Jack stands (absolutely critical for safety)
• Wheel chocks
• Lug wrench or impact gun
• Torque wrench (essential for correct tightening of lug nuts and caliper bolts)
• C-clamp or brake caliper piston compressor tool
• Wire brush
• Brake cleaner spray
• Gloves (nitrile or similar, to protect hands from grime and brake dust)
• Safety glasses
• Socket set (typically 13mm, 15mm, 17mm, or 18mm for caliper bolts, and appropriate size for lug nuts)
• Flathead screwdriver or pry bar (for removing retaining clips or old pads)
• Brake lubricant/anti-squeal compound (for contact points and guide pins)
• Container for old brake fluid (if bleeding)
• Shop rags or old towels
• Measuring caliper or micrometer (for checking brake disc thickness)

Safety First: Non-Negotiable Precautions

Working on your vehicle's braking system requires utmost attention to safety. Never compromise on these steps:

• Always work on a flat, level surface.
• Engage the parking brake fully.
• Place wheel chocks behind the wheels that will remain on the ground (e.g., if working on the front, chock the rear wheels).
• Use a reliable floor jack and, crucially, always support the vehicle with sturdy jack stands once it's lifted. Never rely solely on the jack.
• Wear safety glasses to protect your eyes from brake dust and debris.
• Wear gloves to protect your hands from grease, dirt, and potentially harmful brake dust.
• Allow the brakes to cool down completely before starting work, especially if the vehicle has just been driven.
• Never put any part of your body under a vehicle supported only by a jack.

Step-by-Step Brake Pad Replacement Guide

Follow these detailed steps carefully to replace your Volvo XC90 Mk1's brake pads.

1. Prepare the Vehicle and Loosen Wheel Nuts

Park your XC90 on a flat, stable surface. Engage the parking brake. If you're working on the front brakes, place wheel chocks behind the rear wheels. If working on the rear, chock the front wheels. Using your lug wrench, slightly loosen the lug nuts on the wheel you'll be removing. Do not remove them completely yet; just break them free while the wheel is still on the ground.

2. Lift and Secure the Vehicle

Position your floor jack under the appropriate jacking point for the wheel you're working on. Refer to your XC90's owner's manual for precise jacking points. Lift the vehicle until the wheel is clear of the ground. Once lifted, immediately place jack stands under the vehicle's designated support points, usually near the jacking points. Slowly lower the vehicle onto the jack stands, ensuring it is stable and secure. You can leave the floor jack in place as an added safety measure, but the weight should primarily rest on the stands.

3. Remove the Wheel

Now that the vehicle is securely supported, finish unscrewing the lug nuts you loosened earlier. Carefully remove the wheel and set it aside in a safe place. This will give you full access to the brake assembly.

4. Initial Inspection and Brake Disc Assessment

With the wheel off, you'll see the brake caliper, brake pads, and the brake disc. Take a moment to inspect the entire assembly. Look for any leaks, cracks, or excessive rust. This is the crucial point where you should measure the brake disc thickness. Use a measuring caliper or micrometer to check the disc's thickness at several points around its circumference. Compare this measurement to the minimum thickness specification stamped on the hub of the brake disc (often in millimetres, e.g., 'MIN THK 26mm'). Upon reaching this wear limit, the brake disc must be replaced, regardless of whether it's warped or grooved. Driving with discs below the minimum thickness is dangerous as they can overheat, warp, or even crack under braking pressure. Also, inspect the disc for deep grooves, scoring, or signs of warping (indicated by a pulsating brake pedal).

5. Remove the Brake Caliper

The brake caliper typically slides over two guide pins or is bolted directly to the caliper bracket. Locate the two caliper guide pin bolts (usually at the back of the caliper, often with rubber boots). Use the appropriate socket to remove these bolts. Once the bolts are out, the caliper should pivot upwards or slide off. You may need to gently pry it. Do not let the caliper hang by the brake hose, as this can damage the hose. Use a wire, bungee cord, or zip tie to suspend the caliper from a suspension component (e.g., spring) to prevent strain on the hose.

6. Remove Old Brake Pads

With the caliper out of the way, the old brake pads should now be easily removable. They usually slide out of the caliper bracket. Note how they are oriented, as the new pads will go in the same way. There might be shims or retaining clips that need to be removed as well. Inspect the old pads for uneven wear, which could indicate a problem with the caliper or guide pins.

7. Clean the Caliper Bracket and Components

This step is often overlooked but is absolutely vital for proper brake function and longevity. Clean the brake caliper bracket from dirt and dust. Brake dust, rust, and road grime accumulate in the areas where the brake pads sit and slide. If these areas are not clean, the new pads may stick, leading to uneven wear, noise, or reduced braking performance. Use a wire brush to vigorously scrub away all loose rust and debris from the pad slides and the caliper bracket. Once the mechanical cleaning is done, use a brake cleaner spray generously over the entire caliper bracket and any other components that came into contact with brake dust. This chemical cleaner will dissolve grease and remaining dust. After applying the spray, wait a few minutes for it to evaporate and carry away the contaminants. Ensure the guide pins are also clean and move freely; if they are stiff, clean and re-lubricate them with specialized brake grease.

8. Compress the Caliper Piston

Before installing new, thicker brake pads, you'll need to push the caliper piston back into its bore to make room. Open the brake fluid reservoir cap under the bonnet to relieve pressure. Place an old brake pad or a piece of wood against the piston and use a C-clamp or a specialized brake caliper piston compressor tool to slowly and steadily push the piston back until it's flush with the caliper body. Be careful not to damage the rubber boot around the piston. As you compress the piston, brake fluid will be pushed back into the reservoir; keep an eye on the fluid level to ensure it doesn't overflow. If it's at max, you might need to siphon a small amount out.

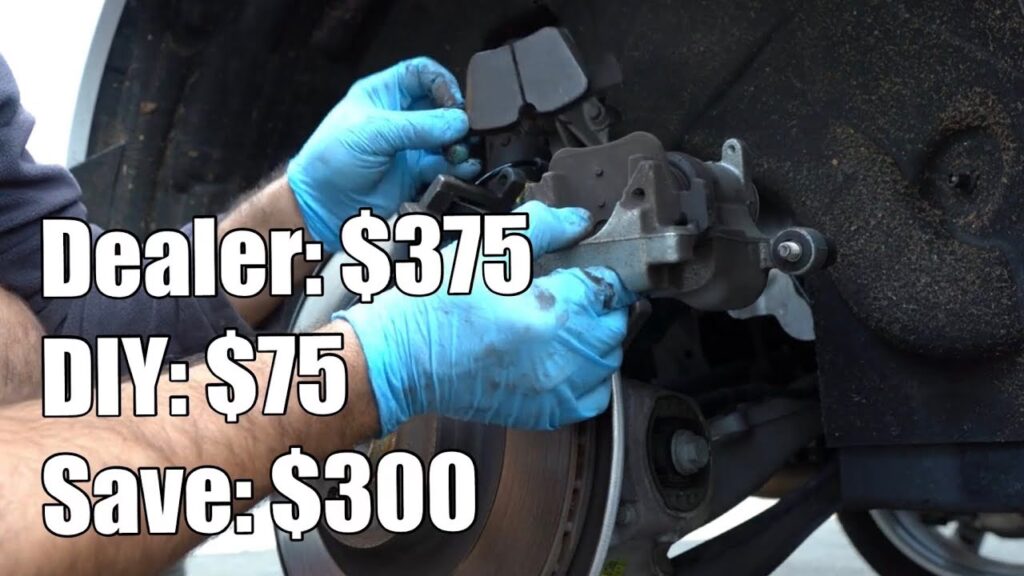

9. Install New Brake Pads and Shims

Apply a thin layer of brake lubricant or anti-squeal compound to the metal contact points of the new brake pads (where they slide in the caliper bracket) and the back of the pads where they touch the caliper piston and outer caliper body. Do not get any grease on the friction material of the pads. Slide the new brake pads into the caliper bracket, ensuring they are correctly oriented (inner pad with wear indicator, if applicable, facing the piston). Replace any shims or retaining clips as per the manufacturer's instructions.

10. Reinstall the Brake Caliper

Carefully lower the brake caliper back over the new pads and the brake disc. Ensure the guide pins align with their respective holes. Reinsert and tighten the caliper guide pin bolts. Use your torque wrench to tighten these bolts to the manufacturer's specified torque settings (consult your Volvo XC90's service manual or reliable online resources for these values). Over-tightening can strip threads, while under-tightening can lead to loose calipers and dangerous situations.

11. Reinstall the Wheel and Lower Vehicle

Slide the wheel back onto the lug studs. Hand-tighten the lug nuts. Raise the vehicle slightly with the floor jack to remove the jack stands. Once the stands are clear, slowly lower the vehicle completely to the ground. Once on the ground, use your torque wrench to tighten the lug nuts in a star pattern to the manufacturer's specified torque. This ensures even pressure and prevents the wheel from coming loose.

12. Pump the Brake Pedal and Bed In New Brakes

Before driving, get into the vehicle and pump the brake pedal several times until it feels firm. This will push the caliper pistons out and seat the new pads against the discs. If the pedal feels spongy, you may have air in the system and will need to bleed the brakes (a separate procedure). After pumping the pedal, check the brake fluid reservoir level and top up if necessary. Take your XC90 for a test drive in a safe area. New brake pads require a 'bedding-in' period to achieve optimal performance. This typically involves several moderate stops from around 30-40 mph down to about 5-10 mph without coming to a complete stop, allowing the brakes to cool between stops. Avoid hard braking or prolonged braking during this initial period. This process helps to transfer a thin layer of friction material from the pads to the discs, ensuring even contact and preventing squealing.

Comparative Table: Brake Pad Materials

Understanding the different types of brake pad materials can help you choose the best option for your driving style and needs.

Common Issues and Troubleshooting

• Squealing Brakes: Often caused by new pads not being bedded in properly, lack of anti-squeal lubricant on contact points, or missing shims. Ensure proper cleaning and lubrication.
• Grinding Noise: Usually indicates severely worn pads that are metal-on-metal with the brake disc. Stop driving immediately and replace pads and likely discs.
• Pulsating Brake Pedal: Almost always a sign of warped brake discs. Discs should be replaced.
• Uneven Pad Wear: Could indicate a seized caliper piston, corroded guide pins, or a faulty brake hose. Inspect these components thoroughly.
• Soft or Spongy Pedal: Air in the brake lines. Requires bleeding the brake system.

Frequently Asked Questions (FAQs)

How long do brake pads typically last on a Volvo XC90 Mk1?

The lifespan of brake pads varies significantly based on driving style, environment, and pad material. Generally, front brake pads on an XC90 Mk1 might last anywhere from 20,000 to 70,000 miles. Rear pads often last longer, sometimes up to 80,000-100,000 miles, as the front brakes do most of the stopping. Aggressive driving, frequent city driving with lots of stops, and towing will shorten their lifespan.

Do I always need to replace brake discs (rotors) when I replace pads?

Not always, but it's highly recommended, especially on an SUV like the XC90. You must replace the discs if they are below the minimum thickness specification, severely grooved, warped (causing pedal pulsation), or cracked. If your discs are still within specifications, smooth, and free of significant damage, you *could* reuse them, but new pads on old discs may not perform optimally initially. For best performance and safety, replacing both pads and discs simultaneously is the gold standard.

Can I replace only one set of brake pads (e.g., just the front left)?

No. Brake pads should always be replaced in axle sets (both front left and front right, or both rear left and rear right) to ensure even braking performance. Replacing only one side would lead to unbalanced braking, which is dangerous and can cause the vehicle to pull to one side under braking.

What is 'bedding in' new brakes, and why is it important?

Bedding in, also known as 'break-in' or 'burnishing,' is a crucial process that helps new brake pads and discs conform to each other. It involves a series of controlled stops that gradually heat the components, transferring a thin, even layer of friction material from the pads onto the disc surface. This process optimises braking performance, reduces noise, and prevents glazing of the pads, ensuring consistent and effective stopping power. Skipping this step can lead to reduced braking efficiency, increased noise, and premature wear.

How much does it cost to have brake pads replaced professionally on an XC90 Mk1?

Professional brake pad replacement costs can vary significantly depending on your location, the garage, and whether discs are also replaced. Typically, you might expect to pay anywhere from £150 to £400 per axle for pads and labour, with the cost rising significantly (e.g., £400 to £800+ per axle) if discs are also replaced, especially with an SUV like the XC90 that uses larger, heavier-duty components.

Replacing your Volvo XC90 Mk1's brake pads is a rewarding DIY project that empowers you with a deeper understanding of your vehicle's mechanics and saves you money. By following these detailed steps, prioritising safety, and paying attention to crucial details like brake disc thickness and proper cleaning with a brake cleaner, you can ensure your SUV remains safe and reliable on the road. Remember, a well-maintained braking system is non-negotiable for confident and secure driving.
