Husqvarna Chainsaw Oil Pump Explained

The intricate dance of a chainsaw's operation relies on several key components working in harmony. Among these, the oil pump plays a crucial, albeit often overlooked, role in ensuring the longevity and efficient performance of your Husqvarna machine. This vital part is responsible for delivering a consistent flow of bar and chain oil to the cutting system, mitigating friction and preventing premature wear. Without a properly functioning oil pump, your chainsaw would quickly succumb to the damaging effects of heat and friction, rendering it useless.

Understanding the Oil Pump Mechanism

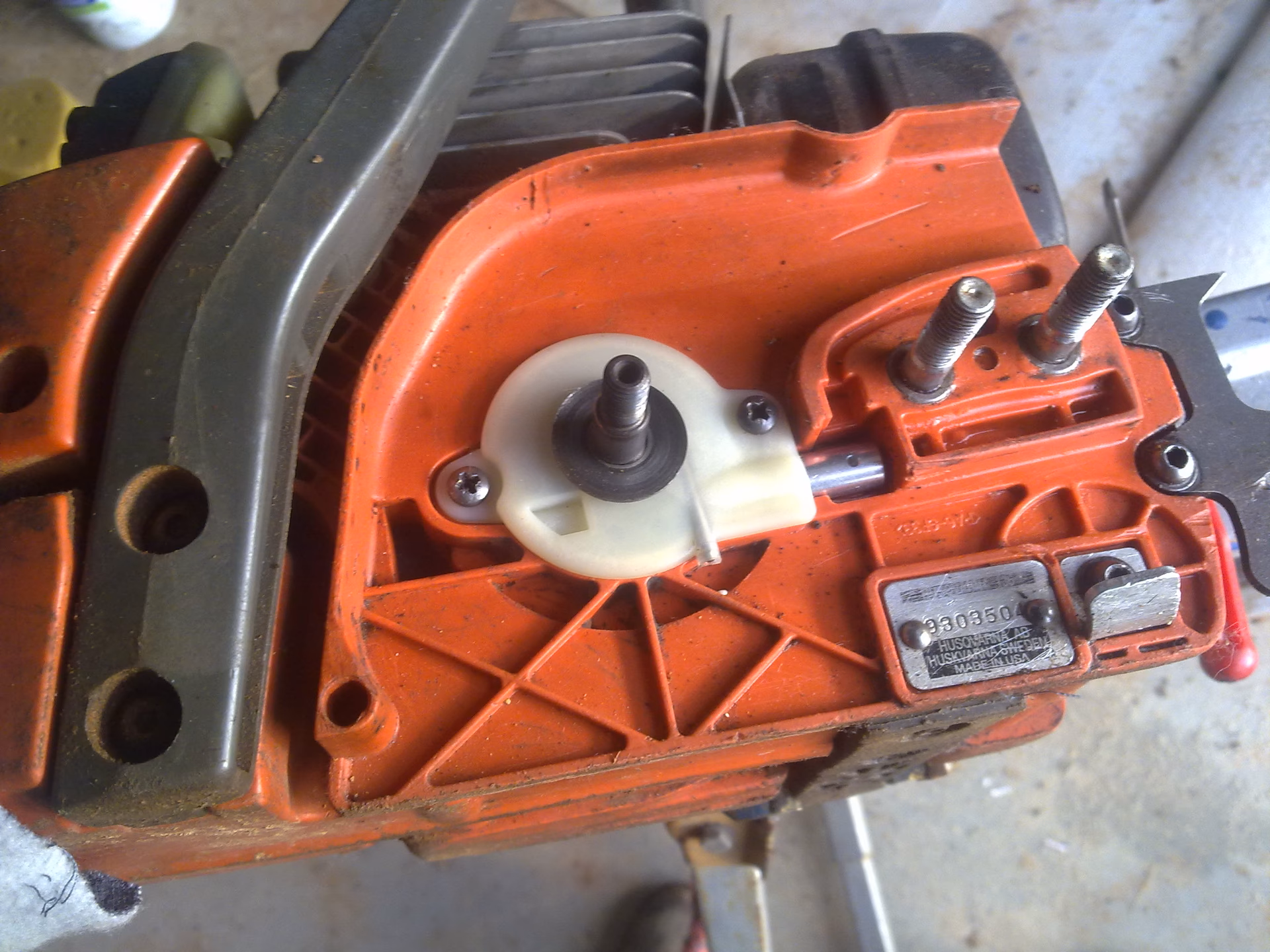

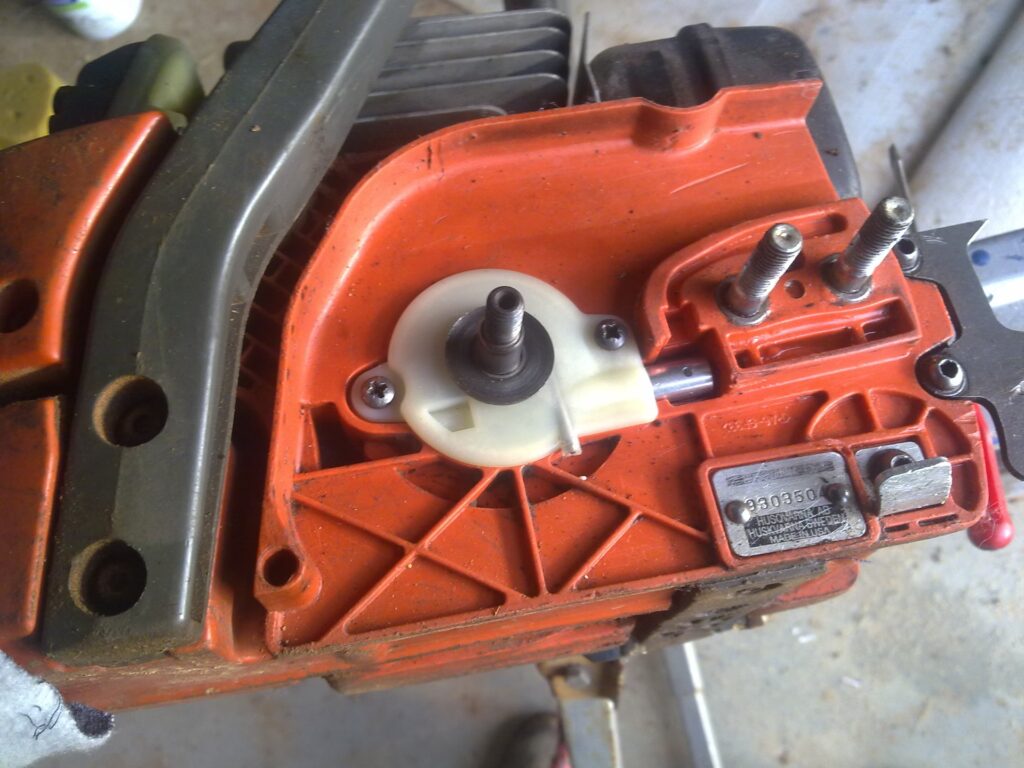

At its core, a Husqvarna chainsaw oil pump is a marvel of simple, yet effective, engineering. Its primary function is to automatically feed lubricant to the guide bar and chain as the engine operates and the chain rotates. This isn't a random process; the pump is directly driven by the chainsaw's engine, often via a worm gear that connects to the clutch drum or crankshaft. This connection ensures that as the engine speeds up, the oil pump's output increases proportionally, providing more lubrication when it's needed most – during demanding cuts.

How it Works: Step-by-Step

The process begins when the engine starts and the clutch drum begins to spin. This rotation is transferred to the oil pump's drive mechanism. Inside the pump, a small impeller or piston is actuated. As this component moves, it draws bar and chain oil from the dedicated oil reservoir. The oil is then channelled through a metering mechanism, which controls the precise amount of oil being delivered. This regulated flow is then pushed through a hose or internal passageway to the guide bar, typically entering at the nose sprocket or along the groove of the bar itself. As the chain rotates, it picks up this oil and distributes it along its length and to the cutters, providing essential lubrication.

Key Components of the Oil Pump System

• Oil Reservoir: This is where the bar and chain oil is stored. It's usually a separate tank from the fuel, clearly marked.
• Drive Mechanism: This connects the engine's rotation to the pump, ensuring it operates in sync with the chain speed.
• Pump Unit: This is the heart of the system, containing the impeller or piston that moves the oil.
• Metering System: This regulates the volume of oil delivered, often adjustable on higher-end models.
• Delivery Line: A hose or internal channel that carries the oil from the pump to the guide bar.
• Guide Bar and Chain: The recipients of the lubrication, where the oil reduces friction and heat.

The Importance of Lubrication

The role of adequate lubrication cannot be overstated. When your Husqvarna chainsaw is in operation, the chain and guide bar experience immense friction and heat. Without a constant supply of oil:

• Increased Wear: Metal-on-metal contact will rapidly wear down the chain, bar, and sprocket teeth.
• Overheating: The friction generates significant heat, which can cause the metal to expand, leading to binding and potential seizure of the engine.
• Reduced Cutting Efficiency: A dry chain and bar will not cut smoothly, requiring more effort and reducing the quality of the cut.
• Chain Breakage: Extreme heat and stress can lead to a chain snapping, which is a dangerous situation.

The oil pump ensures that these detrimental effects are minimised, allowing your chainsaw to perform at its best and last for many years.

Troubleshooting Oil Pump Issues

While Husqvarna oil pumps are generally reliable, like any mechanical component, they can develop issues. A common concern for chainsaw owners is an oil pump leak. If you notice oil leaking from your chainsaw, it's important to address it promptly.

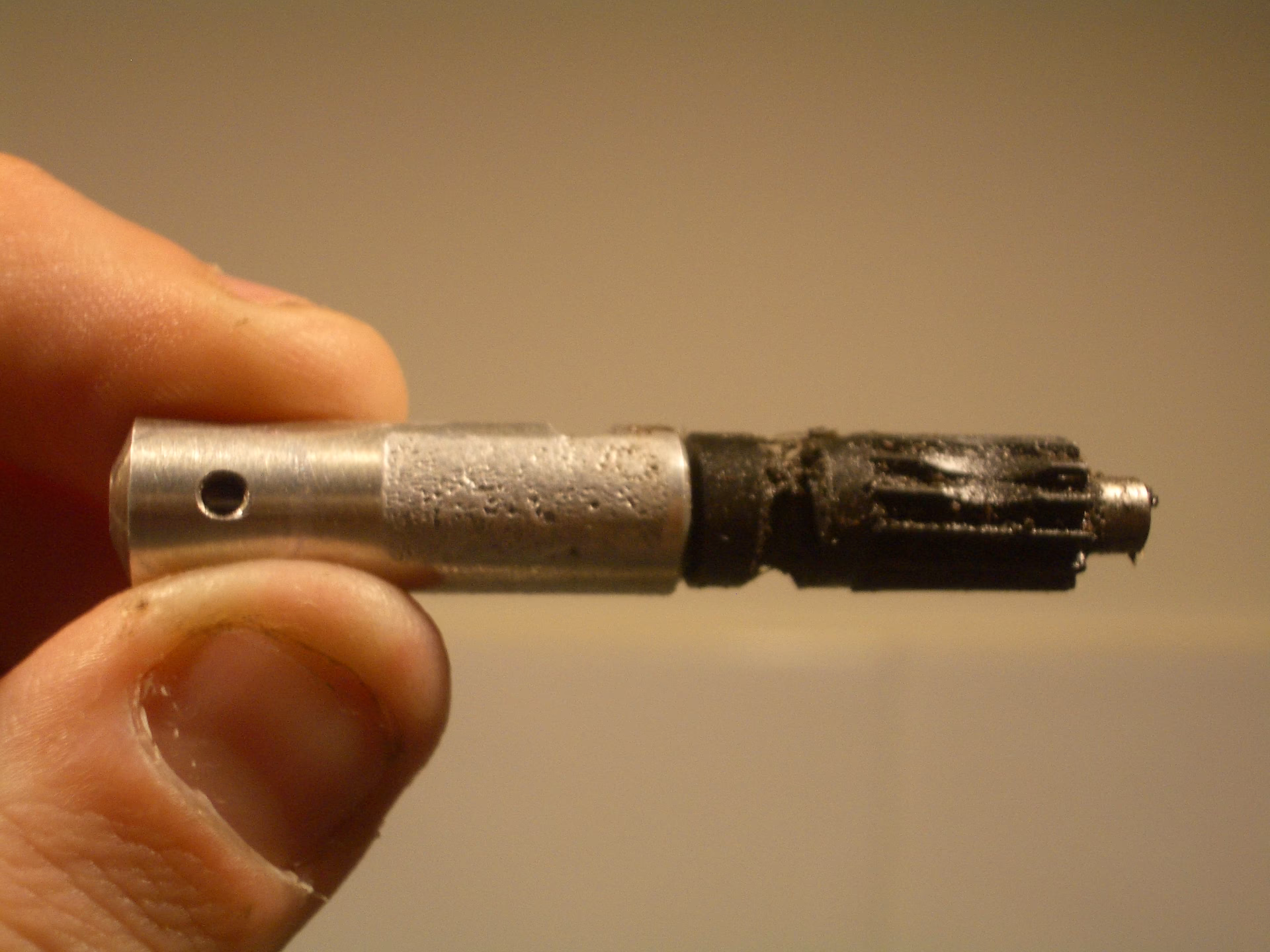

What to Do If Your Oil Pump Leaks

A leak can originate from several points within the oil delivery system. Here’s a systematic approach to troubleshooting:

1. Identify the Source: Carefully inspect the oil reservoir cap, the oil pump housing itself, the oil feed line, and where the line connects to the guide bar. Look for obvious signs of dripping or staining.
2. Check the Reservoir Cap: Ensure the oil reservoir cap is properly seated and its seal is intact. A loose or damaged cap is a frequent culprit for minor leaks.
3. Inspect the Oil Feed Line: The flexible hose that carries oil from the pump to the bar can become brittle, cracked, or punctured over time. Check for any visible damage. Also, examine the connections at both ends for tightness and integrity.
4. Examine the Pump Housing: If the leak appears to be from the pump itself, it might indicate a failure in the pump's seals or housing. This often requires the pump to be replaced.
5. Verify Bar and Sprocket Area: Sometimes, what appears to be a leak is actually excess oil being expelled from the guide bar groove or the nose sprocket due to a blocked oiler hole or an over-lubricating pump.

Common Causes of Leaks

Several factors can lead to an oil pump leak:

• Degraded Seals: Over time, the rubber or plastic seals within the pump and at connection points can degrade, becoming hard and losing their sealing ability.
• Cracked Hosing: Exposure to heat and oil can cause the oil feed line to crack or split.
• Loose Fittings: Vibrations from operation can loosen connections, allowing oil to seep out.
• Physical Damage: Accidental impacts can damage the pump housing or the feed line.
• Faulty Pump Unit: Internal components of the pump can fail, leading to leaks from the unit itself.

Maintaining Your Oil Pump System

Proactive maintenance is key to preventing issues with your Husqvarna oil pump. Regular checks and proper care will ensure it functions correctly:

Regular Checks and Best Practices

• Check Oil Levels: Always ensure the oil reservoir is adequately filled with the correct type of bar and chain oil. Running the pump dry can damage it.
• Clean the Saw: Keep your chainsaw clean, especially around the oil reservoir cap and the guide bar area. Debris can interfere with seals or block oil passages.
• Inspect for Damage: Before each use, perform a visual inspection of the oil feed line and connections for any signs of wear or damage.
• Test Lubrication: Periodically hold the running saw (at a safe distance) up to a piece of scrap wood or cardboard. You should see a faint line of oil being thrown off the chain. If not, the oil pump may not be functioning correctly.
• Use the Correct Oil: Always use a high-quality bar and chain oil specifically designed for chainsaws. Household oils or motor oils are not suitable and can damage the pump and cutting system.

When to Seek Professional Help

If you suspect a leak that you cannot easily identify or fix, or if you notice a consistent lack of lubrication on the chain, it's best to consult your local Husqvarna dealer or a qualified small engine mechanic. They have the expertise and tools to diagnose and repair complex issues, ensuring your chainsaw remains safe and effective.

Common Questions About Husqvarna Oil Pumps

Q1: How can I tell if my Husqvarna chainsaw's oil pump is working?

A1: The easiest way is to run the saw at full throttle for a few seconds while holding the tip of the guide bar against a light-coloured surface, like a piece of cardboard or scrap wood. You should see a fan-like pattern of oil being thrown from the chain. If you don't see any oil, the pump may not be working.

Q2: Can I adjust the oil flow on my Husqvarna chainsaw?

A2: Some Husqvarna models feature an adjustable oil pump, allowing you to fine-tune the oil flow rate. This is typically done via a small screw located near the oil pump or on the pump housing. Consult your chainsaw's owner's manual for specific instructions for your model.

Q3: What type of oil should I use for the oil pump?

A3: You must use a dedicated bar and chain oil. These oils are formulated to adhere to the chain and bar, even at high speeds, and to withstand the heat generated. Do not use motor oil, hydraulic fluid, or other types of lubricants, as they can clog the pump and oil passages, and do not provide adequate lubrication.

Q4: My chainsaw is leaking oil, but it's not from the pump itself. Where else could it be coming from?

A4: Leaks can also occur from a loose oil reservoir cap, a cracked oil feed line, or even from the nose sprocket area if there's excessive oil buildup or a blockage in the bar's oiler holes. Thoroughly inspect all parts of the oil delivery system.

Q5: How often should I replace the oil pump?

A5: The oil pump is designed to be a durable component. Replacement is typically only needed if it fails or becomes damaged. Regular maintenance, like ensuring the oil reservoir is clean and using the correct oil, will help prolong its life. If you suspect a faulty pump, it's best to have it diagnosed by a professional rather than replacing it prematurely.

In conclusion, the oil pump is a critical element for the performance and longevity of your Husqvarna chainsaw. By understanding how it works, recognising potential issues like leaks, and performing regular maintenance, you can ensure your saw operates efficiently and safely for years to come. Always refer to your specific Husqvarna model's owner's manual for detailed instructions and maintenance schedules.
