Understanding Your Car's Oil Pressure Switch

A flickering oil pressure warning light can send any driver into a momentary panic. Is it a minor glitch, a dying sensor, or a genuine engine catastrophe looming? Navigating the labyrinth of vehicle diagnostics can be daunting, but understanding the core components is your first line of defence. At the heart of your engine's vital lubrication system lies a small yet crucial component: the oil pressure switch. This guide aims to demystify its function, help you distinguish it from its more sophisticated cousin, the oil pressure sensor, and empower you with the knowledge to diagnose and even replace it yourself, often without the need for specialist tools.

What Exactly Does an Oil Pressure Switch Do?

The primary role of the oil pressure switch is to act as a vigilant guardian, continuously monitoring the engine's oil pressure. It's essentially a pressure-controlled electrical switch, serving as the "first responder" of your engine's protection system. When the oil pressure within your engine drops below a predetermined safe threshold – typically a very low value, such as 5-7 PSI (pounds per square inch) – the switch activates. Upon activation, it sends a binary signal (an 'on' or 'off' signal) to your vehicle's Engine Control Unit (ECU) or directly to the dashboard warning light, illuminating that ominous red oil can icon. This immediate alert is critical, as insufficient oil pressure can quickly lead to severe engine damage, including excessive wear on moving parts, overheating, and ultimately, catastrophic failure.

The internal mechanism of an oil pressure switch is remarkably simple yet effective. It typically consists of a flexible diaphragm and a calibrated spring. When the engine oil pressure is healthy and above the set threshold, the oil pushes against the diaphragm, overcoming the force of the spring. This action keeps the electrical contacts inside the switch open, meaning no signal is sent, and the warning light remains off. However, should the oil pressure fall below the critical level, the spring's tension overcomes the reduced oil pressure on the diaphragm. This allows the diaphragm to move, closing the electrical contacts. This closure completes a circuit, sending the signal that triggers your oil pressure warning light on the dashboard. This straightforward "open or closed" operation is why it's referred to as a switch, rather than a sensor which provides a continuous range of data.

Oil Pressure Switch vs. Oil Pressure Sensor: A Crucial Distinction

While often conflated, the terms "oil pressure switch" and "oil pressure sensor" refer to two distinct components with different operational principles and outputs. Understanding this difference is fundamental to accurate diagnosis.

In essence, the switch is a simple alert system, telling you "yes" or "no" about critically low pressure. The sensor, on the other hand, provides the ECU with precise, continuous data, allowing for more nuanced engine management and diagnostics. Modern vehicles increasingly rely on sensors for their enhanced capabilities in engine protection and diagnostic logging.

Where to Find Your Car's Oil Pressure Switch

Locating the oil pressure switch or sensor is often one of the first steps in diagnosing a related issue. For most vehicles, regardless of whether it's the traditional switch or a more modern electronic sensor, the fundamental design principle dictates direct contact with the engine's main oil passage. This ensures the most accurate and real-time monitoring of oil pressure. While exact locations can vary significantly between manufacturers and models, some common placements can guide your search.

A very common location, particularly on many Japanese and European vehicles, is on the side of the cylinder block, often in close proximity to the oil filter housing. For instance, on a common Honda Civic, you'll typically find the switch integrated into the cylinder block's side wall, near where the oil filter screws on. This strategic placement not only makes it relatively accessible for maintenance during an oil change but also allows it to accurately capture the oil pressure status after the oil has been filtered, ensuring the pressure being monitored is of the clean oil circulating through the engine.

For older vehicle models, generally those manufactured before the year 2000 (such as a 1998 Ford F-150), the oil pressure switch was frequently positioned above the oil pan. These older designs typically used a simpler single-wire system that grounded to the engine block to trigger the dashboard warning light. As vehicle technology evolved, so did the complexity and placement of these components.

Modern electronic sensors, such as those found in a 2022 Jeep Wrangler, have transitioned to three-wire designs, which provide more detailed feedback to the ECU. Consequently, their location is no longer strictly limited to the vicinity of the oil filter. In certain brands, notably some Dodge and Jeep models, the three-wire sensor is often cleverly integrated into the oil cooler bracket. This integration streamlines component design and placement, but it can sometimes make the sensor less straightforward to access for diagnosis or replacement. Always consult your vehicle's specific service manual for the precise location to avoid unnecessary searching.

Telltale Signs of a Failing Oil Pressure Switch

A malfunctioning oil pressure switch can manifest in several ways, often leading to confusion and unnecessary worry. Recognising these common symptoms can help you pinpoint whether the switch itself is the culprit or if a deeper engine problem exists.

Abnormal Oil Pressure Warning Light Behaviour

• Light Stays Constantly On: This is perhaps the most alarming symptom. While it could indicate genuinely low oil pressure, it's also a common sign of a faulty switch sending a constant "low pressure" signal even when the pressure is adequate.
• Flickering Light: The light might flicker intermittently, especially at idle or during acceleration. This could suggest a failing switch with erratic internal contacts, or it could point to borderline low oil pressure that fluctuates with engine RPM.
• Light Doesn't Come On: When you turn the ignition to the 'on' position (before starting the engine), the oil pressure light should briefly illuminate as a system check. If it doesn't, the switch itself might be faulty and unable to complete the circuit, or the bulb in the dashboard is blown.
• False Alarms: The warning light triggers even when you've confirmed the oil level is correct and the engine sounds normal. This strongly points to a faulty switch.
• Engine Malfunction Indicator Light (MIL) / Check Engine Light (CEL) On: In more integrated systems, a related problem with the oil pressure system, including a faulty switch, can also trigger the main engine malfunction light, indicating a broader system issue that the ECU has detected.

OBD2 Trouble Code Prompts

Modern vehicles with sophisticated ECUs can log specific diagnostic trouble codes (DTCs) related to oil pressure system malfunctions. If your oil pressure warning light is acting up, connecting an OBD2 scanner to your vehicle's diagnostic port (OBD-II) can reveal codes such as:

• P0522: Oil Pressure Sensor/Switch Low Voltage.
• P0523: Oil Pressure Sensor/Switch High Voltage.

These codes indicate an electrical issue with the sensor or switch circuit, often pointing directly to the component itself. A diagnostic tool is essential to read and confirm these specific problems, helping to narrow down the potential causes significantly.

Oil Leakage Phenomenon

Given that the oil pressure switch or sensor screws directly into the engine block and is immersed in engine oil, oil leakage is a relatively common symptom of its failure. You might observe:

• Leakage at the Threaded Interface: Oil seeping from where the switch screws into the engine block. This could be due to a faulty O-ring, a damaged thread, or simply an improperly tightened switch.
• Leakage from the Sensor Body Itself: If the plastic or metal body of the switch/sensor is cracked or compromised, oil can leak directly from the component. In such cases, direct replacement of the sensor is necessary.
• Sealing Surface Issues: Sometimes the gasket or sealing washer between the sensor and the engine block degrades, leading to seepage. This can often be resolved by cleaning the surface and applying a new sealant or gasket.
• Improper Installation: If the switch was recently replaced and a leak appears, it might be due to incorrect tightening (either too loose or overtightened, damaging threads) or an improperly seated seal.

Abnormal Instrument Reading (for vehicles with an oil pressure gauge)

For vehicles equipped with an actual oil pressure gauge on the dashboard (which typically receives input from an oil pressure sensor, not just a switch), a faulty sensor can lead to erratic or incorrect readings:

• Stuck Reading: The gauge might show an abnormal value, such as a consistently low 0.99 bar (or around 14 PSI) at idle, regardless of actual engine speed or temperature.
• Gauge Returns to Zero: The needle might drop directly to zero, even when the engine is running and oil pressure should be present.
• Erratic Fluctuations: The gauge needle might bounce wildly, not correlating with engine RPM or driving conditions.

When the pressure reading on your dashboard clearly does not match the actual situation (e.g., engine sounds fine, but gauge reads zero), investigating the sensor/switch should be prioritised. Always verify with a mechanical gauge if possible to confirm actual pressure.

Diagnosing an Oil Pressure Switch Issue: A Step-by-Step Approach

Before jumping to conclusions and replacing parts, a systematic diagnostic process can save you time, money, and unnecessary frustration. Many false alarms related to oil pressure lights are not due to a faulty switch but rather more fundamental oil-related issues.

Step 1: Check Your Engine Oil Level and Quality

This is the simplest and often most overlooked diagnostic step. A low oil level is the most common reason for a legitimate low oil pressure warning. If there isn't enough oil in the sump, the oil pump can't pick up and circulate sufficient quantities, leading to a pressure drop. Similarly, old, degraded, or contaminated oil can lose its viscosity and lubricating properties, affecting pressure. Ensure your oil level is between the "min" and "max" marks on the dipstick, and if the oil looks excessively dark, gritty, or smells burnt, consider an oil and filter change. In some modern cars, critically low oil levels can even trigger the Check Engine Light, as the ECU detects abnormal pressure readings or related sensor outputs.

Step 2: Verify Actual Oil Pressure with a Mechanical Gauge

This is the most definitive test to differentiate between a faulty switch/sensor and actual low oil pressure. A mechanical oil pressure gauge provides a direct, accurate reading of the pressure within the engine's oil galleries, bypassing the vehicle's electronic sensors and switches. You'll need to temporarily remove your existing oil pressure switch/sensor and screw in the mechanical gauge. Start the engine and observe the pressure at idle and at higher RPMs (e.g., 2,000-3,000 RPM). Consult your vehicle's service manual for the manufacturer's specified oil pressure range. If the mechanical gauge reads low, you likely have a more serious underlying issue, such as a failing oil pump, a clogged oil pick-up screen, worn engine bearings, or blocked oil passages. However, if the mechanical gauge shows normal pressure while your dashboard light is still on, this strongly indicates a faulty oil pressure switch or sensor.

Step 3: Utilise an OBD2 Scanner for Electronic Diagnostics

For vehicles equipped with an oil pressure sensor (rather than just a switch) and an OBD-II port, an OBD2 scanner can be an invaluable tool. Connect the scanner to the vehicle's diagnostic port and access the "live data stream" function. Here, you can observe the output voltage of the oil pressure sensor in real-time, or even the actual pressure reading if your vehicle provides it. Compare this electronic reading with the value obtained from your mechanical gauge (if you performed that test). If the sensor's output voltage or pressure reading is abnormal or erratic compared to the mechanical gauge, the sensor itself is likely faulty and requires replacement. This comparison is key to accurately determining if the oil pressure switch/sensor and related components are functioning properly or if the ECU's interpretation of the data is incorrect.

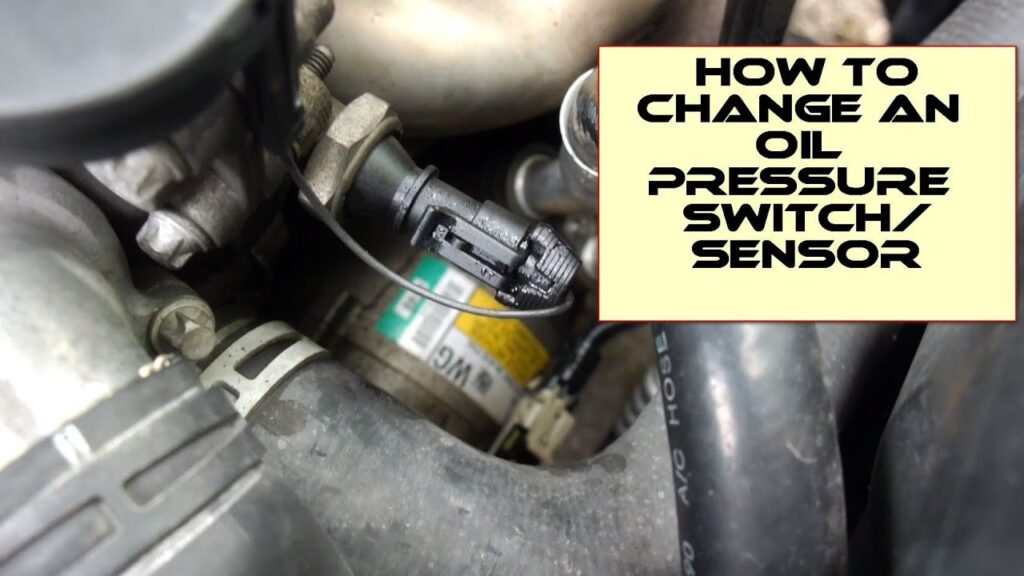

DIY Replacement: A Step-by-Step Guide for Your Oil Pressure Switch

Replacing an oil pressure switch is often a straightforward job that many DIY enthusiasts can tackle, potentially saving on garage labour costs. Always ensure the engine is cool before starting work, and have appropriate safety gear, such as gloves and eye protection.

Tools You'll Typically Need:

• Oil pressure sensor socket (a deep, often offset, socket specifically designed for these sensors).
• Ratchet and extension.
• Carburettor cleaner or brake cleaner (for cleaning surfaces).
• Thread sealant (PTFE tape or liquid thread sealant, suitable for oil applications).
• Drain pan for any residual oil.
• New oil pressure switch/sensor.

Step-by-Step Replacement Procedure:

1. Locate the Sensor: As discussed, the oil pressure switch is typically found on the side of the engine block, often near the oil filter housing. For some models, it might be integrated into other components. Use a torch to get a clear view.
2. Prepare for Oil Drainage (Optional but Recommended): While not always strictly necessary to drain all engine oil for this job, it's good practice to unscrew the cap of the oil filler port and potentially drain a small amount of oil if the switch is located low down, to prevent excessive spillage when the old switch is removed. Have your drain pan ready underneath.
3. Disconnect the Electrical Connector: Carefully locate the electrical connector attached to the oil pressure switch. Squeeze the release tab or pull up on the locking mechanism, then gently pull the connector straight off. Avoid pulling on the wires themselves.
4. Remove the Old Oil Pressure Switch: Fit the correct oil pressure sensor socket onto the switch. Use your ratchet to loosen and unscrew the old switch. Be prepared for a small amount of oil to leak out once it's loose – this is normal. Continue unscrewing by hand until it's completely removed.
5. Clean and Prepare the Installation Surface: Use carburettor cleaner or brake cleaner on a rag to thoroughly clean the threaded bore and surrounding area where the old switch was removed. Ensure there's no old sealant, dirt, or debris. Once clean, apply a suitable thread sealant (PTFE tape or liquid thread sealant designed for pipe threads) to the threads of the new oil pressure switch. This ensures a leak-free seal and prevents galling.
6. Install the New Oil Pressure Switch: Carefully thread the new oil pressure switch into the opening by hand. Once hand-tight, use your oil pressure sensor socket and ratchet to tighten it. It's crucial not to overtighten, as this can strip the threads in the engine block or damage the new switch. Torque specifications are usually quite low; consult your vehicle's service manual for the precise torque setting. If you don't have a torque wrench, tighten until snug, then give it a small additional turn (e.g., a quarter turn).
7. Reconnect and Final Checks: Reconnect the electrical connector to the new oil pressure switch, ensuring it clicks firmly into place. Start the engine and let it run for a few minutes. Carefully inspect the area around the new switch for any signs of oil leaks. Also, listen for any abnormal noises and check your dashboard to confirm the oil pressure warning light has gone out.

The general cost for replacing a common oil pressure sensor or switch at a garage in the UK is usually between £100 and £300, which includes parts and labour. Performing it yourself can significantly reduce this cost.

Note on Post-Installation: After installation, it's highly recommended to use a diagnostic tool to clear any stored engine trouble codes. Under normal circumstances, the PCM (Powertrain Control Module) will turn off the malfunction indicator light once the issue is resolved. If the warning light does not go out, or new codes appear, it may indicate that the trouble codes have not been completely cleared, or there are other underlying problems that were not resolved by replacing the switch. In such cases, it is advisable to seek further inspection from a professional repair shop.

Understanding Oil Pressure Readings

While the oil pressure switch is a simple on/off device, it's helpful to understand the general range of oil pressure your engine should typically exhibit. These figures are broad generalisations, and your vehicle's specific manual should always be consulted for precise values:

• At Idle: When the engine is warm and idling, oil pressure typically ranges from 7–12 PSI (pounds per square inch) or approximately 0.5-0.8 Bar. Some engines may have slightly higher or lower idle pressures.
• When Driving (Above Idle): As engine RPM increases, the oil pump works harder, and pressure rises. When the vehicle is moving or at higher RPMs, oil pressure generally runs from 40–60 PSI (approximately 2.7-4.1 Bar).

The oil pressure switch is designed to trigger only when pressure drops significantly below the idle minimum, indicating a critical lubrication failure.

Kerbside Replacement: Convenience at Your Doorstep

For many drivers, the idea of taking their car to a garage for every repair can be inconvenient and time-consuming. Fortunately, replacing an oil pressure switch is a repair that is often suitable for kerbside repair (mobile mechanic service), providing it can be done safely and without specialised workshop equipment.

• Typical Cost: Generally considered a low-cost repair, particularly when compared to major engine work.
• Mobile Repair Feasibility: Yes, a mobile mechanic can typically perform this repair at your home or workplace.
• Typical Lead Time: Usually 24-48 hours, depending on the availability of the specific part for your vehicle and the mechanic's schedule.

What Happens During a Kerbside Oil Pressure Switch Replacement?

The process for a mobile mechanic is largely similar to what would occur in a workshop:

1. The mechanic will first assess the situation. This usually involves connecting a diagnostic tool to your vehicle's OBD-II port to read any stored diagnostic codes and to check live data from the oil pressure sensor (if applicable). This helps confirm that the oil pressure switch/sensor is indeed the faulty component and not a symptom of a deeper issue.
2. Once confirmed that the oil pressure sensor/switch is faulty, the mechanic will proceed with the replacement, following a procedure much like the DIY steps outlined above.
3. After the new part is fitted, the engine will be started, and the mechanic will recheck for error codes and visually inspect for leaks, ensuring the repair is successful.

What Does This Repair Typically Cover?

When booking a kerbside oil pressure switch replacement service, a quote will generally cover comprehensive service. Unless otherwise stated, this will include:

• The cost of the new oil pressure switch/sensor itself.
• The convenience of the mechanic coming to your specified location (home, work, etc.).
• The professional fitting of the new part.
• Disposal of the old, faulty part (unless you specifically request to keep it).
• Any applicable Value Added Tax (VAT).
• A 12-month parts and labour warranty, providing peace of mind.

Important Note on Customer-Supplied Parts: Most reputable mobile mechanics and garages, including many online booking platforms, will not fit customer-supplied parts. This policy is primarily due to insurance and warranty issues. They cannot guarantee the quality or authenticity of parts you provide, and fitting them could void their own labour warranty if the part fails. Exceptions are rare and usually apply only if the part is brand new, purchased directly from a dealership, and accompanied by a valid receipt as proof of purchase.

Should the mechanic assess your vehicle and find that the oil pressure switch does not require changing, and the problem is due to another issue (e.g., genuinely low oil pressure, a wiring fault, or a different sensor), they will provide a no-obligation quote for the correct repair. If you accept this, the booking can be altered accordingly. If you decide not to proceed with the alternative repair, the mechanic may charge a call-out and diagnostic fee, commensurate with the time spent on the vehicle.

Frequently Asked Questions About Oil Pressure Switches

Q: What PSI does an oil pressure switch run?

A: An oil pressure switch is typically calibrated to trigger when the oil pressure falls below a very low threshold, often around 5-7 PSI (pounds per square inch). This is the critical point where your engine's lubrication is severely compromised. The full range of oil pressure in an engine generally runs from 7–12 PSI at idle to 40–60 PSI when the vehicle is moving at higher RPMs.

Q: Can you change an oil pressure switch kerbside?

A: Yes, in most cases, an oil pressure switch replacement can be performed kerbside by a mobile mechanic. It's considered a relatively low-cost repair with typical lead times of 24-48 hours, depending on part availability.

Q: What does an oil pressure sensor do?

A: The oil pressure sensor (or switch) is designed to monitor the engine's oil pressure. If the pressure drops below its calibrated critical level, it activates the dashboard oil pressure warning light to alert the driver to a potential problem.

Q: How does an oil pressure sensor work and what are its components?

A: In the context of a "switch," it's generally a simple device that acts as a binary switch: it's 'off' when the oil pressure is sufficient and 'on' (or completes a circuit) should the pressure drop below a certain level. It's a single component, typically with a feed and return wire, that screws into the engine block to monitor the pressure of the oil circulating from the oil pump. Internally, it relies on a diaphragm and spring mechanism to open or close electrical contacts based on pressure.

Q: What are typical symptoms that require an oil pressure switch to be replaced?

A: Faults with an oil pressure sensor/switch can cause several symptoms: the oil pressure warning light not coming on with the ignition, the oil pressure light remaining on constantly (even when actual pressure is fine), flickering of the warning light, or oil leaking directly from the sensor/switch itself. If the light remains on, it's crucial to verify actual oil pressure as it could indicate a serious engine issue.

Q: What happens during an oil pressure switch replacement?

A: During a replacement, a mechanic will first assess the situation by reading diagnostic codes and checking live data to confirm the sensor is faulty. Once confirmed, they will disconnect the old sensor, remove it, clean the area, install the new sensor with thread sealant, reconnect the electrical connector, and then start the engine to recheck for error codes and leaks, ensuring proper function.

Q: What does a kerbside oil pressure switch repair cover?

A: Unless otherwise stated, a quote for a kerbside oil pressure switch replacement typically covers the cost of the new oil pressure switch, the mechanic travelling to your location, the fitting of the parts, disposal of the old parts, any applicable VAT, and a 12-month parts and labour warranty.

Q: Can I supply my own parts for a repair?

A: Generally, no. Most reputable mechanics will not fit customer-supplied parts due to insurance and warranty issues. Exceptions are rare and usually only apply if the part is brand new, purchased from a dealership, and accompanied by a valid receipt as proof of purchase.

Q: What if the mechanic finds the oil pressure switch doesn’t need changing?

A: In this scenario, the mechanic will provide a no-obligation quote for the correct repair. If you accept, the booking can be altered. If you decide not to proceed with the alternative repair, the mechanic may change the booking to a call-out and diagnostic booking, charging according to the time spent on the vehicle and the call-out fee.
