Scroll Compressor Rotation: A Crucial Check

The Importance of Scroll Compressor Rotation Checks

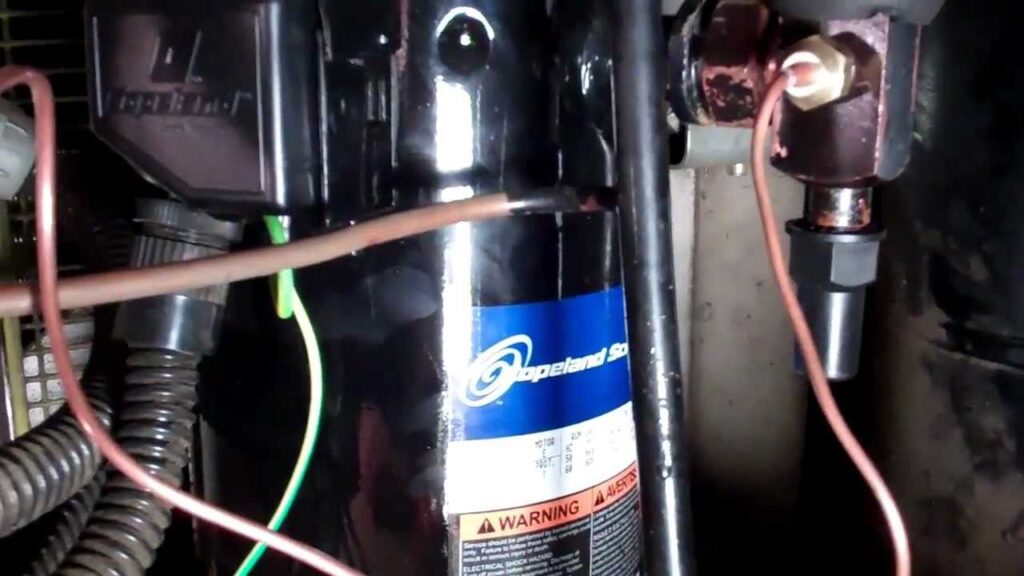

Scroll compressors are a cornerstone of many modern refrigeration and air conditioning systems. Their efficiency and reliability have made them a popular choice for a wide range of applications. However, like any complex mechanical device, they require proper maintenance and understanding to ensure optimal performance and longevity. One critical aspect often overlooked by those new to these systems is the direction of rotation of the scroll compressor. This seemingly small detail can have significant implications for how the compressor functions, its efficiency, and even its potential for damage.

When we talk about scroll compressor rotation, it's important to clarify what we mean. A scroll compressor consists of two interleaved spiral-shaped components: a stationary scroll and an orbiting scroll. The orbiting scroll moves in a circular path without rotating on its own axis. It is this orbiting motion that drives the compression process. The direction of this orbiting motion is what we refer to when discussing compressor rotation.

For a standard single-phase scroll compressor, a specific direction of rotation is crucial for correct operation. Conversely, three-phase scroll compressors offer a bit more flexibility, as their rotation can be reversed under certain circumstances, often for diagnostic purposes. Therefore, understanding how to check and interpret the rotation of your scroll compressor is an essential skill for any technician or diligent owner involved in its upkeep.

Understanding Scroll Compressor Operation

The magic of a scroll compressor lies in its elegant design. As the orbiting scroll moves, it creates pockets of refrigerant that progressively decrease in volume as they move towards the centre of the stationary scroll. This continuous process of trapping, compressing, and discharging refrigerant is what makes scroll compressors so efficient. The precise meshing and movement of the scrolls are paramount to this efficiency.

The stationary scroll remains fixed in place, acting as the anchor for the compression cycle. The orbiting scroll, however, is driven by a crankshaft, causing it to orbit around the centre of the stationary scroll. This orbiting motion, not a spinning motion, is what drives the compression. The key takeaway is that the direction of this orbit directly influences the direction of refrigerant flow and compression.

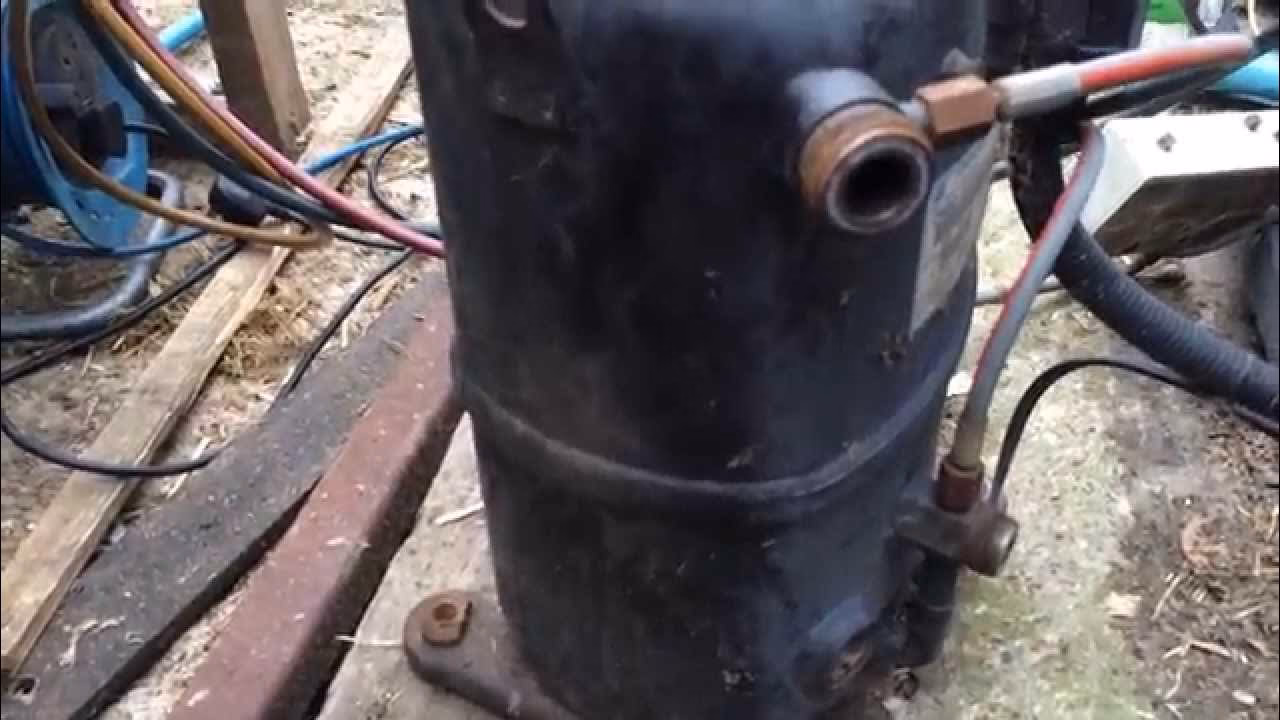

Checking for Normal Scroll Compressor Rotation

Identifying whether your scroll compressor is rotating in the correct direction is a straightforward process, often involving a few key indicators:

1. Pressure Differential: The Primary Indicator

The most reliable method to check for normal rotation is by measuring the suction and discharge pressures. When the compressor is orbiting correctly:

• Suction Pressure: This is the pressure of the refrigerant entering the compressor.
• Discharge Pressure: This is the pressure of the refrigerant leaving the compressor after compression.

If the compressor is operating normally, you should observe a significant pressure difference between the suction and discharge lines. The discharge pressure will be considerably higher than the suction pressure, indicating that the compression process is actively taking place.

2. Audible Cues: Listening for Normalcy

While not as definitive as pressure readings, the sound a scroll compressor makes can offer clues:

• Quiet Operation: A compressor rotating in the correct direction will typically operate with a smooth, relatively quiet hum. There should be no unusual knocking, grinding, or excessive vibration.

3. Electrical Current Draw

The amount of electrical current the compressor draws is another important indicator:

• Expected Current Draw: When operating correctly, the compressor will draw a specific amount of current, as indicated on its nameplate or in the system’s specifications. This current draw reflects the workload of compressing the refrigerant.

In summary, normal rotation is characterised by a healthy pressure differential, quiet operation, and an expected current draw.

Identifying Reverse Scroll Compressor Rotation

Recognising reverse rotation is just as important as identifying normal operation. Here’s how to spot it:

1. Lack of Pressure Differential

The most telling sign of reverse rotation is the absence of a pressure difference:

• No Pressure Rise: If you measure the suction and discharge pressures and find them to be nearly identical, or if the discharge pressure is lower than expected, this strongly suggests the compressor is rotating in reverse. Instead of compressing, it's essentially trying to move refrigerant in the wrong direction, acting more like an expander than a compressor.

2. Unusual Noises

Reverse rotation often manifests audibly:

• Knocking or Humming: While a slight hum is normal, a loud knocking or a deep, labouring hum can indicate reverse rotation. It's crucial to distinguish this from noises that occur during shutdown, which can sometimes be normal due to pressure equalisation.

3. Incorrect Current Draw

The compressor's electrical behaviour will also be affected:

• Low Current Draw: If the compressor is not drawing the expected amount of current, it signifies that it is not working against the normal compression load. This is a strong indicator of reverse rotation.

Can Three-Phase Scroll Compressors Run Backwards?

Yes, three-phase scroll compressors have the unique capability to run in reverse, and this can be both a potential issue and a diagnostic tool.

Causes of Reverse Rotation in Three-Phase Compressors

• Incorrect Wiring: The most common reason for a three-phase compressor to run backward is incorrect wiring. Reversing the polarity of any two of the three power legs supplied to the compressor motor will cause it to rotate in the opposite direction.
• Power Supply Issues: While less common, fluctuations or specific types of power interruptions can, in rare cases, lead to temporary reverse rotation.

When Reverse Rotation is Utilised

In the context of troubleshooting, technicians might intentionally reverse the rotation of a three-phase compressor. This is often done to address specific operational anomalies:

• Noise Mitigation: If a three-phase scroll compressor is exhibiting a loud knocking or humming sound, reversing the rotation can sometimes resolve the issue. This is particularly true if the noise is related to internal pressure dynamics or the initial startup sequence. By reversing the rotation, the internal forces might be rebalanced, quieting the noise.

It's vital to remember that while reverse rotation can be a diagnostic tool, it is not the intended normal operating mode for most applications. Prolonged reverse operation can lead to reduced efficiency and potential wear on components.

The Significance of Scroll Compressor Rotation Direction

The direction of rotation is not merely a technicality; it is fundamental to the compressor's function and the system's overall health.

Normal Rotation: Efficient Compression

When the orbiting scroll rotates in the correct (typically clockwise for most single-phase units) direction, the compressor efficiently traps, compresses, and discharges the refrigerant. This leads to optimal cooling or heating performance and energy efficiency.

Reverse Rotation: A Scroll Expander

If a scroll compressor rotates in the reverse direction, it essentially acts as a scroll expander. Instead of increasing pressure, it allows the refrigerant to expand, decreasing its pressure and temperature. This is the opposite of what is required for a cooling or heating cycle.

Potential for Damage

Running a scroll compressor in reverse, especially for extended periods or without proper safeguards, can lead to significant damage:

• Mechanical Stress: The internal components are not designed to operate under reverse load conditions, potentially leading to premature wear or failure.
• System Imbalance: The refrigeration cycle relies on precise pressure and temperature relationships. Reverse rotation disrupts this balance, potentially causing other system components to operate outside their intended parameters.

The Role of Check Valves

In many systems, a check valve is installed in the discharge line. This valve is designed to allow refrigerant to flow in only one direction – out of the compressor. If a power outage occurs, and the compressor stops abruptly, the high-pressure refrigerant in the discharge line could potentially backflow into the compressor. A functioning check valve prevents this backflow. If the check valve is faulty or absent, reverse rotation during a power-down event could occur, potentially damaging the compressor as refrigerant attempts to flow backward through the compression chambers.

Sunrise Metal and Scroll Compressor Components

The precision manufacturing of scroll compressor components is crucial for their performance. Companies like Sunrise Metal play a vital role in this industry, particularly focusing on high-quality parts for medical scroll compressors.

Manufacturing Expertise

Sunrise Metal specialises in manufacturing key components of scroll compressors, including:

• The Orbiting Scroll: The primary moving part responsible for the compression cycle.
• The Fixed Scroll: The stationary counterpart that works in tandem with the orbiting scroll.
• The Housing: The casing that encloses and supports the scrolls.

Their focus on medical applications underscores a commitment to high precision and reliability, as these systems often operate under stringent conditions.

Advanced Manufacturing Processes

Sunrise Metal employs advanced manufacturing techniques such as:

• Die Casting: A primary method for shaping metal components.
• Vacuum Casting and Semi-Solid Casting: These advanced die casting processes are used to achieve superior material properties, reduced porosity, and enhanced dimensional accuracy, particularly important for the critical rotating part – the orbiting scroll.

Beyond casting, they offer comprehensive services including:

• Machining: To achieve precise tolerances and surface finishes.
• Surface Finishing: Enhancing durability and performance.

Design and Quality Assurance

Sunrise Metal also provides valuable services in:

• Cost-Effective Production Planning: Assisting clients in optimising manufacturing costs.
• Design and Modification: Collaborating with clients to refine or develop component designs.

Their rigorous quality assurance process, involving the creation and testing of demo parts before mass production, ensures that their manufactured components consistently meet high standards of accuracy and precision, satisfying a demanding client base both domestically and internationally.

Frequently Asked Questions (FAQs)

Q1: Is it always bad if a scroll compressor runs backward?

A1: For single-phase compressors, reverse rotation is generally bad and indicates an issue. For three-phase compressors, it's not always bad and can sometimes be a diagnostic tool to fix noise issues, but it's not the normal operating mode.

Q2: What happens if a scroll compressor runs backward for a long time?

A2: Prolonged reverse operation can lead to reduced efficiency, increased wear on internal components, and potential damage to the compressor and the overall refrigeration system.

Q3: How can I tell if my scroll compressor is a single-phase or three-phase?

A3: You can usually determine this by checking the compressor's nameplate or the electrical wiring supplying it. Three-phase compressors typically have three power wires, while single-phase have two (plus a ground). You can also consult the system's manual or the manufacturer's specifications.

Q4: Does a scroll compressor need oil?

A4: Yes, scroll compressors require lubrication, typically oil mixed with the refrigerant, to ensure the smooth operation and longevity of the moving parts, particularly the orbiting scroll and its bearings. The question of whether they are "oil-free" is a separate technicality related to specific designs, but standard scroll compressors are not oil-free.

Q5: What is the most common cause of reverse rotation in a three-phase scroll compressor?

A5: The most common cause is incorrect wiring, where the polarity of two of the three power legs is reversed.

Conclusion

The direction of rotation in a scroll compressor is a critical factor influencing its performance, efficiency, and lifespan. Regularly checking for normal rotation by monitoring pressure differentials, listening for unusual noises, and observing current draw is essential for proactive maintenance and troubleshooting. While three-phase compressors offer some flexibility in rotation for diagnostic purposes, understanding and correcting reverse rotation in any scroll compressor is paramount to preventing costly damage and ensuring the reliable operation of your HVAC or refrigeration system. For those involved in the manufacturing of these vital components, precision and quality, as exemplified by companies like Sunrise Metal, are key to delivering reliable performance.
