Peugeot 207 Gearbox Oil: A Comprehensive Guide

Understanding and maintaining the vital fluids in your vehicle is paramount for its longevity and performance. Among these, the gearbox oil plays a critical, yet often overlooked, role in the smooth operation of your manual transmission. For owners of a Peugeot 207, ensuring your gearbox is correctly lubricated can make the difference between effortless gear changes and a potentially costly repair. This comprehensive guide will walk you through the essential process of checking, draining, and refilling your Peugeot 207's manual gearbox oil, providing you with the knowledge and confidence to tackle this crucial maintenance task yourself. While the term "top up" is often used, for the Peugeot 207 manual gearbox, the procedure typically involves a full drain and refill due to the design of its filler system, ensuring optimal performance and protection.

Why Gearbox Oil Is Essential for Your Peugeot 207

Your Peugeot 207's manual gearbox is a complex assembly of gears, shafts, and bearings, all operating under immense pressure and friction. The gearbox oil, or transmission fluid, serves multiple critical functions: it lubricates these moving parts to minimise wear, dissipates heat generated by friction, and helps to clean the internal components by carrying away metallic particles and sludge. Over time, gearbox oil can degrade, losing its viscosity and protective properties due to heat cycling, contamination, and sheer mileage. This degradation leads to increased friction, harder gear changes, potential noise, and ultimately, accelerated wear on the internal components. Regular maintenance of this fluid is not just a recommendation; it's a necessity for the health and efficiency of your gearbox.

Signs Your Gearbox Oil Might Need Attention

Before diving into the procedure, it's helpful to recognise the symptoms of ageing or low gearbox oil. While the Peugeot 207 manual gearbox doesn't have a simple dipstick for checking levels, paying attention to your car's behaviour can give you clues. Common indicators include:

• Difficulty Shifting Gears: If you find gears grinding, sticking, or becoming unusually stiff to engage, especially when the engine is cold, it could be a sign of inadequate lubrication.
• Unusual Noises: Whining, clunking, or humming sounds emanating from the gearbox, particularly in neutral or when changing gears, can indicate worn components or insufficient oil.
• Gear Slipping: Although more common in automatic transmissions, a manual gearbox with severely degraded oil might struggle to hold gears properly.
• Leaking Fluid: Puddles or damp spots under your car, especially near the centre, could indicate a gearbox oil leak, which would lead to low fluid levels.

Addressing these signs promptly can prevent minor issues from escalating into major, expensive repairs.

Tools and Materials You'll Need

Before you begin, gather all the necessary tools and materials. Having everything ready will make the process smoother and safer:

• New Gearbox Oil: Crucially, 2 litres of 75w80 semi-synthetic gear oil. Ensure it meets the Peugeot specifications for your 207. Using the wrong type can cause serious damage.
• Vehicle Jacks and Jack Stands: Essential for safely raising and supporting your vehicle. Never work under a car supported only by a jack.
• Wheel Chocks: To prevent the vehicle from rolling.
• Drain Pan: A container large enough to hold at least 2 litres of old oil.
• Socket Set and Spanners: You'll need various sizes, particularly for the drain and filler bungs. A universal joint or extension bar might be helpful for tricky angles.
• Small Funnel with a Flexible Spout or Oil Bottle with Integrated Spout: The filler point can be awkward to access, so a flexible solution is invaluable.
• Gloves and Safety Glasses: For personal protection against hot oil and splashes.
• Rags or Shop Towels: For cleaning up spills.
• Torque Wrench: For tightening bungs to the manufacturer's specified torque.
• Radio Code: If you need to disconnect the battery, you will need your radio code to reactivate it afterwards. Have this to hand!
• Pliers or Screwdriver: For removing air filter housing clips or battery terminals.
• Optional: A fluid pump for easier filling, though a funnel and patience suffice.

Safety First: A Non-Negotiable Step

Working under a vehicle carries inherent risks. Prioritise safety above all else. This isn't just a recommendation; it's paramount:

• Secure the Vehicle: Park your Peugeot 207 on a flat, level surface. Engage the handbrake and place wheel chocks behind the rear wheels.
• Lift Safely: Use a high-quality hydraulic jack to lift the front of the vehicle. Once lifted, immediately place sturdy jack stands under the designated jacking points on the vehicle's frame. Gently lower the car onto the stands to ensure they are stable. Give the car a gentle shake to confirm it's secure.
• Personal Protective Equipment (PPE): Always wear safety glasses to protect your eyes from splashes and gloves to protect your hands from oil and grime.
• Hot Oil Warning: The gearbox oil may be warm, which helps it drain more easily, but can cause burns. Exercise extreme caution.
• Ventilation: Ensure you are working in a well-ventilated area.
• Proper Disposal: Never pour used oil down drains or onto the ground. Collect it in a sealed container and take it to an authorised recycling centre or garage.

Preparing Your Peugeot 207 for the Oil Change

A little preparation goes a long way:

1. Warm Up the Engine (Slightly): Drive your car for a few minutes to get the gearbox oil slightly warm. Warm oil flows more easily, ensuring a more complete drain. However, avoid making it too hot to prevent burns.
2. Position Your Vehicle: Safely lift the front of your Peugeot 207 as described in the "Safety First" section. Ensure you have ample space to work underneath.

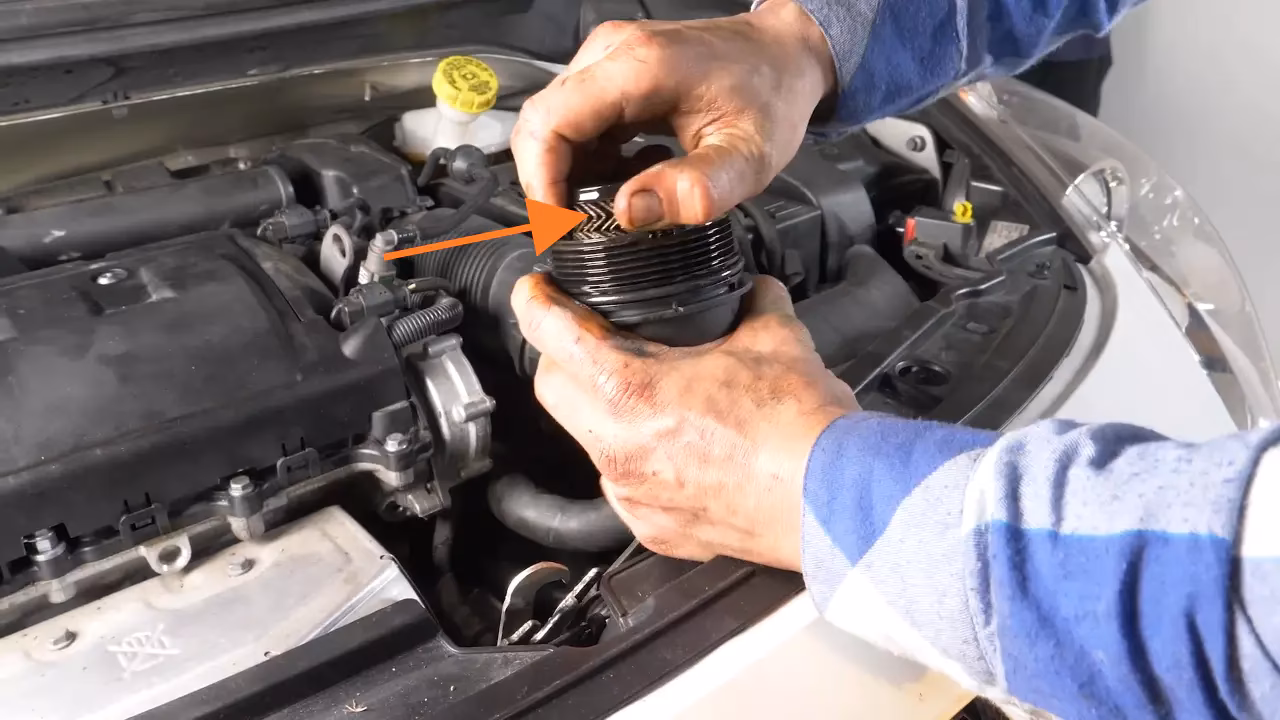

3. Gain Access: As highlighted in the information, you'll likely need to remove components to access the filler bung. This often involves the air filter housing and potentially the battery. Carefully disconnect the battery terminals (negative first) and remove the battery if necessary. Then, unclip and remove the air filter housing. Remember to keep your radio code handy if the battery is disconnected.

Locating the Drain and Filler Points

This is where the specific knowledge for the Peugeot 207 comes in:

• The Drain Bung: You will find the drain bung either at the bottom rear of the differential housing or to the near side (N/S) of it. Peugeot 207s can have two types of setups, so you'll need to visually inspect your vehicle to identify which one applies to yours. It will typically be a large hexagonal bolt.
• The Filler Bung: This is a crucial point of distinction. The Peugeot 207 manual gearbox does not have a filler level plug in the traditional sense, where you fill until oil overflows. Instead, it has a simple filler point. This filler bung is located on the very top of the gearbox, approximately four to six inches in front of the gear selector mechanism, roughly in line with it. It should be a hexagonal nut or bung that features a loose-fitting plastic or aluminium vent cap on it. It's vital to unscrew the entire bung, but be careful not to remove or damage the small vent cap as it's designed to allow the gearbox to breathe and prevent pressure build-up. Damage to this vent could lead to future oil leakage.

The Draining Process

Once you've located both bungs and prepared your workspace, you can proceed with draining the old oil:

1. Position the Drain Pan: Place your drain pan directly underneath the gearbox drain bung. Ensure it's centred and large enough to catch all the oil.
2. Remove the Drain Bung: Using the appropriate socket or spanner, carefully loosen and then fully remove the drain bung. The oil will begin to flow out, potentially quite quickly if warm. Allow ample time for all the old oil to drain completely. This can take 15-30 minutes.
3. Inspect the Old Oil: While the oil is draining, observe its condition. Healthy gearbox oil is typically a clear amber or light brown colour. If it appears very dark, murky, or has a strong burnt smell, it indicates significant wear or contamination. Small metallic particles are normal, but large chunks or excessive glitter indicate internal wear that may require further inspection.
4. Reinstall the Drain Bung: Once the flow has reduced to a drip, clean the drain bung and its sealing washer (replace the washer if recommended by your vehicle's service manual or if it appears damaged). Reinstall the drain bung and tighten it securely, ideally using a torque wrench to the manufacturer's specification to prevent overtightening or leaks.

Refilling the Gearbox with Fresh Oil

This is the most critical step, requiring precision and patience:

1. Prepare for Filling: Ensure the filler bung is fully removed (remembering not to damage the vent cap). Position your funnel with the flexible spout, or the oil bottle with its integrated spout, securely into the filler opening. This access point is tight, so a flexible or long spout is essential.
2. Measure the Oil: Your Peugeot 207 manual gearbox requires exactly 2 litres of 75w80 semi-synthetic gear oil. It's crucial to measure this precisely, as under-filling can lead to premature wear and overfilling can cause excessive pressure, seal damage, and gear selection issues.
3. Begin Filling Slowly: Start pouring the new oil into the gearbox. This is where patience is key. Pour slowly and steadily. If you pour too quickly, you'll likely experience "blowback," where the oil splashes back out of the filler hole, making a mess and wasting expensive fluid. Take your time, allowing the oil to settle and flow into the gearbox.
4. Monitor Progress: Continue pouring until the full 2 litres have been added. The absence of a level plug means you rely solely on measuring the exact quantity.
5. Reinstall the Filler Bung: Once all the new oil is in, carefully clean the filler bung and its sealing surface. Reinstall the filler bung, ensuring the vent cap is still properly seated. Tighten it securely, again using a torque wrench if possible.

Post-Procedure Checks and Final Steps

You're almost done! A few final steps ensure everything is properly reassembled and functioning:

1. Reinstall Components: Reattach the air filter housing and any other components you removed to gain access. If you disconnected the battery, reconnect it (positive terminal first, then negative).
2. Enter Radio Code: If the battery was disconnected, your radio will likely require its security code. Enter this code to restore functionality.
3. Lower the Vehicle: Carefully raise the vehicle off the jack stands, then lower it completely to the ground. Remove the jack and wheel chocks.
4. Check for Leaks: Start the engine and let it run for a few minutes. Carefully inspect underneath the vehicle for any signs of leaks around the drain and filler bungs.
5. Test Drive: Take your Peugeot 207 for a short test drive. Pay attention to how the gears engage. They should feel smoother and quieter. Listen for any unusual noises.
6. Dispose of Old Oil: Take your used gearbox oil to an approved recycling centre. Never dispose of it improperly.

Troubleshooting Common Gearbox Issues After Oil Change

While a fresh oil change often resolves many issues, sometimes symptoms persist or new ones arise. Here's a quick troubleshooting guide:

Frequently Asked Questions (FAQs)

How often should I change my Peugeot 207's manual gearbox oil?

Peugeot often specifies "filled for life" for gearbox oil, but this generally means for the expected life of the warranty, not the vehicle's lifespan. Most mechanics recommend changing manual gearbox oil every 50,000 to 100,000 miles, or every 5-7 years, especially if you do a lot of stop-start driving or notice any of the symptoms mentioned above. It's a relatively inexpensive service that can significantly extend the life of your gearbox.

Can I use a different viscosity or type of oil?

Absolutely not. The 75w80 semi-synthetic gear oil is specifically formulated for your Peugeot 207's gearbox. Using a different viscosity or a fully synthetic/mineral oil can lead to poor lubrication, seal damage, and premature wear due to incompatible additives or incorrect friction characteristics. Always stick to the manufacturer's specified type and grade.

What happens if I overfill the gearbox?

Overfilling can be as detrimental as underfilling. It can lead to excessive internal pressure, which can damage seals and gaskets, causing leaks. It can also create excessive foaming of the oil, reducing its lubricating properties, and potentially causing gear selection issues or even pushing oil out through the breather vent.

Is it possible to just "top up" the oil without draining?

Given the design of the Peugeot 207 manual gearbox with its single filler point and no separate level plug, a simple "top up" is challenging and generally not recommended. The prescribed method involves draining the old oil completely and refilling with the precise 2-litre quantity. If you suspect low oil due to a leak, addressing the leak first and then performing a full drain and refill is the safest approach to ensure the correct volume and quality of oil.

Do automatic Peugeot 207s use the same oil and procedure?

No. Automatic transmissions use completely different types of fluid (Automatic Transmission Fluid - ATF) and have a vastly different maintenance procedure, often involving complex flushing processes and specific temperature checks. This guide is strictly for manual gearbox models.

Is this a difficult DIY job for a novice?

While it requires some mechanical aptitude and the right tools, changing the gearbox oil on a Peugeot 207 is considered a moderately difficult DIY task. The main challenges are safely lifting the vehicle, accessing the filler bung, and refilling without blowback. If you're unsure at any point, it's always best to consult a professional mechanic.

By following this guide, you've taken a significant step in proactively maintaining your Peugeot 207's manual gearbox. Regular attention to this crucial fluid will not only ensure smoother driving but also protect one of your car's most expensive components, keeping you on the road for many more miles to come. Remember, patience and adherence to safety protocols are your best allies in any DIY automotive maintenance.
