VW Polo 9N Brake Pad Replacement Guide

When it comes to keeping your Volkswagen Polo 9N stopping safely and reliably, the brake pads are a crucial component. Over time, these vital parts wear down, and knowing how to replace them is a valuable skill for any DIY enthusiast. This guide will walk you through the process, from gathering your tools to getting your new pads properly bedded in. While it might seem daunting at first, with a methodical approach and the right information, you can successfully tackle this essential maintenance task.

Understanding Brake Pad Wear

Brake pads work by pressing against the brake discs (rotors) when you apply the brakes. This friction slows your vehicle down. As this friction occurs, the pad material gradually wears away. Most modern brake pads have a small metal indicator that will start to make a squealing noise when the pads are getting low, alerting you to the need for a replacement. Ignoring this warning can lead to damaged brake discs, which are a significantly more expensive repair. Regular visual inspections are also recommended; you should be able to see a reasonable amount of pad material (typically around 3-4mm) remaining.

What You'll Need: Tools and Parts

Before you begin, ensure you have all the necessary tools and parts readily available. This will save you time and prevent frustration. For a VW Polo 9N brake pad replacement, you will typically require:

• New Brake Pads: Ensure you purchase the correct pads for your specific VW Polo 9N model. There are often different specifications for front and rear, and sometimes even variations based on engine size or trim level. Always double-check with your parts supplier.
• Jack and Axle Stands: Never rely solely on a jack to support a vehicle. Axle stands are essential for safety.
• Wheel Brace or Impact Socket: A size 17mm impact socket is commonly used for VW wheel bolts.
• Torque Wrench: Crucial for tightening bolts to the manufacturer's specifications.
• C-Clamp or Brake Pad Spreader Tool: To compress the brake caliper piston.
• Pry Bar or Flathead Screwdriver: For gently levering components.
• Wire Brush: For cleaning brake components.
• Brake Cleaner: To clean away dust and debris.
• Gloves: To protect your hands from brake dust and grease.
• Safety Glasses: To protect your eyes.
• Penetrating Oil (Optional): For stubborn bolts.
• New Brake Wear Indicators (if applicable): Some pads come with these, or they may be a separate purchase.

Step-by-Step Replacement Process

1. Preparation and Safety First

Begin by parking your Polo on a level surface. Engage the parking brake firmly. To prevent the car from rolling, place wheel chocks behind the rear wheels if you are working on the front, or in front of the front wheels if you are working on the rear. Open the bonnet and locate the brake fluid reservoir. Unscrew the cap to allow fluid to flow back into the reservoir as you compress the caliper piston later. Do not overfill the reservoir if it's already near the maximum mark; you may need to temporarily remove some fluid using a syringe if it looks like it will overflow.

2. Loosen Wheel Bolts

Using your wheel brace or the appropriate socket (size 17mm for many VW Polos), loosen the wheel bolts on the wheel you'll be working on. Turn them about half a turn to a full turn counter-clockwise. Do not remove them completely at this stage. This makes it easier to remove the wheel once the car is jacked up.

3. Jack Up the Vehicle and Secure with Axle Stands

Identify the correct jacking points for your VW Polo 9N. Consult your owner's manual if you are unsure. Position the jack and carefully raise the front of the car until the wheel is clear of the ground. Once raised, place an axle stand securely under a strong point of the chassis or suspension, as close to the jacking point as possible. Slowly lower the car onto the axle stand. Give the car a gentle wobble to ensure it is stable on the stand. Repeat this process for the other side if you are replacing pads on both wheels simultaneously.

4. Remove the Wheel

Now that the car is safely supported, you can fully unscrew the wheel bolts you loosened earlier. Keep the bolts in a safe place, perhaps in a magnetic tray or a labelled container, to avoid losing them. Remove the wheel and set it aside.

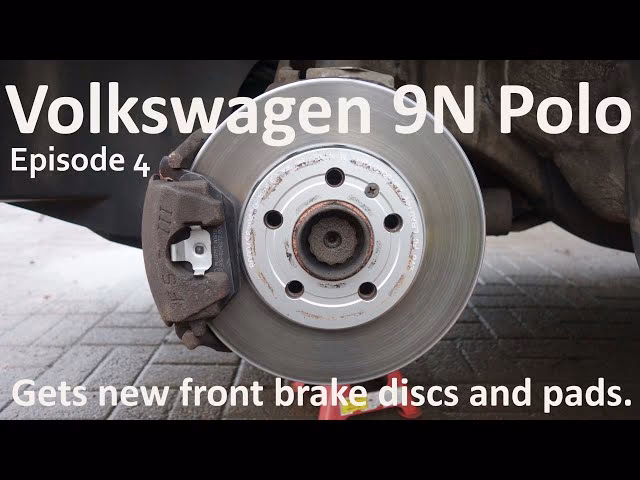

5. Accessing the Brake Caliper

You will now see the brake disc and the brake caliper. The brake pads are housed within the caliper. The caliper is usually held in place by two bolts, often referred to as caliper guide pins or slider pins. These are typically on the back of the caliper assembly. You may need to remove a dust cap to access them. The exact location and type of fastener can vary, so a good visual inspection is key.

6. Removing the Caliper Guide Pins

Using the appropriate spanner or socket, unscrew the caliper guide pins. These often have rubber boots covering them. Be careful not to damage these boots, as they protect the pins from dirt and moisture. Sometimes, you might need to hold the caliper bracket with another wrench to prevent it from spinning while you undo the pin. Once the pins are removed, the caliper should be able to be gently pried or slid upwards or outwards, exposing the old brake pads.

7. Removing the Old Brake Pads

With the caliper partially or fully removed, you should be able to slide the old brake pads out. They might be held in place by clips or simply sit in their mounts. If they are stuck, you can use a pry bar or screwdriver to gently lever them out. Note the orientation of the old pads, especially if they have wear indicators, as the new ones will need to be installed in the same way. Be aware that a significant amount of brake dust will likely fall out at this stage, so be prepared.

8. Compressing the Caliper Piston

This is a critical step. The new brake pads are thicker than the old ones, so you need to push the caliper piston back into the caliper body to make room. You can do this using a C-clamp. Place the clamp so that one end rests against the back of the caliper and the other end presses against the old brake pad (or a piece of wood placed against the piston). Slowly and steadily tighten the clamp, pushing the piston back into the caliper. Watch the brake fluid reservoir under the bonnet to ensure it doesn't overflow. If it looks like it will, remove a small amount of fluid with a syringe. Some aftermarket brake pad spreader tools are also available and can make this process easier and cleaner.

9. Installing the New Brake Pads

Clean the caliper mounting points and the area where the pads sit using a wire brush. This ensures a clean surface for the new pads to operate smoothly. Lubricate the caliper slide pins with a small amount of high-temperature brake grease. Do not get grease on the pad friction material or the disc surface. Slide the new brake pads into place, ensuring they are oriented correctly and any wear indicators are fitted as per the old ones. The new pads should slide in relatively easily. If they feel tight, check for any obstructions or debris.

10. Reassembling the Caliper

Once the new pads are in position, carefully slide or lower the caliper back over the new pads. Reinsert the caliper guide pins and tighten them to the manufacturer's specified torque. If you removed dust caps, ensure they are refitted correctly. If your caliper has a retaining clip or spring system, ensure this is correctly installed to hold the pads securely.

11. Refitting the Wheel

Place the wheel back onto the hub. Screw in the wheel bolts by hand to avoid cross-threading. Tighten them snugly in a star pattern. Lower the car off the axle stands. Once the wheel is on the ground, use your torque wrench to tighten the wheel bolts to the manufacturer's specified torque for your VW Polo 9N. This is usually around 120 Nm, but always check your manual.

12. Final Checks and Bedding In

Before driving, pump the brake pedal several times. This will push the caliper piston back out and seat the new pads against the disc. The pedal should feel firm. Double-check all bolts and connections. When you first drive the car, avoid sudden, hard braking for the first 100-200 miles. This bedding-in period allows the new pads to mate properly with the brake discs, ensuring optimal braking performance and longevity. Gentle, progressive braking is key during this phase.

Common Issues and Tips

What if the old pads are stuck?

If the old pads are severely corroded or stuck, a gentle tap with a rubber mallet or careful prying with a flathead screwdriver might be necessary. Ensure you are not forcing anything that could damage the caliper or disc. Cleaning the mounting points thoroughly can often help.

Should I replace brake discs at the same time?

It's advisable to inspect your brake discs for wear, scoring, or warping. If the discs are below their minimum thickness (often stamped on the edge of the disc) or show significant damage, it's best to replace them at the same time as the pads. Replacing pads on worn or damaged discs will compromise braking performance.

What is brake judder?

Brake judder, or vibration felt through the steering wheel or pedal under braking, can be caused by uneven wear on the brake discs or issues with the caliper. If you experience judder after replacing pads, it's worth having the discs and caliper checked.

Table: Brake Pad Lifespan Comparison

Remember, these are estimates, and actual lifespan can vary based on pad material quality, driving conditions, and maintenance.

Conclusion

Replacing the brake pads on your VW Polo 9N is a manageable task that can save you money and give you peace of mind. By following these steps carefully and prioritising safety, you can ensure your vehicle's braking system remains in excellent condition. Always refer to your vehicle's specific manual for detailed procedures and torque specifications. If at any point you feel unsure or uncomfortable, it's always best to seek assistance from a qualified mechanic.
