Mercedes B-Class Battery: Location & Care

For many Mercedes B-Class owners, the car's battery often remains out of sight and out of mind until, suddenly, it isn't. A flat battery can be one of the most frustrating experiences for any motorist, especially when you're in a hurry. Understanding where your B-Class battery is located, how to safely access it, and what to do when it decides to call it a day, particularly in the biting cold, is invaluable. This comprehensive guide will walk you through everything from pinpointing its exact spot to troubleshooting common issues and ensuring you choose the right replacement.

While the exact battery location can vary slightly between different Mercedes models and generations, the B-Class (W245 and W246 chassis) typically houses its power source in a relatively accessible, yet often overlooked, position. Unlike some vehicles where the battery might be tucked away in the boot or under the rear seats, Mercedes often places it under the bonnet, near the bulkhead or behind the engine, designed for both balance and ease of access during servicing. However, it's usually not as straightforward as just lifting a cover.

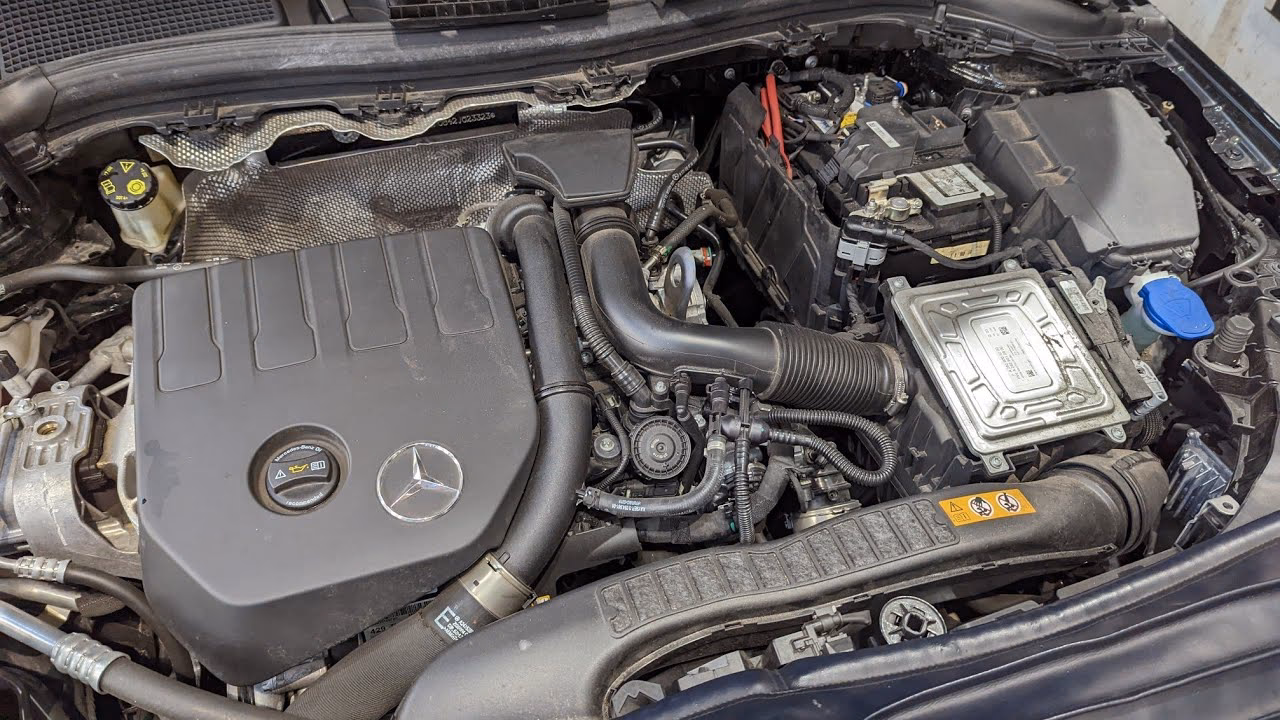

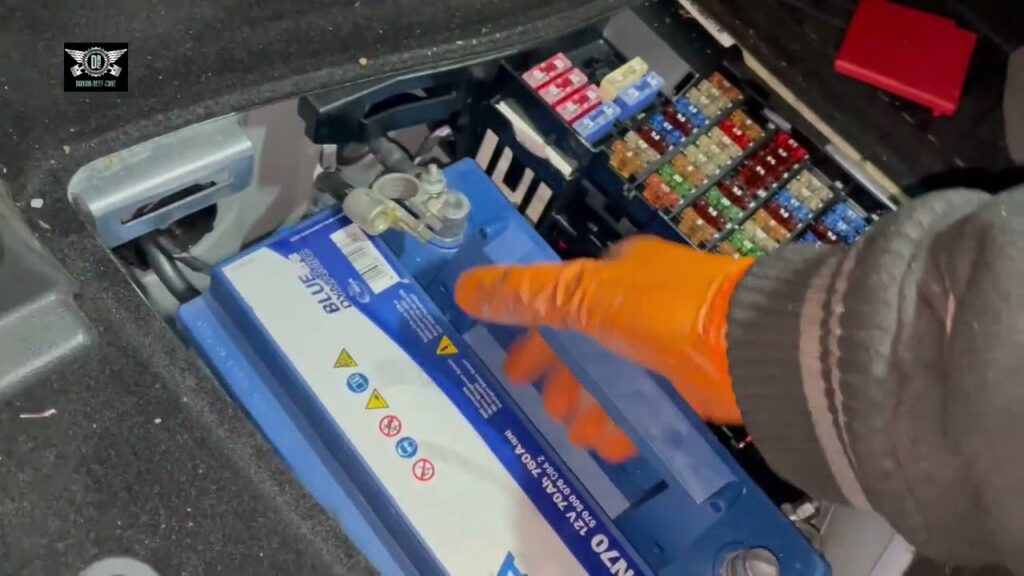

Locating the Battery in Your Mercedes B-Class

Finding the battery in your Mercedes B-Class is the first step towards any maintenance or replacement task. While some older models might have a more obvious placement, modern B-Class vehicles tend to conceal the battery for aesthetic and protective reasons. Here's how to typically find it:

1. Open the Bonnet: Begin by ensuring your car is parked on a level surface with the engine off and the parking brake engaged. Pop the bonnet using the release lever inside the cabin.
2. Identify the Battery Area: Once the bonnet is open, look towards the passenger side (left-hand drive vehicles) or driver's side (right-hand drive vehicles) of the engine bay, usually closer to the windscreen or bulkhead. The battery is often situated beneath a plastic cover.
3. Remove the Plastic Cover: Mercedes-Benz vehicles often have a large plastic trim cover that protects the battery and other electrical components from the elements and provides a neat appearance. This cover typically clips into place or is held down by a few small fasteners. Carefully unclip or unscrew these to lift the cover away.
4. Locate Control Units: In many B-Class models, you'll find various control units and wiring harnesses positioned directly above or around the battery. These are often integrated into the battery's housing or mounting bracket. Before you can access the battery terminals or securing bracket, these control units may need to be carefully moved.
5. Disconnect Electrical Connectors: If control units are directly over the battery, you'll need to disconnect their electrical connectors. These usually have simple push-tab mechanisms. Be gentle and methodical, noting which connector goes where if there are multiple. Remember, proper electrical safety is paramount – avoid touching exposed wires or terminals unnecessarily.

Once these steps are completed, the battery should be fully exposed, ready for inspection or replacement. Always ensure you have adequate lighting and space to work safely.

Step-by-Step Battery Replacement Guide for Your B-Class

Replacing a car battery, while seemingly daunting, is a manageable task for most DIY enthusiasts with the right tools and precautions. For your Mercedes B-Class, following these steps ensures a smooth and safe replacement:

Tools You'll Need:

• Socket wrench set (typically 10mm and 13mm sockets)
• Battery terminal cleaner (wire brush)
• Battery terminal puller (optional, but helpful)
• Gloves and safety glasses
• Battery terminal protector spray (optional)
• New Mercedes B-Class compatible battery

Procedure:

1. Safety First: Always wear safety glasses and gloves. Ensure no metallic objects are near the battery that could cause a short circuit.
2. Access the Battery: Follow the steps outlined above to locate and expose the battery, removing any plastic covers and carefully moving control units as necessary.
3. Disconnect Negative Terminal: Using your socket wrench, loosen the nut on the negative (–) battery terminal first. This is crucial for safety to prevent accidental short circuits. Once loose, carefully remove the cable from the terminal and tuck it away from the battery.
4. Disconnect Positive Terminal: Next, loosen the nut on the positive (+) battery terminal. Remove the cable and secure it away from the battery.
5. Unscrew Fixing Bracket: The battery will be held in place by a retaining bracket, usually at its base or top. Locate the screws or bolts (often 10mm or 13mm) securing this bracket and unscrew them completely. Remove the bracket.
6. Remove the Old Battery: Car batteries are heavy! Lift the old battery straight up and out of its tray. Be mindful of its weight and avoid straining your back. If it's particularly heavy, consider asking for assistance.
7. Clean the Battery Tray and Terminals: Before installing the new battery, inspect the battery tray for any corrosion or debris. Clean it thoroughly. If your old battery terminals were corroded, use a wire brush to clean the battery cable clamps.
8. Install the New Battery: Carefully lower the new battery into the tray, ensuring it sits securely and is oriented correctly (positive and negative terminals matching the cables).
9. Secure the Battery: Reinstall the fixing bracket and tighten its screws firmly to hold the new battery in place. It should not wobble.
10. Connect Positive Terminal: Reconnect the positive (+) battery cable to the new battery's positive terminal. Tighten the nut securely.
11. Connect Negative Terminal: Reconnect the negative (–) battery cable to the new battery's negative terminal. Tighten the nut securely.
12. Reassemble: Carefully reposition any control units and reattach their electrical connectors. Replace the plastic cover, ensuring all clips or fasteners are secure.
13. Test: Start your Mercedes B-Class to ensure the new battery is working correctly. You may need to reset some electronic systems (e.g., radio code, window auto-up/down functions).

Remember to properly dispose of your old battery at an authorised recycling centre. Most battery retailers offer recycling services.

Battery Compatibility: B200 CDI vs. B200 Turbo

The question of whether a B200 CDI battery will fit a B200 Turbo is a common one, and the answer isn't always a simple 'yes' or 'no'. While both are Mercedes B-Class models, their engine types (diesel vs. petrol, and the presence of a turbocharger) can significantly influence the battery specifications required. Modern vehicles, especially premium brands like Mercedes, demand precise battery characteristics.

Key factors determining battery compatibility include:

• Physical Size (Group Size): Batteries come in various standardised sizes. Even if the voltage is correct, a battery that's too big won't fit in the tray, and one that's too small might not be securely held.
• Cold Cranking Amps (CCA): This is perhaps the most critical specification, especially for starting in cold weather. CCA indicates the battery's ability to deliver current for a short period at 0°F (-18°C). Diesel engines, like the B200 CDI, typically require significantly higher CCA ratings than petrol engines (like the B200 Turbo) due to higher compression ratios and glow plug requirements.
• Amp-Hours (Ah): This represents the battery's capacity – how much energy it can store. While related to CCA, it speaks more to the battery's ability to power accessories over time.
• Terminal Type and Location: Ensure the positive and negative terminals are in the correct positions and are the right type to connect to your car's cables.
• Battery Technology: Modern Mercedes vehicles often use AGM (Absorbent Glass Mat) batteries, especially those with start-stop technology. These batteries are more expensive but offer superior performance, longer life, and better resistance to vibration. Using a conventional flooded lead-acid battery in a system designed for AGM can lead to premature failure and system malfunctions.

Comparison Table: Typical Battery Specifications

Given the differences, it's highly unlikely that a battery specifically designed for a B200 CDI would be the optimal or even correct choice for a B200 Turbo, particularly regarding CCA and potentially the physical size and technology. Always consult your car's owner's manual or check the specifications of the existing battery before purchasing a replacement. Using an incorrect battery can lead to poor performance, reduced lifespan, and potential damage to your vehicle's electrical system.

Troubleshooting a Dead Battery, Especially in Cold Weather

The scenario of a nearly new battery dying, especially after not driving the car for a day in extreme cold (like -36°C), is unfortunately not uncommon. While it's alarming, it doesn't always mean your battery is faulty or needs immediate replacement. Here's what's likely happening and what you can do:

• Cold Weather's Impact: Batteries lose a significant percentage of their cranking power in extreme cold. At -18°C (0°F), a battery can lose up to 60% of its cranking power. At -36°C, the effect is even more pronounced. The chemical reactions within the battery slow down dramatically.
• Increased Demand: Simultaneously, the engine's oil thickens in cold weather, making it harder to crank. This means the starter motor requires much more electrical current from the battery to get the engine turning over.
• Surface Charge vs. True Charge: A battery might show a good voltage reading but lack the amperage (CCA) to turn the engine over, especially under load in extreme cold. Your battery might have a 'surface charge' but not enough deep charge.
• Parasitic Drains: Even when off, cars have small electrical draws (clocks, alarm systems, ECUs). Over a full day or two, especially if the battery wasn't fully charged to begin with, this can deplete it, particularly when combined with cold weather.
• Battery Health: While your battery is less than a year old, this doesn't guarantee it's immune to issues. A battery can be faulty from the factory, or its lifespan could be shortened by repeated deep discharges, consistent short journeys that don't allow full recharging, or issues with the car's charging system (e.g., a failing alternator).

What to Do:

1. Attempt a Jump Start: This is often the quickest solution. Ensure you use proper jump-starting procedures, connecting positive to positive, then negative to a good ground point on the dead car's engine block (not directly to the battery's negative terminal) before connecting the final negative to the donor car's negative.
2. Charge the Battery: If possible, use a smart battery charger (trickle charger) designed for AGM batteries (if applicable to your B-Class). This can slowly and safely bring the battery back to full charge. Charge it overnight if possible.
3. Battery Test: After charging, or if it still struggles, have the battery tested. Most auto parts stores or garages offer free battery testing. They can assess its CCA capacity and overall health. This will tell you if the battery itself is failing or if it was just deeply discharged.
4. Check Charging System: If the battery tests good but keeps dying, have your car's charging system (alternator and voltage regulator) checked by a mechanic. A faulty alternator won't recharge the battery properly.
5. Preventative Measures for Cold: If you live in an extremely cold climate, consider a battery blanket or a block heater. Parking your car in a garage, even an unheated one, can also make a significant difference. Driving for at least 30 minutes regularly helps keep the battery topped up.

It's very likely your battery isn't faulty but simply struggled with the extreme cold and lack of recent driving. A good charge and a proper test will give you peace of mind. Your worry about the car starting is understandable, but with a robust battery and good charging system, your B-Class should be reliable.

Maintaining Your Mercedes B-Class Battery

Extending the life of your car battery involves more than just hoping for the best. Regular maintenance can significantly prolong its lifespan and prevent unexpected failures:

• Keep Terminals Clean: Check for corrosion (a powdery blue or white substance) on the battery terminals. This buildup can impede current flow. Clean it off using a battery terminal brush and a solution of baking soda and water.
• Ensure Secure Connections: Make sure the battery cables are tightly fastened to the terminals. Loose connections can lead to poor starting and charging.
• Regular Driving: Batteries prefer to be fully charged. Short trips don't allow the alternator enough time to fully recharge the battery, especially after starting. Try to take longer drives regularly.
• Check Battery Voltage: Periodically check your battery's voltage with a multimeter. A fully charged 12V battery should read around 12.6-12.8 volts when the engine is off.
• Use a Trickle Charger: If your car is often parked for extended periods, or if you make frequent short trips, investing in a smart trickle charger (especially an AGM-compatible one if your B-Class uses it) can keep your battery topped up and prevent deep discharge.
• Monitor Warning Lights: Pay attention to any battery or charging system warning lights on your dashboard. These indicate a problem that needs immediate attention.

Frequently Asked Questions (FAQs)

Q: How often should I replace my Mercedes B-Class battery?
A: Typically, a car battery lasts between 3 to 5 years, though this can vary based on climate, driving habits, and battery type. Extreme temperatures (hot or cold) can shorten its life. Regular testing can help determine its remaining lifespan.

Q: Can I jump-start my Mercedes B-Class?
A: Yes, you can jump-start a Mercedes B-Class. However, always follow the proper procedure outlined in your owner's manual or a reliable guide (like the one above). Ensure the donor vehicle has a 12V system and avoid connecting the negative cable directly to your B-Class battery's negative terminal; instead, use a good ground point on the engine block or chassis.

Q: What are the signs of a failing car battery?
A: Common signs include slow engine cranking, dimming headlights or interior lights when starting, the check engine light coming on, a rotten egg smell (indicating a leak or overcharging), and visible corrosion on the terminals. Modern batteries can fail suddenly, so regular checks are advisable.

Q: Is it normal for a new battery to die in -36°C?
A: While alarming, it's not uncommon for even a relatively new battery to struggle or appear 'dead' in extreme cold, especially if the car hasn't been driven for a day or two. Cold significantly reduces a battery's cranking power and increases the engine's resistance to starting. It's often a deep discharge due to the cold and parasitic drains rather than a faulty battery. A full charge and a subsequent battery health test are recommended before considering replacement.

Q: What type of battery does my Mercedes B-Class need?
A: Your Mercedes B-Class will typically require a 12-volt battery. The specific type (e.g., AGM or flooded lead-acid), Cold Cranking Amps (CCA), Amp-Hours (Ah), and physical size (group size) depend on your exact model, engine type (petrol or diesel), and whether it has start-stop technology. Always consult your owner's manual or check the specifications on your existing battery for the precise requirements.
