EPB Motor Removal Guide

Understanding the Electronic Parking Brake (EPB) Motor

The electronic parking brake (EPB) system has become increasingly common in modern vehicles, offering convenience and enhanced safety features. Unlike traditional handbrakes or foot-operated parking brakes, the EPB system utilises an electric motor, typically integrated into the rear brake caliper assembly, to engage and disengage the parking brake. This motor, often referred to as the EPB actuator or EPB motor, is a crucial component responsible for applying the necessary clamping force to hold the vehicle stationary when parked.

While the EPB system generally provides reliable operation, there may be instances where the motor itself requires removal. This could be due to a malfunction, the need for caliper servicing, or replacement of the entire EPB unit. Removing the EPB motor, though seemingly straightforward, involves specific procedures to avoid damaging the system or causing further complications. This guide aims to provide a clear, step-by-step process for safely removing an EPB motor, drawing upon common practices and insights from experienced individuals.

Tools and Preparation

Before embarking on the removal of an EPB motor, it is essential to gather the necessary tools and prepare your workspace. Working on your vehicle's braking system requires a methodical approach and the correct equipment to ensure safety and efficiency. The following is a list of commonly required tools and essential preparatory steps:

Essential Tools:

• Ratchet and Socket Set: You will likely need various socket sizes, with 13mm being a frequently cited size for caliper bolts and related components.
• Box-End Wrench: A 13mm box-end wrench is useful for holding slide bolts while loosening nuts.
• Adjustable Wrench: An adjustable wrench can be handy for holding certain bolts or nuts in place.
• Flathead Screwdriver: A small flathead screwdriver is often needed to carefully pry or release retaining clips, especially for wear sensors.
• 9V Battery and Wire: A 9V battery and a short length of wire can be a lifesaver for retracting the EPB motor piston manually, saving significant time and effort.
• Torque Wrench: Crucial for reassembly to ensure bolts are tightened to the manufacturer's specifications.
• Brake Cleaner: For cleaning components before and after removal.
• High-Temperature Anti-Seize Compound: Recommended for lubricating and preventing seizure of caliper bolts and slide pins during reassembly.
• Wheel Chocks: To secure the vehicle and prevent rolling.
• Jack and Jack Stands: For safely lifting and supporting the vehicle.
• Safety Glasses and Gloves: Essential personal protective equipment.

Preparation Steps:

1. Park on a Level Surface: Ensure the vehicle is parked on a flat, stable surface.
2. Engage Parking Brake (Initially): While you'll be disabling it, it's good practice to have it engaged before you start if the system is still functional.
3. Loosen Wheel Nuts: Before jacking up the vehicle, slightly loosen the lug nuts on the wheel you'll be working on.
4. Jack Up the Vehicle: Use a jack to lift the vehicle at the designated jacking points and secure it with jack stands. Never work under a vehicle supported only by a jack.
5. Remove the Wheel: Fully remove the lug nuts and take off the wheel.

The Manual Retraction Trick: A Time-Saving Solution

One of the most ingenious tips for simplifying EPB motor removal comes from experienced DIYers: manually retracting the EPB motor's piston. This technique bypasses the need for electronic diagnostic tools to put the EPB system into a service or maintenance mode. By retracting the piston, you create the necessary clearance to remove the brake caliper and pads without obstruction. This is particularly useful if you don't have access to specialized software like BimmerLink or ISTA.

How to Manually Retract the EPB Motor:

1. Locate the EPB Motor Connector: Identify the electrical connector plugged into the EPB motor housing.
2. Disconnect the Connector: Carefully unplug the electrical connector from the EPB motor.
3. Connect the 9V Battery: Take a 9V battery and a short piece of wire. Connect one end of the wire to the positive terminal of the battery and the other end to one of the contacts on the EPB motor's side of the connector (where it plugs into the motor). Then, touch the other contact on the motor's side of the connector with the negative terminal of the battery (you might need a second wire for this, or carefully touch the battery's negative terminal directly to the other contact).
4. Observe Retraction: As you establish the circuit, you should hear the EPB motor whirring and retracting its piston. You may need to hold the connections for a few seconds until the piston is fully retracted. Be patient; some motors may take a moment to respond.
5. Disconnect the Battery: Once the piston is retracted, disconnect the battery.

This simple yet effective method can save a considerable amount of time and frustration, especially when dealing with brake pad changes or caliper servicing.

Step-by-Step EPB Motor Removal

With the preparatory steps completed and the EPB motor potentially retracted manually, you can now proceed with the actual removal of the EPB motor. The process typically involves accessing the motor mounted on the rear brake caliper.

Step 1: Remove the Brake Caliper

The EPB motor is usually attached to the brake caliper, so you'll need to remove the caliper first. This often involves removing the caliper carrier bolts.

1. Locate Caliper Bolts: Identify the bolts that secure the brake caliper to the caliper carrier. These are often referred to as slide pin bolts or caliper slider bolts.
2. Remove Caliper Bolts: Using the appropriate socket (e.g., 13mm), loosen and remove the caliper bolts. You may need an adjustable wrench to hold the slide bolt while you turn the nut.
3. Remove the Caliper: Once the bolts are removed, you should be able to slide the caliper off the rotor. If it's stuck, gentle persuasion with a rubber mallet might be necessary. Hang the caliper securely with a piece of wire or a dedicated caliper hanger to avoid stressing the brake hose.

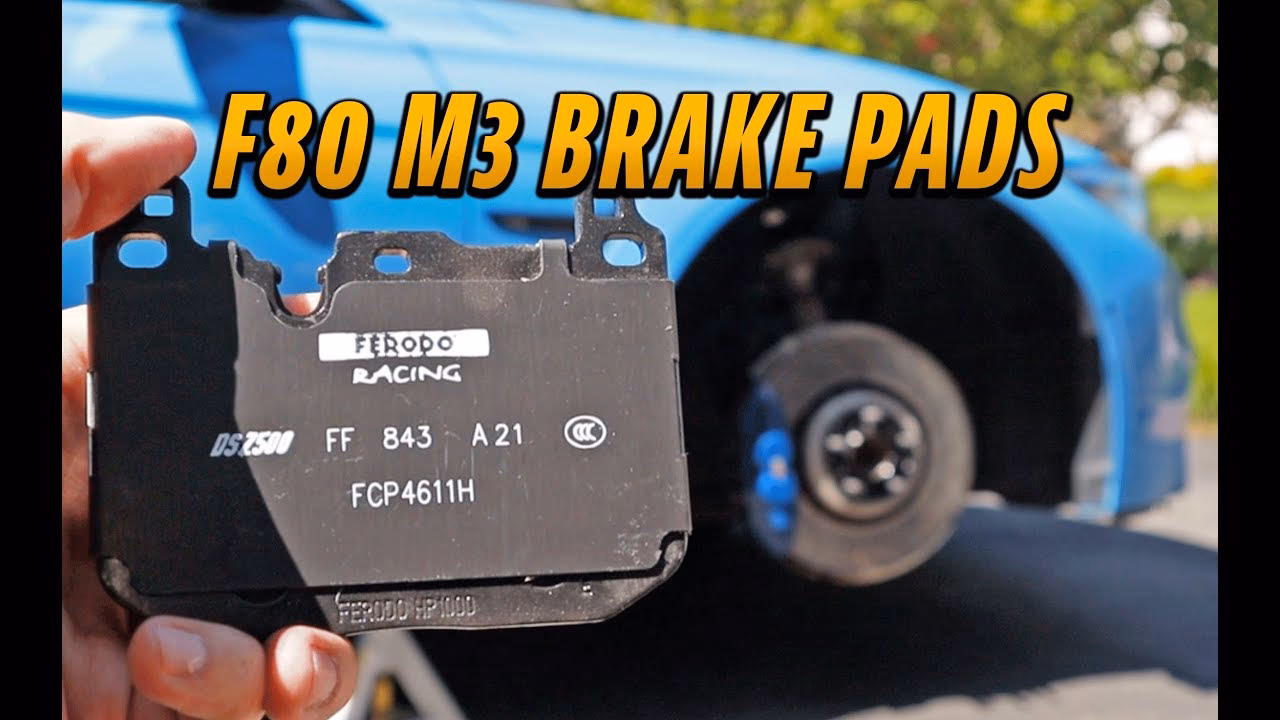

Step 2: Remove the Brake Pads and Wear Sensor

With the caliper removed, you can now remove the brake pads. Pay attention to the brake pad wear sensor, which is typically integrated into one of the pads.

1. Remove Brake Pads: Carefully remove the old brake pads from the caliper carrier or the caliper itself, depending on the design. Note their orientation for reinstallation.
2. Remove Wear Sensor: The brake pad wear sensor is usually clipped into the brake pad. Use a small flathead screwdriver to carefully pry the sensor out of its mounting spot. Be gentle to avoid damaging the sensor or the wiring. Some sources suggest applying high-temperature anti-seize to the sensor mount during reinstallation.

Step 3: Access and Remove the EPB Motor

The EPB motor is typically bolted directly to the rear of the brake caliper assembly. It houses a mechanism that pushes the caliper piston in to apply the parking brake.

1. Locate EPB Motor Bolts: Identify the bolts that secure the EPB motor to the caliper. These are often smaller bolts, perhaps 10mm or similar, but sizes can vary.
2. Remove EPB Motor Bolts: Use the correct size socket to loosen and remove these bolts.
3. Detach the EPB Motor: Once the bolts are removed, the EPB motor should be free from the caliper. You may need to gently wiggle it or use a flathead screwdriver to help separate it if it's slightly seized. Be mindful of any seals or gaskets between the motor and the caliper.

Step 4: Disconnect the Electrical Connector

If you haven't already done so for manual retraction, you'll need to disconnect the electrical connector from the EPB motor at this stage.

1. Locate and Release Connector: Find the electrical connector leading to the EPB motor. There is usually a locking tab that needs to be pressed or lifted to release the connector.
2. Disconnect: Pull the connector apart.

Important Considerations and Potential Issues

Working with EPB systems requires careful attention to detail to prevent unintended consequences. Here are some crucial points to keep in mind:

Brake-by-Wire Systems and Diagnostic Tools

Many modern vehicles with EPBs utilise a "brake-by-wire" system. This means that the parking brake is controlled electronically, and direct mechanical linkage is minimal or non-existent. Attempting to retract the EPB piston manually without putting the system into a service mode (if required by the manufacturer) can sometimes cause issues with the ABS, stability control, or other related systems. This can lead to error codes and the vehicle becoming undrivable, as noted in some user experiences.

Recommendation: If possible, use a compatible diagnostic tool or app (like BimmerLink mentioned in some discussions) to place the EPB system into service mode before commencing work. This ensures the system is safely disengaged and prevents potential electronic gremlins.

Wear Sensor Compatibility

When replacing brake pads, the wear sensor often needs to be replaced as well, as it is designed to wear down with the pads and then trigger a warning light. Ensure that any new pads you install are compatible with the existing wear sensor system, or that you have the correct replacement sensors.

Torque Specifications

Reassembling the brake system components requires precise torque settings. Overtightening can strip threads or damage components, while undertightening can lead to loose parts and potential brake failure. Always refer to your vehicle's service manual for the correct torque specifications for caliper bolts, carrier bolts, and EPB motor mounting bolts.

Brake Fluid

While removing the EPB motor itself doesn't directly involve opening the brake fluid lines, it's good practice to check the brake fluid level and condition. If you were to remove the caliper completely from the vehicle, you would need to be careful not to lose brake fluid. Ensure the master cylinder reservoir cap is accessible and monitor the fluid level during the process.

Reassembly and Post-Removal Checks

Once the EPB motor has been successfully removed and any necessary servicing or replacement has been completed, reassembly is the reverse of the removal process. However, several critical steps need to be followed to ensure the braking system functions correctly and safely.

Reassembly Steps:

1. Install EPB Motor: Position the new or serviced EPB motor onto the caliper. Ensure any seals or gaskets are correctly seated. Secure it with the mounting bolts, tightening them to the manufacturer's specified torque.
2. Install Brake Pads: Fit the new brake pads into the caliper carrier or caliper, ensuring they are oriented correctly. If replacing the wear sensor, install the new sensor into the pad.
3. Reinstall Caliper: Slide the brake caliper back over the brake pads and rotor. Reinstall the caliper bolts and tighten them to the specified torque. Remember to use high-temperature anti-seize on the slide pins if recommended.
4. Reconnect Electrical Connector: Plug the electrical connector back into the EPB motor. Ensure it clicks securely into place.
5. Reinstall Wheel: Place the wheel back onto the hub and hand-tighten the lug nuts.
6. Lower Vehicle: Carefully lower the vehicle off the jack stands.
7. Torque Lug Nuts: Tighten the lug nuts to the manufacturer's specified torque in a star pattern.

Post-Removal Checks and System Reset:

After reassembly, it is crucial to perform several checks and, in many cases, reset the EPB system. This ensures the system calibrates correctly and operates as intended.

1. Pump the Brake Pedal: Before starting the engine, pump the brake pedal several times. This will re-energise the hydraulic system and seat the brake pads against the rotors. You should feel the pedal firm up.
2. Start the Engine: Start the vehicle's engine.
3. Test EPB Functionality: With the engine running, test the EPB system. Engage and disengage the parking brake several times. Listen for any unusual noises and check for any warning lights on the dashboard.
4. System Reset/Calibration: Depending on the vehicle manufacturer and the specific EPB system, you may need to perform a system reset or calibration procedure. This often involves using a diagnostic tool or a specific sequence of button presses to allow the EPB motor to learn its new position and ensure proper operation. If you encountered error codes after manually retracting the piston without a service mode, a diagnostic tool will be essential to clear these codes and recalibrate the system.
5. Test Drive: Perform a low-speed test drive in a safe area. Gently apply the parking brake while moving slowly to ensure it engages and disengages smoothly. Check that the brake pedal feels normal and there are no warning lights.

Frequently Asked Questions

Q1: Do I need a special tool to remove the EPB motor?

A1: While specialized diagnostic tools are recommended for putting the EPB into service mode, the physical removal of the motor itself typically only requires standard hand tools like sockets and wrenches. The 9V battery trick is a clever workaround for manual retraction.

Q2: Can I just disconnect the EPB motor electrically?

A2: Simply disconnecting the electrical connector will not retract the piston. The motor needs to be commanded to retract, either electronically or manually, to create clearance.

Q3: What happens if I don't retract the EPB piston before removing the caliper?

A3: If the piston is extended, you won't be able to get the caliper off the rotor. Forcing it could damage the piston, the caliper, or the EPB motor itself.

Q4: How do I know if my EPB motor is faulty?

A4: Symptoms of a faulty EPB motor can include the parking brake not engaging or disengaging, a persistent parking brake warning light, or unusual noises coming from the rear caliper when the EPB is activated.

Q5: Do I need to bleed the brakes after removing the EPB motor?

A5: Typically, removing the EPB motor itself does not require bleeding the hydraulic brake system, as the hydraulic lines are not opened. However, if you were to remove the entire caliper from its hydraulic connection, then bleeding would be necessary.

Q6: How often should the EPB system be serviced?

A6: The EPB system generally requires little routine maintenance. However, it's essential to follow your vehicle manufacturer's recommended service intervals for brake system inspections, which would include checking the EPB components.
