The Unsung Hero: Understanding Brake Pad Chamfers

When it comes to vehicle maintenance, brakes are undoubtedly at the top of the list for safety and performance. We often focus on the pads themselves – their material, thickness, and overall condition. However, a less obvious, yet incredibly vital, feature plays a silent but significant role in your braking experience: the brake pad chamfer. These small, often overlooked angles are not just an aesthetic detail; they are a sophisticated engineering solution designed to enhance your driving comfort and the longevity of your braking system. Understanding what a chamfer is, its various types, and why manufacturers meticulously incorporate them can demystify those sometimes-annoying brake noises and help you appreciate the complex design of your vehicle's stopping power.

What Exactly is a Brake Pad Chamfer?

At its core, a brake pad chamfer is a precise cut or grind made into the edges of the brake pad after it has been formed and cured. Imagine a slight bevel or taper on the corners of the friction material. This seemingly minor alteration serves a crucial purpose: to mitigate the initial contact shock between the brake pad and the rotor. When you press the brake pedal, the pads are pushed against the spinning brake disc. Without a chamfer, the entire flat edge of the pad would make instantaneous, full contact with the rotor. This abrupt engagement can lead to a phenomenon known as 'stick-slip' friction, which is a primary cause of those high-pitched squeals and groans that can plague a braking system.

The chamfer's primary goal is to significantly reduce vibration noise emanating from the leading or trailing edge of the brake pad as it first engages with the rotor. By creating a tapered edge, the chamfer ensures a more gradual and controlled initial contact. This gentle introduction of the pad to the rotor helps to damp vibrations before they can escalate into audible noise. Furthermore, this clever taper provides a slightly smaller contact area at the very centre of the pad, which is typically where maximum braking pressure is applied. This design promotes a more even distribution of pressure across the pad's surface as it beds in, optimising performance and reducing the likelihood of hot spots or uneven wear.

The Science Behind Chamfer Design: Why Manufacturers Bother

The inclusion of chamfers on brake pads is far from arbitrary; it's a calculated decision rooted in extensive engineering and testing. Manufacturers invest significant resources into designing these features because they address several critical aspects of braking performance, comfort, and durability.

Noise Reduction: Silencing the Squeal

As mentioned, noise reduction is perhaps the most immediate and noticeable benefit of chamfers. Brake squeal is often caused by high-frequency vibrations that occur when the brake pad rubs against the rotor. These vibrations can be amplified by various components in the braking system, turning a minor oscillation into an irritating sound. The chamfer disrupts the uniform surface contact at the pad's edges, which are typically the highest vibration areas. By removing friction material from these zones, the chamfer effectively ‘detunes’ the pad, preventing it from resonating at frequencies that produce audible squealing. This is particularly important for the 'leading' edge (the part of the pad that first meets the rotor as it spins) and the 'trailing' edge (the part that leaves the rotor last), as these areas are most prone to generating initial vibrations.

Optimising Contact Pressure and Bedding-In

Beyond noise, chamfers play a vital role in how the brake pad interacts with the rotor, especially during the crucial bedding-in process. When new brake pads are installed, they need a period of gentle use to conform to the rotor's surface. The chamfer assists this process by presenting a smaller initial contact area. This allows for a more progressive transfer of friction material from the pad to the rotor, which is essential for creating a uniform friction layer. As the pad beds in, the chamfer gradually wears away, allowing the full surface of the pad to make contact. This ensures that the maximum braking pressure is applied efficiently and evenly, leading to consistent stopping power and reduced wear over the pad's lifespan. Without chamfers, new pads might experience uneven initial contact, leading to premature wear or inconsistent braking performance.

Reducing Backing Plate Flex

Another often-overlooked benefit of chamfers is their contribution to reducing backing plate flex. The backing plate is the metal component to which the friction material is bonded. Under extreme braking forces, this plate can sometimes flex or distort slightly. This flex can lead to uneven pressure distribution, increased noise, and even premature pad wear. By carefully designing the chamfer, manufacturers can influence how forces are transmitted through the friction material to the backing plate. The tapered edge helps to distribute the initial load more smoothly, minimising stress concentrations on the backing plate and thereby reducing the potential for flex. This contributes to a more stable and durable braking system overall.

Factors Influencing Chamfer Design

The specific design of a brake pad chamfer is not a one-size-fits-all solution. Car manufacturers meticulously determine the type and dimensions of the chamfer based on a complex interplay of factors:

• Rotor Metallurgy, Size, and Design: The material composition, diameter, and ventilation design of the brake rotor significantly influence how the pad needs to interact with it.
• Vehicle Weight: Heavier vehicles require more aggressive braking, necessitating chamfer designs that can handle higher loads and dissipate heat effectively.
• Power Assist Installed: Vehicles with advanced braking assistance systems (e.g., ABS, EBD) have different braking characteristics, which are factored into chamfer design.
• Intended Use: A performance sports car will have different chamfer requirements than a heavy-duty commercial lorry or a compact city car, reflecting varied braking demands.

This intricate design process ensures that each brake pad is optimised for its specific application, providing the best balance of noise reduction, performance, and durability.

Unpacking the Different Types of Brake Pad Chamfers

While the fundamental purpose of chamfers remains consistent, their execution can vary significantly. Manufacturers employ several distinct designs, each tailored to specific requirements and performance goals. Understanding these types provides further insight into the sophistication of modern braking systems.

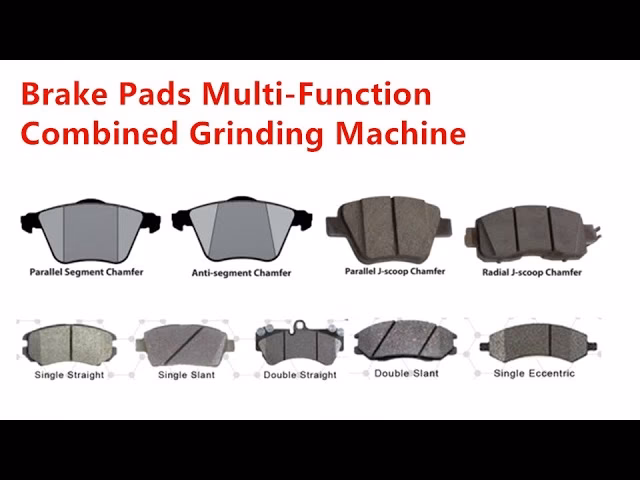

Parallel Segment and Anti-segment (Angled) Chamfer

This is perhaps the most common type of chamfer encountered on everyday vehicles. The brake pad manufacturer adds a consistent 15° or 25° chamfer on both the leading and trailing edges of the friction block. This taper typically extends down to the minimum recommended pad thickness. The design's effectiveness lies in its simplicity: it systematically removes friction material from the highest vibration areas at the edges of the brake pad. By doing so, it effectively reduces the likelihood of these edges grabbing the rotor abruptly and generating noise. This type of chamfer is a workhorse, offering reliable noise reduction across a broad spectrum of vehicles.

Compound Diamond Chamfer

Stepping up in complexity, a compound diamond chamfer features at least two different angles on the leading and trailing edges of the brake pad. Instead of a single, continuous taper, you'll observe distinct facets. This multi-angled approach provides a more nuanced interaction with the brake rotor. The compound chamfers are engineered to provide maximum rotor contact area while still effectively reducing noise from high vibration areas. This design allows for a more precise tuning of the pad's initial contact characteristics, optimising both quietness and braking efficiency. It is commonly used with square-shaped pads, where precise edge control is crucial for performance and noise suppression.

Parallel and Radial J-Scoop Chamfer

The J-Scoop chamfer stands out due to its distinctive rounded edge, which can be either parallel to the pad's surface or radial, meaning it matches the angle and curvature of the brake pad itself. The unique rounded profile of the J-scoop is designed to provide maximum friction material strength. Unlike sharp angles that might create stress points, the smooth curve helps distribute forces more evenly across the pad's structure. This design is particularly effective at reducing vibration through the entire pad thickness, not just at the surface. By enhancing the structural integrity of the pad while simultaneously damping vibrations, J-Scoop chamfers offer a robust solution for demanding applications where both durability and quiet operation are paramount.

Comparative Table of Chamfer Types

To summarise the key differences, the following table outlines the main characteristics and benefits of each chamfer type:

The Importance of Proper Brake Pad Installation and Bedding-In

Even with the most advanced chamfer designs, the effectiveness of your brake pads ultimately hinges on proper installation and the crucial bedding-in process. A chamfer can only perform its intended function if the pad is correctly fitted within the caliper and allowed to mate properly with the rotor. Incorrect installation can lead to uneven wear, premature noise, and reduced braking efficiency, regardless of the pad's design features. The bedding-in procedure, which involves a series of controlled stops, is essential for transferring a thin, even layer of friction material onto the rotor surface. This process allows the chamfer to wear in harmoniously with the rotor, ensuring optimal contact, consistent friction, and quiet operation from the outset. Neglecting this step can negate the benefits of carefully engineered chamfers, potentially leading to brake judder or persistent squealing.

Common Misconceptions About Brake Pads and Chamfers

Despite their importance, chamfers and brake pads in general are often subject to various misconceptions:

• "Chamfers are just for looks." This is far from the truth. As explored, they are functional engineering features critical for noise reduction and performance.
• "More chamfer means better braking." Not necessarily. There's an optimal balance. Too large a chamfer could reduce the effective braking surface, leading to longer stopping distances or faster wear. The design is carefully calculated for specific applications.
• "All brake pads are the same." This is a dangerous misconception. Different vehicles, driving styles, and performance expectations require specific friction materials and pad designs, including their chamfers, slots, and shims.
• "Chamfers are the same as slots or shims." While all contribute to brake performance, they are distinct. Slots help dissipate heat, gas, and dust. Shims are thin layers placed between the pad and caliper to absorb vibrations and noise. Chamfers specifically address the edge contact.

Frequently Asked Questions (FAQs)

Q: Can I add a chamfer to my old brake pads?

A: It is generally not recommended to manually add or modify chamfers on existing brake pads. Brake pad friction material is designed with specific properties, and improper grinding or cutting can compromise the pad's integrity, lead to uneven wear, or even damage the backing plate. Chamfers are precisely engineered during manufacturing, and attempting to replicate this without specialised tools and knowledge could be dangerous.

Q: Do all brake pads have chamfers?

A: While chamfers are very common on modern brake pads, especially those designed for passenger vehicles and quiet operation, not all pads will have them. Some high-performance or racing pads might opt for maximum friction material contact over noise suppression, or they might use alternative noise reduction strategies. However, for most road-going vehicles, chamfers are a standard feature.

Q: What if my new pads don't have chamfers, but the old ones did?

A: If your replacement pads differ significantly from the original equipment (OEM) pads, especially regarding features like chamfers, it's worth investigating. Ensure you've purchased the correct pads for your vehicle. A different design might indicate a change in the manufacturer's strategy or a different grade of pad. While it might still function, it could potentially lead to increased noise or altered braking characteristics compared to the OEM design.

Q: How do chamfers affect brake pad life?

A: Chamfers are designed to enhance brake pad life indirectly. By promoting even wear, reducing hot spots, and mitigating premature wear caused by vibrations, they contribute to the overall longevity of the pad. While the chamfer itself is friction material that will wear away, its role in optimising initial contact and pressure distribution helps the rest of the pad last longer and perform more consistently.

Q: Is a chamfer the same as a slot on a brake pad?

A: No, a chamfer is distinct from a slot. A chamfer is an angled edge that runs along the perimeter of the pad, primarily for noise reduction and smoother initial contact. A slot (or groove) is a channel cut into the face of the friction material. Slots serve to dissipate heat, allow braking gases to escape, and channel away dust and water, preventing glazing and ensuring consistent performance. Both are important design features, but they serve different functions.

Conclusion

The humble brake pad chamfer is a testament to the intricate engineering that goes into every component of your vehicle. Far from being a mere cosmetic detail, these precisely angled edges are crucial for enhancing driving comfort by reducing unwanted noise, optimising braking performance through better contact, and contributing to the longevity of your braking system. Next time you think about your car's brakes, remember the unsung hero – the chamfer – quietly working to ensure your stops are as smooth, quiet, and effective as possible. It's a small detail with a massive impact on your overall driving experience and, more importantly, your safety on the road.
