Cast Iron Pads & Carbon Discs: A Dangerous Mix

The Incompatibility of Cast Iron Pads with Carbon Ceramic Discs

The world of automotive braking systems is a complex one, with different materials offering unique advantages depending on the intended application. When it comes to high-performance vehicles, you'll often encounter carbon ceramic composite (CCM) discs, a sophisticated alternative to traditional cast iron. However, a common and potentially catastrophic mistake is to assume that brake pads designed for cast iron discs can be used interchangeably with CCM discs. This article will delve into why this is a dangerous misconception and explore the different types of carbon brake materials and their specific pad requirements.

Understanding Brembo's Carbon Disc Technologies

Brembo, a renowned name in braking systems, offers three distinct types of carbon-based discs, each tailored for specific performance envelopes:

• Carbon Ceramic (CCM): Primarily designed for street use, these discs offer a significant weight saving over cast iron equivalents and provide excellent performance and longevity under normal driving conditions.
• Carbon Ceramic (CCM-R): An evolution of the standard CCM, CCM-R discs are engineered for both street and track use. They incorporate advancements that enhance their performance and durability in more demanding scenarios.
• Carbon-Carbon: This is Brembo's pinnacle of braking technology, reserved for the highest echelons of motorsport. These discs are found in disciplines like Formula 1, IndyCar, and endurance racing, where extreme performance and reliability are paramount.

Original Equipment (OE) Carbon Ceramic Material (CCM)

When CCM discs are supplied for original equipment (OE) in passenger cars, they are engineered to deliver a substantial reduction in unsprung weight compared to conventional cast iron discs. This contributes to improved handling and a more responsive feel. Furthermore, OE CCM discs boast outstanding performance characteristics and a very long service life under typical street driving conditions. However, it's crucial to understand that these OE CCM discs have limitations when subjected to the rigors of serious performance driving or dedicated track days.

The wear mechanism of CCM discs differs fundamentally from that of cast iron. Instead of wearing down through material abrasion in the same manner, CCM discs degrade through oxidation. The lifespan of a CCM disc is determined by the loss of disc mass as the material oxidises. This process cannot be accurately gauged by simply measuring the overall disc thickness, as is the standard practice with traditional iron discs. Each CCM disc assembly is weighed upon initial assembly, and the minimum allowable weight is permanently etched onto the disc bell. To accurately check the weight after use, a thorough cleaning procedure is necessary to remove any debris or surface contaminants before re-weighing.

During vehicle development, an exhaustive testing program, both on the road and on the track, is essential to optimise airflow to the CCM discs. This ensures adequate cooling, which is vital for achieving satisfactory component life. Oxidation rates increase rapidly with elevated temperatures. Consequently, sustained high-temperature operation, such as that experienced during track driving, can dramatically shorten the service life of OE CCM discs.

A critical aspect of OE CCM disc performance is their reliance on very specific brake pad materials. While numerous aftermarket pad manufacturers may claim their products are “CCM friendly,” there is currently no universally established validation process for these materials. Brake pads developed for cast iron brake discs possess considerably different frictional and thermal properties. When used with CCM discs, without careful consideration of these differing factors, the results can be significantly suboptimal, if not detrimental.

Furthermore, the pads used with CCM discs typically have a much larger surface area than would be found in a comparable cast-iron system. This increased surface area helps to manage the heat and friction generated, somewhat offsetting the weight savings achieved by the lighter CCM discs themselves.

Production Process Time for CCM: Approximately 4 weeks (1 month).

Brembo Racing Carbon-Carbon

Brembo's Carbon-Carbon materials represent the cutting edge of braking technology, employed at the highest levels of professional motorsport. You'll find these systems in prestigious racing categories such as open-wheel racing (Formula 1 and IndyCar) and top-tier sportscar racing (Le Mans and LMP1). The latest generation of motorsport Carbon-Carbon discs delivers consistent performance across a broad temperature spectrum, is exceptionally lightweight, and exhibits remarkable wear resistance.

While many companies market high-performance and racing carbon materials, only a select few manufacturers supply true Carbon-Carbon brake materials to the elite levels of professional motorsport. These include Brembo, Carbone Industrie, and Hitco (a subsidiary of the Brembo SGL Group). Brembo's dominance in this arena is evident; in 2014, they supplied over 60% of the Formula 1 grid and were the sole supplier for IndyCar. Additionally, Brembo provides brake systems for both the factory-supported Porsche and Audi LMP1 efforts in the FIA World Endurance Championship (WEC). It is not uncommon for an LMP1 car competing in the 24 Hours of Le Mans to complete the entire endurance race without requiring any disc or pad changes, a testament to the durability and performance of these systems.

Carbon-Carbon racing systems distinguish themselves from other brake systems by utilising pads that are also manufactured from a Carbon-Carbon material, closely mirroring the disc composition. Specific Carbon-Carbon formulations for both discs and pads can be selected and tailored to suit the precise demands of a particular racing series, car, track, or even driver preference.

Wear in a Carbon-Carbon system occurs through both a reduction in material thickness and oxidation. During a braking event, the temperatures generated in a Carbon-Carbon system can far exceed those encountered in a racing cast-iron system. However, the airflow management must be meticulously designed to dissipate heat effectively and bring temperatures down significantly, thereby preventing excessive oxidation. It is important to note that racing Carbon-Carbon systems do not perform optimally at low temperatures and are exclusively intended for motorsport applications.

Production Process Time for Carbon-Carbon: Approximately 28 weeks (7 months) from initial production to completion.

Brembo CCM-R: Bridging the Gap

Brembo developed the CCM-R material by leveraging the extensive knowledge gained from their work in both OE road applications and high-level racing with carbon-based brake materials. Brembo CCM-R discs share similar sizing and cross-drilling patterns to OE CCM discs. However, the underlying base material, production process, and overall construction are more closely aligned with Brembo's Carbon-Carbon racing discs. CCM-R discs were specifically engineered with high-performance road use and track day applications in mind.

Key Comparisons of Brembo CCM-R to CCM:

• Increased Material Strength: CCM-R offers superior material strength.
• Enhanced Thermal Conductivity: Better heat dissipation properties.
• Higher Coefficient of Friction: Provides more effective braking force.
• Reduced Operating Temperatures: Operates at lower temperatures compared to standard CCM under similar loads.
• Significant Increase in Disc Life: Particularly under track conditions, CCM-R discs exhibit a considerably longer service life.
• Density and Weight Potential: While the density is similar to CCM, the improved material properties allow for reduced disc and pad dimensions, potentially leading to further weight savings.
• Visual Wear Inspection: The extent of wear on CCM-R discs can be determined through visual inspection.

Brembo CCM-R discs and pads are supplied pre-bedded. This process involves transferring a specific friction material onto the disc surface in a controlled environment. The transfer layer of pad material is essential for generating friction with CCM-R discs. Due to the inherent material strength and high surface hardness of CCM-R, considerable pressure and temperature are required to achieve this initial pad material transfer. This critical pre-bedding procedure is performed on a high-inertia brake dynamometer at the Brembo factory, utilising highly specific, computer-controlled programs.

Production Process Time for CCM-R: Approximately 28 weeks (7 months) from initial production to completion.

Representative Component Weights (Illustrative):

Note: Typical Pad Weights are provided for perspective, but are highly variable depending on the specific application and manufacturer.

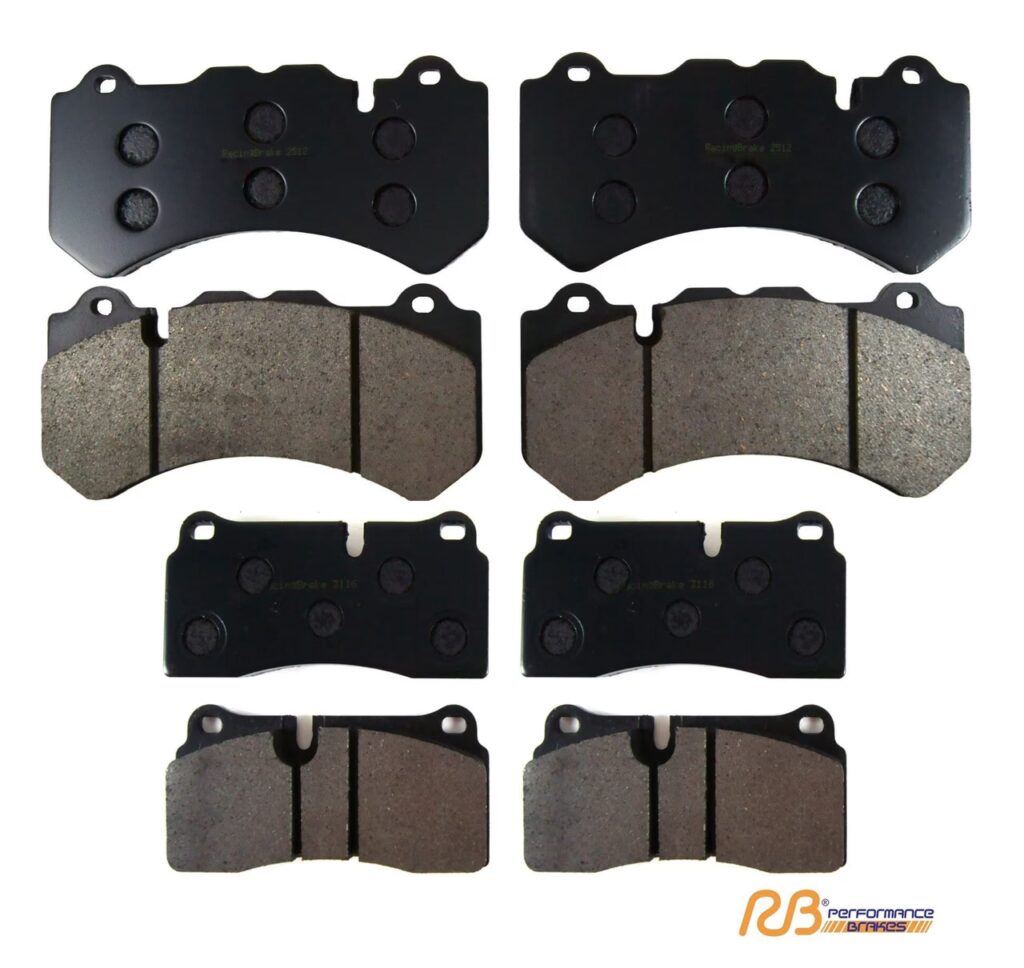

Why Dedicated Pad Compounds are Essential for CCM Discs

The fundamental question arises: why is a specific pad compound necessary for CCM discs? The answer lies in the vastly different frictional and thermal properties of ceramic composite materials compared to traditional cast iron. CCM discs require a pad compound that has been specifically developed to work in harmony with their unique characteristics. Using pads designed for cast iron on CCM discs can lead to:

• Inconsistent Braking Performance: The friction levels may be unpredictable, leading to reduced stopping power or an overly aggressive initial bite.
• Accelerated Wear: The wrong pad material can significantly increase the wear rate of the expensive CCM disc, potentially damaging it prematurely.
• Overheating and Fade: Cast iron pads may not be able to dissipate heat effectively when paired with CCM, leading to brake fade under heavy use.
• Damage to the Disc Surface: The aggressive nature of some cast iron pads can cause glazing or damage to the delicate surface of the CCM disc.
• Reduced Lifespan of Both Components: Ultimately, using incompatible materials will shorten the lifespan of both the brake pads and the CCM discs.

The design of modern high-performance braking systems often incorporates a fully floating mounting between the disc and the bell. This is a crucial feature that allows for controlled thermal expansion and contraction. Without this allowance, the significant temperature fluctuations experienced during braking could lead to the disc cracking or warping, compromising its integrity and performance.

Frequently Asked Questions (FAQs)

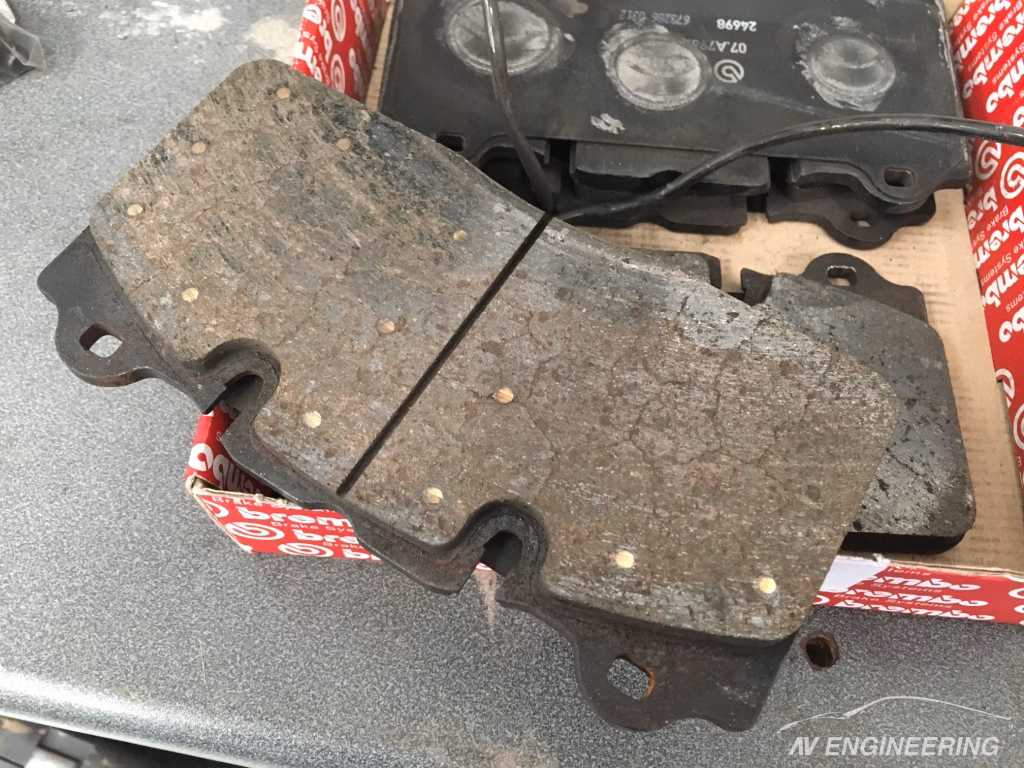

Can I use my old cast iron brake pads with new carbon ceramic discs?

No, absolutely not. This is a critical safety issue. Brake pads designed for cast iron discs have entirely different friction and thermal characteristics than those required for carbon ceramic discs. Using them together can lead to poor braking performance, rapid wear, and potential damage to the carbon ceramic discs.

What happens if I mix pad materials with my carbon discs?

Mixing pad materials can result in unpredictable braking, reduced stopping power, overheating, excessive wear on the carbon discs, and potentially catastrophic failure of the braking system. It is highly recommended to always use pads specifically designed and validated for your particular type of carbon brake system.

How do I know if my pads are suitable for my carbon ceramic discs?

Always consult your vehicle manufacturer's recommendations or the specifications provided by the manufacturer of your carbon ceramic discs (e.g., Brembo). They will specify the approved pad materials or compounds. If unsure, seek advice from a qualified automotive technician specialising in high-performance braking systems.

Are carbon ceramic discs more expensive than cast iron discs?

Yes, generally speaking, carbon ceramic discs are significantly more expensive to manufacture and purchase than traditional cast iron discs. However, they offer substantial benefits in terms of weight reduction, performance, and longevity under specific conditions.

What is "pre-bedding" and why is it important for CCM-R discs?

Pre-bedding is a crucial process where a layer of pad material is intentionally transferred onto the surface of the CCM-R disc under controlled conditions. This transfer layer is vital for establishing the correct friction characteristics. Due to the hardness of CCM-R, this process requires specific pressure and temperature, typically performed on a dynamometer by the manufacturer, to ensure optimal performance from the outset.

Conclusion

The integrity and performance of your vehicle's braking system are paramount for safety. When dealing with advanced materials like carbon ceramic composites, it is imperative to understand that component compatibility is not a matter of generalisation. Cast iron brake pads should never be used with carbon ceramic discs. Always adhere to the manufacturer's specifications and use only those brake pads that have been specifically designed and validated for your particular type of carbon braking system. Failure to do so can have severe consequences for both performance and safety.
