CBR500RA Brakes: Your Guide to Stopping Power

When considering any motorcycle, especially one as capable as the Honda CBR500RA, a crucial question that often arises pertains to its safety features, particularly its braking system. The short answer is an emphatic yes; the CBR500RA is indeed equipped with a comprehensive and highly effective braking system, designed to provide reliable stopping power and enhance rider safety. As a modern, mid-range sportbike, the CBR500RA, particularly the 'RA' variant which signifies the inclusion of Anti-lock Braking System (ABS), incorporates advanced braking technology to inspire confidence whether navigating city streets or carving through winding country roads. Understanding the intricacies of this system is not just about knowing it exists, but appreciating its components, how it functions, and the vital role regular maintenance plays in preserving its optimal performance.

Understanding the CBR500RA's Braking System

The braking system on a motorcycle like the CBR500RA is a sophisticated network of components working in harmony to convert kinetic energy into thermal energy, thereby slowing or stopping the vehicle. Unlike simpler mechanical systems, modern motorcycles primarily utilise hydraulic disc brakes, offering superior stopping power, modulation, and feel. The CBR500RA typically features disc brakes on both the front and rear wheels, providing balanced and efficient deceleration.

Key Components of the Braking System

To truly grasp how your CBR500RA stops, it's essential to identify and understand the function of each critical component:

• Brake Levers and Pedals: These are the rider's primary interface with the braking system. The front brake lever is located on the right handlebar, while the rear brake pedal is positioned on the right footpeg. Activating them applies pressure to the respective master cylinders.
• Brake Master Cylinders: When the lever or pedal is actuated, it pushes a piston within the master cylinder. This action pressurises the brake fluid within the system. The front brake typically has its own master cylinder, as does the rear.
• Brake Fluid Reservoir: Connected to the master cylinder, this small container holds the brake fluid. It allows for expansion and contraction of the fluid due to temperature changes and compensates for pad wear.
• Brake Lines: These are high-pressure hoses that transmit the hydraulic pressure from the master cylinder to the calipers. On the CBR500RA, these are typically robust rubber lines, though some riders opt for aftermarket braided lines for improved feel and reduced expansion under extreme braking.
• Brake Calipers: Mounted over the brake disc, the caliper houses one or more pistons. When hydraulic pressure from the brake line reaches the caliper, these pistons extend, pushing the brake pads against the brake disc. The CBR500RA commonly features a two-piston caliper at the front and a single-piston caliper at the rear.

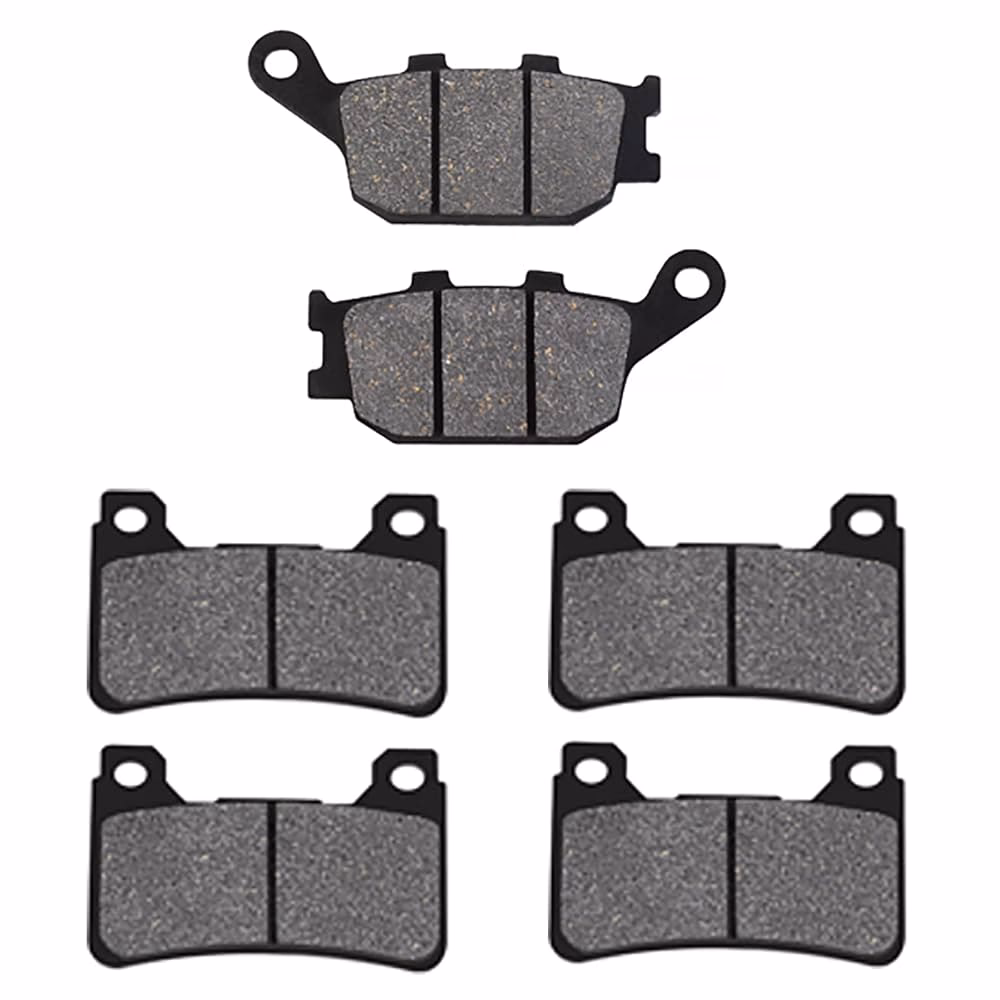

• Brake Pads: These are friction materials, typically made from organic, semi-metallic, or sintered compounds, that are pressed against the brake disc. They are designed to wear down over time and require periodic replacement. The choice of pad compound can significantly influence braking performance and longevity.
• Brake Discs (Rotors): These are the metal discs attached to the wheel hubs. As the brake pads clamp onto the rotating discs, friction is generated, converting the motorcycle's motion into heat and slowing the wheel. The CBR500RA typically uses a single large disc at the front for powerful braking and a smaller disc at the rear.
• Brake Fluid: This is the incompressible hydraulic fluid that transmits force from the master cylinder to the calipers. It's crucial for the system's operation and must be maintained to specific DOT standards (e.g., DOT 4 for the CBR500RA). Brake fluid is hygroscopic, meaning it absorbs moisture over time, which can reduce its boiling point and lead to brake fade.
• ABS Modulator (for CBR500RA models): On models equipped with ABS, an additional modulator unit is present. This unit, along with wheel speed sensors, monitors wheel rotation. If it detects a wheel locking up during braking, it rapidly modulates brake pressure to prevent the lock-up, allowing the rider to maintain steering control.

How the CBR500RA's Braking System Works

The operation of the CBR500RA's hydraulic braking system is based on Pascal's principle. When you squeeze the front brake lever or depress the rear brake pedal, you are essentially activating a small piston in the master cylinder. This piston displaces brake fluid, creating hydraulic pressure that travels through the brake lines. This pressure then acts on larger pistons within the brake caliper, which in turn push the brake pads against the rotating brake disc. The resulting friction converts the motorcycle's kinetic energy into heat, slowing the wheel down. The greater the pressure applied to the lever or pedal, the greater the clamping force on the discs, and consequently, the more significant the braking effect.

The Advantage of ABS on the CBR500RA

The 'A' in CBR500RA signifies the Anti-lock Braking System, a significant safety feature. While standard hydraulic brakes provide excellent stopping power, a sudden, hard application in low-grip conditions (like wet roads or gravel) can cause a wheel to lock up. A locked wheel can lead to a loss of traction and control, potentially resulting in a fall.

ABS prevents wheel lock-up by continuously monitoring wheel speed. If it detects a wheel decelerating too rapidly – indicating an imminent lock-up – the ABS modulator rapidly releases and reapplies brake pressure to that specific wheel. This pulsation occurs many times per second, allowing the rider to maintain steering control while braking hard. It's important to note that ABS does not necessarily shorten stopping distances in all conditions, but it significantly improves stability and control during emergency braking, especially on slippery surfaces.

ABS vs. Non-ABS: A Comparison

Essential Braking System Maintenance

To ensure your CBR500RA's braking system remains effective and safe, regular maintenance is paramount. Neglecting your brakes can lead to reduced performance, increased stopping distances, and potentially dangerous situations.

Key Maintenance Checks and Intervals:

• Brake Fluid Level and Condition: Check the fluid level in the reservoirs regularly (e.g., monthly). Ensure it's between the 'MIN' and 'MAX' marks. Also, inspect the fluid's colour; it should be clear or a light amber. Dark, murky fluid indicates degradation and moisture absorption. Honda recommends replacing brake fluid every two years, regardless of mileage, due to its hygroscopic nature.
• Brake Pad Wear: Visually inspect your brake pads regularly. Most pads have wear indicators. If the friction material is thin (typically less than 2mm, or if the wear indicator groove is gone), they need immediate replacement. Uneven wear can indicate caliper issues.
• Brake Disc Condition: Check the discs for excessive wear, scoring, or warping. You can feel for a lip at the outer edge of the disc, which indicates wear. Warped discs can cause pulsation at the lever/pedal during braking. Discs have a minimum thickness specified in your owner's manual.
• Brake Line Inspection: Look for any signs of cracks, bulges, chafing, or leaks on the brake lines. Any damage here is critical and requires immediate attention.
• Caliper Function: Periodically check that the caliper pistons move freely and that the pads are not sticking. A sticking caliper can cause uneven pad wear, pulling to one side, or continuous drag.
• Bleeding the System: If your brake lever feels spongy or you notice a decrease in braking power despite good pads and fluid level, there might be air in the system. Brake bleeding is required to remove air bubbles and restore firm lever feel. This should be done by a competent mechanic or experienced DIYer.

Common Braking System Issues and Troubleshooting

Even with regular maintenance, issues can arise. Knowing common symptoms can help you identify problems early.

Tips for Effective Braking and Safety

Beyond maintaining your system, how you use your brakes significantly impacts your safety and performance.

• Use Both Brakes: For maximum stopping power and stability, always use both the front and rear brakes simultaneously. The front brake typically provides 70-80% of the stopping power, but the rear brake helps settle the chassis and shorten stopping distances.
• Progressive Braking: Apply brakes smoothly and progressively. Start with a gentle squeeze/press and gradually increase pressure as needed. This allows the motorcycle's weight to transfer forward, increasing tyre grip for more effective braking.
• Look Where You Want to Go: In an emergency, your natural instinct might be to stare at the obstacle. Instead, focus on your escape path. Your body and the motorcycle will tend to follow your gaze.
• Practice Emergency Stops: Find a safe, open area and practice emergency braking to build muscle memory and confidence. Understand how your ABS system feels when it activates.
• Maintain Good Tyre Condition: Your tyres are the only contact point with the road. Worn or improperly inflated tyres will compromise even the best braking system.

Upgrading Your Braking System

For riders seeking enhanced performance or a more direct feel, several aftermarket upgrades are available:

• Braided Steel Brake Lines: These lines offer less expansion under pressure compared to standard rubber lines, resulting in a firmer, more consistent lever feel and improved braking efficiency, especially under hard use.
• Performance Brake Pads: Aftermarket pads offer different friction compounds that can provide increased initial bite, better fade resistance, or longer life, depending on your riding style.
• Aftermarket Brake Discs: Wave-pattern or floating discs can offer improved heat dissipation and reduced weight, though for most street riders, the stock discs are perfectly adequate.

Frequently Asked Questions About CBR500RA Brakes

Q1: How often should I change the brake fluid on my CBR500RA?

A: Honda generally recommends replacing brake fluid every two years, regardless of mileage. This is because brake fluid absorbs moisture over time, which lowers its boiling point and can lead to brake fade, especially under heavy braking.

Q2: When should I replace my brake pads?

A: You should inspect your brake pads regularly. Replace them when the friction material is worn down to approximately 2mm or less, or if they show signs of uneven wear or glazing. Some pads have wear indicator grooves that disappear when replacement is due.

Q3: What does it mean if my brake lever feels spongy?

A: A spongy brake lever typically indicates that there is air trapped in the hydraulic system, or that the brake fluid is old and has absorbed too much moisture. It could also be a sign of worn master cylinder seals. The most common solution is to bleed the brakes and replace the fluid.

Q4: Does the CBR500RA always come with ABS?

A: The 'RA' designation specifically refers to the ABS-equipped version of the CBR500R. So, if your model name is CBR500RA, it has ABS. The standard CBR500R does not have ABS.

Q5: Can I upgrade my non-ABS CBR500R to have ABS?

A: While technically possible, retrofitting an ABS system to a non-ABS motorcycle is an extremely complex, expensive, and generally not recommended procedure. It involves installing an ABS modulator, wheel speed sensors, and potentially different brake lines and master cylinders. It's almost always more practical and cost-effective to purchase an ABS-equipped model from the outset.

Q6: Is it normal for ABS to make a pulsing sensation?

A: Yes, absolutely. When ABS activates, it rapidly releases and reapplies brake pressure, which you will feel as a pulsing or vibration through the brake lever or pedal. This is a normal function of the system working to prevent wheel lock-up and is a sign that it is doing its job.

Conclusion

The Honda CBR500RA is undoubtedly equipped with a robust and reliable braking system, enhanced by the availability of ABS for improved safety and control. Understanding its components, how it operates, and performing diligent maintenance are crucial for ensuring your motorcycle's longevity and your own safety on the road. By paying attention to fluid quality, pad wear, and disc condition, and by practising effective braking techniques, you can confidently command your CBR500RA's stopping power, enjoying every ride with peace of mind.
