The Iconic Honda CBR 600 F3: A Deep Dive into its Engineering
When discussing legendary sportbikes, the Honda CBR 600 F3 inevitably finds its place in the conversation. While the provided information focuses on a 1997 model, understanding its core components and specifications is crucial for any enthusiast or owner looking for parts or maintenance information. This article delves into the technical heart of the CBR 600 F3, exploring its engine, performance, and key features that defined its era.
Engine and Performance: The Heartbeat of the F3
The 1997 Honda CBR 600 F3 is powered by a robust and highly regarded four-stroke engine. Specifically, it features a transverse four-cylinder configuration, angled 30 degrees forward of vertical. The engine's design is a testament to Honda's engineering prowess, utilising a Double Overhead Camshaft (DOHC) layout with four valves per cylinder. This setup is key to achieving its impressive performance figures.
The displacement of the engine is 598cc (or 36.55 cubic inches), a capacity that struck a perfect balance between thrilling power and manageable handling for its class. This powerplant generates a formidable 105 horsepower (76.5 kW) at a screaming 12,000 rpm, with peak torque of 66 Nm (48.6 lb-ft) arriving at 10,500 rpm. These figures indicate an engine that thrives at high revs, characteristic of a true sportbike designed for spirited riding.
The CBR 600 F3 boasts a top speed of approximately 250.2 km/h (155.4 mph), a figure that was highly competitive in its day and still respectable. Its quarter-mile time is a brisk 10.9 seconds at 198.0 km/h, further cementing its performance credentials.
Technical Specifications: A Closer Look
To truly appreciate the CBR 600 F3, one must examine its detailed technical specifications:
| Model: | CBR 600F3 |
| Years: | 1997 |
| Engine Type: | Four stroke, transverse four cylinder, 30° forward of vertical, DOHC, 4 valve per cylinder |
| Engine Weight: | 61.9 kg / 136.4 lbs |
| Capacity: | 598 / 36.55 cu in |
| Bore x Stroke: | 65 x 45.2 mm |
| Cooling System: | Liquid cooled |
| Compression Ratio: | 12.0:1 |
| Lubrication: | Forced pressure, trochoid oil pump; Wet sump; 4.4 qt (4.2 L capacity) |
| Oil Specification: | SAE 10W-40, API SF or SG |
| Intake System: | Dual-Stage Ram Air system with paper-element air filter |
| Induction: | 4x 36mm Mikuni BDST constant velocity (CV) carburetors |
| Exhaust System: | 4-2-1 Header with 6.6 L canister muffler |
| Ignition: | Transistorized electronic with 3D mapping |
| Electrical System: | Triple-phase alternator with battery; Electric start |
| Clutch: | Multi-plate wet, cable operated |
| Transmission: | Close-ratio 6 speed |
| Final Drive: | Chain, #525 O-ring-sealed; 108 links |
| Frame: | Steel twin-spar diamond, Engine stressed member |
| Front Suspension: | 41 mm HMAS cartridge fork with spring preload and rebound damping adjustability |
| Front Wheel Travel: | 118 mm / 4.66 in |
| Rear Suspension: | Rectangular swingarm. Unit Pro-Link HMAS rising rate monoshock, preload, compression and rebound adjustable. |
| Rear Wheel Travel: | 109 mm / 4.29 in |
| Front Brakes: | 2x 296mm discs, 2 piston calipers |
| Rear Brakes: | Single 218mm disc, 1 piston caliper |
| Front Wheel: | 3.5x17 in cast aluminum, six-spoke |
| Rear Wheel: | 5x17 in cast aluminum, six-spoke |
| Front Tyre: | 120/60ZR-17 radial; 36psi |
| Rear Tyre: | 160/60ZR-17 radial; 42 psi |
| Rake: | 25.2° |
| Trail: | 94.0 mm / 3.7 in |
| Dimensions (L x W x H): | 2055 mm / 835 mm / 685 mm |
| Wheelbase: | 1405 mm / 55.3 in |
| Seat Height: | 810 mm / 31.9 in |
| Dry Weight: | 186 kg / 408 lbs |
| Wet Weight: | 206 kg / 454 lbs |
| Ground Clearance: | 139.5 mm / 5.1 in |
| Fuel Capacity: | 17 Litres / 4.5 gal |
| Braking 60-0 mph: | 13.7 m |
| Standing ¼ Mile: | 10.9 sec @ 198.0 km/h |
| Top Speed: | 250.2 km/h / 155.4 mph |
Chassis and Handling: A Balanced Ride
The CBR 600 F3's handling is a significant part of its appeal. It features a robust steel twin-spar diamond frame, with the engine acting as a stressed member, contributing to the bike's rigidity and stability. The front suspension is handled by 41mm HMAS cartridge forks offering adjustability for spring preload and rebound damping, allowing riders to fine-tune the front end for different conditions. The front wheel travel is 118mm.
At the rear, a rectangular swingarm is complemented by a Unit Pro-Link HMAS rising rate monoshock. This sophisticated rear suspension system provides adjustability for preload, compression, and rebound damping, offering 109mm of wheel travel. This setup contributes to a balanced and compliant ride, absorbing bumps effectively while maintaining composure during aggressive cornering.
The braking system is equally impressive for its time. Up front, dual 296mm discs are clamped by two-piston calipers, providing strong and reliable stopping power. The rear features a single 218mm disc with a one-piston caliper, offering a good balance to the overall braking performance.
Wheels, Tyres, and Dimensions: The Contact Points
The F3 rides on lightweight cast aluminium wheels, with a 3.5x17 inch front and a wider 5x17 inch rear, both featuring a stylish six-spoke design. The tyres are radial, with a 120/60ZR-17 at the front and a 160/60ZR-17 at the rear, typically requiring pressures of 36 psi and 42 psi respectively. These tyre sizes and specifications were standard for high-performance sportbikes of the era, offering excellent grip and feel.
The bike's dimensions are also noteworthy. With a wheelbase of 1405mm, a seat height of 810mm, and a dry weight of 186kg, it offers a sporty yet accessible riding position. The fuel capacity is a respectable 17 litres (4.5 gallons), providing a decent range for touring or extended riding sessions.

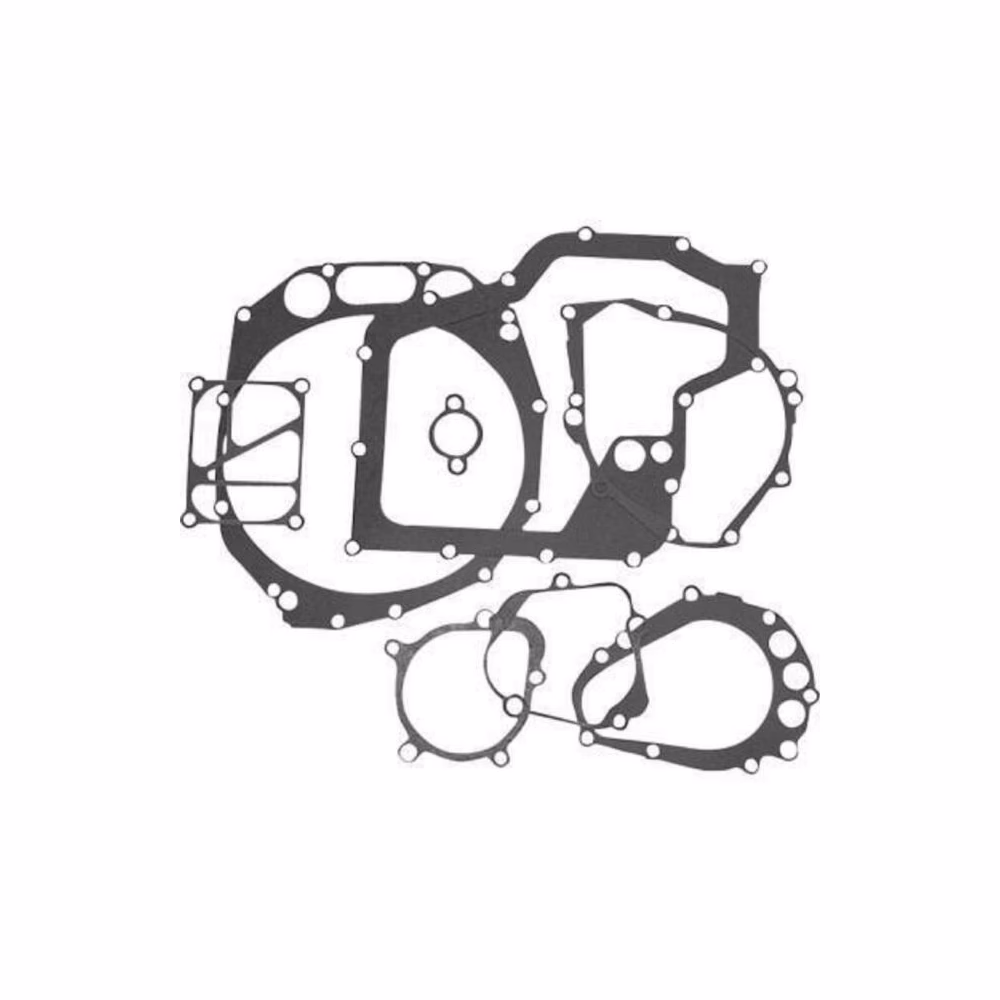

Product Codes and Parts Sourcing
For those seeking specific parts for their Honda CBR 600 F3, identifying the correct product code is essential. While the information provided lists several product codes such as PKAE8876 and PKAD5706, it's important to verify these with reputable suppliers. Websites like Wemoto are excellent resources for finding genuine and aftermarket parts, spares, and service equipment specifically for your Honda CBR 600 F3. Always double-check part compatibility with your exact model year.
Frequently Asked Questions
Q1: What is the engine type of the Honda CBR 600 F3?
The Honda CBR 600 F3 (1997) is equipped with a four-stroke, transverse four-cylinder engine with DOHC and four valves per cylinder.
Q2: What is the horsepower of the Honda CBR 600 F3?
The 1997 Honda CBR 600 F3 produces 105 hp (76.5 kW) at 12,000 rpm.
Q3: What is the top speed of the Honda CBR 600 F3?
The top speed is approximately 250.2 km/h (155.4 mph).
Q4: What type of carburettors does the CBR 600 F3 use?
It uses four 36mm Mikuni BDST constant velocity (CV) carburetors.
Q5: Where can I find parts for a Honda CBR 600 F3?
Reputable motorcycle parts suppliers like Wemoto are excellent sources for parts, spares, and service equipment for the Honda CBR 600 F3.
Conclusion
The Honda CBR 600 F3, particularly the 1997 model, stands as a benchmark in the 600cc sportbike category. Its potent engine, balanced chassis, and sophisticated suspension made it a joy to ride, whether on the street or the track. Understanding its technical specifications is key for maintenance, restoration, or simply appreciating the engineering that went into this iconic machine. For owners, ensuring the right parts and regular servicing will keep this legend performing at its best.
