DIY Porsche Cayenne Transmission Fluid Service

Maintaining the automatic transmission of your Porsche Cayenne is paramount to its longevity and the luxurious driving experience it offers. The transmission fluid plays a multifaceted role, acting as a lubricant, a coolant, and a hydraulic medium that enables smooth gear changes and efficient power transfer. Over time, this fluid degrades due to heat, friction, and contamination, losing its effectiveness. While seemingly a daunting task for the home mechanic, changing the transmission fluid and filter on your Cayenne is a highly rewarding DIY project that, when executed correctly, can significantly extend the life of your vehicle's most complex and expensive component.

This comprehensive guide will walk you through the intricate process, highlighting the critical steps, necessary tools, and crucial safety precautions. By understanding the 'why' behind each action, you'll gain the confidence to tackle this essential maintenance item, ensuring your Cayenne continues to deliver that signature Porsche performance for many years to come.

Understanding Your Cayenne's Transmission Fluid

Before diving into the practical steps, it's vital to appreciate the role of the automatic transmission fluid (ATF). Unlike engine oil, ATF is a highly specialised fluid engineered to perform under extreme conditions. Its primary functions include:

• Lubrication: Reducing friction and wear between the numerous moving parts, gears, and bearings within the transmission.
• Cooling: Dissipating the immense heat generated by friction and the hydraulic action of the torque converter.
• Power Transfer: Acting as a hydraulic medium to transmit power from the engine to the wheels through the torque converter and to operate the clutches and bands that facilitate gear changes.
• Cleaning: Suspending contaminants and metal particles, preventing them from causing damage.
• Corrosion Prevention: Protecting internal components from rust and corrosion.

Over time, ATF breaks down due to high temperatures, oxidation, and shear forces. This leads to a loss of viscosity, reduced lubricating properties, and an accumulation of contaminants. When the fluid degrades, you might experience harsher shifts, reduced fuel economy, or even severe transmission damage. Therefore, regular fluid and filter changes are not merely recommended but absolutely critical for preserving the transmission's health.

When to Change Your Cayenne's Transmission Fluid?

For most Porsche Cayenne models equipped with a Tiptronic automatic transmission, the general recommendation for fluid and filter replacement is every 80,000 miles. However, this interval can vary based on several factors:

• Driving Conditions: If you frequently drive in heavy stop-and-go traffic, tow heavy loads, or operate your Cayenne in extreme climates (very hot or very cold), the fluid will experience more stress and may degrade faster. In such cases, considering an earlier service interval, perhaps closer to 60,000 miles, would be prudent.
• Vehicle Age: Even if mileage is low, fluid can degrade over time. If your Cayenne is over 10 years old and the fluid has never been changed, it's highly advisable to perform this service.
• Symptoms: Any noticeable changes in shifting behaviour, such as hesitation, slipping, or unusually harsh shifts, could indicate degraded fluid and warrant an immediate inspection and potential fluid change.

Project Overview: Time, Cost, and Tools

Undertaking this task yourself can save you a significant amount compared to a dealership, which might charge upwards of £500-£1000 for this service. However, it requires patience and the correct equipment.

Estimated Project Details:

• Project Time: Approximately 4 hours (for an experienced DIYer; allow more for first-timers).
• Estimated Cost (Parts & Consumables): £100 to £200 (for fluid, filter, and gaskets).
• Performance Gain: Noticeably smoother shifting transmission and extended component life.
• Complementary Modification: Consider replacing the driveshaft centre support bearing if you're already accessing this area, as it's a common wear item.

Essential Tools & Parts Required:

Having the right tools is half the battle. Do not attempt this job without all the items on this list.

Choosing the Correct Transmission Fluid

This is perhaps the single most important decision you'll make. It is highly recommended to use the Porsche approved OEM fluid for your Tiptronic transmission. These fluids contain specific friction modifiers and additives precisely formulated for your Cayenne's internal components and clutch materials. Using an incorrect or generic fluid, even if it claims to be "multi-vehicle" compatible, can lead to premature wear, poor shift quality, and ultimately, severe transmission damage. While OEM fluid might seem more expensive upfront, it's a small price to pay to protect a component that can cost thousands to repair or replace. Figure on needing between eight and nine litres for a complete fluid and filter change, but it's always wise to have an extra litre on hand just in case.

Safety First: Preparing Your Cayenne for Service

Working under a vehicle carries inherent risks. Your safety is paramount. Follow these precautions diligently:

• Secure the Vehicle: Park your Cayenne on a flat, level, and firm surface. Engage the parking brake.
• Jack Up Safely: Use a high-quality hydraulic jack to lift the front and then the rear of the vehicle. Always lift from the designated jacking points.
• Use Jack Stands: Once lifted, immediately place four robust jack stands under the vehicle's designated support points. Lower the vehicle onto the jack stands slowly and ensure it is firmly supported. Give it a gentle shake to confirm stability.
• Level Vehicle is Crucial: It is absolutely critical that the car is perfectly level once on the jack stands. This will directly affect the accuracy of the fluid level measurement later in the process. If the car is even slightly tilted, your final fluid level will be incorrect, which can lead to damage.
• Wear Safety Gear: Always wear safety glasses to protect your eyes from fluid splashes and falling debris. Gloves are also recommended.
• Have a Helper: While not strictly essential for the draining and refilling, having a helper nearby is strongly advised, especially during the final fill procedure when the engine is running and wheels are spinning. They can assist with gear selection and monitoring.
• Disconnect Battery (Optional but Recommended): For added safety, consider disconnecting the battery's negative terminal before working underneath, especially before removing any electrical connectors.
• Remove Underbody Trays: You'll need to remove the underbody tray covering the transmission to gain access to the transmission pan. Refer to your vehicle's manual or online resources for specific instructions on removing these trays.

Step-by-Step Guide: Changing Your Cayenne's Transmission Fluid

This procedure involves several intricate steps. Read through them completely before you begin.

Phase 1: Draining the Old Fluid and Replacing the Filter

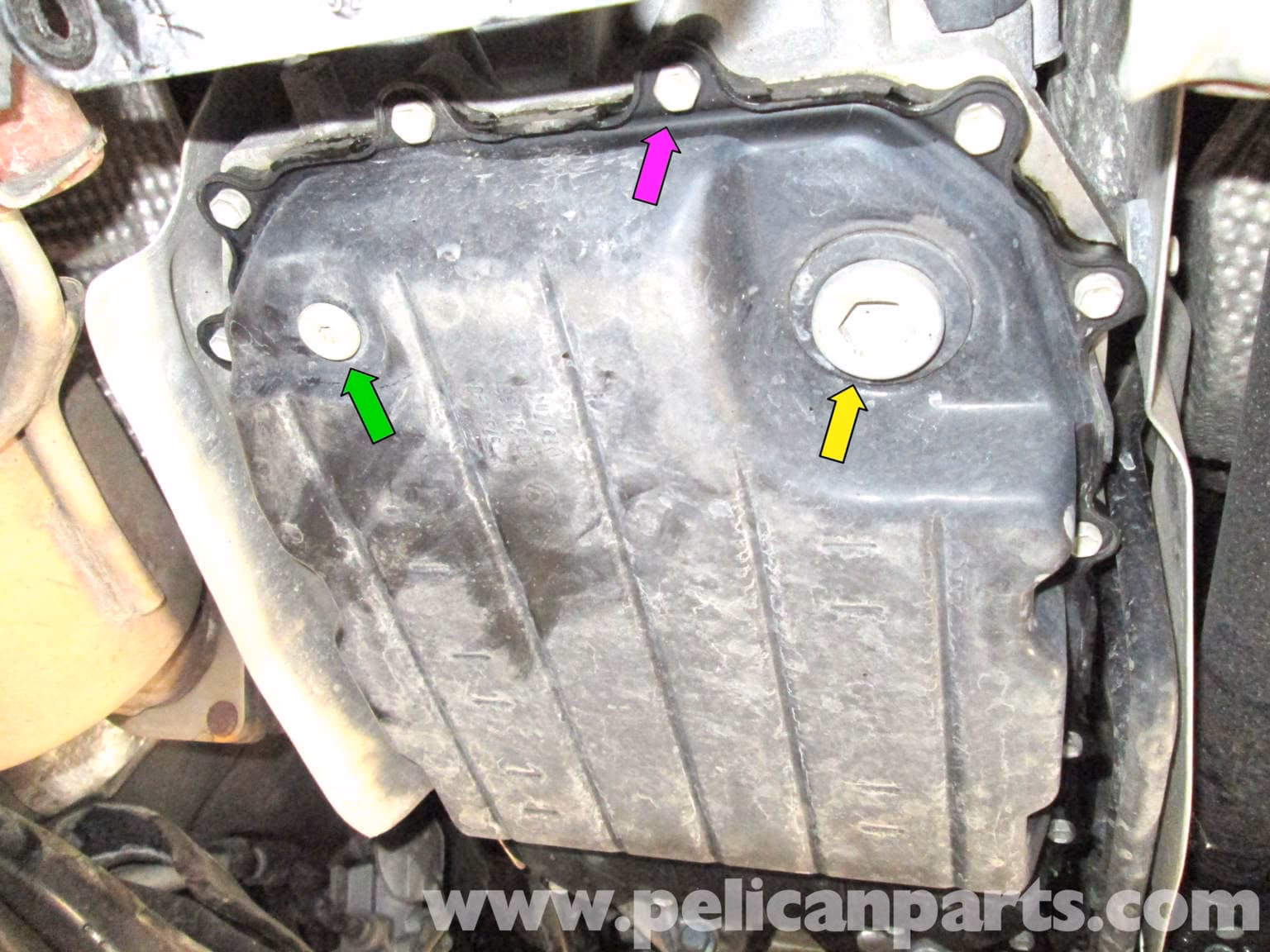

1. Initial Drain: Locate the transmission drain plug on the bottom of the transmission pan. It's typically a 17mm hex (Allen) bolt. Position your large drain pan directly underneath. Carefully remove the drain plug. Be prepared for a significant volume of fluid to come out rapidly. Allow it to drain completely.
2. Remove Transmission Pan: Once the flow slows to a trickle, reinstall the drain plug loosely. Now, locate the numerous T40 Torx bolts around the perimeter of the transmission pan. With your drain pan still in place (as more fluid will drip), carefully remove these bolts. Support the pan as you remove the last few bolts, as it will still contain some residual fluid and the filter.

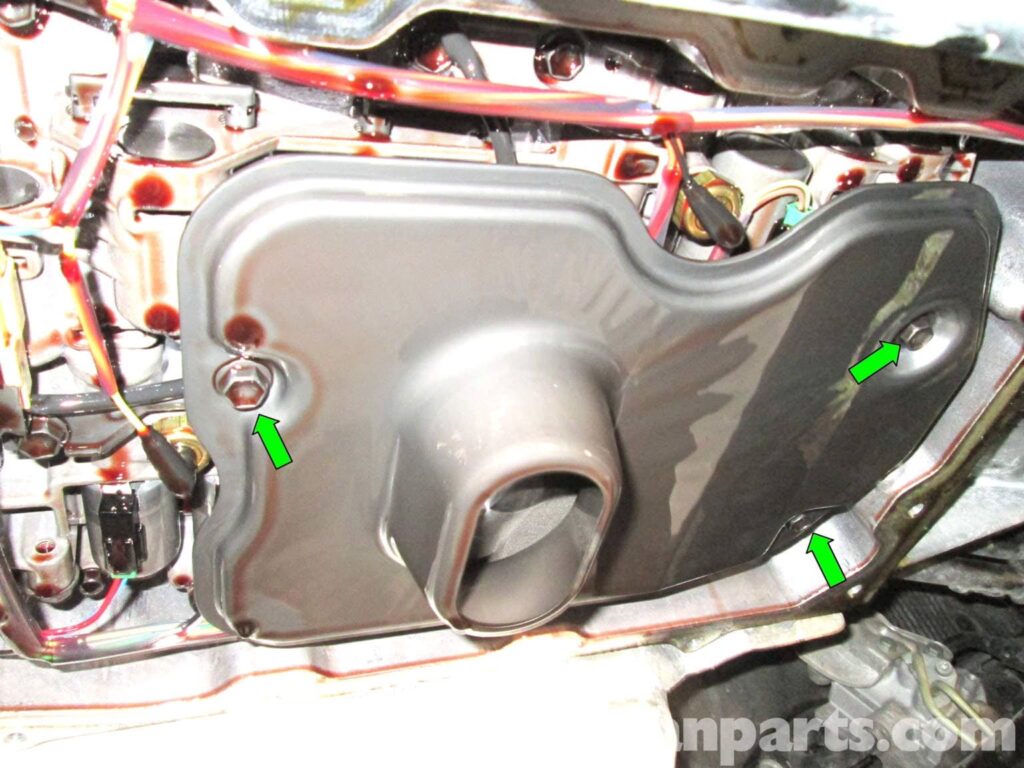

3. Remove Old Filter: Once the pan is off, you will see the old transmission filter. It is usually held in place by a few bolts or simply clips into the valve body. Carefully remove the old filter, again being mindful of any remaining fluid.
4. Clean the Pan and Magnets: The transmission pan will likely have a few magnets inside. These magnets are designed to collect metallic particles from wear and tear. Clean the pan thoroughly with a lint-free cloth and brake cleaner. Clean the magnets and place them back in their designated spots. Inspect the pan for any excessive debris or large metal chunks, which could indicate internal transmission issues.
5. Install New Filter and Gasket: Install the new transmission filter, ensuring it clicks or bolts securely into place. Clean the mating surface of the transmission case where the pan gasket sits. Ensure it's free of any old gasket material or debris.
6. Reinstall Transmission Pan: Place the new pan gasket onto the transmission pan. Carefully lift the pan and align it with the bolt holes on the transmission case. Start threading all the T40 Torx bolts by hand to ensure they are not cross-threaded. Once all bolts are in place, progressively tighten them in a criss-cross pattern to the manufacturer's specified torque (consult a service manual if available, but general torque for pan bolts is often low, around 8-10 Nm). Do not overtighten, as this can deform the pan or strip threads.

Phase 2: Refilling the Transmission and Leveling

This phase is the most critical and requires precision, especially with temperature monitoring.

1. Initial Fill: Locate the transmission fill port, which is also typically a 17mm hex bolt, often on the side or front of the transmission housing, distinct from the drain plug. Remove the fill plug. Using your fluid pump, begin pumping in new Porsche approved ATF. Initially, add approximately three to four litres of fluid. This initial amount is sufficient to get the pump primed and prevent dry running.
2. Start Engine and Circulate Fluid: With the car still firmly supported on jack stands and the fill plug still open (or loosely fitted if you need to pause), start the engine. Let it idle. The transmission pump will begin to circulate the fluid.
3. Add More Fluid Until Overflow: Continue to pump in more ATF. As you add fluid, it will start to fill the torque converter and valve body. Keep adding fluid until it begins to trickle or pour out of the fill hole. If you need to turn the engine off for any reason, refit the fill plug to prevent fluid loss.
4. Gear Cycling for Full Circulation: This step is crucial for distributing the fluid throughout the entire transmission system. With the engine idling and the car still on jack stands (remember, the wheels will spin!), have your helper (or carefully do it yourself from outside the vehicle) move the gear selector through all positions: Park (P), Reverse (R), Neutral (N), Drive (D), and manually select each gear (if applicable). Pause for approximately five seconds in each position to allow the fluid to circulate fully and for the clutches to engage. Repeat this cycle two or three times.
5. Monitor Fluid Temperature: This is the most important step for achieving the correct fluid level. The fluid level in an automatic transmission is highly sensitive to temperature due to thermal expansion. You need to monitor the temperature using either Durametric software (which reads the transmission's internal temperature sensor) or an infrared pyrometer aimed at the transmission pan. The target temperature for checking the fluid level on the Cayenne is 40 degrees Celsius (104 degrees Fahrenheit). Continue to add fluid until it starts to drain out of the fill port at this specific temperature.
6. Final Fill and Seal: Once the fluid begins to drain from the fill port at 40°C, the transmission is correctly filled. Reinstall the fill port plug and torque it to the manufacturer's specifications (usually around 20-30 Nm, but always check your specific model's manual).
7. Lower Vehicle and Test Drive: Carefully lower your Cayenne from the jack stands. Take it for a short test drive to ensure smooth shifting and no warning lights appear. After the test drive, briefly check for any leaks around the transmission pan or plugs.

Important Considerations and Hot Tips

• Cleanliness is Key: Any dirt or debris introduced into the transmission can cause significant damage. Ensure your work area, tools, and hands are as clean as possible.
• Torque Specifications: Always use a torque wrench for all bolts, especially the pan bolts and drain/fill plugs. Overtightening can strip threads or warp components, leading to leaks. Undertightening can also cause leaks.
• Fluid Quality: Reiterating, do not skimp on fluid. Use only the recommended Porsche specification ATF.
• Temperature Accuracy: This is the most common reason for an incorrect fluid level. If the fluid is too cold, you will underfill it; if too hot, you will overfill it. Both scenarios can lead to transmission issues.
• Messy Job: Be prepared for spills. Lay down plenty of plastic sheeting and have absorbent rags handy.

Frequently Asked Questions (FAQ)

Q1: How often should I change my Cayenne's transmission fluid?

A: The general recommendation is every 80,000 miles. However, if you frequently drive in demanding conditions (heavy towing, extreme temperatures, consistent stop-and-go traffic), consider reducing this interval to every 60,000 miles to ensure optimal transmission health.

Q2: Can I use a generic or universal transmission fluid?

A: It is strongly advised against using generic or universal fluids. Porsche transmissions are designed for very specific fluid properties, including unique friction modifiers. Using anything other than the Porsche approved OEM fluid can lead to poor shift quality, premature wear, and potentially catastrophic damage to your transmission. Always refer to your owner's manual for the exact fluid specification and stick to it.

Q3: Why is it so important to monitor the fluid temperature during refilling?

A: Automatic transmission fluid expands significantly when heated. If you check the fluid level when it's cold, you will inevitably underfill the transmission. Conversely, if it's too hot, you will overfill it. Both underfilling and overfilling can cause severe damage. Underfilling leads to fluid starvation, overheating, and component wear, while overfilling can cause foaming, reduced lubrication, and seal damage. The 40 degrees Celsius target temperature ensures the fluid is at the correct operating temperature for an accurate level check.

Q4: Is it really necessary to have a helper for this job?

A: While the initial draining and filter change can be done solo, having a helper is highly recommended, especially during the final fill and gear cycling steps. When the engine is running and the wheels are spinning on jack stands, having someone safely in the driver's seat to shift gears while you monitor the fluid level and temperature under the car significantly enhances safety and simplifies the process. It minimises the risk of accidents and allows for a more efficient procedure.

Q5: What happens if I don't change my transmission fluid?

A: Neglecting transmission fluid changes can lead to several severe issues. The fluid will degrade, losing its ability to lubricate, cool, and transfer power effectively. This results in increased friction, excessive heat buildup, accelerated wear of internal components (like clutches and gears), and a buildup of harmful contaminants. Over time, this will manifest as harsh or delayed shifts, slipping gears, reduced fuel efficiency, and ultimately, costly transmission failure. Regular maintenance is far cheaper than a transmission rebuild or replacement.

Q6: Can I just drain and refill the fluid without changing the filter?

A: While a simple drain and refill will replace some of the old fluid, it's not recommended as a complete service. The transmission filter traps contaminants and metallic particles. If the filter is clogged, new fluid won't circulate efficiently, and the contaminants will remain in the system, potentially causing damage. A proper transmission service always includes replacing both the fluid and the filter to ensure optimal cleanliness and performance.

Q7: What if I accidentally overfill or underfill the transmission?

A: If you've overfilled, you'll need to carefully drain some fluid until the level is correct at the specified temperature. If underfilled, you'll need to add more fluid until it begins to trickle out at 40°C. Driving with an incorrect fluid level, whether too high or too low, can cause serious damage to the transmission, so it's essential to correct the level before driving the vehicle extensively.

Conclusion

Changing the transmission fluid and filter on your Porsche Cayenne is undoubtedly a challenging but highly rewarding maintenance task. It demands meticulous attention to detail, adherence to safety protocols, and the use of the correct tools and fluids. By following this comprehensive guide, you'll not only save a considerable sum compared to dealership costs but also gain invaluable insight into your vehicle's mechanics. More importantly, you'll ensure your Cayenne's transmission operates smoothly and reliably for many more miles, preserving the performance and longevity that Porsche is renowned for. Approach this project with patience and precision, and you'll be enjoying the fruits of your labour for years to come.
