Lucas CAV: Unravelling Zero Timing Advance

When your diesel engine isn't performing as it should, displaying symptoms like a lack of power, increased fuel consumption, or a general feeling of sluggishness, it's often a sign that something fundamental is amiss. For vehicles fitted with a Lucas CAV DPA or DPS rotary fuel injection pump, one particularly vexing issue can be the complete absence of timing advance. This isn't just a minor inconvenience; it can significantly impact engine efficiency, emissions, and longevity. Understanding the intricate workings of your fuel pump is key, and often, the solution lies in a surprisingly small, yet critical, component.

Understanding Fuel Injection Timing Advance

To truly grasp why a missing timing advance is problematic, it's essential to understand what timing advance is and why it's so crucial for a diesel engine. In simple terms, fuel injection timing refers to the precise moment fuel is injected into the combustion chamber relative to the piston's position. For optimal combustion, fuel needs to be injected slightly before the piston reaches Top Dead Centre (TDC) on its compression stroke. This allows adequate time for the fuel to atomise, mix with air, and ignite effectively.

However, as engine RPM increases, the time available for this process decreases. To compensate, the fuel injection timing needs to be 'advanced' – meaning the fuel is injected even earlier. This ensures that peak combustion pressure still occurs at the most efficient point in the power stroke. Without proper timing advance, an engine will suffer from:

• Reduced power and torque, especially at higher RPMs.
• Increased fuel consumption, as combustion is less efficient.
• Excessive exhaust smoke (often black, indicating incomplete combustion).
• Hard starting, particularly in colder conditions.
• Increased engine noise and potentially higher thermal stress.

The Lucas CAV DPA and DPS pumps are designed with an internal mechanism to automatically adjust this timing based on engine speed, ensuring optimal performance across the RPM range.

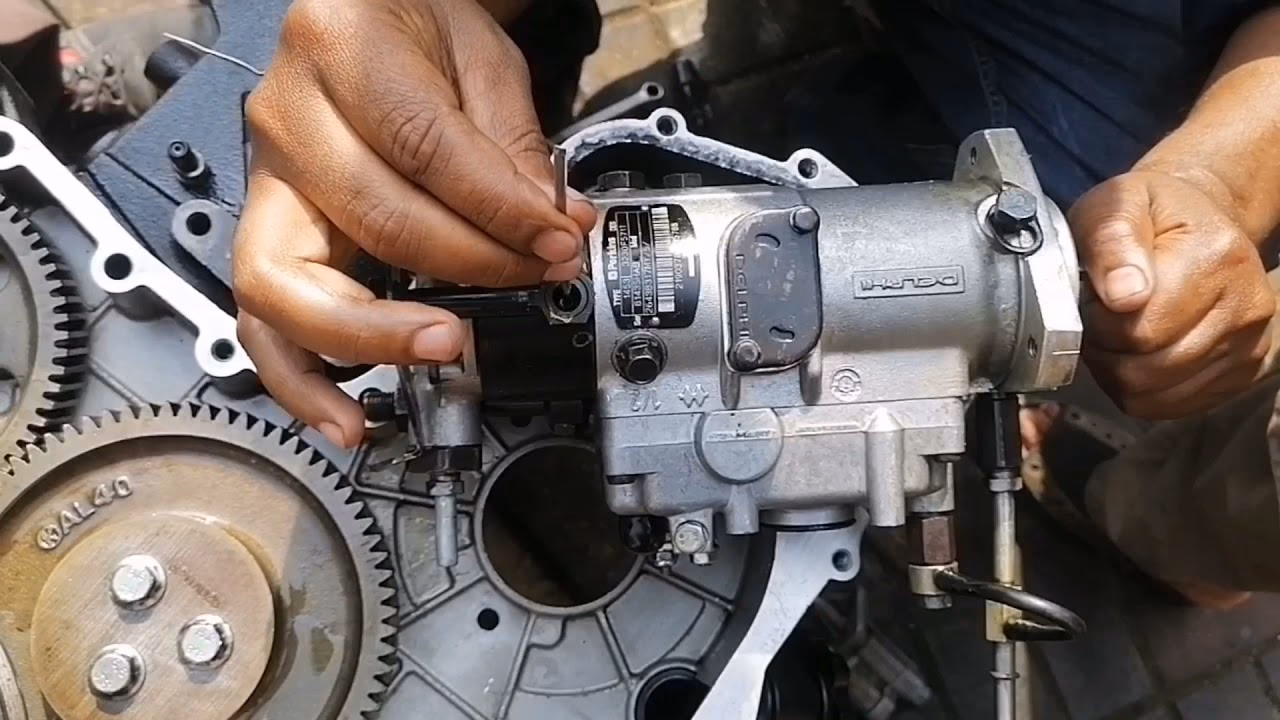

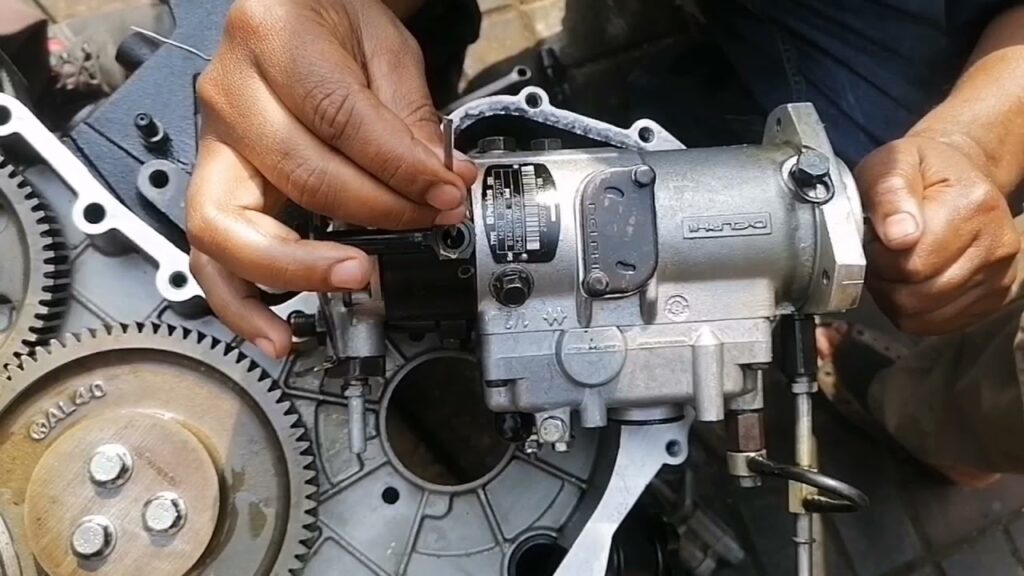

The Lucas CAV DPA/DPS Advance Mechanism: A Closer Look

The Lucas CAV DPA and DPS pumps are renowned for their robust and relatively simple design, yet their internal workings involve precision engineering. The timing advance mechanism, often referred to as the 'advance piston' or 'advance unit', is hydraulically operated. It relies on internal fuel pressure, which varies with engine speed, to move a piston. This piston is mechanically linked to the cam ring inside the pump. As the piston moves, it rotates the cam ring, which in turn alters the point at which the rollers engage the cam lobes, thereby changing the injection timing.

The advance mechanism is typically housed at the governor end of the pump and consists of several key components:

• The advance piston itself.
• Return springs, which pull the piston back to the retarded (initial) position when fuel pressure drops.
• A hydraulic circuit that directs fuel pressure to the piston.
• And, crucially, a small check ball within this hydraulic circuit.

The check ball plays a vital role in creating the necessary pressure differential. It acts as a one-way valve or a restrictor, ensuring that fuel pressure builds up effectively behind the advance piston, allowing it to move and advance the timing. Without this seemingly insignificant component, the hydraulic circuit cannot function correctly, and the advance piston will simply not move.

The Critical Culprit: A Missing Check Ball

Based on extensive experience with Lucas CAV pumps, a complete absence of timing advance often points directly to one specific, yet easily overlooked, issue: a missing check ball in the advance timing circuit. This isn't a component that typically wears out or breaks; rather, it's usually omitted during assembly or reassembly of the fuel injection pump.

Why might this happen? There are a couple of common scenarios:

1. Pump Replacement: If your vehicle has recently had its fuel injection pump replaced, especially with a remanufactured or reconditioned unit, there's a possibility that the check ball was inadvertently left out during the rebuilding process. Quality control in remanufacturing is usually high, but oversights can occur.
2. Mechanism Disassembly for Leak Repair: The advance mechanism itself is sometimes removed from the pump, often to address a fuel leak from its seals. During such a repair, if the person performing the work is not meticulously careful or lacks specific knowledge of the CAV pump's internal design, the tiny check ball can easily be lost or simply forgotten when reassembling the unit. Given its small size, it's not always immediately obvious if it's missing upon reinstallation.

When the check ball is absent, the fuel pressure that is supposed to act upon the advance piston simply bypasses the piston through the open circuit. There's no hydraulic restriction or build-up of pressure to force the piston to move. Consequently, the cam ring remains in its fully retarded position, and the engine receives no timing advance, irrespective of engine speed.

Symptoms of Zero Timing Advance

Recognising the symptoms of zero timing advance is the first step towards diagnosis. While some symptoms can overlap with other fuel system issues, a consistent pattern often points to this specific problem:

• Difficulty Starting: Especially noticeable when the engine is cold. The engine might crank for a long time before catching, or may not start at all without significant cranking.
• Lack of Power and Poor Acceleration: The engine will feel 'flat' and unresponsive, particularly when trying to accelerate or climb hills. It simply won't develop its full power output.
• Increased Fuel Consumption: Inefficient combustion directly translates to burning more fuel for less work done. You'll notice more frequent trips to the petrol station.
• Excessive Exhaust Smoke: Often dense black smoke, particularly under load or during acceleration. This is a tell-tale sign of incomplete combustion due to late injection. In some cases, white smoke might be present if combustion is severely delayed and fuel is not burning properly.
• Rough Running and Vibration: The engine might run less smoothly, with noticeable vibrations, especially at certain RPMs.
• Engine Overheating: Inefficient combustion can generate more heat than usual, potentially leading to the engine running hotter.

Symptom Checklist: No Timing Advance vs. Other Fuel Issues

To help differentiate, consider this comparison:

Diagnosing and Rectifying the Problem

If you suspect your Lucas CAV pump has no timing advance, professional diagnosis is highly recommended. While the missing check ball is a common cause, it's not the only possibility, and opening a fuel injection pump requires specialised knowledge and tools.

Initial Checks (Non-Invasive)

Before contemplating pump removal, ensure other basic engine parameters are in order:

1. Fuel Filter: A clogged fuel filter can restrict fuel flow and mimic some of the symptoms of poor performance. Ensure it's clean and replaced according to service intervals.
2. Air Filter: A restricted air intake will starve the engine of oxygen, leading to black smoke and reduced power.
3. Glow Plugs (for Diesel): Faulty glow plugs can cause hard starting, especially in cold weather, though they don't typically affect running performance once started.
4. Visual Inspection: Check for any obvious fuel leaks around the pump, particularly near the advance mechanism housing. Leaks here could indicate seal failure, which might have led to disassembly.

The Role of a Specialist

If the above checks don't resolve the issue and symptoms persist, the problem likely lies within the fuel injection pump itself. This is where a qualified diesel injection specialist comes in. They possess the necessary diagnostic equipment, such as pump test benches, to accurately assess the pump's performance, including its timing advance function.

To confirm the missing check ball, the pump would need to be removed from the engine and partially disassembled. This is not a job for the average DIY mechanic, as it involves:

• Careful handling of precision components.
• The use of specific tools for disassembly and reassembly.
• Knowledge of torque settings and component orientation.
• The ability to re-time the pump correctly once reinstalled on the engine.

Attempting this without the proper expertise can lead to further damage, costly repairs, or improper engine operation.

Other Potential Causes for Lack of Advance

While the missing check ball is a prime suspect, it's worth noting other less common, but still possible, causes for a Lucas CAV pump to exhibit no timing advance:

• Sticking Advance Piston: Over time, fuel contamination, corrosion, or wear can cause the advance piston to stick within its bore. If it cannot move freely, the timing will remain static.
• Weak or Broken Advance Springs: The return springs are essential for pushing the piston back to the retarded position when fuel pressure drops. If these springs weaken or break, the piston might not move correctly or might not return fully.
• Blocked Internal Passages: Debris or sludge from contaminated fuel can block the small hydraulic passages that direct fuel pressure to the advance piston, preventing its operation.
• Incorrect Pump Calibration: If the pump has been serviced previously, and its internal settings or calibration were not performed to factory specifications, it might not advance correctly.
• Excessive Wear of Pump Components: General wear and tear within the pump, particularly in areas affecting internal fuel pressure regulation, can indirectly impact the advance mechanism's ability to function.

The Importance of Professional Service and Genuine Parts

Working with fuel injection pumps, especially precision units like the Lucas CAV, requires a high degree of skill and attention to detail. Any internal work on these pumps should ideally be carried out by a reputable diesel injection specialist. Here's why:

• Expertise: Specialists have in-depth knowledge of the pump's design and common failure modes.
• Specialised Tools: Disassembly, inspection, reassembly, and testing of injection pumps require specific tools and equipment, including test benches to verify performance.
• Cleanliness: Fuel injection components are extremely sensitive to dirt and contamination. A clean working environment is paramount to prevent further issues.
• Genuine Parts: Using genuine Lucas CAV parts, including something as small as a check ball, ensures correct fitment and long-term reliability.
• Warranty: Professional repairs typically come with a warranty, providing peace of mind.

While the idea of a tiny check ball causing such significant engine problems might seem incredible, it perfectly illustrates the precision engineering involved in modern (and even older) diesel fuel systems. Overlooking such a minor component can lead to a cascade of performance issues and frustration.

Frequently Asked Questions (FAQs)

Q: Can I drive my vehicle if it has no timing advance?

A: While the vehicle might technically run, it is strongly advised against driving it extensively. The engine will be operating inefficiently, leading to reduced power, excessive fuel consumption, increased emissions, and potentially higher thermal stress on engine components. Prolonged use could lead to premature wear or damage to the engine.

Q: How difficult is it to replace the check ball myself?

A: Replacing the check ball requires the removal of the fuel injection pump from the engine and partial disassembly of the pump's advance mechanism. This is a complex task that demands specific knowledge, tools, and a clean working environment. It is generally not recommended for DIY mechanics unless they have extensive experience with diesel injection pumps.

Q: What tools are needed for this repair?

A: Beyond standard mechanic's tools, you would need specialised diesel injection pump tools for disassembly, reassembly, and, critically, for setting the pump's static timing once reinstalled on the engine. A pump test bench is also essential for a comprehensive check of pump function after repair.

Q: How much does it cost to fix a missing check ball?

A: The cost can vary significantly. The check ball itself is a very inexpensive part. However, the labour involved in removing, disassembling, repairing, reassembling, and then reinstalling and re-timing the fuel injection pump can be substantial. Expect costs to be primarily labour-driven, potentially ranging from a few hundred to over a thousand pounds, depending on the workshop's rates and whether other issues are found.

Q: Are all Lucas CAV pumps the same?

A: No. While the DPA and DPS are common types, there are variations within these series, and other types of Lucas/CAV pumps exist (e.g., DPC). The internal components and service procedures can differ. Always refer to the specific service manual for your pump model.

Q: Could a faulty governor cause similar symptoms?

A: A faulty governor can certainly affect engine performance and speed control, potentially mimicking some symptoms. However, a governor issue usually manifests as incorrect idle speed, surging, or failure to reach maximum RPM, rather than a complete absence of timing advance across the board. The advance mechanism is distinct from the main governor function.

In conclusion, if your vehicle equipped with a Lucas CAV DPA or DPS pump is exhibiting clear signs of no timing advance, the tiny, often-forgotten check ball is a prime suspect. While the component itself is small, the repair requires professional expertise to ensure the fuel injection pump is correctly serviced and your engine returns to its optimal performance. Don't let a missing check ball leave your diesel feeling flat; get it checked by a specialist to unleash its full potential once more.
