Unravelling Your Vehicle's Diagnostic Codes

Driving along, minding your own business, when suddenly a warning light illuminates on your dashboard. For many motorists, this can be a moment of dread and uncertainty. Is it a minor glitch or a sign of something far more serious? This is where diagnostic codes come into play, acting as your vehicle's sophisticated language, communicating precisely what's amiss within its complex electronic systems. Understanding these codes is the first step towards accurate troubleshooting and ensuring the longevity of your cherished vehicle.

What Exactly Are Diagnostic Codes For?

At their core, diagnostic codes serve as crucial alerts, notifying both the operator and the service technician that a problem has been detected within the vehicle's electronic system. Think of them as digital breadcrumbs, leading directly to the source of a malfunction. When a sensor reads an out-of-range value, or a component fails to respond as expected, the vehicle's onboard computer logs a specific diagnostic code. For the operator, this often translates to a dashboard warning light, such as the 'check engine' light. For the technician, however, these codes provide invaluable insights, allowing them to swiftly identify the nature of the problem without resorting to guesswork.

The intricate network of sensors, actuators, and control modules in modern vehicles constantly monitors countless parameters. From engine performance to fuel delivery and electrical systems, every aspect is under vigilant electronic surveillance. When a discrepancy occurs, the system doesn't just flag a generic error; it generates a specific code that points to a particular circuit, component, or functional issue. This precision is paramount for efficient and effective repairs, saving time and potentially costly trial-and-error diagnostics.

The Brains Behind the Codes: Control Modules

Diagnostic codes are generated and stored by various electronic control modules (ECMs) within your vehicle. These modules are essentially mini-computers dedicated to managing specific vehicle functions. To identify which module is reporting a fault, Module Identifiers (MIDs) are used. Each MID corresponds to a particular control unit, helping technicians narrow down the origin of the detected problem.

The Engine Control Module (ECM) - MID No. 036

The Engine Control Module, identified by MID No. 036, is arguably the most critical electronic component in your vehicle's powertrain. It's the central brain responsible for managing almost every aspect of engine operation. This includes fuel injection, ignition timing, emissions control, and monitoring various sensors such as oxygen sensors, crankshaft position sensors, and manifold pressure sensors. When the ECM detects an anomaly in any of these areas – for example, an injector not firing correctly or a sensor reading outside its normal operating range – it logs a specific diagnostic code. The extensive list of codes associated with MID 036 covers everything from individual cylinder injector faults to problems with fuel pressure, oil pressure, and electrical system voltage.

The Temperature Control Module (TCM) - MID No. 094

While the ECM handles the core engine functions, other modules manage specialized systems. The Temperature Control Module, identified by MID No. 094, is specifically tasked with overseeing the engine cooling system. This includes monitoring coolant temperature, controlling cooling fans, and managing auxiliary cooling pumps. Should there be an issue, such as a sensor failure leading to an inaccurate temperature reading or a malfunction in a cooling component, the TCM will generate a diagnostic code relevant to the cooling system. This separation of duties between modules allows for a more granular and precise diagnostic process.

Decoding the Message: Diagnostic Tools and Data Links

To access and interpret these diagnostic codes, service technicians rely on specialised diagnostic tools. A common example, particularly in commercial or heavy-duty applications, is Caterpillar Electronic Technician (ET). These tools connect to the vehicle's onboard diagnostic (OBD) port and read the information stored by the control modules.

Diagnostic information is transmitted over data links, which are essentially communication networks within the vehicle. Modern engines typically utilise two types of data links for robust and efficient communication between various control modules and sensors. These data links ensure that the ECM, TCM, and other modules can share information in real-time, allowing for comprehensive system monitoring and rapid fault detection. The integrity of these data links is crucial for accurate diagnostics; any issues with them can also generate their own specific diagnostic codes.

Understanding Diagnostic Code Formats: CID-FMI and SPN-FMI

When a diagnostic tool reads a code, it often presents it in specific formats, such as CID-FMI or SPN-FMI. Understanding these formats is key to interpreting the fault correctly:

• CID (Component Identifier): This number identifies the specific component or system that has a fault.
• FMI (Failure Mode Identifier): This number describes the type of failure mode detected for that component (e.g., voltage above normal, erratic, not responding properly).

In addition to CID-FMI, codes are often cross-referenced with SPN-FMI:

• SPN (Suspect Parameter Number): This is a standardised number (SAE J1939 standard) that identifies a specific parameter or component, making codes universally recognisable across different manufacturers and equipment.
• FMI (Failure Mode Identifier): Remains the same, describing the nature of the fault.

This dual identification system provides a comprehensive description of the problem, allowing technicians to pinpoint the exact issue and refer to the appropriate troubleshooting procedure. For instance, a CID-FMI code like '1-5 Cylinder #1 Injector: Current Below Normal' might correspond to an SPN-FMI code '651-5 Engine Injector Cylinder #01: Current Below Normal'. Both point to a specific issue with cylinder 1's injector and indicate a low current condition, directing the technician to test the injector solenoid.

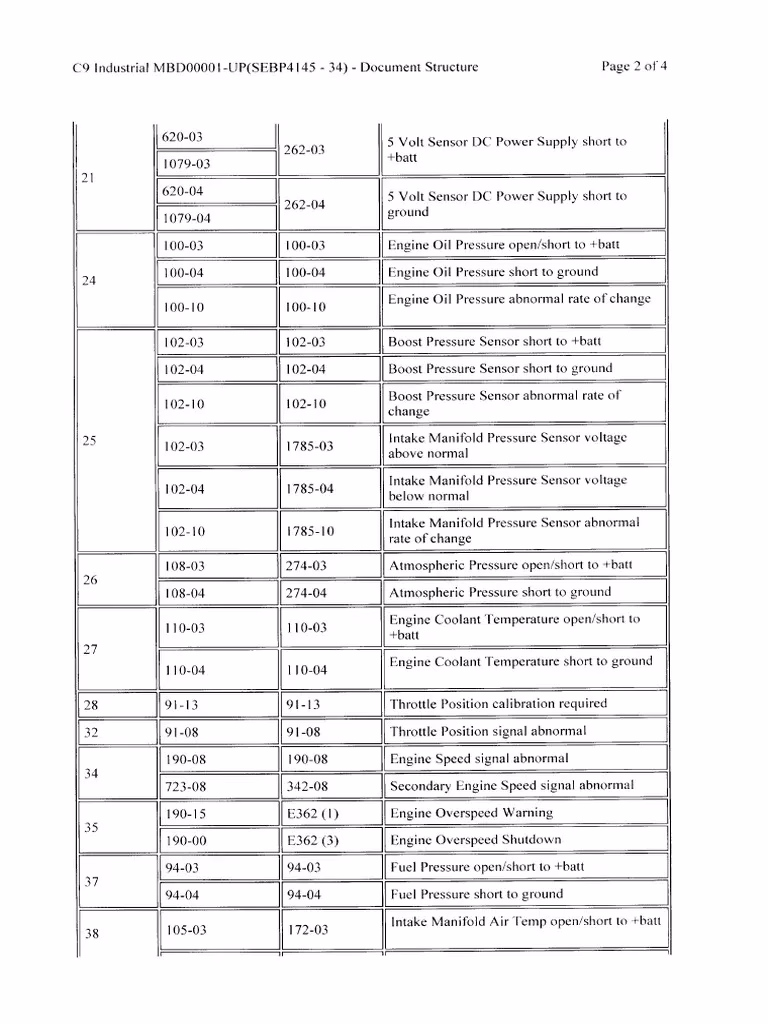

Illustrative Examples of Diagnostic Codes (MID 036 - Engine ECM)

While the complete list of codes is extensive, here are a few common types of issues represented by diagnostic codes from the Engine Control Module:

These examples demonstrate how specific codes provide precise information about the affected component and the nature of the fault, guiding the technician to the correct diagnostic procedure.

Diagnostic Codes vs. Event Codes: A Crucial Distinction

It's important not to confuse diagnostic codes with event codes, as they signal different types of issues and require distinct approaches to resolution.

While a diagnostic code might lead to an event code (e.g., a faulty coolant temperature sensor (diagnostic code) could lead to an engine overheating (event code)), they represent different layers of information. Diagnostic codes pinpoint the 'what went wrong' in the electronic system, while event codes highlight 'what's currently happening' with the vehicle's operation that is abnormal.

Common Scenarios Triggering Diagnostic Codes

The sheer number of potential diagnostic codes reflects the complexity of modern vehicles. However, they generally fall into several common categories:

• Injector Faults: Codes like 'Cylinder #X Injector: Erratic, Intermittent, or Incorrect' (e.g., CID 1-2 to 16-7) indicate issues with the fuel injectors. This could be due to electrical problems (current above/below normal) or the injector not responding properly.
• Sensor Malfunctions: Many codes relate to sensors providing incorrect or out-of-range readings. Examples include oil pressure sensors, coolant temperature sensors, fuel temperature sensors, and manifold air pressure sensors. These often appear as 'Voltage Above Normal' or 'Voltage Below Normal' (e.g., 100-3 for high oil pressure sensor voltage).
• Electrical System Issues: Problems with the vehicle's electrical supply, such as high or low battery voltage (e.g., 168-0/1), or faults in the 5V/8V DC power supplies to sensors (e.g., 262-3/4), are common.
• Fuel System Anomalies: Beyond injectors, issues with fuel pressure sensors (e.g., 289-3/4), fuel control valves (e.g., 18-7), or fuel pump relays (e.g., 1627-5/6) frequently trigger codes.
• Speed/Timing Sensor Faults: Codes related to engine speed sensors (e.g., 190-8) or secondary/tertiary speed sensors (e.g., 342-8) indicate problems with the engine's ability to accurately measure its rotational speed or timing.
• Data Link Communication Errors: If the communication network between modules is compromised, codes like 'SAE J1939 Data Link: Abnormal Update Rate' (e.g., 247-9) will be logged.

Each of these codes, no matter how obscure, points to a specific area that needs attention, streamlining the diagnostic process significantly.

The Diagnostic Process: From Alert to Resolution

When a diagnostic code appears, the general process for resolution involves a few key steps:

1. Code Retrieval: The first step is to connect a diagnostic tool (like Cat ET) to the vehicle's OBD port to read the active or logged codes.
2. Code Interpretation: Once retrieved, the technician interprets the CID-FMI or SPN-FMI code, understanding what component is affected and the nature of the fault.
3. Referencing Troubleshooting Procedures: Each code is linked to a specific troubleshooting procedure. These procedures are detailed guides that outline the steps a technician should take to diagnose and resolve the issue. This might involve checking wiring, testing component functionality, or inspecting related systems.
4. Repair and Verification: After identifying the root cause, the necessary repairs are performed. This could range from replacing a faulty sensor or injector to repairing a wiring harness or even replacing a control module.
5. Clearing Codes: Once the repair is complete, the diagnostic codes are cleared using the diagnostic tool. For some modules, like the TCM (MID 094), it's crucial to cycle the keyswitch power to the engine to ensure the codes are fully cleared. This step confirms that the issue has been resolved and the system is operating normally again.

Why You Shouldn't Ignore a Diagnostic Code

Ignoring a diagnostic code, even if the vehicle appears to be running fine, can lead to more severe and costly problems down the line. A seemingly minor sensor fault could be masking a significant underlying issue or could cause other systems to compensate incorrectly, leading to reduced fuel efficiency, increased emissions, or even critical component failure. For example, a persistent injector fault could lead to unburnt fuel damaging the catalytic converter, a far more expensive repair than addressing the injector itself. Always address diagnostic codes promptly to maintain your vehicle's health and prevent escalating issues.

Frequently Asked Questions About Diagnostic Codes

What does a diagnostic code mean?

A diagnostic code is an alphanumeric message generated by your vehicle's Electronic Control Modules (ECMs) to indicate a detected fault within an electronic system or component. It pinpoints the specific area where an anomaly has occurred, helping technicians diagnose and repair problems efficiently.

Can I drive with a diagnostic code active?

While some diagnostic codes might allow the vehicle to continue operating, it is generally not advisable to drive with an active code. The code indicates a problem that could worsen, lead to further damage, affect performance, or compromise safety. It's best to have the vehicle inspected by a qualified technician as soon as possible.

How are diagnostic codes cleared?

Diagnostic codes are typically cleared using a specialised diagnostic tool, such as Caterpillar Electronic Technician (ET). After the underlying fault has been repaired, the tool sends a command to the control module to clear the logged code. In some cases, like with the TCM (MID 094), cycling the keyswitch power after clearing is necessary to complete the process.

What is the difference between a MID and a diagnostic code?

A Module Identifier (MID) identifies the specific electronic control module (e.g., ECM, TCM) that has detected and logged a diagnostic code. The diagnostic code itself (e.g., CID-FMI or SPN-FMI) describes the specific fault within that module's system. The MID tells you *which brain* found the problem, while the diagnostic code tells you *what the problem is*.

Do all cars use the same diagnostic codes?

No, not all cars use identical diagnostic codes. While there are some standardised codes (like those following the SAE J1939 SPN-FMI format, commonly used in heavy-duty and commercial vehicles) to ensure a level of interoperability, many manufacturer-specific codes exist. This is why a professional diagnostic tool with comprehensive vehicle coverage is often required for accurate diagnosis.

What is Caterpillar ET?

Caterpillar Electronic Technician (ET) is a proprietary diagnostic software tool used for Caterpillar engines and machines. It allows technicians to connect to the vehicle's electronic control modules, read diagnostic codes, view real-time data, perform calibrations, and conduct various diagnostic tests.

Conclusion

Diagnostic codes are an indispensable part of modern vehicle maintenance and repair. They transform vague symptoms into precise fault indicators, empowering both operators and technicians to understand and address issues effectively. By understanding the basics of how these codes work, the role of control modules like the ECM and TCM, and the necessity of proper diagnostic tools, you can ensure your vehicle receives the right attention when a warning light appears. Don't ignore those electronic whispers; they're your vehicle's way of asking for help, ensuring it remains reliable and efficient on the road.
