When it comes to robust power and unwavering reliability in the most challenging industrial and commercial environments, few engines command as much respect as the Caterpillar C32. This formidable diesel engine is an engineering marvel, meticulously designed to deliver exceptional performance, fuel efficiency, and compliance with stringent emission standards. From powering massive earthmoving equipment to propelling luxurious yachts, the C32 stands as a testament to Caterpillar’s commitment to innovation and durability. Let's delve into what makes this V-12 powerhouse an indispensable asset across a myriad of demanding applications.
The Heart of Power: What is the Caterpillar C32 Engine?

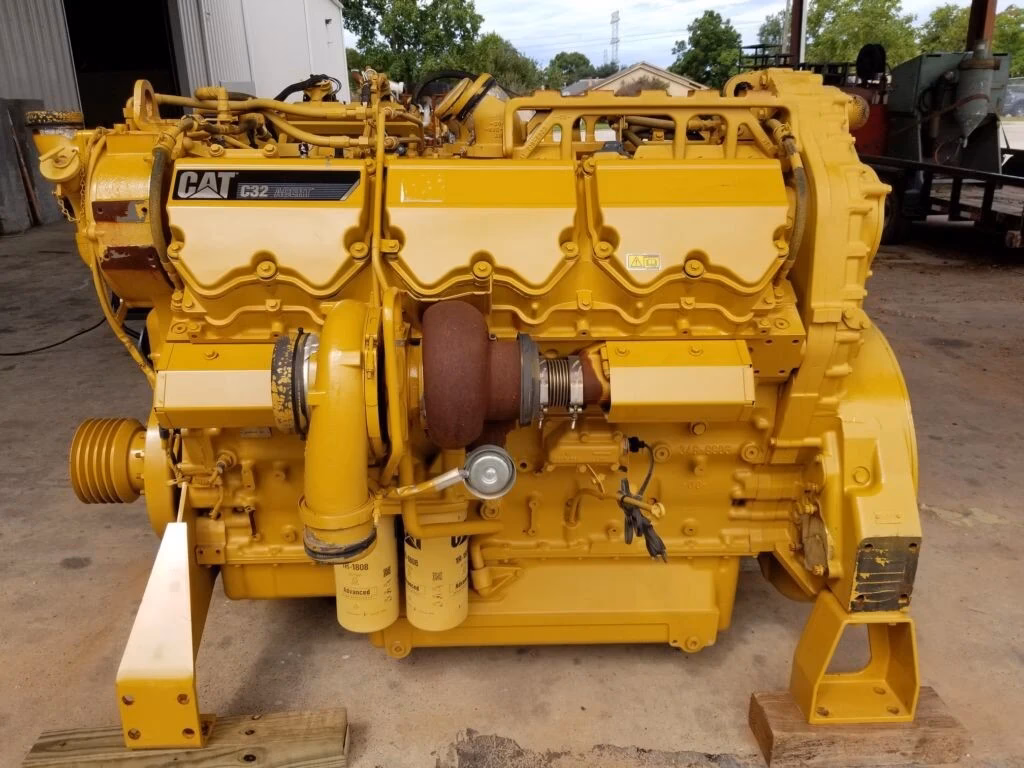

At its core, the Caterpillar C32 Land Production engine is a V-12, 4-Stroke-Cycle diesel engine, engineered for heavy-duty operations. Its impressive internal architecture boasts a 145 mm (5.71 in) bore and a 162 mm (6.0 in) stroke, culminating in a substantial 32.1 L (1958.86 in³) displacement. This sheer volume makes it one of the largest V12 engines globally, ensuring immense power delivery when required. Despite its substantial size, with a dry weight of 3152 kg (6780 lbs), the C32 is remarkably power-dense, making it a highly efficient high-speed diesel engine within Caterpillar’s extensive range. It typically operates at a rated speed of 1800 RPM, delivering a robust 709 bkW, though some ACERT configurations can reach 950 BHP at 2100 RPM.
Key features include its turbocharged Aftercooled air intake system, optimising combustion and power output. Furthermore, the C32 is designed to meet various emission regulations, notably complying with U.S. EPA Non-road Tier 2 standards, with advanced ACERT versions meeting Tier 2 equivalent or even Tier 4 Final standards in highly regulated regions. This adaptability ensures its global applicability and environmental responsibility.
Unleashing Performance: How Much Can the C32 Do?
The Caterpillar C32 engine is synonymous with immense power and versatility, capable of delivering anywhere from 600 to an astounding 1800 horsepower at 2300 RPM, with peak torque typically arriving at 1500 RPM. This broad powerband makes it adaptable to a vast array of tasks, from consistent, heavy-duty work to high-demand peak performance. Its efficiency is a hallmark, allowing it to work productively and fuel-efficiently across diverse global environments.
A prime example of the C32's formidable capabilities can be seen in its integration into the new D11T and D11T CD track-type tractors. These behemoths of the construction world, weighing up to 248,456 pounds (112,698 kg) and sporting blades with capacities up to 57 cubic yards (43.6 m³), rely on the C32’s 850-net horsepower (634 kW) to tackle the toughest materials with unparalleled productivity. The engine's raw power, combined with advanced machine technologies like Enhanced Auto Shift (EAS) and automatic climate control, transforms challenging operations into streamlined, efficient processes.
Advanced Engineering: ACERT Technology and Emissions Compliance
A significant factor in the C32’s prowess is Caterpillar’s proprietary ACERT technology. This innovative approach to engine design and combustion minimises emissions at the point of combustion, leading to lower operating costs and reduced environmental impact. For regions with strict environmental controls, the C32 engine with ACERT technology is configured to meet U.S. EPA Tier 4 Final emissions standards. This advanced configuration incorporates several cutting-edge systems:
- Cat NOx Reduction System: This system captures and cools a small volume of exhaust gas, then recirculates it back into the combustion chambers. This process lowers combustion temperatures, effectively retarding the formation of nitrogen oxides (NOx), a key pollutant.
- Diesel Oxidation Catalyst (DOC): The DOC uses oxidation, a chemical process, to treat exhaust gases, ensuring they meet the stringent emission standards required for compliance.
Beyond emissions, the C32 also features a sophisticated cooling package designed for optimal heat management and durability. It utilises a two-part radiator with robust aluminium bar-plate cores, contributing to exceptional durability, efficient heat transfer, and superior corrosion resistance. Additionally, a new oil-to-air hydraulic-oil cooler, constructed similarly, works in conjunction with a hydraulically variable demand fan. This fan intelligently adjusts its speed based on cooling needs, consuming less power, reducing fuel consumption, and significantly lowering sound levels, enhancing both efficiency and operator comfort.
A Spectrum of Applications: Where the C32 Excels
The versatility of the Caterpillar C32 diesel engine is truly remarkable, allowing it to excel across a diverse array of commercial and industrial applications. Its robust design, immense power, and compliance with various emission standards make it an ideal choice for operations that demand unwavering performance.
- Oilfield Operations: The C32 ACERT engines are an ideal solution for demanding oilfield operations. They are perfectly suited for land mechanical drilling applications, such as mud pump drives, where consistent, high power output is crucial for efficient and reliable performance. Their rugged construction ensures they can withstand the harsh conditions often found in the oil and gas sector.
- Construction: As with nearly all Caterpillar products, the C32 is exceptionally well-suited for various construction applications. It is frequently employed in large-scale earth-moving equipment, where its massive power helps tackle challenging terrain and heavy loads. Its strength also makes it a common choice for powering cranes, shovels, draglines, and trenching machines. Even towards the final stages of a project, the C32 can be found in robust paving equipment.
- Logging Applications: The forestry and logging industries benefit significantly from the C32’s power and durability. Industrial woodchipping machines often employ this engine, relying on its high horsepower to process large volumes of timber efficiently. Furthermore, its adaptability means it can be used in various irrigation machines essential for forestry management.
- Locomotives: Many modern locomotives across the globe utilise the C32 engine. Its massive power output and inherent adaptability make it an ideal prime mover for railway applications. Crucially, its ability to meet stringent emissions standards ensures it is a compliant and efficient choice for railway operators.
- Marine Applications (Yachts): The C32 also enjoys widespread use in the marine sector, particularly in luxury yachts. Its combination of immense power and relatively compact packaging, considering its displacement, makes it highly suitable for marine propulsion. The engine's design ensures it can be installed in yachts of various designs and dimensions, providing reliable power for navigation and onboard systems. Its compliance with EPA Tier emission standards also makes it a safe and environmentally responsible choice for sea use.
Beyond the Engine: Comprehensive Support and Serviceability
Caterpillar's commitment to its customers extends far beyond the sale of an engine. The C32 is backed by a worldwide network of Caterpillar dealers, ready to provide unparalleled support throughout the engine’s entire lifecycle. This comprehensive support includes:
- Technical Support: Expert advice and assistance to ensure optimal engine performance.
- Service and Parts: Readily available genuine parts and professional service to minimise downtime.
- Warranty: Robust warranty coverage providing peace of mind.
- Full Life Cycle Service: From the initial design and power system supply to installation and commissioning, Caterpillar offers end-to-end support. This also includes crucial after-sales service training, spare parts supply, troubleshooting assistance, and comprehensive overhaul technical support.
For operations utilising machines like the D11T powered by the C32, serviceability is further enhanced by advanced features. An “OK-to-Start” system electronically checks critical fluid levels before operation, ensuring readiness and preventing potential issues. Routine maintenance is simplified with easily accessed filters, an optional automatic lubrication system, and high-speed oil change systems for both engine and power train. Ecology drains are incorporated for capturing fluids, facilitating proper disposal or recycling and promoting environmental responsibility. Additionally, a fast-fill fueling system features a positive shutoff to prevent spills, enhancing safety and efficiency.
Caterpillar C32 Engine Key Specifications
| Feature | Specification |
|---|---|
| Engine Type | V-12, 4-Stroke-Cycle Diesel |
| Bore | 145 mm (5.71 in) |
| Stroke | 162 mm (6.0 in) |
| Displacement | 32.1 L (1958.86 in³) |
| Rated RPM (Typical) | 1800 RPM (Land Production) / 2100 RPM (ACERT) |
| Rated Power (Typical) | 709 bkW (950 BHP) |
| Horsepower Range | 600 to 1800 HP @ 2300 RPM |
| Dry Weight | 3152 kg (6780 lbs) |
| Air Intake | Turbocharged Aftercooled |
| Emissions Compliance | U.S. EPA Non-road Tier 2, Tier 2 equivalent, Tier 4 Final |
| Technology | ACERT Technology, Cat NOx Reduction System (Tier 4F), Diesel Oxidation Catalyst (Tier 4F) |
Common Applications of the Caterpillar C32 Engine
| Application Area | Specific Uses |
|---|---|
| Oil & Gas | Mud pump drives, Land mechanical drilling applications |
| Construction | Earth moving equipment, Cranes, Paving equipment, Shovels/Draglines, Trenching machines |
| Logging | Industrial woodchipping machines, Irrigation machines |
| Transportation | Modern Locomotives |
| Marine | Yachts (propulsion and auxiliary power) |
Frequently Asked Questions About the C32 Diesel Engine
What is the Caterpillar C32 diesel engine?
The Caterpillar C32 is a powerful 4-stroke, 12-cylinder diesel engine. With a dry weight of 3152 kg, it is a standalone, multi-purpose engine renowned for its versatility and robust performance across a variety of demanding industrial and commercial applications.
What are the key specifications of the Caterpillar C32 diesel engine?
This formidable engine features a massive 32.1 L displacement, making it one of the largest V12 engines globally. It is also Caterpillar’s most power-dense, high-speed diesel engine, capable of producing anywhere from 600 to 1800 horsepower at 2300 RPM, with peak torque achieved at 1500 RPM.
Where is the C32 commonly used?
Due to its powerful performance and adaptability, the C32 is widely used in numerous sectors. Its primary applications include locomotives, luxury yachts, heavy earth-moving machinery at large-scale construction sites, cranes, shovels, trenching, and dragline machines. It also finds significant use in logging applications and as mud pump drives in oilfield operations. Its ability to meet required emission standards, relatively low weight for its power, and sheer output make it ideal for such diverse and demanding environments.
Does the C32 comply with emissions standards?
Yes, the Caterpillar C32 engine is designed to comply with various international emissions standards. Depending on the configuration, it meets U.S. EPA Non-road Tier 2, Tier 2 equivalent, and for the most stringent regions, Tier 4 Final emissions standards. This compliance is achieved through advanced technologies like ACERT, the Cat NOx Reduction System, and Diesel Oxidation Catalysts.
Is the C32 engine supported globally?
Absolutely. Caterpillar C32 engines are backed by a comprehensive worldwide network of Caterpillar dealers. This network provides full life cycle service, encompassing technical support, maintenance, genuine parts supply, warranty services, installation and commissioning assistance, and expert troubleshooting and overhaul support, ensuring optimal operation and longevity wherever the engine is deployed.
The Caterpillar C32 engine stands as a paragon of power, efficiency, and reliability in the world of heavy-duty diesel engines. Its advanced engineering, coupled with Caterpillar's renowned global support network, ensures that it remains the preferred choice for industries where performance cannot be compromised. Whether excavating vast landscapes, propelling vessels across oceans, or driving critical oilfield machinery, the C32 continues to deliver, proving its worth as a truly indispensable power solution.
