Understanding Caster Angle in Wheel Alignment

Have you ever heard a mechanic mention terms like 'caster', 'camber', and 'toe' during a wheel alignment and felt a bit lost? These might sound like complex geometric concepts, but understanding them is surprisingly straightforward and incredibly beneficial for your vehicle's performance and your safety on the road. A proper wheel alignment is more than just a routine check; it's a vital part of maintaining your car's health, ensuring it handles predictably, and maximising the lifespan of your tyres. Let's dive into the world of wheel alignment and demystify these essential angles.

Caster Angle: The Straight-Line Stabiliser

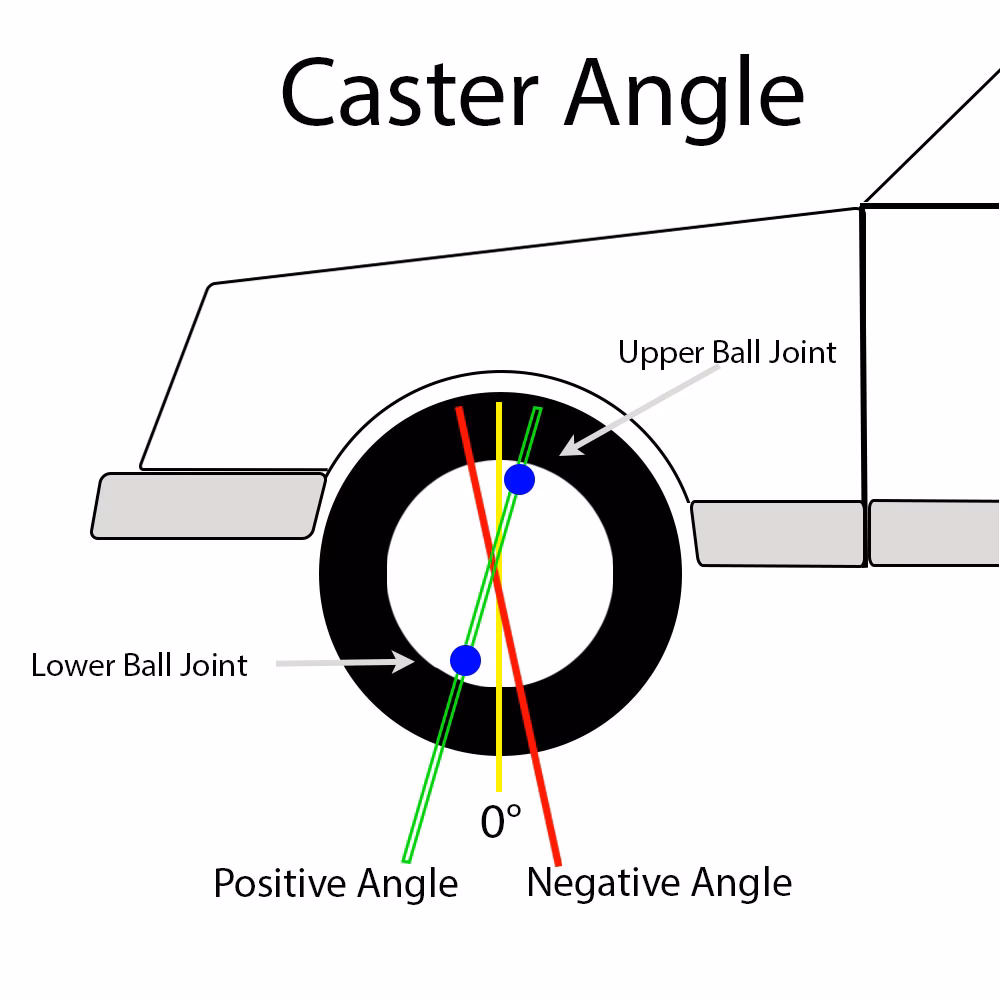

Imagine pushing a shopping trolley. The wheels that swivel and turn are the ones that dictate how easily the trolley steers and how it behaves when you're not actively guiding it. The caster angle in a car works on a similar principle for the front wheels. It refers to the angle of the steering axis, which is an imaginary line running through the pivot points of the steering system (typically the upper and lower ball joints or strut mounts), relative to a vertical line when viewed from the side of the vehicle.

To visualise this, picture a vertical line passing straight through the centre of your front wheel. The caster angle is the tilt of the steering axis forward or backward from this vertical line.

• Positive Caster: The top of the steering axis is tilted backward, towards the rear of the vehicle. This is the most common and desirable configuration for most road cars. It provides a self-centring effect for the steering, helping the wheels return to the straight-ahead position after a turn. This makes the car feel more stable and planted, especially at higher speeds on the motorway. Think of it as the shopping trolley wanting to go straight when you push it.
• Negative Caster: The top of the steering axis is tilted forward, towards the front of the vehicle. This is less common in standard passenger cars and can lead to a lighter steering feel, but it can also make the car more susceptible to wandering and less stable in a straight line.
• Zero Caster: The steering axis is perfectly vertical. This offers very light steering but lacks the self-centring effect, making the vehicle unstable.

The ideal caster angle is usually a slight positive value, specified by the manufacturer. A well-set caster angle is crucial for maintaining straight-line stability and reducing driver fatigue, as it helps the steering wheel return to centre and keeps the car tracking true.

Camber Angle: The Tyre's Vertical Tilt

Now, let's shift our perspective to looking at your car directly from the front. The camber angle describes the inward or outward tilt of the tyre's top edge relative to the vertical. This angle is critical for how your tyres make contact with the road surface, directly impacting grip and tyre wear.

• Positive Camber: The top of the tyre tilts outwards, away from the vehicle. This can reduce the tyre's contact patch with the road when driving straight, potentially affecting grip.
• Negative Camber: The top of the tyre tilts inwards, towards the vehicle. This is often used in performance and racing applications to improve cornering grip by keeping the tyre more perpendicular to the road surface during body roll. However, excessive negative camber can lead to increased wear on the inner edge of the tyre when driving in a straight line.
• Zero Camber: The tyre is perfectly vertical to the road surface. This provides the maximum possible contact patch when the vehicle is stationary or driving straight on a perfectly flat road.

For most everyday vehicles, the manufacturer specifies a camber angle very close to zero. Deviations from this can lead to uneven tyre wear, where one side of the tyre wears out much faster than the other, and can also affect the car's handling characteristics, such as its tendency to pull to one side.

Toe Angle: The Tyre's Inward or Outward Point

Finally, let's look at your car from above, as if you were peering down at its wheels. The toe angle refers to the direction in which the tyres are pointing. It's the difference in the distance between the front inside edges of the tyres and the front outside edges of the tyres, or vice versa.

• Toe-in: The front of the tyres are angled slightly inwards, closer to each other than the rear of the tyres. This is common on rear-wheel-drive vehicles and helps to improve stability and reduce tyre scrub when driving straight. It can also aid in turn-in response.
• Toe-out: The front of the tyres are angled slightly outwards, further apart than the rear of the tyres. This is often found on front-wheel-drive vehicles and can improve turn-in agility. However, too much toe-out can lead to unstable steering and increased tyre wear on the outer edges.
• Zero Toe: The tyres are pointing perfectly straight ahead, parallel to each other.

The toe angle is perhaps the most critical for tyre wear. Even a small deviation from the manufacturer's specification can cause tyres to scrub against the road surface as they rotate, leading to rapid and uneven wear, often described as 'feathering' or 'saw-toothing' on the tyre edges.

The Wheel Alignment A-Team: How They Work Together

Caster, camber, and toe are the three primary angles adjusted during a wheel alignment. They don't work in isolation; they are intricately linked and collectively influence your vehicle's driving behaviour. A professional wheel alignment service ensures that all these angles are set precisely to the manufacturer's recommended specifications for your specific make and model.

When these angles are correctly set:

• Your car will track straight ahead with minimal steering correction required.
• The steering wheel will return to centre naturally after a turn.
• Tyre wear will be even across the tread surface, extending tyre life.
• Fuel efficiency can be improved due to reduced rolling resistance.
• Overall handling and stability are enhanced, providing a safer and more comfortable driving experience.

When Should You Get Your Wheel Alignment Checked?

Several signs indicate that your car's wheel alignment may need adjustment. It's wise to have it checked if you notice any of the following:

• Vehicle Pulling to One Side: If your car consistently drifts to the left or right when you're driving on a straight, level road, even when you're not touching the steering wheel.
• Uneven Tyre Wear: Inspect your tyres for wear patterns. If one edge of a tyre (inner or outer) is significantly more worn than the rest of the tread, it's a strong indicator of an alignment issue.
• Crooked Steering Wheel: If the steering wheel is off-centre when the car is driving straight, it suggests that the alignment is not set correctly.
• Vibrating Steering Wheel: While vibrations can be caused by wheel balancing issues, they can also be a symptom of incorrect alignment, especially if accompanied by handling problems.
• Poor Handling or Steering Response: If your car feels vague, loose, or unresponsive in its steering, or if it feels unstable during turns.

Crucially, you should also consider a wheel alignment after:

• Fitting new tyres.
• Hitting a significant pothole or kerb.
• Having suspension or steering components replaced.
• Experiencing a minor collision or accident.

Wheel Alignment Top Tips for Longevity

To ensure your car continues to perform at its best and to maximise the life of your tyres, follow these simple recommendations:

• Regular Checks: Consult your vehicle's owner's manual for the recommended frequency of wheel alignment checks. Generally, it's a good idea to have it inspected annually or every 6,000 to 10,000 miles (approximately 10,000 to 16,000 kilometres), whichever comes first.
• Proactive Inspection: If you've had a noticeable jolt from hitting a pothole or mounting a kerb, it's prudent to get your alignment checked sooner rather than later to prevent potential damage and premature tyre wear.
• New Tyres, New Alignment: When you purchase new tyres, it's an excellent time to get a full wheel alignment. This ensures that your new, expensive tyres start their life with the correct geometry, promoting even wear from day one.
• Professional Advice: Don't hesitate to ask your mechanic to check the alignment if you suspect any issues. A professional alignment is a relatively inexpensive procedure that can save you significant money on premature tyre replacement and improve your car's overall performance and safety.

By understanding the fundamental concepts of caster, camber, and toe, and by adhering to these maintenance tips, you can significantly contribute to your car's longevity, improve its driving dynamics, and most importantly, ensure your journeys are as safe and enjoyable as possible. A well-aligned car is a happy car, and a happy car leads to a happy driver.

Frequently Asked Questions (FAQs)

Q1: What is the main purpose of caster angle?
The main purpose of the caster angle is to provide straight-line stability and a self-centring effect for the steering, making the vehicle easier to control at speed and reducing driver fatigue.

Q2: Can incorrect camber cause my car to pull to one side?
Yes, significantly incorrect camber, especially if it's uneven between the left and right sides, can cause the vehicle to pull towards the side with more positive camber or less negative camber.

Q3: How quickly can toe misalignment wear out my tyres?
Even a slight toe misalignment can cause rapid tyre wear. Tyres can be significantly damaged and become unusable within a few thousand miles if the toe angle is severely out of specification.

Q4: Is wheel alignment covered under my car's warranty?
Generally, wheel alignment is considered a maintenance item and is not covered under the standard vehicle warranty, unless it is found to be a result of a manufacturing defect in the suspension components.

Q5: How long does a wheel alignment take?
A standard wheel alignment typically takes between 45 minutes to 1.5 hours, depending on the vehicle and the complexity of the suspension system.
