Wiring Your Electric Cooling Fan System

In the world of automotive engineering, cooling systems have undergone significant evolution. For decades, mechanical fans, directly driven by the engine, were the standard. While perfectly adequate for stock vehicles of yesteryear, particularly those producing less than 400 horsepower, the landscape of modern performance vehicles has shifted dramatically. Today, it's not uncommon to find everyday drivers boasting well over 500 horsepower, demanding more efficient and reliable cooling solutions. This increased performance, coupled with the stop-and-go nature of modern traffic, has led to a widespread adoption of electric cooling fans. Unlike their mechanical counterparts, electric fans operate independently of engine RPM, offering superior cooling precisely when it's most needed: at idle or in slow-moving traffic. However, harnessing this advantage requires a properly wired system, avoiding the pitfalls of rudimentary setups that were once common.

The Evolution of Engine Cooling: Why Electric Fans Reign Supreme

The transition from mechanical to electric cooling fans isn't merely a matter of convenience; it's a strategic upgrade for modern vehicles. Mechanical fans, while robust, are inherently limited by engine speed. They cool effectively only when the engine is revving, meaning their efficiency drops significantly at idle or low speeds, precisely when airflow through the radiator is most crucial to prevent overheating. Furthermore, mechanical fans consume engine horsepower, creating a parasitic drag that can slightly reduce overall performance and fuel efficiency.

Electric cooling fans, by contrast, offer a consistent and powerful cooling solution. Because they are powered by the vehicle's electrical system, they can operate at their maximum cubic feet per minute (CFM) output regardless of engine RPM. This ensures optimal cooling even when your vehicle is stationary, stuck in traffic, or idling for extended periods. For high-horsepower applications, where engine temperatures can soar, the consistent cooling provided by electric fans is often superior to a mechanical setup, even one with a larger clutch-fan and shroud. They also free up valuable engine bay space and reduce the load on the engine, potentially leading to marginal gains in power and efficiency.

Mechanical vs. Electric Fans: A Comparative Look

To better understand the benefits of modern electric cooling systems, let's compare the fundamental characteristics of both fan types:

Powering Up: Essential Considerations Before You Start

While the benefits of electric fans are clear, their installation isn't as simple as just bolting them on. The most critical aspect is the electrical connection. A couple of decades ago, it was common practice to simply add a switch under the dashboard to control an electric cooling fan. This was, however, a mediocre and often problematic approach. The primary issue was that the significant current required to power the fan was drawn directly through the dashboard switch itself. In electrical terms, this is a definite no-no; you should never rely on a small dash switch to handle the kind of current (often more than 10-15 amps) required for a powerful accessory like a cooling fan. Such setups are prone to overheating, switch failure, and even fire hazards.

Modern electric fan wiring relies on a relay system. A relay acts as an electrically operated switch that allows a low-current control signal (from your temperature sender or ECU) to switch a much higher current circuit (to the fan motor). This protects your dashboard switches and ensures the fan receives the full power it needs to operate efficiently.

Another crucial consideration, especially when adding single or dual electric cooling fans, is your vehicle's charging system. Many original alternators were not designed to handle continuous current draws over 45-60 amps. Adding a high-draw electric fan (or two) can quickly overwhelm an older, weaker alternator, leading to drained batteries, dimming lights, and other electrical system issues. Therefore, it is highly recommended to consider upgrading to a beefier alternator to ensure your charging system can adequately support the increased electrical load.

Your Wiring Toolkit: Key Components for a Flawless Setup

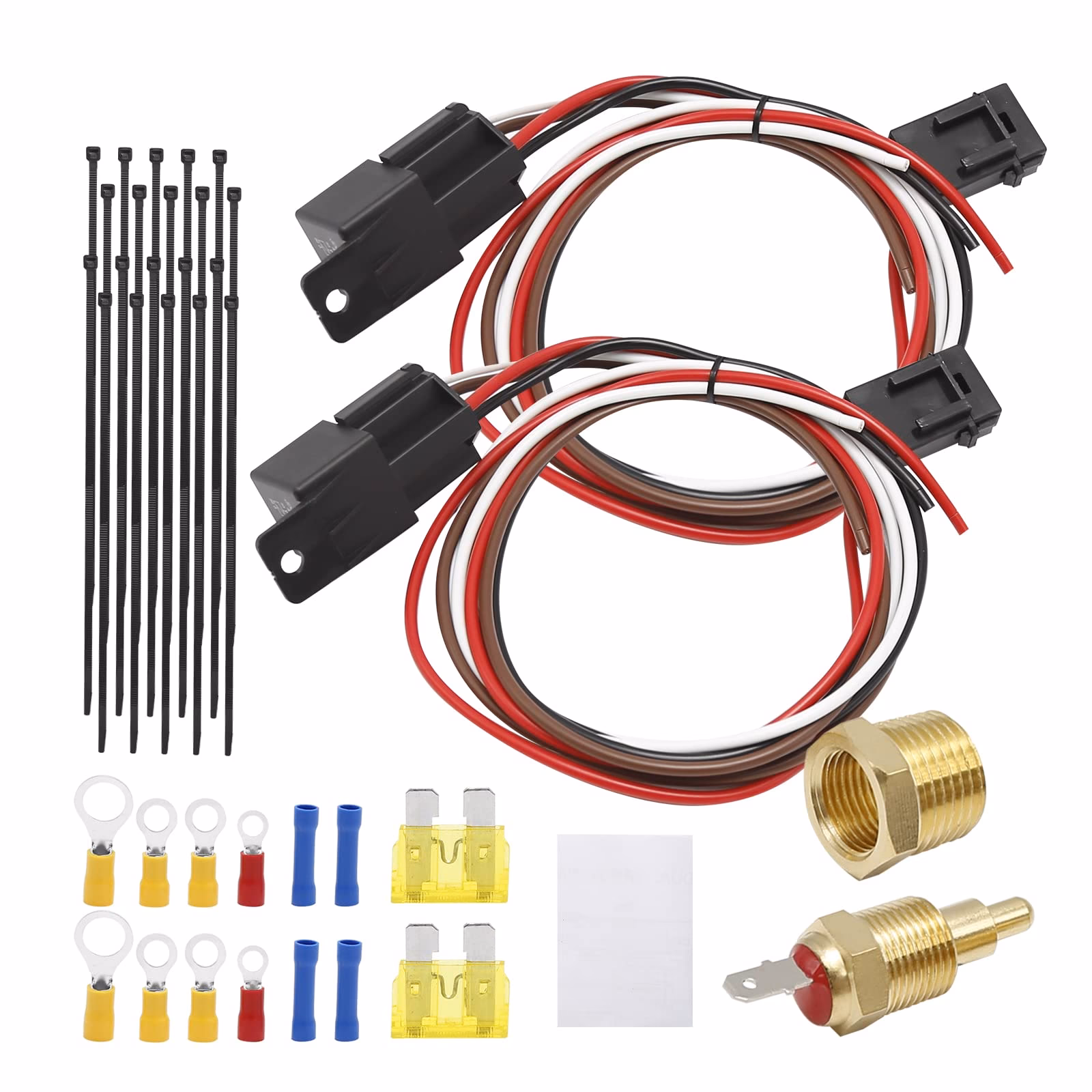

To properly wire your electric cooling fan, you’ll typically need a few key components, often bundled in a dedicated relay kit:

• Relay Kit: A quality kit (such as our part number CCFKRL) will include the necessary relay, fuse holder, and often some pre-terminated wires. This is the heart of your fan's electrical control.
• Temperature Sender: This component is crucial for automatic fan operation. It's designed to provide a ground signal to trigger the relay when the engine reaches a specific temperature (e.g., 185 degrees Fahrenheit, or approximately 85 degrees Celsius) and shut off when the temperature drops (e.g., below 165 degrees Fahrenheit, or approximately 74 degrees Celsius).
• Appropriate Fuses: Fuses are vital safety devices that protect your wiring and components from excessive current. The correct amperage fuse must be used for the fan's current draw.
• Wiring Harness & Connectors: While a good relay kit often includes a basic harness, you may need additional wiring to complete all circuits, along with proper connectors for splicing.

Step-by-Step Guide: Wiring a Single Electric Cooling Fan

Connecting a single electric cooling fan is a relatively straightforward process, provided you follow the correct steps and use the right components. This method typically relies on a separate temperature sender to switch the fan on, or you can utilise a cooling fan output if you've installed an aftermarket EFI conversion.

1. Mechanical Fan Removal & Electric Fan Installation

The first part of the installation involves preparing your radiator for the new electric fan. You will need to remove the existing mechanical fan. If your mechanical fan had a fan spacer, this can also be removed along with the fan. Once the mechanical fan is out of the way, install the new electric fan directly to your radiator. It’s highly unlikely you would have sufficient room for both types of fans, and critically, you should never run a mechanical fan alongside an electrical fan on the same side of the radiator as this can create airflow turbulence and reduce efficiency.

2. Strategic Relay Placement

Once the fan is physically mounted, the next step is to find a suitable location for the relay. This is a critical component that switches the high current to your fan. The chosen location should be away from excessive engine heat and, crucially, somewhere it won't be exposed to the elements, such as water splashing up from the road. Mounting it securely will prevent damage from vibrations.

3. Connecting the Temperature Sender

If you are using a dedicated temperature sender (which is common for standalone fan control), this component is designed to provide a ground signal to trigger the relay. In many kits, this wire is grey. It typically provides the ground signal at about 185 degrees Fahrenheit (85 degrees Celsius) and will shut back off when the temperature drops below 165 degrees Fahrenheit (74 degrees Celsius). Connect this grey wire from the relay to your temperature sender.

4. The Main Power Connections

The remaining wires on your relay are the core of the power delivery to the fan:

• The orange wire on the relay should be connected to a 12-volt ignition source. This means it should receive power only when the ignition switch is turned on.
• The yellow wire from the relay is your main power feed to the fan. This wire should be connected directly to the positive terminal of your battery. It is absolutely essential to install the supplied fuse within 12 inches (approximately 30 centimetres) of the battery connection. For vehicles with a remote battery, this yellow wire can be connected to a fused power port in the engine compartment, but it must still be fused appropriately to protect the circuit.
• The red wire from the relay connects directly to the positive terminal of the cooling fan motor.
• The black wire from the cooling fan motor connects to a good, clean chassis ground point.

Both the red and black wires for the fan will typically utilise the supplied fan harness. When making all these connections, we highly recommend using proper crimp connectors and following the detailed directions provided in your relay kit's instructions for a trouble-free and reliable installation. Poor connections are a common cause of electrical issues.

Stepping Up: Wiring Dual Electric Cooling Fans

For vehicles requiring greater cooling capacity, or for those with twin fan setups, wiring dual cooling fans introduces a couple of methods for wiring up the relay kit. The choice depends primarily on the current draw of each fan.

Method 1: Single Relay for Dual Fans (Lower Current Draw)

If your fans are smaller and each draws less than 15 amps, it may be possible to connect both fans to a single relay. In this scenario, the wiring is largely similar to the single fan setup described above, with both fan positive wires connecting to the relay's fan output (red wire) and both fan negative wires going to ground. However, it is absolutely crucial to install a proper fuse that can handle the combined current draw of both fans without exceeding its rating. If this fuse repeatedly blows, it is a clear indication that you have too much current draw on the system for a single relay setup, and you should immediately consider upgrading to a dual relay system.

Method 2: Dual Relays for Dual Fans (Higher Current Draw)

For larger fans, or if each fan draws more than 15 amps, it is strongly recommended to install a second relay kit. This provides dedicated power and protection for each fan, ensuring optimal performance and safety. In this dual-relay configuration:

• Both grey wires from each relay can be connected to the single temperature sender. This allows both fans to be triggered simultaneously by the same temperature signal.
• Similarly, both orange wires from each relay can be connected to your 12-volt ignition source.
• Each relay will then control a single fan independently.
• A separate 30-amp fuse is recommended for each relay's connection to the battery. This ensures that if one fan or its circuit experiences an issue, it will not affect the operation of the other fan.

As you can see, the circuit remains relatively simple, yet it provides robust and proper connections to control your cooling fans. Unlike the old 'switch-under-the-dash' method, this modern approach means you'll never have to worry about forgetting to turn the fans on, ensuring consistent and automatic cooling for your engine.

Troubleshooting & Maintenance Tips

Even with a meticulously wired system, occasional issues can arise. The most common problem is a blown fuse. If your fan suddenly stops working, always check the fuse first. A blown fuse indicates an overcurrent situation, meaning either the fan is drawing too much power, there's a short circuit, or the fuse rating is too low for the application. If fuses continue to blow, it's a strong sign that you may need to reconsider your setup, potentially by installing a second relay for dual fans or upgrading to a beefier alternator.

Regularly inspect your wiring for any signs of wear, chafing, or corrosion, especially at connection points. Ensure all crimp connectors remain secure. While properly installed electric fans are largely maintenance-free, a quick visual check during routine under-bonnet inspections can prevent future headaches.

Frequently Asked Questions About Electric Cooling Fans

Can I use both a mechanical and an electric fan?

No, it's generally not recommended. There's usually insufficient space for both, and running them simultaneously on the same side of the radiator can create conflicting airflow patterns, reducing the overall cooling efficiency rather than improving it. It's best to remove the mechanical fan when installing an electric one.

What temperature should my electric fan activate at?

Most aftermarket temperature senders are designed to activate the fan at around 185 degrees Fahrenheit (approximately 85 degrees Celsius) and switch off when the temperature drops below 165 degrees Fahrenheit (approximately 74 degrees Celsius). This range ensures optimal engine operating temperature.

Why do I need a relay for my electric fan?

A relay is essential because electric cooling fans draw a significant amount of current. Using a relay allows a small, low-current signal (from the temperature sender or ECU) to switch the high-current circuit that powers the fan. This protects your vehicle's sensitive dashboard switches and wiring from excessive current, preventing overheating, damage, and potential electrical fires.

Will I need to upgrade my alternator?

It's a strong possibility, especially if you're installing dual electric fans or if your vehicle already has numerous other electrical accessories. Older or stock alternators may not be designed to handle the continuous high current draw of electric fans. An insufficient alternator can lead to battery drain, dimming lights, and strain on your charging system, so it's a crucial consideration.

My fuse keeps blowing, what's wrong?

This indicates an excessive current draw on the circuit. First, ensure you are using the correct amperage fuse for your fan(s). If the fuse continues to blow, it suggests either the fan motor is faulty, there's a short circuit in the wiring, or your single relay setup is simply not sufficient for the combined current draw of your fans, necessitating the installation of a second relay for dual fan setups.

Final Thoughts on Modern Cooling Solutions

Properly wired electric cooling fans offer a significant upgrade to your vehicle's thermal management system, providing consistent, efficient cooling that is independent of engine speed. This is particularly beneficial for high-performance engines and vehicles frequently subjected to stop-and-go traffic. By understanding the essential components, adhering to correct wiring practices, and considering potential electrical system upgrades like a beefier alternator, you can ensure your engine remains cool, runs optimally, and avoids the common pitfalls associated with inadequate cooling. Investing in a well-designed electric fan system is an investment in your engine's longevity and performance.
