Wheel alignment, a cornerstone of vehicle maintenance, ensures your wheels are correctly positioned relative to the road surface and each other. This seemingly straightforward process has been revolutionised by advancements in technology, particularly with the advent of sophisticated wheel alignment software. Gone are the days of purely mechanical adjustments; today's workshops rely on digital precision to achieve optimal alignment. But what exactly is this software, and why is it so crucial for modern automotive repair?
The Evolution of Wheel Alignment
Historically, wheel alignment was a more rudimentary affair, often relying on visual checks and basic measurement tools. While effective to a degree, these methods were susceptible to human error and lacked the fine-tuning capabilities required for today's complex vehicle suspensions. The introduction of laser and camera-based alignment systems marked a significant leap forward, providing more accurate readings. However, it's the integration of powerful software that has truly transformed the discipline, turning it into a highly precise science.
What is Wheel Alignment Software?
At its core, wheel alignment software is the digital brain behind modern alignment equipment. It's a specialised computer program designed to interpret data collected from sensors attached to the vehicle's wheels and suspension. These sensors, typically cameras or lasers mounted on aiming targets, transmit precise measurements of camber, caster, toe, and other critical angles. The software then processes this information, comparing it against manufacturer-specific specifications stored within its vast database.
The primary functions of this software include:
- Data Acquisition: Receiving and processing real-time data from the alignment rack's sensors.
- Specification Database: Housing an extensive library of vehicle makes, models, and years, along with their precise alignment parameters. This is a critical component, as even slight variations in specifications can impact handling and tyre wear.
- Analysis and Calculation: Comparing the vehicle's current alignment readings against the manufacturer's recommended settings. It calculates the necessary adjustments for each angle.

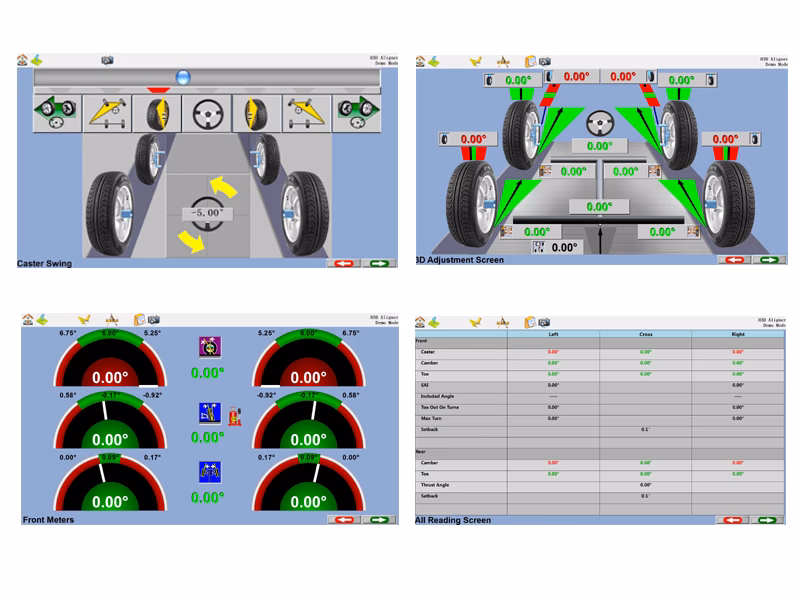

- Visualisation: Presenting the alignment data in an easily understandable format, often with 3D graphics showing the vehicle's wheel positions and the required adjustments. This visual aid is invaluable for technicians and customers alike.
- Reporting: Generating detailed reports before and after the alignment, documenting the readings and the work performed. This provides a clear record for the customer and workshop.
Key Features and Benefits
Modern wheel alignment software offers a wealth of features that contribute to its indispensability:
1. Enhanced Accuracy and Precision
The software eliminates the subjectivity inherent in older methods. By using precise sensor data and comparing it against exact manufacturer specifications, it ensures that adjustments are made with unparalleled accuracy. This leads to:
- Improved vehicle handling and stability.
- Reduced and more even tyre wear, extending tyre life.
- Better fuel efficiency, as correctly aligned wheels roll more freely.
2. Increased Efficiency
The speed at which the software processes data and presents results significantly speeds up the alignment process. Technicians can quickly identify issues and perform adjustments, allowing for higher throughput in the workshop. Features like:
- Automated measurements: The software often automates the measurement process, reducing manual input.
- Guided adjustments: Step-by-step instructions and visual cues guide the technician through the adjustment process.
- Quick database access: Rapid retrieval of vehicle specifications is crucial for efficiency.
3. Comprehensive Vehicle Database
A robust database is the backbone of any good alignment software. It needs to be regularly updated to include the latest vehicle models and their specific alignment requirements. Reputable software providers invest heavily in maintaining and expanding these databases, ensuring that workshops can service a wide range of vehicles accurately. This database typically includes:
| Vehicle Component | Key Alignment Angles | Importance |
|---|---|---|
| Front Axle | Camber, Caster, Toe, included angle, SAI (Steering Axis Inclination) | Crucial for steering, stability, and tyre wear. |
| Rear Axle | Camber, Toe | Affects stability, tracking, and tyre wear. |
4. Advanced Diagnostics
Beyond simply measuring angles, some software can help diagnose underlying suspension issues. By analysing the readings and comparing them to expected tolerances, the software can flag potential problems such as:
- Bent suspension components.
- Worn bushings or ball joints.
- Damaged steering racks.
This diagnostic capability adds significant value, allowing workshops to offer more comprehensive vehicle assessments.
5. User-Friendly Interface
While the underlying technology is complex, good alignment software boasts an intuitive and user-friendly interface. This makes it easier for technicians to learn and operate, reducing training time and minimising the chance of errors. Clear graphics, logical workflows, and easily accessible information are hallmarks of effective software design.
How it Works: The Process
The typical wheel alignment process using modern software involves several key steps:
- Vehicle Preparation: The vehicle is driven onto a level alignment rack. Tyres are inflated to the correct pressure, and any relevant suspension components are checked for damage or wear.
- Sensor Attachment: Targets are securely attached to each wheel. These targets are designed to be easily read by the system's cameras or lasers.
- Data Acquisition: The alignment system's cameras or lasers scan the targets. The software processes this data to determine the precise position of each wheel and its angles relative to the vehicle.
- Specification Retrieval: The technician enters the vehicle's make, model, and year into the software. The system instantly retrieves the manufacturer's original alignment specifications from its database.
- Comparison and Adjustment: The software displays the current alignment readings alongside the target specifications. It highlights any deviations and provides instructions on how to adjust the relevant components (e.g., tie rods, camber bolts) to bring the vehicle within the correct tolerances.
- Re-measurement and Reporting: Once adjustments are made, the sensors re-measure the wheel positions. The software confirms that the alignment is now within specification and generates a detailed report for the customer, showing the before and after readings.
Choosing the Right Software
For workshops, selecting the right wheel alignment software is a crucial business decision. Factors to consider include:
- Database Accuracy and Updates: Ensure the database is comprehensive and regularly updated.
- System Compatibility: Does it work with your existing alignment rack hardware?
- User Interface and Ease of Use: A steep learning curve can hinder productivity.
- Diagnostic Capabilities: Does it offer more than just basic alignment readings?
- Manufacturer Support and Training: Good after-sales support is vital.
- Cost: Consider the initial investment and ongoing subscription or update fees.
Common Alignment Terminology Explained
Understanding the terminology is key to appreciating what the software does:
- Camber: The inward or outward tilt of the top of the tyre when viewed from the front. Positive camber means the top tilts out, negative means it tilts in.
- Caster: The angle of the steering axis relative to a vertical line when viewed from the side. It affects steering stability.
- Toe: The angle of the tyre relative to the vehicle's longitudinal axis when viewed from above. Toe-in means the front of the tyres point towards each other; toe-out means they point away.
- Toe-in-out: The sum of the toe angles on both sides of an axle.
- Included Angle: The sum of the camber and SAI angles.
- SAI (Steering Axis Inclination): The angle of the upper pivot point of the steering knuckle relative to vertical when viewed from the front.
Frequently Asked Questions
What are the signs of poor wheel alignment?
Common signs include uneven tyre wear (e.g., wear on the inside or outside edges), the vehicle pulling to one side, a crooked steering wheel when driving straight, and a general feeling of instability or vagueness in the steering.
How often should wheel alignment be checked?
It's generally recommended to have wheel alignment checked annually, or whenever new tyres are fitted, after hitting a significant pothole, or if you notice any of the symptoms of poor alignment.
Can wheel alignment software correct all suspension problems?
No, the software measures and guides adjustments for alignment angles. It can help diagnose potential issues with bent components or worn parts, but it does not physically repair or replace them. Any worn or damaged suspension components must be replaced by a qualified technician.
Is wheel alignment software expensive?
The cost varies depending on the manufacturer and the features offered. Professional systems can be a significant investment, but they pay for themselves through increased efficiency, accuracy, and customer satisfaction. Many systems also come with ongoing support and database update fees.
Conclusion
Wheel alignment software is no longer a luxury but a necessity for modern automotive workshops. It provides the precision, efficiency, and diagnostic capabilities required to meet the demands of today's vehicles and discerning customers. By leveraging this technology, workshops can ensure optimal vehicle performance, enhance safety, and reduce costly tyre wear for their clients, solidifying their reputation for quality service. The investment in reliable alignment software is an investment in the future of automotive repair.
