Understanding Automatic Transmissions

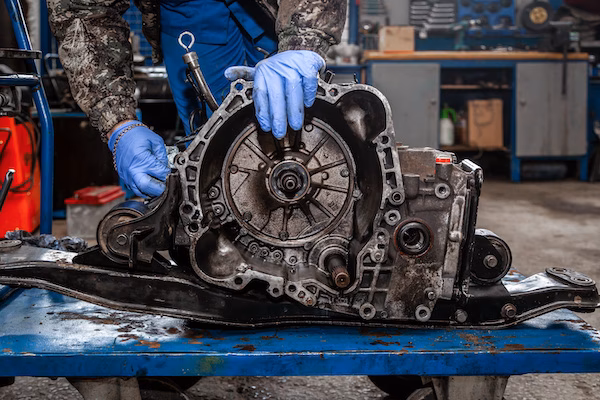

The Magic Behind the Gears: How Automatic Transmissions Work

The automatic transmission is one of the marvels of modern automotive engineering, taking the drudgery out of driving by shifting gears for you. No more wrestling with a clutch pedal or remembering to downshift on a hill. But how does this seemingly magical device actually operate? Understanding the basics can not only satisfy your curiosity but also help you appreciate the complexity involved when it's time for a repair.

The Core Components: A Symphony of Parts

At its heart, an automatic transmission is a complex hydraulic and mechanical system designed to change gear ratios automatically, allowing the engine to operate within its optimal speed range for different driving conditions. The key players in this intricate dance are:

• Torque Converter: This is the automatic transmission's answer to a clutch. Instead of a direct mechanical link, it uses fluid to transfer power from the engine to the transmission. It consists of a pump, a turbine, and a stator, all housed within a sealed fluid-filled case. The engine drives the pump, which flings fluid against the turbine, causing it to spin and thus engage the transmission. The torque converter also multiplies torque at lower speeds, giving your vehicle that initial 'oomph' when pulling away from a standstill.
• epicyclic Gearsets (Planetary Gears): Unlike manual transmissions that use parallel shafts with meshing gears, automatic transmissions typically employ epicyclic gearsets. These are compact and efficient, allowing for multiple gear ratios within a small space. Each epicyclic gearset consists of a sun gear (in the centre), planet gears (orbiting the sun gear), a planet carrier (holding the planet gears), and a ring gear (an outer ring with internal teeth). By holding or driving different combinations of these components, various gear ratios can be achieved.
• Hydraulic System: This is the brain and the muscle of the automatic transmission. A complex network of fluid passages, valves, and solenoids controls the engagement and disengagement of the gearsets. Transmission fluid, under pressure, is directed to engage clutches and brake bands that hold or release specific parts of the epicyclic gearsets, thereby selecting the desired gear.
• Clutches and Bands: These are the actuators that make the hydraulic system's commands a reality. Clutches are typically multi-plate discs that connect rotating shafts, while bands are flexible metal straps that wrap around rotating drums to stop them from turning. When hydraulic pressure is applied, clutches engage, locking components together, and bands tighten, braking specific parts of the gearsets to facilitate gear changes.
• Valve Body: Often referred to as the 'brain' of the transmission, the valve body is a maze of precisely machined channels and valves. It directs the flow of hydraulic fluid based on inputs from sensors and the transmission control unit (TCU).
• Transmission Control Unit (TCU): This is the electronic brain. Modern automatic transmissions rely heavily on a TCU that monitors various parameters such as engine speed, vehicle speed, throttle position, and load. Based on this data, the TCU signals the solenoids in the valve body to direct hydraulic fluid, orchestrating smooth and timely gear changes.

The Shifting Process: A Fluid Partnership

So, how do all these parts work together? Let's take a simplified look at a typical gear change:

1. Starting Off (First Gear): When you select 'D' (Drive) and press the accelerator, the engine spins the pump in the torque converter. The fluid transfers power to the turbine, which turns the input shaft of the transmission. The TCU, sensing low vehicle speed and high engine RPM, directs hydraulic pressure to engage specific clutches and bands that lock certain parts of the epicyclic gearsets, resulting in a low gear ratio.
2. Upshifting (e.g., to Second Gear): As your vehicle speed increases and engine RPM rises, the TCU detects these changes. It then signals the solenoids to gradually release the clutches/bands holding first gear and simultaneously engage those required for second gear. The torque converter continues to efficiently transfer power, and the epicyclic gearsets reconfigure to provide a higher gear ratio.
3. Cruising (Higher Gears): This process repeats for each subsequent gear. The transmission aims to keep the engine in its most efficient RPM range for the current speed and load.
4. Downshifting: When you slow down or need more power (e.g., for acceleration or climbing a hill), the TCU senses the change in conditions and reverses the process, engaging lower gear ratios for increased torque and engine braking.

Why Use BookMyGarage for Automatic Gearbox Repairs?

While automatic transmissions are marvels of engineering, they are complex and can, like any mechanical component, develop faults. When your automatic gearbox isn't shifting smoothly, is making unusual noises, or has lost its 'oomph', it's time to seek professional help. This is where BookMyGarage comes in, offering a seamless and cost-effective way to get your vehicle back in top condition.

Save Money, Drive Smarter

We've already helped over 22 million drivers compare prices and save on their MOTs, servicing, and repairs. When it comes to automatic gearbox repairs, the savings can be significant. By comparing local garages through our online platform, you can potentially save up to 70% on the cost of labour. We believe in putting you in control of your car maintenance budget.

Your Automatic Gearbox Repair Journey with BookMyGarage:

• Effortless 3-Step Booking: Say goodbye to lengthy forms and complicated processes. Our booking system is designed for simplicity. You provide your vehicle's registration and postcode, choose the best deal from the available garages, and select a convenient date and time for your appointment. It's that easy!
• Unrivalled Choice: We partner with thousands of garages across the UK, from fast-fit centres to independent specialists and franchised dealerships. This extensive network ensures you have a wide array of options to choose from. You can compare them based on price, distance, customer reviews, and availability, empowering you to make the most informed decision.
• Transparent Reviews and Ratings: Trust is paramount when choosing a garage. We provide unfiltered and unedited customer reviews and ratings for every garage on our platform. This transparency allows you to see what other drivers have experienced, helping you select a reputable and skilled mechanic for your automatic gearbox repair.
• No Upfront Payment, No Hidden Fees: We believe in a straightforward and honest approach. You will never be asked for payment details when booking through BookMyGarage. We do not charge any fees for using our service. You always pay the garage directly after the work has been completed and you are satisfied with the service.

Booking a Visual Inspection: The First Step to Resolution

The initial step in diagnosing and repairing an automatic gearbox issue is often a visual inspection. This allows a qualified mechanic to assess the situation, identify potential problems, and provide an accurate quote. Here's how you can book one with ease:

1. Enter Your Details: Simply input your vehicle's registration number and your postcode into our online tool.
2. Compare Deals: Browse the results, which will show you a list of automatic gearbox specialists near you. You can sort these garages by price, distance, customer reviews, or their availability to find the perfect fit for your needs.
3. Select Your Appointment: Once you've chosen a garage, pick a date and time that suits your schedule for the visual inspection.

After booking, you'll receive a confirmation email detailing your appointment. The chosen garage will also be informed and may contact you for further confirmation or specific details about your gearbox issue. Remember, you can always change or cancel your booking free of charge up to the day of your appointment. The most crucial aspect is that you only pay for the work done, directly to the garage, after it has been completed.

Common Automatic Gearbox Problems

While modern automatic transmissions are robust, they can succumb to wear and tear or develop specific issues. Some common problems include:

• Slipping Gears: This is when the transmission fails to engage a gear properly, leading to a loss of power or the engine revving without the vehicle accelerating. This can be due to low transmission fluid, worn clutches, or hydraulic issues.
• Delayed or Harsh Shifting: If your car hesitates before shifting gears or shifts with a jolt, it could indicate problems with the valve body, solenoids, or the transmission fluid level and condition.
• Leaking Transmission Fluid: Transmission fluid is vital for lubrication, cooling, and hydraulic operation. Leaks can lead to a variety of problems, including overheating and shifting issues.
• Overheating: A transmission that overheats can suffer severe damage. This can be caused by low fluid levels, a faulty cooler, or excessive strain.
• Strange Noises: Whining, clunking, or grinding noises can point to internal wear or damage within the transmission, such as worn bearings or damaged gears.

Maintaining Your Automatic Transmission

Regular maintenance is key to prolonging the life of your automatic gearbox and preventing costly repairs. Here are some essential maintenance tips:

• Check Transmission Fluid Regularly: Consult your vehicle's owner's manual for the correct procedure. Ensure the fluid is at the correct level and condition. If it appears dark, burnt, or has a strong odour, it's time for a fluid change.
• Transmission Fluid Changes: Follow your manufacturer's recommended service intervals for transmission fluid and filter changes. This is one of the most crucial maintenance tasks.
• Avoid Aggressive Driving: Hard acceleration and braking can put extra strain on the transmission. Smooth driving habits will help preserve its lifespan.
• Don't Tow Beyond Capacity: Overloading your vehicle or exceeding its towing capacity can significantly stress the transmission.
• Address Issues Promptly: If you notice any unusual behaviour from your automatic gearbox, don't delay. Get it checked by a qualified mechanic as soon as possible to prevent minor issues from escalating into major, expensive repairs.

Frequently Asked Questions about Automatic Gearbox Repairs

Q1: How much does an automatic gearbox repair typically cost?
The cost can vary significantly depending on the nature of the problem, the make and model of your vehicle, and the garage you choose. Simple issues like a fluid change might cost around £80-£150, while a full rebuild or replacement could range from £1,500 to £4,000 or more. Comparing prices through BookMyGarage is the best way to get an accurate estimate.

Q2: How long does an automatic gearbox repair take?
Again, this depends on the complexity. A fluid and filter change might take a couple of hours. Diagnosing a fault could take half a day, and a significant repair or rebuild could take several days to a week or more.

Q3: Can I drive my car with a faulty automatic gearbox?
It's generally not recommended. Driving with a compromised automatic gearbox can lead to further damage, turning a potentially repairable issue into a complete replacement. If you notice any problems, it's best to stop driving and seek professional advice.

Q4: What is the difference between an automatic and a manual gearbox?
The primary difference is that an automatic transmission shifts gears automatically using hydraulic pressure and electronic controls, eliminating the need for a clutch pedal operated by the driver. A manual transmission requires the driver to manually select gears using a gear stick and operate a clutch pedal.

Q5: How can I find a reliable automatic gearbox specialist near me?
BookMyGarage is your ideal solution. Our platform allows you to compare prices, read genuine customer reviews, and book with trusted garages that specialise in automatic transmission repairs in your local area.

Conclusion

The automatic transmission is a sophisticated piece of automotive technology that enhances driving comfort and efficiency. By understanding its basic principles and the importance of regular maintenance, you can help ensure its longevity. When the inevitable need for repair arises, BookMyGarage provides an unparalleled service to connect you with trusted, affordable specialists, saving you time and money while getting you back on the road with confidence.
