Understanding Hydraulic Tilt Trailers
Hydraulic tilt trailers are an indispensable piece of equipment for anyone needing to transport heavy machinery, vehicles, or other substantial loads. Their ingenious design simplifies the often-arduous task of loading and unloading, making them a favourite in industries ranging from construction and agriculture to motorsport and general haulage. At their core, these trailers utilise the power of hydraulics to achieve their tilting action, providing a smooth, controlled, and safe transition for your cargo.

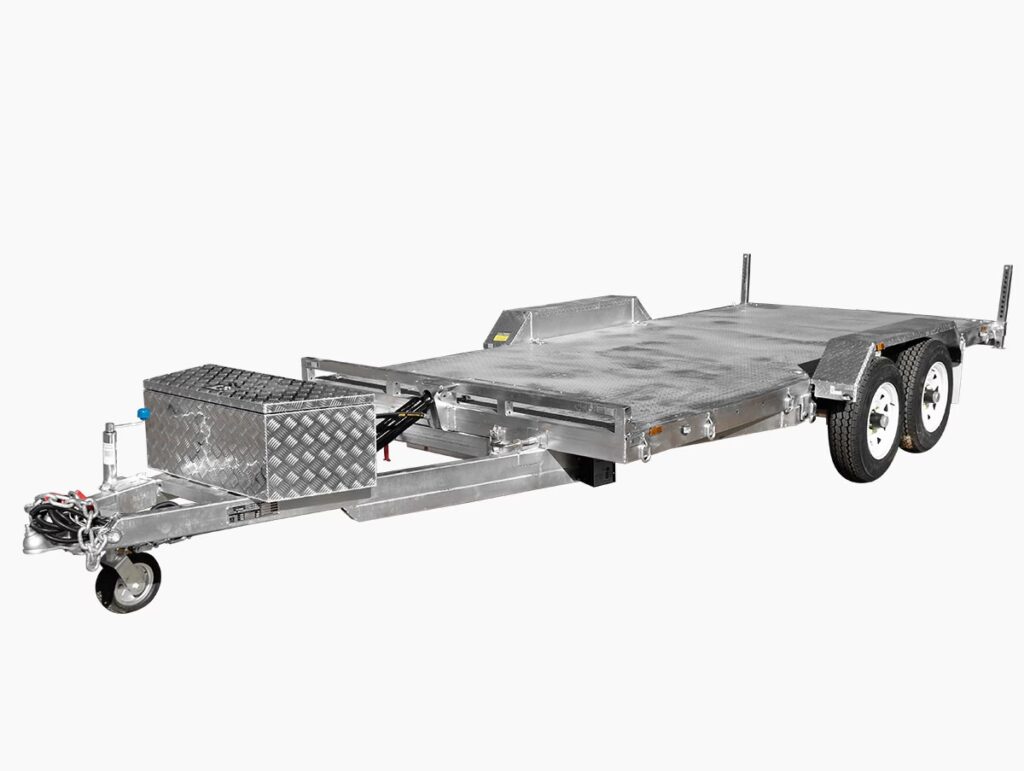

The Mechanics of a Tilt Trailer
The primary function of a hydraulic tilt trailer is to lower its bed to the ground, allowing for easy drive-on or roll-on access for equipment. Once the cargo is secured, the trailer bed is then hydraulically raised back to a road-legal travelling height. This process is managed by a sophisticated yet robust hydraulic system. Let's delve into the key components that make this magic happen:
Key Hydraulic Components
The heart of any hydraulic tilt trailer lies in its hydraulic system. While specific configurations can vary between manufacturers and models, the fundamental components remain consistent. These are the workhorses that transform fluid pressure into mechanical force:
1. Hydraulic Cylinder(s):
This is arguably the most crucial component. Hydraulic tilt trailers typically employ one or more hydraulic cylinders, often referred to as 'rams'. These cylinders contain a piston that moves within a barrel. When hydraulic fluid is pumped into one side of the cylinder, it exerts pressure on the piston, forcing it to extend or retract. For tilt trailers, these cylinders are strategically positioned to lift and tilt the trailer bed. Felling's Deck-Over Hydraulic Tilt Trailers, for instance, utilise a 'self-actuating hydraulic cushion cylinder' which is designed for a smooth and controlled tilt. For trailers like the Flatbed 'Tiltbed' models, a 'hydraulic scissor tipping ram' is commonly used, which provides a strong lifting action through its articulated structure.
2. Hydraulic Pump:
The pump is responsible for drawing hydraulic fluid from the reservoir and pressurising it, sending it through the system to the cylinders. This can be powered in several ways. Many smaller or manually operated tilt trailers use a manual hydraulic hand pump, complete with a handle that the operator pumps to build pressure. For more automated systems, a 12-volt hydraulic powerpack is often employed. This unit typically includes an electric motor, a pump, and a reservoir, providing a convenient and powerful way to operate the hydraulics. The size and type of pump will depend on the lifting capacity and the speed required for the tilt operation.
3. Hydraulic Fluid Reservoir:
This tank stores the hydraulic fluid. The fluid is essential not only for transmitting power but also for lubricating and cooling the system's components. The quality and level of the hydraulic fluid are critical for the system's performance and longevity. It's important to use the correct type of hydraulic fluid recommended by the manufacturer, as different fluids have different viscosity and additive properties.
4. Hydraulic Hoses and Fittings:
These are the conduits that carry the pressurised hydraulic fluid from the pump to the cylinders and back to the reservoir. They must be robust enough to withstand high pressures and are fitted with secure connectors to prevent leaks. The choice of hoses and fittings is vital for the overall safety and reliability of the system.
5. Control Valve(s):
Control valves regulate the flow of hydraulic fluid to the cylinders. They allow the operator to control the direction and speed of the cylinder's movement, enabling the precise tilting and lowering of the trailer bed. Some systems might have a single control valve, while more complex setups may incorporate multiple valves for finer control.
How the Tilt Action Works
The process of tilting a trailer bed is a sequence of hydraulic operations:
- Preparation: Before initiating the tilt, ensure the trailer is parked on a level surface and the parking brake is firmly applied. Check that the load is secured and that there are no obstructions around the trailer.
- Initiating the Tilt: The operator activates the hydraulic pump, either manually by pumping the handle or by engaging the electric powerpack.
- Lowering the Bed: The pump forces hydraulic fluid into the base of the hydraulic cylinder(s). This pressure pushes the piston upwards (or outwards, depending on the cylinder orientation), which, through a linkage system, causes the trailer bed to pivot downwards at the rear. The 'self-actuating hydraulic cushion cylinder' mentioned by Felling likely incorporates features that manage the descent speed, preventing a sudden drop.
- Loading: Once the trailer bed is at ground level, equipment can be safely driven or winched onto the trailer deck.
- Raising the Bed: After the cargo is secured, the control valve is operated to reverse the flow of hydraulic fluid. The fluid is directed to the opposite side of the piston (or a different port in the cylinder), forcing the piston back and consequently lifting the trailer bed. The '2-stage or 3-stage hydraulic pot rams' indicate cylinders that extend in multiple phases, providing a greater lifting range and often a more compact retracted size, which is beneficial for trailer design.
- Securing for Travel: Once the trailer bed is back in its travelling position, it is typically locked in place with mechanical pins or latches to ensure it remains secure during transit.
Advantages of Hydraulic Tilt Trailers
The widespread adoption of hydraulic tilt trailers is due to the significant benefits they offer:
- Ease of Loading/Unloading: This is the primary advantage. Eliminates the need for cumbersome ramps, especially for heavy or low-clearance vehicles.
- Safety: The controlled hydraulic action minimises the risk of accidents during loading and unloading compared to manual ramp systems. The ability to drive directly onto the deck also reduces strain and potential injury.
- Versatility: Suitable for a wide array of equipment, from cars and ATVs to construction machinery and agricultural implements.
- Efficiency: Significantly reduces the time and effort required to load and unload, improving operational efficiency.
- Durability: Built for 'rugged equipment', these trailers are typically constructed with heavy-duty materials to withstand demanding use.
Choosing the Right Hydraulic Tilt Trailer
When selecting a hydraulic tilt trailer, several factors should be considered:
- Load Capacity: As mentioned, tandem and triple axle models are available, offering different weight capacities. It is crucial to match the trailer's capacity to the weight of the equipment you intend to haul.
- Bed Size and Type: Deck-over designs, like those from Felling, offer maximum deck space. The length and width of the bed should accommodate your typical loads.
- Hydraulic System: Consider whether a manual or electric hydraulic system best suits your needs. Electric systems offer greater convenience, especially for frequent use.
- Build Quality: Look for robust construction, quality welds, and reliable hydraulic components.
Maintenance and Troubleshooting
Like any hydraulic system, tilt trailers require regular maintenance to ensure optimal performance and longevity. The information provided suggests that issues are generally simple to find and repair, which is a significant advantage.
Routine Maintenance Checks:
- Hydraulic Fluid Level: Regularly check the fluid level in the reservoir and top up as needed with the manufacturer's recommended fluid.
- Fluid Condition: Over time, hydraulic fluid can degrade. Look for discolouration or contamination. A full fluid change may be necessary periodically.
- Hoses and Fittings: Inspect for any signs of wear, cracking, or leaks. Promptly replace any damaged components.
- Cylinder Seals: Check the hydraulic cylinders for leaks around the piston rod seals.
- Lubrication: Ensure that pivot points and moving parts of the tilting mechanism are properly lubricated.
- Power Source: If using a 12-volt powerpack, ensure the battery is charged and the electrical connections are clean and secure.
Common Issues and Solutions:
While the systems are designed to be simple, potential issues can arise:
- Slow Tilting/Lifting: This can be caused by low hydraulic fluid, air in the system, a weak pump, or a restriction in the lines. Check fluid levels, bleed the system if necessary, and inspect the pump and lines.
- Leaking Cylinders: Worn seals are the most common cause. Replacing the seals on the hydraulic ram is usually a straightforward repair.
- Pump Malfunction: If the pump is not building pressure, it may be worn out or have internal damage.
- Control Valve Issues: If the bed won't tilt or lower, the control valve might be stuck or faulty.
The availability of spare parts for all the aforementioned components is a crucial factor for minimising downtime. Having readily available parts for hydraulic pot rams, pumps, and seals ensures that any necessary repairs can be carried out efficiently.
Conclusion
Hydraulic tilt trailers represent a smart and efficient solution for transporting heavy equipment. By understanding the fundamental hydraulic principles and the key components involved – from the powerful hydraulic cylinders and pumps to the essential fluid reservoir and control valves – operators can better appreciate the engineering behind these versatile trailers. Whether you're using a manual hand pump or a 12-volt powerpack, the ease and safety provided by a well-maintained hydraulic tilt trailer are undeniable. Regular maintenance and prompt attention to any issues will ensure your trailer remains a reliable workhorse for years to come.
Frequently Asked Questions (FAQs)
- What is the primary function of a hydraulic tilt trailer?
- Its primary function is to provide a low-angle entry point for loading and unloading heavy equipment by tilting its bed to ground level.
- What powers the hydraulic system on most tilt trailers?
- Most tilt trailers are powered by either a manual hydraulic hand pump or an electric 12-volt hydraulic powerpack.
- What are the main components of a hydraulic tilt trailer system?
- The main components include hydraulic cylinders (rams), a hydraulic pump, a fluid reservoir, hydraulic hoses, and control valves.
- How often should I check my hydraulic fluid?
- It is recommended to check the hydraulic fluid level regularly, ideally before each use, and to inspect the fluid condition periodically.
- Can I use any hydraulic fluid in my trailer?
- No, it is important to use the specific type of hydraulic fluid recommended by the trailer manufacturer to ensure proper operation and prevent damage.
- What causes a tilt trailer to lift slowly?
- Slow lifting can be caused by low fluid levels, air in the system, a worn pump, or blockages in the hydraulic lines.
