The oil sump, often overlooked, plays a crucial role in your vehicle's engine health. Also known as the oil pan, this metal reservoir collects and stores the engine oil, ensuring it's readily available to lubricate vital moving parts and dissipate heat. Without a functional oil sump, your engine's very lifeblood is at risk. Unfortunately, over time, this critical component can suffer damage, leading to leaks and potentially severe engine problems. Understanding the signs of a failing oil sump and knowing what to expect from repairs can save you significant hassle and expense down the line.

What Exactly is an Oil Sump Pan?

At its core, an oil sump pan is more than just a bucket for oil. It's a precisely engineered component, typically made of metal, that sits at the very bottom of your engine. Its primary function is to collect and hold the engine oil when the engine isn't running, allowing gravity to draw oil down from the cylinder head and other engine components. When the engine is running, the oil pump draws oil from the sump and circulates it throughout the engine, providing essential lubrication to reduce friction and wear between moving parts. The sump also plays a vital role in cooling the oil and helps to keep the engine clean by allowing any debris or contaminants to settle at the bottom, away from the oil pump's pickup.

Crucially, the oil sump pan features a drain plug at its lowest point, designed for easy and efficient oil changes. Over the years, however, this pan can become damaged, corroded, or suffer from impacts, which can compromise its integrity and lead to leaks. Given its low-slung position, it's particularly vulnerable to road debris, speed bumps, or even rough terrain.

Spotting the Signs of a Faulty Oil Sump

Recognising the early indicators of a compromised oil sump is paramount to preventing more extensive and costly engine damage. Here are the common signs that your oil sump might be failing:

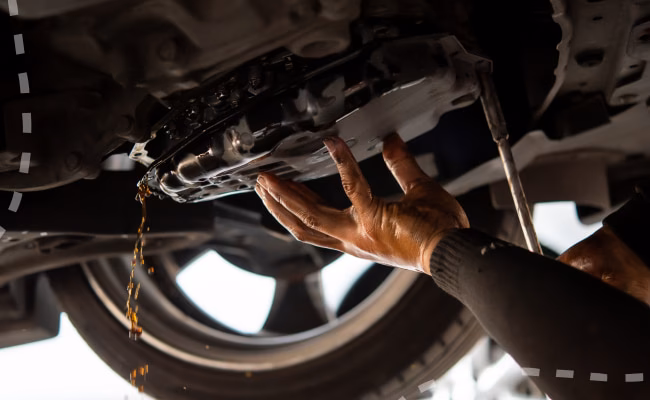

• Oil Puddles Under Your Vehicle: This is arguably the most obvious sign. If you notice dark brown or yellowish oily spots, particularly with a rainbow sheen when wet, forming puddles or leaving stains beneath your car when it's parked, an oil leak is almost certainly the culprit. The oil sump is a common source for such leaks.
• Low Engine Oil Level: If you find yourself topping up your engine oil more frequently than usual, or if a regular dipstick check reveals a significant drop in oil levels without any apparent consumption, it's a strong indicator of a leak, potentially from the sump.
• Engine Overheating: A damaged or leaking oil sump reduces the volume of oil available for circulation. Less oil means less lubrication and increased friction within the engine, which can lead to it overheating. Your temperature gauge may rise into the red, and you might notice a burning smell.
• Strange Smell from Engine: If you detect a burning oil smell, especially after driving, it's likely that oil is leaking from the sump onto hot engine components or the exhaust system, causing it to burn off.
• Dashboard Warning Lights: The illumination of your oil pressure indicator warning light or the 'check engine' light on your dashboard could signal that your oil sump is malfunctioning, perhaps due to critically low oil pressure caused by a leak.
• Unusual Engine Noises: If the oil sump isn't providing adequate lubrication to moving parts, you may start to hear concerning engine sounds, such as knocking or ticking. These noises are a sign of excessive friction within the engine, indicating a severe lack of lubrication.
• Oil-Coated Undercarriage: A visual inspection of your vehicle's underside might reveal a build-up of oil, indicating a leak from a compromised oil sump or another component.

Common Causes of Oil Sump Damage

Several factors can lead to problems with your oil sump, ranging from general wear and tear to specific driving conditions. Knowing these causes can help you prevent future issues:

• Damage During Driving: Given its exposed position, the oil sump is susceptible to impact. Road debris, potholes, high speed bumps, or even off-road driving can cause dents, cracks, or holes in the pan, leading to leaks.
• Corrosion: Prolonged exposure to moisture, road salt, or other corrosive substances can gradually weaken the metal of the oil sump, leading to rust and eventual leaks.
• Wear and Tear: Although designed for durability, the oil sump is still subject to the engine's constant heating and cooling cycles. Over many years, this can cause the metal to fatigue and warp, leading to leaks, particularly around the gasket seal.
• Improper Maintenance or Parts Fitting: Faulty or poor maintenance practices are a significant cause of oil sump issues. If the oil drain plug isn't tightened correctly during an oil change, an insufficient sealer is used, or the sealer isn't applied correctly, oil can easily escape.
• Contaminated Contact Surface: If the surface where the oil sump meets the engine block is not thoroughly cleaned before reinstallation – meaning dirt, debris, or old sealant residue remains – it can prevent a secure seal from forming, resulting in leaks.
• Worn Oil Pan Gasket: The gasket provides a seal between the oil pan and the engine block. Over time, this gasket can harden, crack, or become brittle, losing its ability to create a secure seal and allowing oil to seep through.
• Stripped Oil Pan Threads: The threads on the oil pan where the drain plug screws in can become stripped, often from overtightening. If the threads are damaged, the drain plug cannot create a secure seal, leading to persistent leaks.

How Much Does an Oil Sump Pan Replacement Cost in the UK?

The replacement cost of an oil sump pan in the UK can vary, but generally, you can expect the average expense to be around £200. Prices typically range from £130 to £300. Several factors influence the exact price you'll pay:

• Your Car's Make and Model: Different vehicles have varying designs and access points, which can affect labour time. The cost of the replacement part itself also varies significantly between manufacturers.
• Parts Recommended by the Manufacturer: Genuine manufacturer parts tend to be more expensive than aftermarket alternatives, though they often come with better warranties.
• Your Location: Labour rates fluctuate across the UK. For example, average hourly labour rates and demand in major cities like London can be significantly higher (£50-£100 per hour) compared to smaller towns (£35-£50 per hour).
• Type of Mechanic: A dealership garage technician might charge more than an independent garage or a mobile mechanic.

Average Cost of an Oil Sump Replacement by Location

Average Cost of an Oil Sump Replacement by Manufacturer

General Oil Leak Repair Costs in the UK

While the oil sump is a common source of leaks, it's important to remember that other components can also cause oil leaks, and their repair costs will differ. General oil leaks can range from £75 to over £500, depending on the source. Ignoring any leak can lead to severe engine damage.

Estimated Oil Leak Repair Prices by Car Make (General)

Note: These are estimated costs and may vary based on specific car models and repair complexity.

What Happens During an Oil Sump Pan Replacement?

When you take your car in for an oil sump pan replacement, you can typically expect the following steps:

1. The mechanic will first safely raise the vehicle to gain access to the underside.
2. The engine oil will be completely drained from the existing sump.
3. Any components obstructing access to the sump, such as exhaust pipes or subframes, will be carefully detached or moved.
4. The old, faulty oil sump pan will be unbolted and removed from the engine block.
5. The bottom surface of the engine block will be thoroughly cleaned to remove any old gasket material, sealant residue, dirt, or debris, ensuring a perfect seal for the new pan.
6. A new sump pan will be positioned, often with a new gasket or sealant applied to create a watertight seal, and then securely bolted into place.
7. Any previously removed components will be reattached.
8. Fresh engine oil will be replenished to the correct level, and a new oil filter will typically be fitted as part of the service.
9. Finally, the mechanic will run the engine for a period and visually inspect the new sump and surrounding areas to ensure there are no leaks and that the oil pressure is normal.

Can You Drive with a Leaking Oil Sump?

It is strongly advised not to drive with a leaking oil sump, especially if the leak is significant. While a very minor seep might allow you to drive a short distance to a garage, any substantial leak poses serious risks. Losing oil means reduced lubrication for your engine's internal components, leading to increased friction, excessive heat, and ultimately, severe engine damage or even complete engine failure. Furthermore, leaking oil on the road surface can create a hazardous slippery patch for other drivers, and if oil drips onto hot exhaust components, there's a risk of fire. Always get a leak inspected and fixed by a professional mechanic as soon as possible.

Can You Fix a Cracked Oil Sump Pan?

In some cases, a very small crack in an oil sump pan can be temporarily patched using a suitable sealant. However, it's crucial to understand that this is almost always a short-term, temporary fix. The sealant may not withstand the engine's heat, vibrations, or oil pressure for long. For a durable and reliable solution, replacing the oil pan is the safest and most cost-effective long-term option. Attempting to patch a crack can give a false sense of security, potentially leading to a more severe leak and greater engine damage if the temporary fix fails.

How Long Does an Oil Sump Pan Replacement Take?

The time required for an oil sump pan replacement can vary depending on the specific make and model of your vehicle, as well as the mechanic's experience. Generally, the process can take anywhere from 1 to 2 hours. This accounts for draining the oil, removing the old sump, cleaning the mating surfaces, fitting the new sump, and replenishing the oil. For some vehicles, particularly those with complex layouts or where other components need to be moved for access, it might take a bit longer.

Can I Carry Out an Oil Sump Pan Replacement Myself?

Unless you are a qualified and experienced mechanic with the appropriate tools and equipment, it is strongly recommended that you do not attempt an oil sump pan replacement yourself. Accessing, removing, and correctly reinstalling a new sump pan is a significantly challenging task. It requires specific knowledge of torque settings, sealant application, and the ability to safely work under a vehicle. Incorrect installation can lead to immediate leaks or even worse, long-term engine damage due to improper sealing or insufficient oil. Always trust such repairs to a professional.

Other Potential Causes of Oil Leaks (If Not the Sump)

If you're experiencing oil leak issues and the oil sump pan isn't the culprit, there are several other common sources that a mechanic will investigate:

• Oil Filter Issues: A loose or improperly installed oil filter, or a faulty filter itself, can cause oil to leak. Overtightening can damage the seal, while undertightening leaves it loose.
• Valve Cover Gasket: This gasket seals the valve cover to the cylinder head. Over time, it can become brittle, crack, or warp due to heat, leading to oil seeping out.
• Rear Main Seal: This crucial seal is located at the back of the engine, where the crankshaft exits to connect to the transmission. A leaking rear main seal is a common but often expensive repair due to the labour involved in accessing it.
• Oil Pump Problems: If the oil pump itself fails or develops a fault, it can sometimes lead to increased oil pressure in certain areas, potentially pushing oil past existing seals and gaskets. A deteriorated pump seal can also cause leaks.
• Low Coolant: While not an oil leak, if you notice engine overheating but no oil leaks, it could be that the coolant level needs topping up, as overheating can sometimes be mistaken for an oil-related issue if a burning smell is present.
• Damaged Seals (Crankshaft/Camshaft): Seals around the crankshaft or camshaft can degrade over time, leading to leaks.
• Faulty Drain Plug or Washer: Even if the sump pan is fine, a worn-out drain plug washer or damaged drain plug threads can cause a persistent drip after an oil change.

Frequently Asked Questions About Oil Sump Pan Replacement

How serious is an oil pan leak?

The seriousness depends on the size and rate of the leak. A small, slow drip might not seem alarming, but it still means your engine oil level is gradually dropping. If enough oil leaks out, it will lead to low oil pressure, insufficient lubrication, and ultimately, serious and expensive engine damage, including seizing the engine. Any oil leak should be inspected and addressed promptly.

Can a faulty oil sump cause engine failure?

Absolutely. The oil sump is critical for maintaining adequate oil levels and pressure. If it's faulty and causes a significant leak, the engine will be starved of its vital lubricant. This leads to increased friction, overheating, and accelerated wear on moving parts, which can quickly escalate to catastrophic engine failure if left unaddressed.

Is it normal for an old car to leak oil?

While in the past, a small oil drip from an older car might have been considered 'normal', this is not the case with modern vehicles. Any recurring oil leak in a contemporary car, regardless of age, indicates an underlying issue that needs investigation. While a few spots from an overfill during an oil change might occur, consistent leaks suggest a problem with a gasket, seal, or the sump itself.

What does it mean if oil is dropping but there isn’t a leak?

If your oil level is dropping but you don't see any external leaks on the ground or engine, it typically means the oil is being consumed or escaping internally. This can happen if oil is entering the combustion chamber (and burning, often indicated by blue smoke from the exhaust) or mixing with the coolant (which might show as a yellowish, milky substance in your coolant reservoir or on the oil dipstick). These are serious issues that require immediate professional diagnosis.

How can you spot an oil leak in your car?

Beyond the obvious puddles, you can perform a few simple checks:

• Check Your Oil Level: Regularly use your dipstick. If it drops unusually fast between services, you likely have a leak.
• Look Under the Bonnet: Use a torch to inspect the engine from all sides. Look for wet or oily spots, especially around gaskets, seals, and the bottom of the engine.
• Inspect the Undercarriage: Oil often collects at the lowest points or on the undertray.
• Use Cardboard: Place a clean piece of cardboard under your engine overnight. Black, oily spots the next morning can help confirm a leak and sometimes give an indication of its location.

In conclusion, the oil sump is a vital, yet vulnerable, component of your vehicle's engine. Promptly addressing any signs of an oil leak, especially from the sump, is crucial to prevent expensive engine damage. While costs can vary, investing in a professional repair ensures your car remains safe, reliable, and performs optimally for years to come. Don't delay – if you suspect an oil sump issue, get it checked by a qualified mechanic without delay.
