Unlocking Your Car's Secrets: A Guide to Vehicle Diagnostics

The Crucial Role of Vehicle Diagnostics in Modern Motoring

In today's increasingly complex automotive landscape, understanding what's happening under the bonnet is more important than ever. Vehicle diagnostics is the sophisticated process of identifying, analysing, and troubleshooting any issues or faults that may arise within a vehicle's intricate electronic systems. This isn't just about the engine anymore; it encompasses everything from the anti-lock braking system (ABS) and airbags to the infotainment unit and advanced driver-assistance systems (ADAS). By leveraging specialised diagnostic tools, cutting-edge software, and sophisticated equipment, mechanics and technicians can access and interpret a wealth of data from the various Electronic Control Units (ECUs) that govern virtually every function of your car. This allows for a precise understanding of the vehicle's health, moving beyond guesswork to data-driven solutions.

What Exactly is Vehicle Diagnostics?

At its core, vehicle diagnostics is the structured exchange of diagnostic data between the myriad ECUs within a vehicle and an external tester tool. For this communication to be effective, a specific diagnostic protocol is required. Think of it as a universal language that allows the diagnostic equipment to 'talk' to the car's computer systems. This data exchange enables a comprehensive overview of the vehicle's operational status, including:

• Monitoring of Sensors and Actuators: Real-time data from sensors (like oxygen sensors, temperature sensors, speed sensors) and the performance of actuators (like fuel injectors, throttle bodies) can be observed.
• Detection of Shortcuts and Cut-offs: Electrical faults, such as short circuits to ground or to the battery, or open circuits (cut-offs) in wiring harnesses, can be identified.
• Detection of Malfunctions: Specific components or systems failing to operate within their expected parameters are flagged.
• Management of Error Memory: ECUs store Diagnostic Trouble Codes (DTCs) when a fault is detected, and diagnostics allow access to this memory for review and clearing.

Why is Vehicle Diagnostics So Important?

The significance of regular vehicle diagnostics cannot be overstated. It plays a pivotal role in several key areas of vehicle ownership and maintenance:

1. Pinpointing Problems with Precision

Diagnostics is the cornerstone of effective troubleshooting. It allows mechanics to accurately identify the root cause of a problem, rather than relying on trial and error. This not only saves considerable time but also significantly reduces the cost and frustration associated with guesswork repairs. Imagine a warning light illuminating on your dashboard; diagnostics can tell you precisely which system is affected and often the specific component causing the issue.

2. Enabling Preventive Maintenance

Regular diagnostic checks act as an early warning system. They can reveal potential problems brewing within the vehicle's systems before they escalate into major, costly failures. This proactive approach helps prevent unexpected breakdowns, ensuring greater reliability and saving you money on extensive repairs down the line. It’s like having a regular health check-up for your car.

3. Optimising Performance

Modern vehicles are finely tuned machines. Diagnostics can identify inefficiencies or malfunctions that might subtly impact a car's performance, fuel economy, or driving characteristics. By addressing these issues promptly, you can ensure your vehicle operates at its peak efficiency and provides the best possible driving experience.

4. Ensuring Safety

This is perhaps the most critical aspect. Malfunctioning components or systems, particularly those related to braking, steering, or occupant protection (like airbags), can compromise vehicle safety. Diagnostics is vital for identifying and rectifying these safety-critical issues, ensuring the vehicle is safe for both the driver and passengers.

5. Reducing Environmental Impact

Faulty emissions control systems, such as catalytic converters or oxygen sensors, can lead to increased harmful emissions, contributing to air pollution. Diagnostics can detect problems with these systems, helping to ensure that vehicles comply with environmental regulations and minimise their ecological footprint.

6. Maintaining Compliance

In many regions, vehicles must meet stringent emissions and performance standards to comply with legal regulations. Diagnostic checks help ensure that your vehicle meets these standards, avoiding potential fines, penalties, or issues during mandatory inspections.

Key Vehicle Diagnostics Protocols Explained

The communication between diagnostic tools and a vehicle relies on established protocols. Here are some of the most common ones:

Onboard Communication vs. Diagnostic Communication

It's important to distinguish between how ECUs communicate internally and how they communicate with external diagnostic tools:

• Onboard Communication: This refers to the constant exchange of data between ECUs over the vehicle's internal networks, such as CAN (Controller Area Network), LIN (Local Interconnect Network), or Ethernet. These messages are intended for other ECUs to perform their functions.
• Diagnostic Communication: This is a specific, request-response type of communication initiated by an external tester tool. An ECU will only send diagnostic data if it receives a specific request made via a diagnostic protocol. It's not a continuous broadcast like onboard communication.

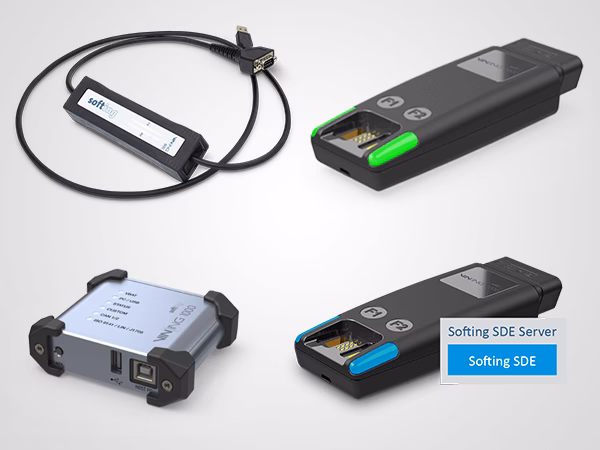

Examples of external test equipment (testers) that initiate diagnostic communication include:

• OBD Scan Tools
• Workshop Testers
• Test Rigs
• Data Loggers
• Calibration Systems
• Reprogramming Systems
• End-of-Line Testers in Vehicle Production
• Diagnostic Software or In-Vehicle Network Analysis Tools (e.g., CANoe, VehicleSpy)

Types of Diagnostic Responses from ECUs

When a diagnostic tool sends a request, an ECU can respond in one of three ways, typically managed by standards like CAN-TP (ISO 15765-2):

1. Positive Response: The ECU successfully receives the request, acknowledges it, and provides the requested information or performs the requested action.
2. Negative Response: The ECU receives the request but cannot fulfil it due to various reasons, such as insufficient security levels, the requested service not being supported, invalid parameters, or temporary inability to perform the task. This is communicated via a Negative Response Code (NRC).
3. No Response: The ECU fails to respond entirely. This can occur due to connection issues, low battery, ECU hardware defects, incorrect communication parameters (wrong address, baud rate), or network problems.

Understanding Service Identifiers (SIDs) and Response SIDs

Diagnostic protocols use Service Identifiers (SIDs) to define the type of service requested by the tester (e.g., 'Read Data by Identifier'). SIDs are typically one byte, allowing for 256 unique service requests ($00 to $FF). When an ECU responds positively, it sends a Response SID, which is usually the Request SID plus a specific offset (e.g., $40). For example, a request for Service $22 (Read Data by Identifier) might receive a response SID of $62. If an ECU cannot fulfil a request, it sends a specific 'No Response Service Identifier' (often $7F), followed by a Negative Response Code (NRC) indicating the reason for the failure.

Common Negative Response Codes (NRCs)

NRCs provide crucial details about why a diagnostic request failed. Some common examples include:

• $10 General Reject: A general, unspecified rejection of the request.
• $11 Service Not Supported: The requested diagnostic service is not available or supported by the ECU.
• $13 Incorrect Message Length or Invalid Format: The diagnostic message sent by the tester is malformed.
• $21 Repeat Request: The ECU received the request but needs more time and advises the tester to repeat the request later.
• $31 Request Out Of Range: A parameter within the request is outside the acceptable limits.
• $78 Request Correctly Received, Response Pending: The ECU has accepted the request and will respond later.
• $84 Engine Not Running: The requested service requires the engine to be running, but it is not.
• $8F Brake Pedal Not Pressed: A service requires the brake pedal to be depressed.
• $90 Shift Stick Not In Park: A service requires the transmission to be in Park.

Key Aspects of Vehicle Diagnostics

Vehicle diagnostics is a multifaceted process involving several key elements:

• Fault Identification: The primary goal is to pinpoint malfunctions in various systems, including engine management, transmission, braking, suspension, and safety systems, often indicated by dashboard warning lights or unusual vehicle behaviour.
• Diagnostic Tools: Technicians utilise a range of tools, from simple handheld scanners to complex laptop-based systems, to communicate with ECUs and retrieve data.
• Diagnostic Trouble Codes (DTCs): These alphanumeric codes are generated by ECUs to signify specific faults, providing valuable clues for technicians.
• Data Reading and Analysis: Diagnostic tools can read real-time data from sensors (engine speed, temperature, oxygen levels) and analyse patterns to identify anomalies indicative of problems.
• On-Board Diagnostics (OBD): Systems like OBD-II are integral, constantly monitoring vehicle systems and emissions, storing DTCs, and providing access to live data.
• System Calibration and Reprogramming: Diagnostics can sometimes involve recalibrating or reprogramming ECUs to resolve issues or optimise performance, requiring specialised software and tools.
• Troubleshooting and Repair: Ultimately, diagnostics informs the repair process, guiding technicians in replacing faulty components or rectifying system issues.

The Power of Diagnostic Tools: What Can They Tell You?

With modern vehicles becoming increasingly reliant on electronics, diagnostic tools are no longer confined to professional workshops. Car owners, enthusiasts, and even used car dealers are increasingly using them. A car diagnostic tool can reveal:

• Hidden Issues: Problems that haven't yet triggered a warning light.
• Specific Faults: Which system or sensor is reporting a problem.
• Fault Status: Whether the issue is current, intermittent, or historical.
• Operating Conditions: The conditions under which a fault occurred (via freeze-frame data).

For instance, a code like P0300 (random/multiple cylinder misfire) could stem from ignition, fuel, or ECU issues, and diagnostics help narrow down the possibilities.

Benefits in Practice:

• Faster Diagnostics: Reduces guesswork, saving time and money.
• Used Car Inspections: Detects hidden problems or recently cleared codes before purchase.
• Preventive Maintenance: Identifies minor issues before they become major failures.
• Advanced Repairs: Professionals can perform ECU programming, key matching, and module coding.

Advanced Features:

Beyond basic code reading, advanced tools offer:

• ECU Programming/Reprogramming: Essential for replacing control modules.
• Component Adaptation: Relearning procedures for components like throttle bodies or steering angles.
• Key Matching and Immobiliser Learning.
• Integration with OEM Software: Allowing access to manufacturer-specific functions.

Why Choose OBD2 for Diagnostics?

The OBD2 interface is a cornerstone of modern vehicle diagnostics. It provides access to the vehicle's ECU, offering real-time data and diagnostic information. Its benefits include:

• Cost-Effectiveness: Reduces reliance on expensive proprietary tools.
• Real-Time Data: Instant access to crucial performance information.
• Emissions Compliance: Facilitates monitoring and adherence to emissions regulations.
• Enhanced Maintenance: Empowers owners to be proactive about their vehicle's health.

Decoding Fault Codes and Live Data:

Understanding fault codes (DTCs) and interpreting live data streams are key skills. DTCs provide specific insights into component or system issues, while live data offers real-time performance metrics, allowing for more accurate diagnosis and informed repair decisions. Harnessing live data allows mechanics to assess performance instantly, leading to faster troubleshooting and more accurate diagnoses.

Choosing the Right OBD2 Scanner

When selecting an OBD2 scanner, consider:

• Purpose: Are you a DIY enthusiast or a professional?
• Compatibility: Ensure it works with your vehicle's make and model.
• Functionality: Do you need basic code reading or advanced features like live data streaming?

Conclusion: The Indispensable Value of Vehicle Diagnostics

Vehicle diagnostics is an essential component of modern automotive maintenance and repair. It empowers technicians and car owners alike to understand a vehicle's internal workings, identify problems accurately, and ensure optimal performance, safety, and compliance. As technology continues to advance, the sophistication and capabilities of diagnostic tools will only grow, making them an increasingly vital investment for anyone who relies on their vehicle.
