Unlock Your Car's Potential: ECU Coding Explained

In the evolving world of automotive technology, vehicles are becoming increasingly sophisticated, controlled by an intricate network of electronic control units, or ECUs. These digital brains manage everything from engine performance to comfort features. Among the powerful tools available to interact with these systems, scanner ECU coding stands out as a transformative capability, offering significant benefits for performance, efficiency, and customisation. But what exactly is it, and how can it revolutionise your driving experience?

What Exactly is ECU Coding?

At its core, ECU coding involves modifying the software parameters within your vehicle's electronic control units using a diagnostic scanner. Unlike engine remapping, which primarily focuses on altering the engine's performance maps for more power or torque, coding is about enabling, disabling, or modifying specific features and functionalities that are already built into the car's software but might not be active by default. Think of it as accessing and flipping digital switches within your car's brain.

Every modern vehicle is equipped with numerous ECUs, each responsible for different aspects: the Engine Control Unit (ECU) for engine management, the Transmission Control Unit (TCU), Body Control Module (BCM), Airbag Control Unit (ACU), and many more. These modules communicate with each other via complex networks, and their behaviour is governed by their programmed code. ECU coding allows skilled technicians, or even knowledgeable enthusiasts, to interact with these modules, adapting their settings to suit specific needs or preferences.

The Role of the Scanner

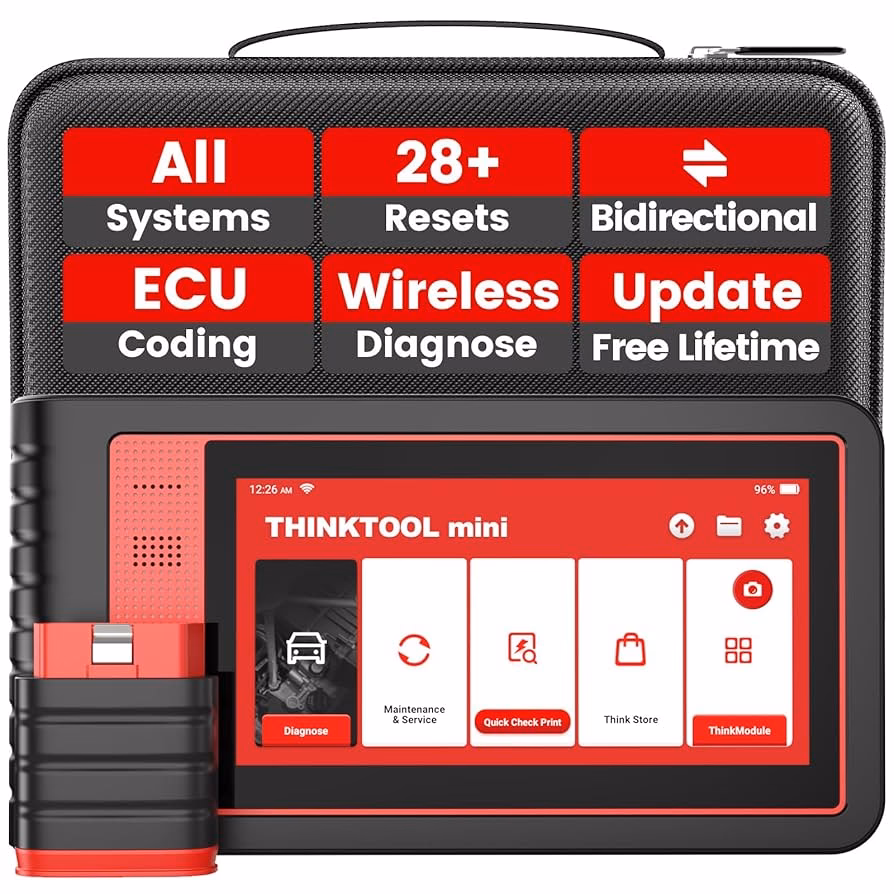

A 'scanner' in this context refers to a specialised diagnostic tool that connects to your vehicle's On-Board Diagnostics II (OBD-II) port. This port, standard in all vehicles manufactured after 2001 (petrol) or 2004 (diesel) in the UK, provides access to the car's internal communication network. While basic OBD-II scanners can read and clear fault codes, advanced diagnostic scanners and professional-grade tools possess the sophisticated software and protocols necessary to perform ECU coding. They act as the interface between you (or your laptop) and the car's digital architecture, allowing you to send commands and modify parameters.

Why Consider ECU Coding? The Benefits Unveiled

The reasons for undertaking ECU coding are diverse, ranging from enhancing vehicle performance to improving daily convenience. Here are some key benefits:

1. Customisation and Convenience

• Activating Hidden Features: Many car manufacturers build features into their vehicles across different trim levels, but only activate them in higher-spec models. With ECU coding, you can often unlock these hidden functionalities. This could include automatic window closing when it rains, enabling cornering lights, activating a digital speedometer in the instrument cluster, or even adjusting the number of indicator flashes.
• Personalised Settings: Tailor your car to your exact preferences. Want the doors to lock automatically when you drive off? Prefer the wing mirrors to fold in automatically when you lock the car? These are common coding adjustments.
• Disabling Annoying Features: Some drivers find certain default features intrusive, such as persistent seatbelt warnings (when stationary), start-stop systems, or chime alerts. Coding can often disable these.

2. Performance Enhancement (Indirectly)

• While not direct remapping, coding can optimise existing performance features. This might involve adjusting throttle response curves to make the car feel more immediate, enabling 'Sport' modes in certain transmissions that weren't active, or fine-tuning suspension settings on adaptive systems.

3. Improved Efficiency and Maintenance

• Component Adaptation: When replacing certain components, such as a new battery, headlights, or even a radio, the car's ECU often needs to be 'told' about the new part so it can integrate it correctly into the system. Coding ensures proper communication and functionality, preventing error codes or improper operation.
• Diagnostic & Troubleshooting: Advanced coding scanners provide deeper diagnostic capabilities, allowing technicians to pinpoint issues more accurately and often resolve them by adjusting parameters rather than replacing expensive parts.

The Tools of the Trade: ECU Coding Scanners

Choosing the right scanner is crucial for successful and safe ECU coding. They range significantly in price, capability, and complexity.

Types of Scanners:

• Basic OBD-II Scanners: Primarily for reading and clearing generic diagnostic trouble codes (DTCs) and viewing basic live data. Not suitable for coding.
• Advanced Diagnostic Scanners (e.g., Foxwell, Autel, Launch): These often offer manufacturer-specific diagnostics, live data streams, actuation tests, and some basic coding functions like component adaptation or service resets. They are a good middle-ground for serious DIYers or small workshops.
• Professional/Dealer-Level Tools (e.g., VCDS for VAG, ISTA for BMW, Mercedes XENTRY): These are the most powerful tools, offering comprehensive coding, programming, and diagnostic capabilities identical to those used by main dealerships. They typically require specialised software and often a subscription.

Key Features to Look For in a Coding Scanner:

• Vehicle Compatibility: Ensure the scanner supports your specific car make, model, and year. Some scanners are universal, while others specialise in particular brands (e.g., VCDS for Volkswagen Group cars).
• Coding Functions: Look for terms like 'adaptation,' 'long coding,' 'module replacement,' 'variant coding,' or 'offline programming.'
• User Interface: A clear, intuitive interface is vital, especially for complex coding tasks.
• Regular Updates: Automotive software evolves, so a scanner with frequent, accessible software updates is essential to support newer vehicles and features.
• Safety Features: Features like battery voltage monitoring are crucial, as a drop in voltage during coding can 'brick' an ECU.
• Data Logging & Backup: The ability to back up original coding and log changes is invaluable for troubleshooting or reverting changes.

Comparative Table: Scanner Capabilities

The ECU Coding Process: A General Overview

While specific steps vary by vehicle and scanner, the general process involves:

1. Preparation: Ensure your car's battery is fully charged or connected to a stable power supply. Fluctuations can cause critical errors. Have a laptop with the necessary software if using a PC-based system.
2. Connect the Scanner: Plug the scanner into the OBD-II port, usually located under the dashboard.
3. Vehicle Identification: The scanner will typically automatically identify your vehicle or prompt you to select it manually.
4. Module Selection: Navigate to the specific control module you wish to code (e.g., central electronics, comfort module).
5. Read Current Coding: Always back up the module's original coding before making any changes. This is a critical safety step, allowing you to revert if something goes wrong.
6. Make Changes: Depending on the scanner and vehicle, this could involve selecting options from a menu, entering specific long coding strings, or following guided procedures.
7. Write New Coding: Once satisfied with your changes, command the scanner to write the new parameters to the ECU. This is the most critical phase, requiring a stable connection and power.
8. Test and Verify: After coding, clear any new fault codes that may appear and test the newly coded feature to ensure it functions as intended.

Remember, caution and thorough research are paramount. Incorrect coding can lead to serious issues.

Common Applications of ECU Coding in UK Vehicles

Here are some popular examples of what can be achieved with ECU coding:

• DRL (Daytime Running Lights) Customisation: Adjusting brightness, enabling/disabling, or changing which lights function as DRLs.
• Indicator Flashes: Changing the number of flashes when you lightly tap the indicator stalk (e.g., from 3 to 5).
• Comfort Opening/Closing: Enabling windows or sunroof to open/close via the remote key fob.
• Seatbelt Warnings: Disabling audible reminders (often done for show cars or track use, but not recommended for road safety).
• Automatic Locking: Setting doors to lock automatically once a certain speed is reached.
• Needle Sweep/Staging: On some cars, the speedometer and tachometer needles can perform a full sweep upon ignition.
• Start-Stop Deactivation: Permanently disabling the automatic engine start-stop system.
• Retrofitting & Adaptation: Crucial for installing new components like a tow bar, parking sensors, or an upgraded infotainment system. The car needs to recognise and integrate these new modules.

Risks and Considerations

While the benefits are clear, ECU coding is not without its risks. It requires a good understanding of automotive electronics and the specific vehicle's architecture. Missteps can be costly.

• Bricking the ECU: The most significant risk. If the coding process is interrupted (e.g., power loss, connection issue) or incorrect code is written, the ECU can become unresponsive and essentially 'bricked,' requiring professional repair or replacement. This is often an expensive fix.
• Voiding Warranty: Many manufacturers consider unauthorised ECU modifications as a breach of warranty. If an issue arises and it's traced back to coding, your warranty claim could be denied.
• Malfunctions: Incorrect coding can lead to unexpected vehicle behaviour, warning lights, or even critical system failures.
• Legal Implications: While coding for convenience features is generally fine, altering features related to emissions, safety (e.g., airbag settings), or road legality (e.g., excessively bright lights) can have legal repercussions. Always ensure your vehicle remains roadworthy and compliant with UK regulations.
• Need for Expertise: This is not a task for the faint of heart or the inexperienced. Proper research, understanding of the specific coding parameters, and a methodical approach are essential. When in doubt, seek expertise from a qualified professional.

Is DIY ECU Coding for You?

For simple, well-documented coding tasks on common vehicles, an advanced diagnostic scanner and careful research can enable a confident DIYer to achieve desired results. Online forums and communities are rich resources for specific coding values and procedures for various car models.

However, for complex coding, module replacement, or any task that involves critical safety systems, professional assistance is highly recommended. Specialist auto electricians and tuning shops have the high-end equipment, technical data, and experience to perform these operations safely and effectively, minimising the risk of damage or system errors. They understand the nuances of various vehicle platforms and can advise on potential implications, including those related to warranty.

Frequently Asked Questions (FAQs)

Here are some common questions regarding scanner ECU coding:

Q1: Is ECU coding the same as remapping or chip tuning?

No, they are distinct. Remapping (or chip tuning) primarily alters the engine's operational parameters (fuel, ignition, boost) to increase power or torque. ECU coding focuses on activating/deactivating features, adapting modules, and customising non-engine-performance related functions already present in the car's software.

Q2: Can I damage my car by doing ECU coding?

Yes, absolutely. If done incorrectly, with unstable power, or with incompatible software, you can 'brick' an ECU, rendering it inoperable. This can be very expensive to rectify. Always proceed with caution and adequate preparation.

Q3: Do I need special software or just a scanner for coding?

Typically, you need both. The scanner is the hardware interface, but it runs on specific software. Some scanners have built-in software for basic coding, while professional tools often require dedicated PC-based software packages that connect to the scanner.

Q4: Is ECU coding legal in the UK?

Generally, yes, for features that don't affect vehicle safety, emissions, or roadworthiness. Coding for cosmetic changes or convenience features is usually fine. However, any modification that makes your vehicle non-compliant with road regulations (e.g., disabling DPF or EGR systems, altering headlight patterns to be illegal) is not permissible.

Q5: How long does ECU coding take?

It can vary significantly. Simple changes (like indicator flashes) might take a few minutes. More complex adaptations, such as integrating a new module or activating multiple features, could take an hour or more, including necessary diagnostic scans and tests.

Q6: Can all cars be coded?

Most modern cars (roughly post-2000) have ECUs that can be accessed and coded to some extent. However, the depth of coding possible varies greatly between manufacturers and even models. Some brands are more 'open' to coding than others.

Q7: What is 'long coding'?

Long coding refers to a method of coding used in some vehicle brands (notably Volkswagen Group). Instead of simple on/off switches, parameters are represented by long strings of hexadecimal or binary numbers. Each digit or group of digits corresponds to specific functions, requiring detailed knowledge or a user-friendly interface that translates these strings into readable options.

Conclusion

Scanner ECU coding is a genuinely powerful tool in the automotive world, offering incredible potential for vehicle customisation, convenience, and even indirect performance gains. By understanding the process, choosing the right tools, and approaching the task with caution and respect for the vehicle's complex systems, you can safely and effectively enhance your driving experience. Whether you're a seasoned DIY enthusiast or prefer to entrust your vehicle to knowledgeable professionals, exploring the possibilities of ECU coding can truly unlock your car's hidden potential.
