Understanding Kerb Rash and Its Repair

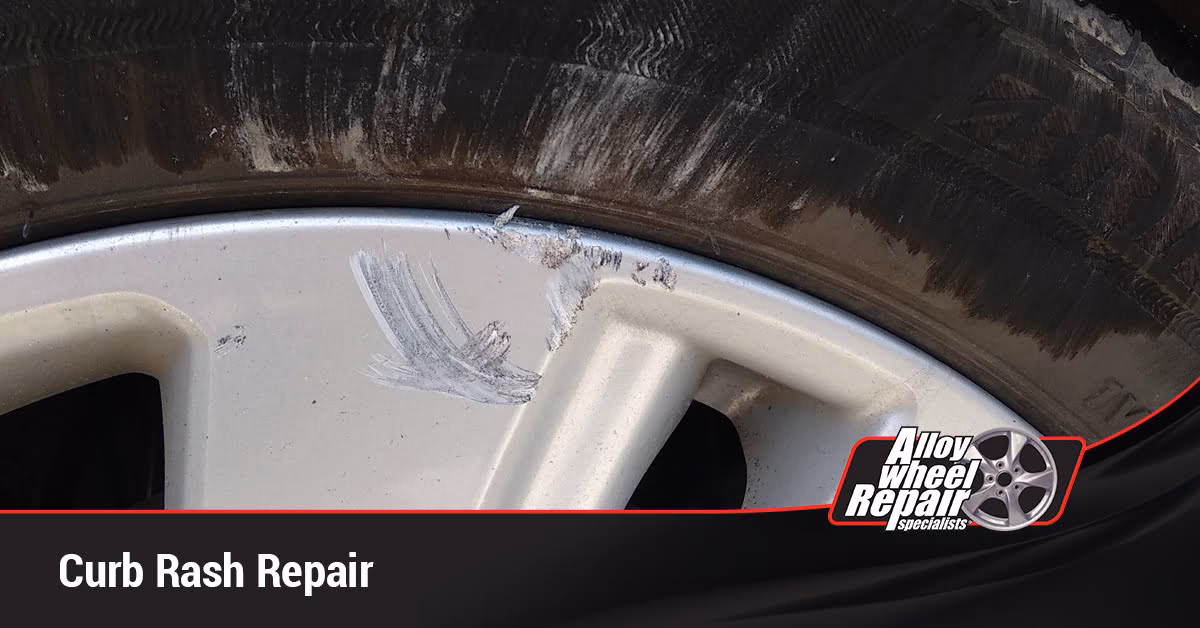

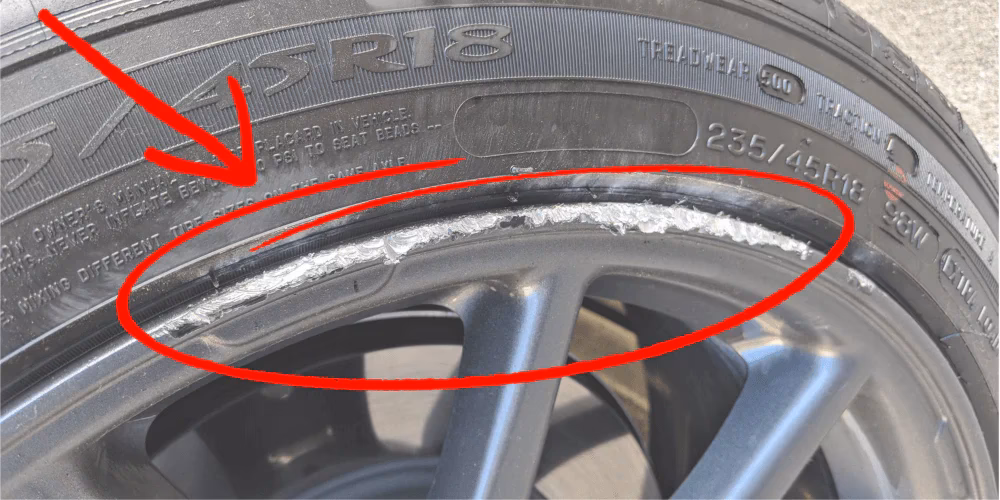

That sinking feeling when your alloy wheels meet the kerb is all too familiar for many drivers. What might appear as a minor cosmetic issue, commonly known as 'kerb rash' or 'curb rash', can be more than just an unsightly blemish. It's a form of damage that, if left unaddressed, can potentially compromise the integrity and safety of your wheels. Fortunately, the automotive industry offers sophisticated repair services designed to meticulously restore wheels that have suffered this common affliction. This article delves into the intricacies of how kerb rash wheel repair works, from the initial assessment to the final, gleaming finish.
The Kerb Rash Wheel Repair Process: A Step-by-Step Breakdown
Our professional kerb rash wheel repair service is a multi-stage process, meticulously designed to return your wheels to their original, unblemished condition. While the exact steps can vary depending on the severity and type of damage, the core methodology remains consistent, focusing on precision and preserving the structural integrity of the wheel.
1. Initial Wheel Inspection
The journey to repairing kerb rash begins with a thorough and detailed inspection. Our skilled technicians meticulously examine every inch of the wheel, identifying not just the obvious scrapes and gouges but also any subtle scuffs or abrasions that might have occurred. This initial assessment is crucial as it dictates the subsequent repair strategy. We look for:
- Depth and extent of the scratches.
- Any signs of structural damage, such as bending or cracking.
- The original finish of the wheel to ensure a perfect match.
2. Stripping the Wheel
To prepare the wheel for repair and refinishing, all existing paint and coatings must be removed. This is typically achieved through one of two primary methods:
- Sandblasting: This involves using high-pressure air to propel abrasive particles (like sand or glass beads) at the wheel's surface. This effectively removes paint, dirt, and minor corrosion, leaving a clean canvas.
- Stripping Tank: In some cases, wheels may be immersed in a chemical stripping solution that dissolves the old paint and coatings. This method is often preferred for delicate finishes or when sandblasting might be too aggressive.
Both methods aim to expose the bare metal of the wheel, ensuring that the new finish adheres properly and the repair is seamless.
3. Machining and Refinishing
Once stripped, the wheels undergo a precise machining process. This is where the actual kerb rash is addressed. Our advanced CNC (Computer Numerical Control) lathes are programmed to remove only the absolute minimum amount of metal necessary to eliminate the damage. This is a critical step, as it ensures that the wheel retains its original shape, balance, and, most importantly, its structural strength. Following machining, fine-grit sandpaper is often used to delicately smooth away any remaining imperfections left by the machining process or minor abrasions that didn't require extensive material removal.
4. Inspection for Flushness and Safety
After the sanding process, a rigorous inspection follows to ensure the wheel's surface is perfectly flush and free from any residual damage. This inspection is paramount for safety. A wheel that is not perfectly balanced or has weakened structural points due to improper repair can lead to dangerous driving conditions. We only approve wheels for the next stage when they meet our stringent safety and quality standards.
5. Refinishing and Colour Matching
With the damage repaired and the wheel confirmed to be sound, the refinishing stage begins. This is where your wheel is brought back to its former glory. We offer a wide range of finishes, allowing you to choose how your wheels are restored:
- Powder Coating: A durable and attractive finish applied electrostatically and then cured under heat.
- Diamond Cutting: A process that re-cuts the face of the alloy wheel to remove damage and restore the original machined look, often followed by a protective clear coat.
- Standard Paint Finishes: A wide spectrum of colours and finishes to match your vehicle's aesthetic.
Our technicians are adept at precise colour matching to ensure the repaired section blends seamlessly with the rest of the wheel, making the damage virtually undetectable. The final application of a protective clear coat seals the finish, providing resistance against future damage and UV rays.
Types of Wheel Damage We Repair
While kerb rash is our specialty, our wheel repair services extend to a comprehensive range of damage, including:
- Minor scratches and scuffs.
- Deep gouges and abrasions.
- Bent or deformed rims.
- Cracked wheels (in many cases, repairable).
- Corrosion and oxidation.
We are committed to providing solutions that not only restore the appearance of your wheels but also ensure their performance and safety.
DIY Kerb Rash Repair: A Guide for Minor Damage
While professional repair is recommended for significant damage, minor kerb rash can sometimes be tackled as a DIY project. If you're considering this route, proceed with caution and follow these steps diligently:
Step 1: Clean the Damaged Area
Begin by thoroughly cleaning the affected area with a good quality wheel cleaner, soap, and water. Use a soft brush to dislodge any dirt or brake dust. Rinse well and dry the area completely with a clean, lint-free cloth. Ensuring the area is clean and dry is essential for proper adhesion of any subsequent materials.
Step 2: Sand the Damaged Area
For minor scuffs and light scratches, use fine-grit sandpaper (around 240-320 grit). Gently sand the damaged area, working in one direction to smooth out any rough edges or raised metal. Be careful not to oversand or remove too much material. After sanding, wipe the area with a damp cloth to remove dust and allow it to air dry completely.
Step 3: Apply Filler (For Deeper Damage)
If the kerb rash has resulted in deeper scratches or gouges, you'll need a specialised wheel filler or automotive putty. Apply a small amount of filler to the damaged area using a plastic spreader or putty knife, ensuring it's spread evenly and slightly over the damaged surface. Follow the manufacturer's instructions for drying times.
Step 4: Sand the Filler
Once the filler has dried and hardened, sand it down using progressively finer grits of sandpaper (e.g., 320, 400, and then 600 grit). The goal is to create a perfectly smooth and level surface that is flush with the rest of the wheel. Again, clean any dust with a damp cloth and allow it to dry.
Step 5: Prime the Area
Apply a primer specifically designed for automotive use, preferably one formulated for metal or alloy wheels. Apply several light coats, allowing each coat to dry according to the product's instructions. Primer helps the paint adhere better and provides a uniform base colour.
Step 6: Paint the Wheel
Select a high-quality spray paint that precisely matches your wheel's original colour and finish. Apply the paint in multiple thin, even coats. Holding the can about 8-10 inches away and using a steady sweeping motion is recommended. Allow adequate drying time between coats to prevent runs and sags. Achieving a smooth finish often requires patience.
Step 7: Apply Clear Coat
Once the base colour has fully dried, apply several coats of a durable clear coat. The clear coat not only protects the paintwork but also provides the glossy finish characteristic of most alloy wheels. Again, apply in thin, even coats, allowing for proper drying between applications.
Step 8: Polish the Wheel
After the clear coat has cured (this can take 24-48 hours, check the product instructions), use a good quality wheel polish and a soft microfibre cloth. Gently polish the repaired area to blend it seamlessly with the surrounding original finish. This final step enhances the shine and hides any minor imperfections, giving your wheel a revitalised appearance.
When to Call the Professionals
While DIY repair can be satisfying for minor cosmetic issues, it's crucial to recognise when professional help is needed. If your wheels have suffered:
- Severe damage, such as deep cracks or significant bends.
- Damage affecting the structural integrity of the wheel.
- Damage to complex or multi-piece wheels.
- You are unsure about any step of the repair process.
In these instances, it is always best to contact a professional wheel repair service. Attempting to repair severe damage without the right equipment and expertise can be dangerous and may lead to more costly repairs or the need for complete wheel replacement.
Frequently Asked Questions
Q1: How long does kerb rash repair typically take?
A1: The time required for kerb rash repair can vary. For minor cosmetic damage, it might take a few hours. However, if the wheel requires stripping, machining, and refinishing, it can take anywhere from 1 to 3 working days, depending on the complexity and the service provider's workload.
Q2: Will my wheel be as strong after repair?
A2: Yes, when repaired by professionals using the correct techniques, your wheel will retain its original strength and structural integrity. Our machining process is designed to remove only the minimum material necessary, preserving the wheel's load-bearing capabilities. We adhere to strict safety standards.
Q3: Can all types of kerb rash be repaired?
A3: Most common kerb rash damage, including scratches, scuffs, and minor abrasions, can be effectively repaired. However, if a wheel is severely bent, cracked, or has missing sections of metal, it may not be repairable or the repair might not be cost-effective or safe. A professional inspection will determine this.
Q4: How much does kerb rash repair cost?
A4: The cost varies depending on the extent of the damage, the type of wheel (e.g., standard alloy, diamond cut), and the specific service provider. Generally, repairing kerb rash is significantly cheaper than purchasing new wheels.
Q5: What is the difference between a body shop method and a specialist wheel repair method?
A5: While some auto mechanics might use a 'body shop' method involving media blasting, putty, primer, and paint, specialist wheel repair services often employ more advanced techniques like CNC machining for precision metal removal. Machining ensures a more accurate restoration of the wheel's profile and strength compared to filler-based repairs. Diamond cutting, for instance, is a specialised process that a typical body shop may not offer.
Don't let kerb rash diminish the look and safety of your vehicle. Whether you opt for a professional service or decide to tackle minor damage yourself, understanding the process is key to achieving excellent results and keeping your wheels in pristine condition.
