Achieving Flawless Finish: The Art of Block Sanding Your Motorcar

When you cast your gaze upon a truly exceptional paint job on a motorcar, it’s not merely the skill of the painter that catches your eye. Often, the unsung hero behind that immaculate, ripple-free surface is the meticulous preparation work, specifically the art of block sanding. Wavy body panels and visible sanding scratches are the unfortunate hallmarks of poor preparation. However, mastering the technique of block sanding is far from an insurmountable challenge; it’s a skill that, once acquired, will elevate your vehicle’s finish from good to genuinely outstanding, making it a true head-turner.

Block sanding is the critical process of levelling and smoothing body filler and primer layers on a vehicle’s bodywork before the final paint application. Its primary purpose is to eliminate any imperfections such as high spots, low spots, and sanding scratches that would otherwise become glaringly obvious once a glossy topcoat is applied. By using a rigid sanding block, you ensure even pressure across the surface, preventing your fingers from creating uneven pressure points that lead to waves.

The Indispensable Role of Block Sanding

Imagine looking at your freshly painted motorcar and seeing reflections that resemble a funhouse mirror – distorted and wavy. This common issue arises from inadequately prepared body panels. Your bare hand, being inherently uneven, will apply inconsistent pressure during sanding, leading to undulations that are invisible to the naked eye until the paint is on. This is precisely why a proper sanding block is absolutely essential. It acts as a flat, rigid tool that bridges the high and low spots, allowing you to systematically level the surface. Without it, you're merely smoothing the waves, not eliminating them.

Why Your Fingertips Are Your Best Tool (and Why a Block is Still Needed)

While a block is crucial for achieving a flat surface, your fingertips remain an invaluable tool for detecting subtle flaws. Running your hand over the bodywork periodically can reveal imperfections that your eyes might miss. High and low spots, minor dings, and even tiny pinholes in filler can be felt before they are seen. This tactile feedback, combined with the mechanical advantage of a sanding block, ensures a truly flawless foundation.

Essential Tools and Materials for Block Sanding

Embarking on a block sanding project requires a few key items. Fortunately, most of these are readily available and won't break the bank, proving that quality preparation is an investment, not an extravagance.

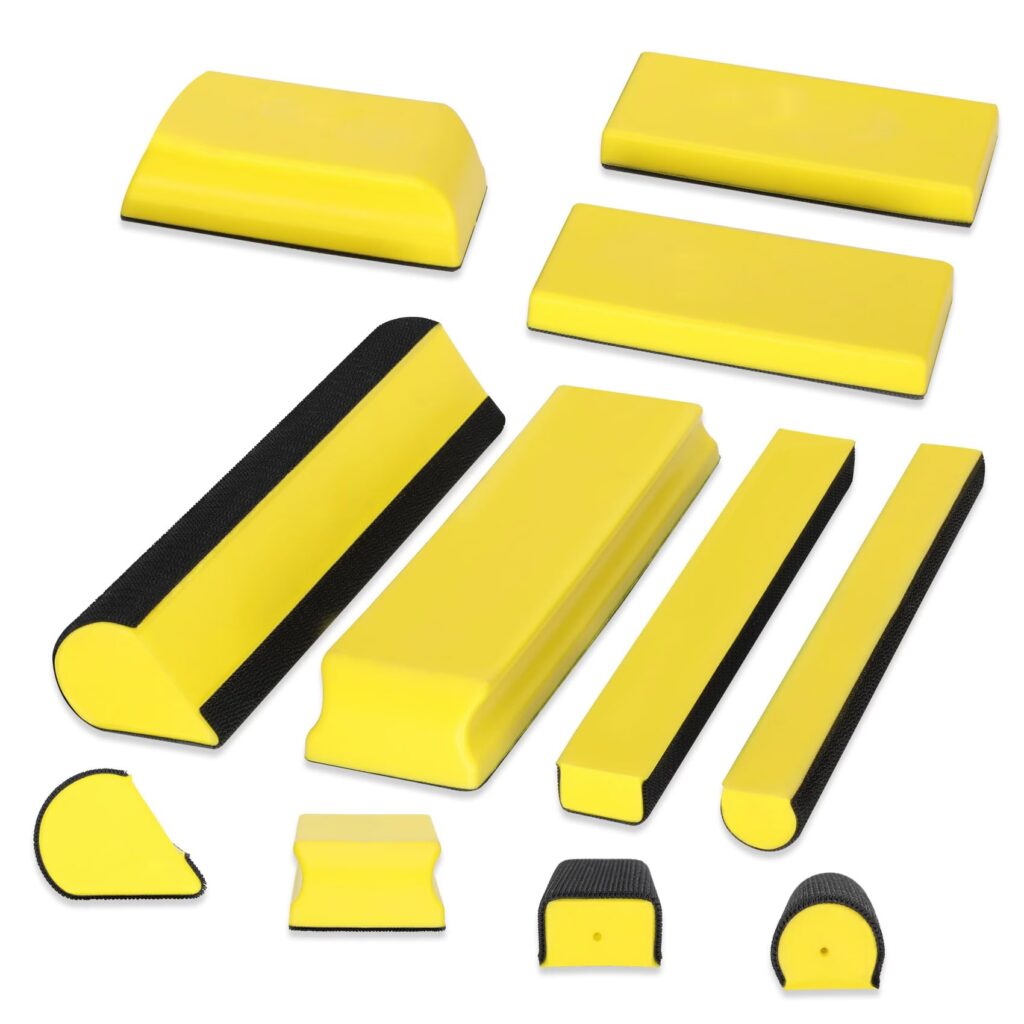

• Sanding Blocks: These come in various shapes and sizes – flat, curved, flexible, and rigid. An assortment of blocks is highly recommended to tackle different contours of your vehicle. You can often purchase a comprehensive set for a relatively modest sum from automotive paint supply houses or online. The key is to never sand without one, regardless of the area.
• Sandpaper: Available in a wide range of grits, sandpaper is your primary abrasive. For block sanding, you'll typically start with coarser grits for initial levelling and progress to finer grits for a smooth finish. Adhesive-backed paper is convenient as it easily grips the block and can be removed without fuss. Rolls of paper that you can trim to fit are also a cost-effective option. Ensure the sandpaper covers the entire block surface to prevent the block from directly contacting the primer or paint.
• Guidecoat: This is a light, contrasting spray of paint (often black or a dark colour) applied over your primer. Its purpose is to highlight high and low spots. As you sand, the guidecoat will disappear from the high areas first, while remaining in the low spots, clearly indicating where more sanding is needed.
• Wax and Grease Remover: Keeping your work surface meticulously clean is paramount. This solvent is used to wipe down panels frequently, removing sanding dust, grease, and other contaminants that could otherwise cause scratches or hinder proper adhesion later on.
• Air Hose: For quickly blowing off sanding dust from the work area and the sandpaper itself.
• Clean Cloths and Paper Towels: For applying wax and grease remover and wiping down surfaces. Disposable heavy-duty paper towels are excellent as they guarantee cleanliness.
• Spot Putty: For addressing minor imperfections like pinholes or small dings detected in the primered surface.

The Block Sanding Process: A Step-by-Step Guide

Proper block sanding is a methodical process that demands patience and attention to detail. Rushing this stage will inevitably lead to disappointing results in the final paint finish.

1. Initial Preparation and First Primer Coat

Before block sanding truly begins, the vehicle's bodywork should be DA-sanded (using a Dual Action sander for initial material removal) and any major dings or dents addressed. Once this is complete, apply a light, uniform coat of primer. This first layer provides the foundation upon which you will begin to level the surface.

2. Selecting the Right Sandpaper Grit

For the initial cutting and levelling of the primer, a coarser grit is typically used. Mark Oja, a renowned expert, recommends 220-grit sandpaper. This grit is aggressive enough to remove material efficiently and flatten the surface, but not so coarse that it leaves deep scratches that are difficult to remove later.

3. Choosing and Preparing Your Sanding Block

Select a sanding block that matches the contour of the area you are working on. For large, flat panels, a longer, rigid block is ideal. For curved sections, a flexible or shaped block will conform better. Attach your chosen sandpaper firmly to the block, ensuring it lies completely flat without any wrinkles or bubbles that could compromise contact with the surface.

4. The Crossing Pattern Technique

When block sanding, always move the block in a crossing, or 'X', pattern. This multi-directional approach ensures that you are levelling the surface evenly and not creating grooves or valleys. Avoid simply moving the block back and forth in a single direction. Rotate the block or board as necessary to maintain this crossing pattern across the entire panel. This technique is crucial for achieving a truly flat and smooth finish.

5. The Importance of a Guidecoat

After applying your initial primer coat, lightly spray a contrasting guidecoat over the entire surface. This thin layer is your visual indicator of progress. As you sand, the guidecoat will be removed from the higher areas first. Any remaining guidecoat indicates a low spot that still requires attention. This simple yet effective technique ensures you don't miss any critical areas.

6. Maintaining Cleanliness and Changing Paper

Sanding generates a significant amount of dust and debris. Regularly blow off the area with an air hose and sweep up the floor to maintain a clean workspace. Crucially, clean your sandpaper frequently by knocking out loose debris. If dirt chunks appear on the paper, or if it becomes clogged, change it immediately. Using old, dirty, or worn-out sandpaper is counterproductive; it can cause new scratches and make the job much harder, potentially forcing you to re-primer areas.

7. Addressing Imperfections and Progressive Grits

As you sand, you may uncover minor flaws such as pinholes or small low spots. These can be addressed with a small amount of spot putty. Apply the putty, allow it to dry, sand it smooth, then re-primer the area and block sand again. In most cases, you will need to primer the body at least twice before proceeding to paint.

With each successive block sanding session, you should move to a finer grit of sandpaper. After the initial 220-grit, the final surface preparation before painting typically involves 400-grit paper. This finer grit refines the surface, removing any remaining scratches from the coarser grits and preparing it for the paint application.

8. Special Considerations for Curved Panels

When working on panels that curve, such as a bonnet or wings, the crossing pattern should still be maintained. Pay close attention when approaching edges or corners, as it's easy to 'burn through' the primer and expose the underlying metal. If this happens, you must re-primer and re-block the affected area to ensure proper adhesion and a uniform finish.

Sanding Auto Body Filler Repairs

Sanding auto body filler is a critical part of the repair process, often consuming up to 95% of a professional painter's time. Every single blemish or surface imperfection will be magnified once paint is applied, so thoroughness here is key.

• Coarse Shaping: For the primary shaping and flattening of auto body filler, 80- to 180-grit sandpaper is typically used. This aggressively removes material to get the surface flat and blend it seamlessly with adjacent panels.
• Refining the Surface: Once the area is flat, move to 240-grit sandpaper to make the finish even smoother and to remove any remaining high spots or irregularities.
• Final Smoothing: To eliminate any lingering sanding scratches and minor imperfections, finish sanding the filler with 320-grit sandpaper. The goal is a faultlessly smooth and flat area that blends perfectly with the surrounding surfaces.

The Benefits of a Long Sanding Board

For larger, wavy panels, a small sanding block might simply ride over the undulations. This is where a long sanding board becomes indispensable. Its greater length allows it to bridge the high and low spots, effectively levelling the panel rather than just smoothing its existing contours. This is the secret to achieving the straightest and flattest possible surface for paint. When using a long board on a panel with a crown (e.g., from front to back), sand mostly from top to bottom, holding the board horizontally, to avoid flattening the intended curve.

The Role of a DA Sander in Finishing

While hand block sanding is crucial for true levelling, a DA (Dual Action) sander can significantly speed up the finish sanding process, especially on larger areas. DA sanders offer two modes of movement: a rotary action for rapid material removal and a random orbital motion for fine finishing. If you're new to using a DA sander, practice on a spare panel first, as they can remove material very quickly. Once your filler repair is satisfactory, use 320-grit sandpaper with the DA sander to create a smooth transition, or 'feathering in', from the repair area to the existing paintwork. This ensures fresh undercoats will match the levels of the rest of the car's surface, leading to an invisible repair.

Cleaning Sanded Surfaces Before Undercoats

After all the sanding is complete, meticulous cleaning is non-negotiable. Any dust, grease, or contaminants left on the surface will compromise the adhesion and appearance of subsequent primer or paint layers.

1. Blow Off Dust: Use an air hose to thoroughly blow away all layers of sanding dust.
2. Wax and Grease Remover: Dampen a clean cloth with a wax and grease remover that is compatible with your chosen paint system. Wipe down all body surfaces in the area to be painted.
3. Two-Cloth Method: Follow the damp cloth with a clean, dry cloth to pick up any lingering residue and moisture, leaving a perfectly clean and dry surface. Always use a new piece of cloth for each panel to prevent cross-contamination.
4. Final Wipe Down: Just before spraying any paint material, give the vehicle a final wipe down in the paint booth using a tack cloth. This specialised cloth picks up any last microscopic dust particles, ensuring an immaculate surface for painting.

Table: Sandpaper Grit Guide for Bodywork

Frequently Asked Questions About Block Sanding

Are auto body sanding blocks expensive?

No, auto body sanding blocks are generally quite affordable. You can often purchase an entire assortment of different shapes and sizes for under £40. While not the most expensive tool in your garage, they are undeniably one of the most important for achieving a professional finish. Many suppliers, like Halfords or specialist auto body tool marts, offer a wide range from popular brands such as 3M and Dura-Block.

Can I sand without a block?

It is strongly advised against sanding without some form of auto sanding block. Your hand is not flat, and the irregular pressure generated by your fingers will inevitably lead to wavy panels. Using a block ensures even pressure distribution, which is crucial for achieving a truly flat and smooth surface.

How often should I change sandpaper when block sanding?

You should change your sandpaper often. As a rule of thumb, clean the paper by knocking out loose debris every few minutes. If you notice any chunks of dirt embedded in the paper, or if it feels dull and isn't cutting effectively, change it immediately. Using old, dirty, or worn paper can introduce new scratches and make your job significantly harder.

What is a guidecoat and why is it used?

A guidecoat is a very light spray of a contrasting colour (often black) applied over your primer. Its primary purpose is to act as a visual guide to reveal high and low spots on the panel. As you block sand, the guidecoat will be removed from the high areas first. Any guidecoat that remains indicates a low spot that still needs to be levelled. It's an essential visual aid for achieving a perfectly flat surface.

Why should I use a long sanding board instead of a small block on wavy panels?

A small sanding block will tend to ride over the peaks and valleys of a wavy panel, making it smoother but not necessarily flatter. A long sanding board, due to its extended length, will bridge these high and low spots. This allows you to sand down the high areas until they are level with the low spots, effectively straightening out the entire panel. This is critical for achieving a perfectly flat surface, especially on larger body panels.

Ultimately, the time and effort invested in meticulous block sanding will be abundantly rewarded with a paint finish that looks professionally done. Patience, the right tools, and adherence to proper techniques are your allies in transforming a potentially wavy surface into a mirror-like, flawless masterpiece.
