Car Radiator Leaks: Causes, Signs & Fixes

Your car's radiator is a vital component responsible for keeping your engine at an optimal operating temperature. When it malfunctions, particularly through a leak, the consequences can range from minor inconvenience to severe engine damage. Understanding how to identify and address a car radiator leak promptly can save you significant time and money, and crucially, prevent dangerous overheating situations. This guide will delve into what a radiator does, the tell-tale signs of a leak, how to check for one, and the various repair options available, including the popular K-Seal solution.

What Does a Car Radiator Do?

The primary function of a car radiator is to cool the engine. Internal combustion engines generate an immense amount of heat during operation. While a portion of this heat is expelled through the exhaust system, a significant amount remains within the engine block. The radiator, as part of the vehicle's cooling system, dissipates this excess heat into the surrounding air. It achieves this by circulating coolant through a series of fine tubes. As hot coolant flows through these tubes, the heat is transferred to the air passing over the radiator's fins, thereby lowering the coolant's temperature before it circulates back into the engine. This continuous cycle is essential for preventing the engine from overheating, which can lead to catastrophic failure.

How Does a Car Radiator Work?

The process begins with the engine generating heat. This heat is absorbed by the coolant, a mixture of antifreeze and water, which circulates through the engine block. The hot coolant is then pumped into the radiator. Inside the radiator, the coolant flows through numerous small tubes, often made of aluminium or copper, which are surrounded by thin metal fins. These fins greatly increase the surface area exposed to the air. As the vehicle moves, or when a fan activates, air is drawn or pushed across these fins, carrying the heat away from the coolant. The cooled coolant then returns to the engine to repeat the cycle. The system is pressurized, and a pressure cap allows excess coolant to expand into an overflow tank when the engine is hot, and then draws it back into the radiator as it cools. This ensures the cooling system remains full and efficient.

Why Do Car Radiators Fail?

The most common reason for radiator failure is a coolant leak. This can occur for several reasons:

• Corrosion: Over time, especially if the coolant is not maintained or replaced at recommended intervals, it can become corrosive. This corrosion can attack the metal components of the radiator, hoses, and connections, leading to small holes, often referred to as 'pinhole leaks'.
• Damage: Physical damage, such as from road debris or during maintenance, can cause cracks or punctures in the radiator.
• Age and Wear: Like any component, radiators are subject to wear and tear. Seals can degrade, and materials can weaken over time.
• Hose and Connection Failures: Leaks can also originate from the hoses connecting the radiator to the engine or from the radiator's end tanks, which are often made of plastic.

A loss of coolant due to any of these issues compromises the cooling system's ability to regulate engine temperature, leading to overheating.

Signs Your Car Radiator is Leaking

Recognising the signs of a radiator leak early is crucial. Here are the most common indicators:

• Puddles Under Your Car: The most obvious sign is finding a patch of fluid on the ground where your car has been parked. It's important to differentiate this from other fluids.
• Coolant vs. Oil: Coolant is typically a sticky fluid with vibrant colours like green, orange, pink, or yellow. Engine oil, on the other hand, is usually yellowish when new, turning brown or black as it ages. Condensation from air conditioning systems can also drip water, which is clear and odourless, unlike coolant.
• Low Coolant Level: If you regularly need to top up your coolant, it's a strong indicator of a leak.
• Overheating Engine: A persistently rising temperature gauge or actual engine overheating is a critical sign that the cooling system is not functioning correctly, often due to low coolant levels from a leak.
• Steam from Under the Bonnet: If you see steam coming from under the bonnet, especially when the engine is running, it could be escaping coolant.
• Rust or Discolouration: Inspecting the radiator itself for patches of rust or discoloured areas can point to a leak. Concentrated rust around a specific spot on the radiator suggests a leak originating from that area.
• Sweet Smell: Leaking coolant often has a sweet, syrupy smell.
• Hissing Sounds: A hissing sound when the engine is hot could indicate coolant escaping under pressure.

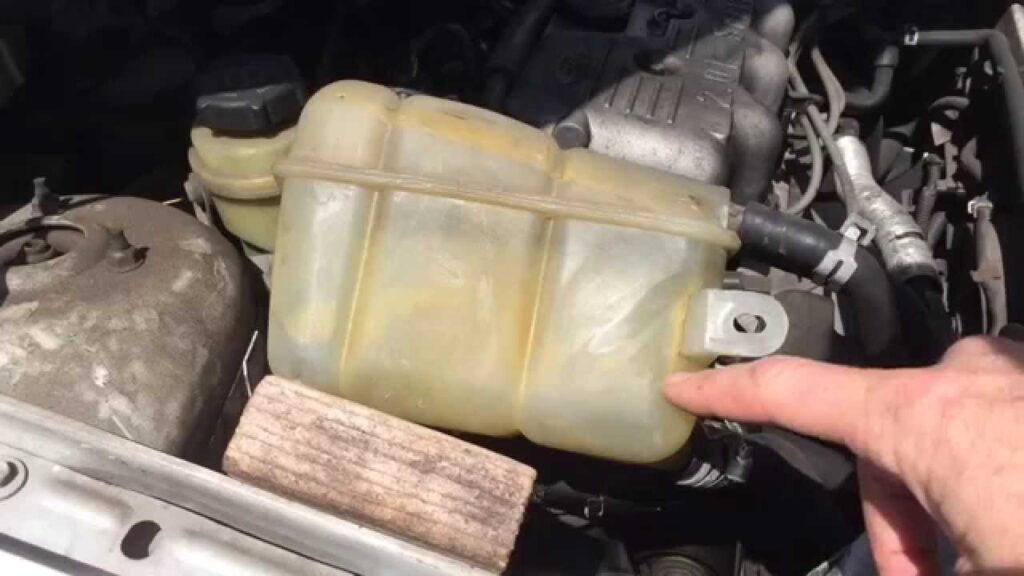

How to Check the Coolant Reservoir for a Leak

Checking your coolant level is a straightforward process that can help diagnose a leak:

1. Locate the Coolant Reservoir: This is usually a translucent plastic tank connected to the radiator, often marked with 'Min' and 'Max' fill lines.
2. Note the Level: When the engine is cool, observe the coolant level against the markings. You can make a note or take a photo for comparison.
3. Drive and Re-check: After driving for a period, allow the engine to cool down again and re-check the coolant level. Remember that coolant expands when hot, so always check when the engine is cool for an accurate reading.
4. Identify Loss: If the coolant level has noticeably dropped between checks, your vehicle has a coolant leak.

Can Rust Cause a Leak in a Car Radiator?

Yes, absolutely. As mentioned, rust and corrosion are primary culprits behind radiator leaks. When the protective additives in the coolant break down, or if the coolant level is consistently low, the metal components of the radiator and cooling system can begin to rust. This rust can form on the internal surfaces, potentially clogging passages, and also on the external surfaces. External rust, particularly if it forms in a concentrated area, can weaken the metal and lead to pinhole leaks or cracks, allowing coolant to escape.

How to Fix a Car Radiator Leak

Addressing a radiator leak requires prompt action. Here are the steps and methods for repair:

Safety First: Essential Precautions

Before attempting any inspection or repair, it is paramount to prioritise safety:

• Allow the Engine to Cool: A hot cooling system is under significant pressure. Opening the radiator cap or disturbing any part of the system when hot can cause scalding coolant to spray out. Wait several hours for the engine and radiator to cool down completely.
• Wear Protective Gear: Always wear safety glasses to protect your eyes from any potential spray. Gloves are also recommended to protect your hands from grease and the coolant itself.

DIY Inspection and Repair Methods

1. Clean the Radiator: A clean radiator makes it easier to spot leaks. Use a hose to gently wash away dirt, grease, and grime. Dry it with paper towels.
2. Start the Engine and Inspect: Once the engine has cooled and you've cleaned the radiator, start the engine. Carefully observe the radiator for any signs of leaking fluid or escaping steam.
3. Use a Coolant System Pressure Tester: This is a valuable tool for pinpointing leaks. You can purchase or rent one from auto parts stores or garages. Attach the tester to the radiator's filler neck and pump it to pressurize the system. Listen for escaping air or look for fluid leaks. This method can reveal leaks that might not be apparent under normal operating conditions.
4. Use a Leak Sealant (Temporary Fix): Commercial radiator leak sealants are available as a quick fix. These are added directly to the coolant. While they can seal small leaks, they are often a temporary solution and may not be as effective or long-lasting as professional repairs. Follow the product instructions carefully, ensuring the engine is cool before adding.
5. Seal Visible Cracks with Epoxy: For more visible cracks, a two-part epoxy designed for automotive use can be effective. Ensure the area is thoroughly cleaned and dried before applying the epoxy. Allow it to cure completely, usually overnight, before refilling the system. This offers a more robust repair than liquid sealants but is still best suited for smaller, accessible cracks.

Professional Radiator Repair

If you're uncomfortable with DIY repairs or the leak is significant, taking your car to a qualified mechanic is the best course of action. Professional repairs typically involve:

• Leak Detection: Using specialised equipment to accurately locate the source of the leak.
• Radiator Removal: Draining the cooling system and removing the radiator.
• System Flush: Flushing the entire cooling system to remove old coolant, debris, and any potential blockages.
• Repair or Replacement: Depending on the severity and location of the leak, the radiator might be repaired (e.g., by welding a crack) or, more commonly, replaced with a new or reconditioned unit.
• Installation and Refill: Installing the repaired or new radiator, refilling the system with the correct coolant mixture, and bleeding any air from the system.

While professional repairs are generally more expensive due to labour costs, they offer a reliable and long-lasting solution, ensuring your engine's cooling system is functioning optimally.

Comparing Repair Options

Here's a brief comparison of common repair methods:

Does K-Seal Fix Radiator Leaks?

Yes, K-Seal is a popular and highly regarded product designed specifically to permanently repair leaks in car radiators and cooling systems. It is a liquid formula that is added to the coolant. When introduced to the leak, it reacts with the air and coolant, forming a permanent seal that fills small holes, cracks, and pinholes. K-Seal is scientifically tested and formulated to work without causing blockages or overheating issues. It's often considered a more reliable and longer-lasting solution than generic sealants and can save considerable expense compared to replacing the radiator.

How to Use K-Seal

1. Shake the Bottle: Thoroughly shake the K-Seal bottle to ensure the contents are well-mixed.
2. Add to System: Pour the recommended amount of K-Seal directly into the coolant reservoir or radiator (ensure the engine is cool first).
3. Top Up Coolant: If necessary, top up the coolant reservoir with the correct coolant/water mixture.
4. Run Engine: Start the engine and let it run up to its normal operating temperature. This allows the K-Seal to circulate throughout the cooling system and find and seal any leaks.

K-Seal is designed to seal holes up to a certain diameter and cracks of a specific width and length, making it effective for many common radiator leak issues.

Could Other Parts of My Engine Be Affected?

A radiator leak doesn't operate in isolation. A compromised cooling system can affect other engine components:

• Water Pump: If the coolant level drops too low, the water pump may run dry, leading to premature wear or failure.
• Thermostat: An overheating engine can cause the thermostat to seize or fail.
• Head Gasket: Severe and prolonged overheating is a leading cause of head gasket failure, which is a very serious and expensive repair.
• Hoses and Connections: The hoses and their connections to the radiator and engine are common points of failure and can also be affected by corrosion.

Therefore, it's essential to address radiator leaks promptly to protect the entire engine.

Frequently Asked Questions

Q1: How much does it cost to fix a car radiator leak?

The cost can vary significantly. Minor DIY fixes with sealants are very cheap. Professional repair of a small leak might involve labour costs for diagnosis and sealing, perhaps £100-£200. However, if the radiator needs replacement, costs can range from £200 for older, simpler vehicles to £800 or more for modern cars with integrated cooling systems and specific radiator designs. Labour charges for replacement typically involve flushing the system, removing the old radiator, fitting the new one, and refilling with coolant.

Q2: Can I drive my car with a leaking radiator?

It is strongly advised not to drive your car with a leaking radiator, especially if the leak is significant. Driving with low coolant levels will inevitably lead to engine overheating, which can cause severe and costly damage, such as a blown head gasket or a seized engine. If the leak is very minor and you only need to drive a short distance to a garage, monitor the temperature gauge very closely and be prepared to stop immediately if it starts to rise.

Q3: What is the best stop leak for a car radiator?

Products like K-Seal, K-Seal HD, and K-Seal Ultimate are widely regarded as some of the best and most effective radiator stop leak solutions on the market due to their permanent sealing capabilities and scientific formulation. Other reputable brands also offer effective stop leak additives, but it's important to choose a product specifically designed for cooling system leaks and follow the instructions carefully.

Q4: How often should I check my coolant level?

It's a good practice to check your coolant level at least once a month, and before any long journeys. This simple check can help you identify potential leaks or other cooling system issues before they become serious problems.

Q5: What colour should my coolant be?

Coolant comes in various colours, including green, orange, pink, yellow, and blue. The colour itself isn't as important as ensuring you use the correct type of coolant recommended for your specific vehicle manufacturer. Mixing different types of coolant can sometimes lead to chemical reactions that reduce their effectiveness or cause damage.

In conclusion, a car radiator leak is a serious issue that requires prompt attention. By understanding the signs, performing regular checks, and knowing your repair options, you can maintain your vehicle's cooling system and prevent potentially devastating engine damage.
