Car Sandpaper Guide: Grit for Perfect Paint

Sanding Your Car: The Key to a Professional Paint Finish

Achieving a showroom-quality paint finish on your vehicle is a meticulous process, and at its heart lies the often-underestimated art of sanding. Whether you're tackling a minor touch-up or a full respray, selecting the correct sandpaper grit is paramount. Using the wrong grit can lead to frustrating imperfections, deep scratches, or an adhesion failure for your new paint. This guide will demystify the world of sandpaper grits and illuminate the path to a smooth, durable, and aesthetically pleasing automotive paint job.

Understanding Sandpaper Grits: A Numerical Journey

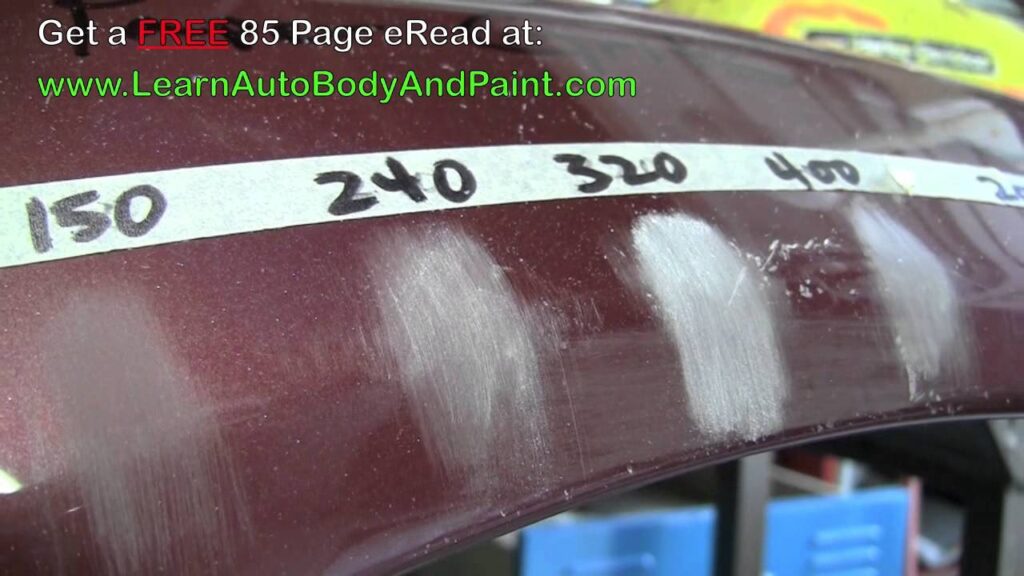

Sandpaper is graded by a grit number, which indicates the size of the abrasive particles bonded to the paper. The general rule of thumb is that a lower grit number signifies a coarser abrasive, while a higher grit number means a finer abrasive. This progression is crucial when working on automotive surfaces, as you'll typically move from coarser grits to progressively finer ones.

Common Sandpaper Grits and Their Auto Body Applications

Let's delve into the typical grit ranges you'll encounter and their specific uses in automotive bodywork:

Step-by-Step Sanding for a Flawless Paint Job

The journey to a perfect paint job involves a deliberate progression through different grit levels. Each stage serves a specific purpose:

1. Initial Preparation: Rust and Rough Spots

If your vehicle has rust or significant imperfections, you'll start with coarser grits. For heavy rust removal, 40-80 grit might be necessary, but always follow up with finer grits to remove the deep scratches left behind. For less severe rust or to remove old, flaking paint, 120-180 grit is a more common starting point. The goal here is to expose clean metal or a smooth surface free from contaminants.

2. Shaping and Smoothing Body Filler

When using body filler to repair dents or imperfections, you'll typically begin with 80-120 grit sandpaper to shape the filler. Once you've achieved the desired contour, you'll progressively move to finer grits like 180 and then 240 grit to smooth the filler and blend it seamlessly with the surrounding bodywork. Allow ample drying time for fillers before sanding.

3. Preparing for Primer

Before applying primer, the surface needs to be uniformly smooth and slightly abraded to ensure good adhesion. 240-grit sandpaper is often the go-to for this stage. If you've used coarser grits for rust removal, you'll need to sand over those areas with 240 grit to eliminate any visible scratches.

4. Sanding the Primer

After the primer has dried, you'll likely find minor imperfections such as dust nibs or slight unevenness. 320-grit sandpaper is ideal for lightly sanding the primer to create a smooth surface for the base coat. For even finer results, some professionals may opt for 400-grit.

5. Between Paint Coats

As you apply multiple layers of base coat or color, it's beneficial to lightly sand between coats to ensure optimal adhesion and a smooth finish. For this, 600-800 grit sandpaper, often used with a wet sanding technique, is highly effective. This removes any minor dust or imperfections without damaging the underlying paint.

6. Preparing for Clear Coat

The application of the clear coat is critical for both protection and shine. Just before applying the clear coat, a light sanding with 800-1000 grit (wet sanding is recommended) can help ensure the clear coat bonds effectively to the base coat.

7. Post-Clear Coat Perfection: Buffing and Polishing

After the final coat of paint has cured, you'll likely want to enhance the shine and remove any minor imperfections from the clear coat itself. This is where the finest grits come into play. 1500-2000 grit sandpaper, used wet, is excellent for removing minor sanding marks or imperfections. Following this, 3000 grit and even finer papers (up to 5000-7000 grit) are used for polishing and buffing, bringing out a deep, mirror-like shine. This process is often referred to as 'color sanding' or 'wet sanding' and is key to achieving a professional, swirl-free finish.

Wet Sanding vs. Dry Sanding for Auto Body

Both wet and dry sanding have their place in automotive painting, but wet sanding is generally preferred for finer grits and polishing stages.

• Dry Sanding: Quicker for initial material removal (e.g., rust, old paint). However, it can generate a lot of dust and heat, potentially damaging the paint if not done carefully. It's best suited for coarser grits used in the early stages.
• Wet Sanding: Involves using water (or a water/soap mixture) with the sandpaper. This lubricates the surface, reduces dust, keeps the sandpaper from clogging, and helps prevent overheating. It's essential for finer grits (400 and above) to achieve a smooth finish and avoid scratching the paint or clear coat.

Tips for Successful Automotive Sanding

• Use a Sanding Block: For flat or slightly curved surfaces, a sanding block provides even pressure and prevents you from creating dips or unevenness.
• Work in One Direction: When sanding with coarser grits, try to sand in one direction. When moving to a finer grit, sand in a perpendicular direction to the previous sanding marks. This helps you see when the previous grit's scratches have been removed.
• Keep it Clean: Regularly wipe down the surface with a tack cloth to remove dust and debris, especially when moving between different grit levels.
• Inspect Your Work: Frequently check your progress. You should see a uniform matte finish across the area you are sanding, indicating that the previous grit's scratches have been eliminated.
• Don't Rush: Patience is a virtue in auto body work. Rushing the sanding process is a sure way to introduce errors that are difficult to correct.
• Protect Yourself: Always wear appropriate personal protective equipment (PPE), including a respirator mask to avoid inhaling dust, safety glasses, and gloves.

Frequently Asked Questions (FAQs)

Q1: What grit sandpaper is best for sanding a car?
The "best" grit depends entirely on the stage of the painting process. For general surface preparation before primer, 240-grit is common. For smoothing primer, 320-grit. Between paint coats, 600-800 grit. For polishing after painting, 1500-3000 grit or higher.

Q2: Can I use 2,000-grit sandpaper on the clear coat layer?
Yes, 2,000-grit sandpaper is suitable for use on the clear coat, particularly for removing minor imperfections or preparing for polishing. However, it's crucial to use light pressure and a wet sanding technique to avoid creating new scratches.

Q3: Is 1,000-grit sandpaper fine?
For most general purposes, 1,000-grit is considered ultra-fine. In automotive painting, it's often used for smoothing between paint coats or for very delicate plastic surfaces. It's generally too fine for initial rust removal or heavy surface preparation.

Q4: What if I sanded too much?
If you've sanded too aggressively or used too coarse a grit and created deep scratches, you may need to use body filler or spot putty to repair the damage. Then, you'll need to re-sand the area, starting with a coarser grit appropriate for the repair material and working your way back up to the finer grits needed for paint adhesion.

Q5: How fine should you sand a car before painting?
The ideal final grit before painting depends on the type of paint and primer being used, but generally, you want a smooth, uniformly dulled surface. For primer adhesion, 240-320 grit is typical. For subsequent coats, 600-800 grit is common. The key is to ensure the surface is free of scratches from the previous sanding stage.

Conclusion

Mastering the use of sandpaper is a fundamental skill for anyone looking to achieve professional results in automotive painting. By understanding the purpose of each grit and employing the correct techniques, particularly wet sanding for finer stages, you can transform your vehicle's appearance. Remember to work progressively from coarser to finer grits, maintain consistent pressure, and keep your work area clean. With the right sandpaper and a patient approach, you can achieve a paint finish that is not only beautiful but also durable.
