Car Oil Extractor Pumps Explained

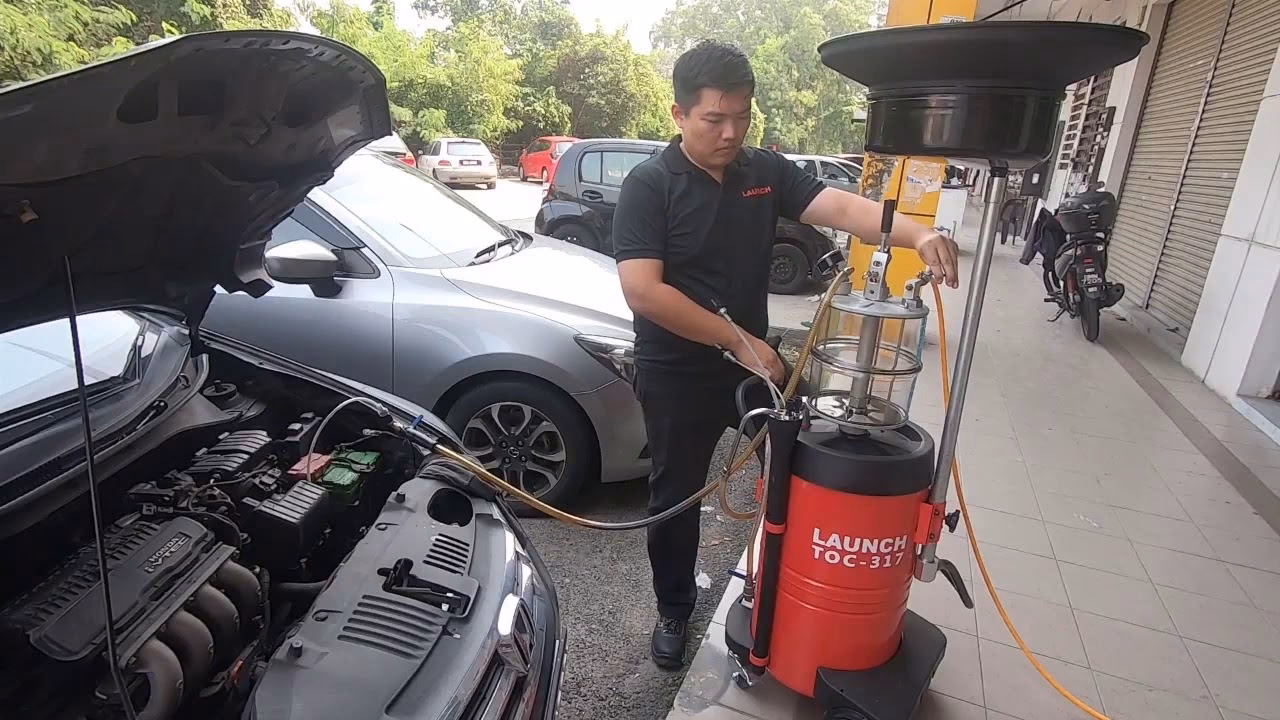

The humble car oil extractor pump, often overlooked amidst the more glamorous automotive components, plays a surprisingly crucial role in the routine maintenance of your vehicle. For many car owners, the traditional method of changing engine oil involves jacking up the car, locating the drain plug, and carefully draining the old oil into a receptacle. While this method is tried and tested, it can be a messy, time-consuming, and sometimes physically demanding process. This is where the car oil extractor pump steps in, offering a cleaner, more efficient, and often simpler alternative for removing used engine oil. In essence, an oil extractor pump is a device designed to suck the old engine oil directly out of the engine's sump through the dipstick tube, bypassing the need to get underneath the vehicle.

How Does an Oil Extractor Pump Work?

The fundamental principle behind an oil extractor pump is vacuum. These pumps create a negative pressure, or vacuum, which then draws the liquid oil from the engine's oil pan up through the dipstick tube and into a collection container. There are several types of oil extractor pumps, each operating on slightly different mechanisms:

1. Manual Hand Pumps

These are the most basic and often the most affordable type. They typically consist of a pump mechanism (often a plunger or lever) connected to a flexible hose that is inserted into the dipstick tube. By repeatedly operating the pump, you manually create the vacuum needed to draw the oil out. They are usually made of plastic or metal and are relatively simple to use, though they can require some physical effort, especially for larger volumes of oil.

2. Pneumatic (Air-Operated) Pumps

Pneumatic oil extractors utilise compressed air to generate the vacuum. They have an air inlet that connects to an air compressor. When activated, the compressed air is forced through a venturi system, creating a powerful suction that rapidly draws the oil out. These are generally faster and more efficient than manual pumps, making them ideal for workshops or for those who perform oil changes frequently. However, they require access to an air compressor.

3. Electric Pumps

Electric oil extractor pumps are powered by the vehicle's battery (usually via the cigarette lighter socket or directly to the battery terminals) or by a mains power supply. They contain an electric motor that drives a pump, creating the vacuum. These offer a high degree of convenience as they require minimal manual effort. Simply connect them to a power source, insert the hose, and switch them on. They are a popular choice for DIY mechanics due to their ease of use and effectiveness.

Components of an Oil Extractor Pump

Regardless of the type, most oil extractor pumps share a common set of components:

• Collection Container: This is where the old oil is stored. It can be an integrated tank within the pump unit or a separate container that the oil is pumped into. Capacity varies, so it's important to choose one that can hold more oil than your engine typically requires.
• Hoses: These are flexible tubes that connect the pump to the engine's dipstick tube and, in some cases, to the collection container. The intake hose needs to be narrow enough to fit into the dipstick tube but robust enough to handle the oil.
• Pump Mechanism: This is the core of the device, responsible for creating the vacuum. It could be a manual plunger, a venturi system for pneumatic pumps, or an electric motor and impeller for electric models.
• Power Source Connection (for Electric/Pneumatic): This includes the battery clips, cigarette lighter plug, or air hose fitting.

Benefits of Using an Oil Extractor Pump

The adoption of an oil extractor pump for your vehicle's oil changes offers several significant advantages:

1. Cleanliness

This is arguably the biggest benefit. By extracting oil through the dipstick tube, you eliminate the risk of spills that often occur when trying to position a drain pan precisely under the sump plug. There's no need to crawl under the car, reducing the chance of getting oil on your clothes or the ground. The process is considerably cleaner, making for a much more pleasant DIY maintenance experience.

2. Convenience and Speed

For many, especially those with limited mobility or who prefer not to work under their vehicle, oil extractors are a godsend. They can often perform an oil change much faster than the traditional method, as there's no need to wait for the oil to drain completely or to struggle with a stubborn drain plug. Electric models, in particular, are incredibly quick and easy to operate.

3. Accessibility

Some vehicles, particularly certain sports cars or models with low ground clearance, can be difficult to jack up safely. The drain plug may also be hard to access. An oil extractor pump negates these issues entirely, as the only access required is to the dipstick tube, which is almost always easily reachable from the top of the engine bay.

4. Safety

Working under a vehicle supported only by a jack can be dangerous if not done correctly. Using an oil extractor pump eliminates this risk by removing the need to get under the car. Ensuring the vehicle is parked on a level surface and the pump is used correctly are the primary safety considerations.

5. Environmental Friendliness

By minimising spills, oil extractor pumps help prevent oil from contaminating the environment. Proper disposal of the used oil collected in the pump's container is still essential, but the extraction process itself is inherently cleaner.

When is an Oil Extractor Pump Not Suitable?

While incredibly useful, oil extractor pumps aren't a universal solution for every oil change scenario. There are a few situations where the traditional drain plug method might still be preferable or necessary:

• Removing Sludge and Debris: The drain plug at the bottom of the oil pan is the lowest point. When draining oil traditionally, any heavy sludge, metallic particles, or debris that has settled in the pan will naturally flow out with the oil. An oil extractor pump, drawing oil from higher up the sump, may not be able to remove this accumulated sediment as effectively. This is particularly relevant for older engines that may have accumulated more internal deposits.
• Checking the Drain Plug: The drain plug itself can sometimes provide information. Its condition (e.g., signs of wear or damage) can be assessed during a traditional oil change. Some drain plugs also have magnetic tips designed to capture metallic particles, which can be an indicator of engine wear. This inspection is missed with an extractor pump.
• Extremely Thick or Cold Oil: While most pumps can handle typical engine oil, very thick or extremely cold oil may be more difficult to extract efficiently, potentially requiring more time or effort.

Choosing the Right Oil Extractor Pump

When selecting an oil extractor pump, consider the following factors:

• Capacity: Ensure the collection container is large enough for your vehicle's oil capacity.
• Pump Type: Decide whether manual, pneumatic, or electric best suits your needs and available resources.
• Hose Diameter and Length: The intake hose must fit your dipstick tube, and sufficient length is needed to reach the bottom of the oil pan.
• Build Quality: Look for durable materials that will withstand repeated use.
• Ease of Cleaning: Consider how easy the unit is to empty and clean after use.

How to Use an Oil Extractor Pump

The general steps for using an oil extractor pump are as follows:

1. Warm the Engine: Run the engine for a few minutes to warm the oil. Warm oil flows more easily. Don't let it get too hot, though.
2. Locate the Dipstick: Identify the engine oil dipstick and remove it.
3. Insert the Intake Hose: Carefully insert the appropriate-sized intake hose of the extractor pump into the dipstick tube. Push it down until it reaches the bottom of the oil pan.
4. Connect and Operate:
   • Manual: Begin pumping the handle.
   • Pneumatic: Connect to an air compressor and activate the air supply.
   • Electric: Connect to the power source and switch it on.
5. Monitor Collection: Watch the collection container. You'll see the old oil being drawn into it.
6. Complete Extraction: Continue pumping until no more oil is being extracted. You might need to slightly reposition the hose to get the last bits.
7. Remove and Store: Once finished, carefully remove the hose, seal the collection container, and store it for proper disposal.
8. Refill with New Oil: Replace the dipstick and refill the engine with the correct type and amount of new engine oil through the oil filler cap.
9. Dispose of Old Oil: Take the used oil to a local recycling centre or auto parts store that accepts used motor oil.

Frequently Asked Questions (FAQs)

Q1: Can I use an oil extractor pump on all cars?
Generally, yes, as long as your car has a dipstick tube that the hose can fit into. However, as mentioned, they might not be the best for removing heavy sludge.

Q2: How long does it take to extract the oil?
This varies depending on the pump type and engine size, but typically it can take anywhere from 5 to 20 minutes.

Q3: Is it as effective as draining from the plug?
For removing the bulk of the oil, yes. However, it may not remove all the sediment that a traditional drain might.

Q4: Do I still need to change the oil filter?
Absolutely! Changing the oil filter is a critical part of the oil change process and should always be done in conjunction with replacing the engine oil, regardless of the extraction method used.

Q5: Can I use an oil extractor to change gearbox oil?
Some specialized extractors can be used for gearbox or differential oil, but you must ensure the dipstick tube (or fill plug access) is compatible and the pump is suitable for the type of fluid.

Conclusion

An oil extractor pump is a fantastic tool for any car enthusiast or owner looking to simplify their maintenance routine. It offers a cleaner, more convenient, and often safer way to change your engine oil. While it doesn't entirely replace the need to consider the drain plug for inspecting sediment, its benefits in terms of ease of use and cleanliness make it a highly recommended addition to your automotive toolkit. By understanding how they work and choosing the right type for your needs, you can make your next oil change a much more manageable task.
