In the demanding world of commercial vehicle maintenance and repair, dealing with chassis damage can present a significant challenge. When an HGV (Heavy Goods Vehicle) suffers a collision or sustains damage from heavy use, the chassis – the very backbone of the vehicle – can become twisted, bent, or distorted. This is where specialised equipment becomes not just beneficial, but absolutely essential. One of the leading names in this field is Josam, and their chassis jig system is a cornerstone for restoring the structural integrity of commercial vehicle frames. This article will delve into what a Josam chassis jig is, how it works, and the significant advantages it offers in HGV chassis repair.
Understanding the Josam Chassis Jig
At its core, a Josam chassis jig is a sophisticated piece of equipment designed for the precise straightening and realignment of heavy goods vehicle chassis. Unlike minor dents or superficial damage, severe chassis distortion requires a robust and accurate method to return the frame to its original, intended dimensions. The Josam system is engineered to provide exactly that, utilising a combination of powerful pulling mechanisms, precise anchoring, and advanced measuring capabilities.
The fundamental principle behind a chassis jig is to counteract the forces that have caused the chassis to deform. This is achieved by anchoring the vehicle securely to a fixed reference point and then applying controlled, powerful forces to pull the damaged sections back into alignment. The 'jig' aspect refers to the framework and fixtures that hold the vehicle and guide the straightening process, ensuring that the forces are applied exactly where and how they are needed.
How the Josam System Works for Chassis Repair
The Josam system for chassis repair is a comprehensive solution that integrates several key components. The foundation of the system typically involves a sunken floor rail system. These rails are embedded into the workshop floor, providing a stable and precise anchoring point for the vehicle. This anchoring is crucial, as it prevents the vehicle from shifting during the powerful straightening operations.

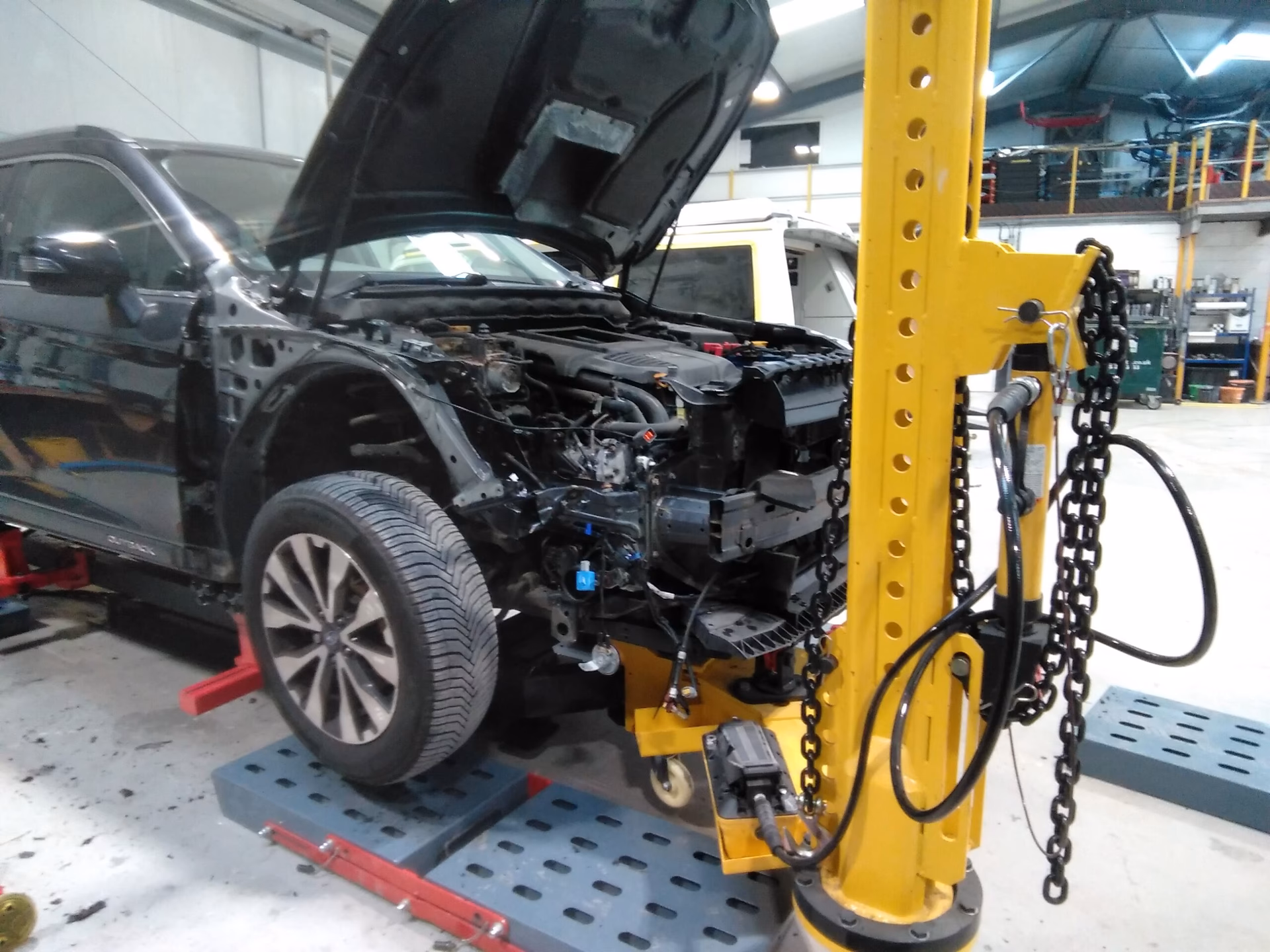

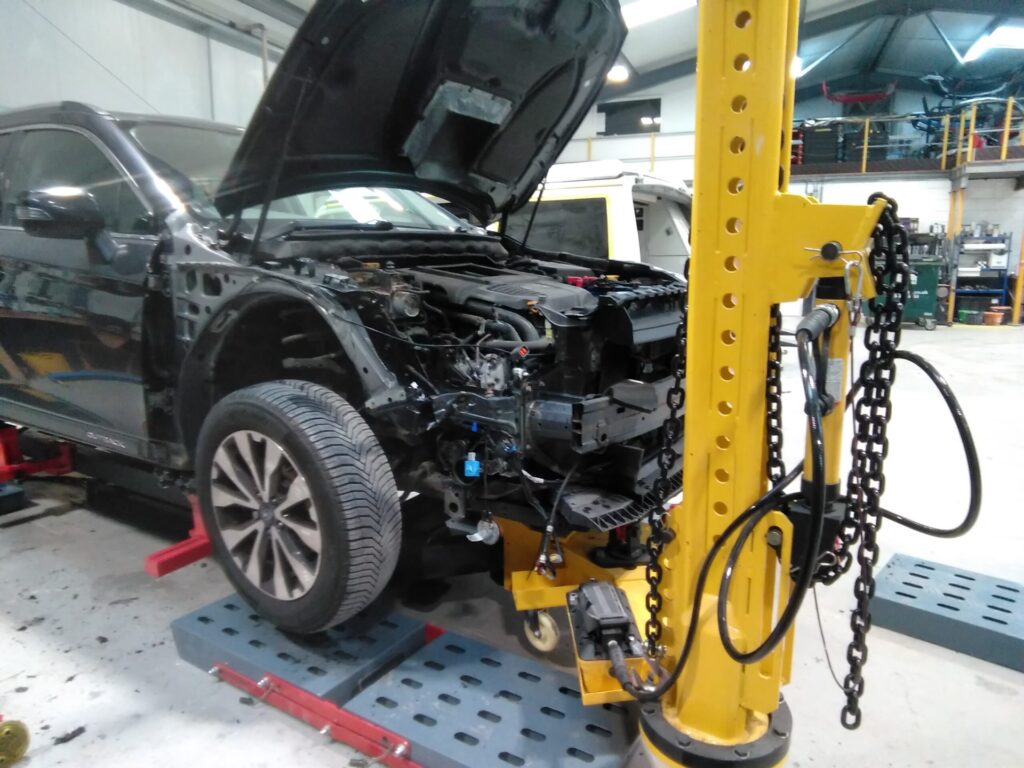

Portable trolleys and towers are then used to connect the vehicle's chassis to the floor rails. These trolleys can be positioned along the rails to accommodate different vehicle lengths and chassis configurations. The real power of the Josam system lies in its pulling towers. These towers, often equipped with high-capacity hydraulic rams (such as the 20-ton capacity mentioned), are strategically placed along the chassis. Extensions can be fitted to these towers to reach higher points on the vehicle, allowing for versatile application of force.
The process typically involves:
- Vehicle Anchoring: The damaged HGV is positioned over the floor rails, and secure anchor points are attached to the chassis frame.
- Tower Placement: The pulling towers are moved into position, with pulling chains or cables attached to specific points on the damaged chassis.
- Measuring and Analysis: Before any pulling commences, the chassis is meticulously measured to identify the extent and direction of deformation. Laser alignment systems are often used in conjunction with the jig to provide precise data.
- Controlled Pulling: Hydraulic power is applied to the pulling towers, exerting controlled force to straighten the bent or twisted sections of the chassis. This is a gradual process, with frequent measurements taken to monitor progress and ensure accuracy.
- Realignment: The goal is to return the chassis to its original, manufacturer-specified dimensions, ensuring that the frame is perfectly straight and true.
The capacity of a Josam chassis jig, such as the up to 80-ton capacity mentioned, highlights its ability to handle the immense forces required to straighten the robust frames of heavy goods vehicles. This capacity ensures that even the most severely compromised chassis can be addressed.
The Advantage of Josam Chassis Jigs for HGV Repair
The investment in a Josam chassis jig and its associated systems offers substantial benefits for repairers and vehicle owners alike:
Cost Savings
One of the most significant advantages is the potential to save the cost of renewing a chassis. Previously, severely damaged chassis might have been deemed beyond economic repair, necessitating the replacement of the entire chassis frame. This is an incredibly expensive and time-consuming process. A chassis jig allows for the repair and re-straightening of these damaged frames, often eliminating the necessity of removing the cab and body, which further reduces labour time and associated costs.
Structural Integrity and Safety
A straight and true chassis is paramount for the safety and performance of an HGV. A deformed chassis can lead to:
- Wheel Alignment Issues: Misalignment of axles and wheels, leading to uneven tyre wear and poor handling.
- Stress on Components: Uneven forces can put undue stress on suspension, drivetrain, and body components, leading to premature failure.
- Compromised Handling: A twisted frame can affect steering and stability, posing a significant safety risk.
By using a Josam chassis jig, repairers can restore the vehicle's structural integrity, ensuring it handles, steers, and brakes as intended by the manufacturer. This is crucial for maintaining road safety.
Versatility and Efficiency
The Josam system's design, with its extensive floor anchoring rails (e.g., 160 feet), allows for the simultaneous repair of multiple vehicles. This capability significantly enhances workshop efficiency and throughput. The ability to work on up to 6-8 vehicles at a time means that a workshop can service more clients and minimise downtime for operators.
Precision with Laser Alignment
The integration of a Josam Laser Assisted Wheel Alignment Kit is a critical aspect of the system. After chassis straightening, ensuring that the wheels are perfectly aligned is the final, crucial step. Laser alignment systems provide highly accurate measurements, confirming that the chassis has been returned to its correct geometry and that the wheels will run straight and true. This not only optimises tyre life but also improves fuel efficiency and ensures safe, predictable handling.
Cab Repair and Replacement Synergy
While this article focuses on chassis jigs, it's worth noting the synergy with other Josam equipment, such as cab alignment jigs. When a vehicle has been involved in an accident, both the chassis and the cab can suffer damage. The ability to repair and realign cabs using specialised jigs, alongside chassis straightening capabilities, provides a comprehensive solution for accident repair. In cases where a cab is beyond economical repair, the facility to remove, strip, rebuild, and refit a new cab shell is a vital service that complements chassis repair.
Comparison: Chassis Jig vs. Conventional Repair Methods
To truly appreciate the value of a Josam chassis jig, it's helpful to compare it to less sophisticated or older repair methods:
| Feature | Josam Chassis Jig System | Conventional Methods (e.g., Hammer & Dolly, Basic Pulling) |
|---|---|---|
| Accuracy | High precision; uses laser measurement and controlled pulling to return to OEM specifications. | Limited; often relies on visual inspection and less precise measurement tools. Difficult to achieve exact factory tolerances. |
| Force Application | High capacity (up to 80 tons); controlled hydraulic power for significant straightening. | Lower capacity or manual force; less effective for severe distortion. |
| Scope of Repair | Effective for severe twisting, bending, and distortion of the entire chassis frame. | Best suited for minor straightening or localised damage. Inadequate for major frame compromise. |
| Time & Cost Efficiency | Reduces labour time by avoiding cab/body removal in many cases; repairs rather than replaces, saving significant costs. | Can be more time-consuming for severe damage; replacement is often the only viable option, leading to higher costs. |
| Structural Integrity Guarantee | Restores original structural integrity; crucial for safety and vehicle longevity. | May not fully restore original strength or geometry, potentially compromising long-term safety. |
Frequently Asked Questions
Q1: Can a Josam chassis jig repair any type of chassis damage?
A1: While the Josam system is incredibly powerful and versatile, there are limits. Extremely catastrophic damage, where the chassis is fractured into multiple pieces or significant material is lost, might still necessitate replacement. However, for most forms of bending, twisting, and buckling, the jig is highly effective.
Q2: How long does a chassis straightening process typically take?
A2: The duration varies significantly depending on the severity of the damage. A minor misalignment might be corrected in a few hours, while a severely twisted chassis could take several days of work, including meticulous measuring and incremental pulling.
Q3: Is chassis straightening as good as a new chassis?
A3: When performed correctly using advanced equipment like the Josam system, chassis straightening can restore the frame to its original structural integrity and dimensional accuracy. For all practical purposes, a properly repaired chassis functions as a new one, ensuring safety and performance. However, the residual effects of extreme stress on the metal can be a consideration in very rare, highly severe cases.
Q4: What makes the Josam system superior to other chassis repair equipment?
A4: Josam is renowned for its robust engineering, high-capacity pulling power, integrated measuring systems (including laser alignment), and the modularity of its floor rail system. This combination allows for unparalleled precision, efficiency, and versatility in addressing a wide range of chassis damage on HGVs.
Conclusion
The Josam chassis jig represents a vital technological advancement in the field of heavy goods vehicle repair. By providing the capability to precisely straighten severely damaged chassis frames, it offers substantial cost savings, enhances vehicle safety, and improves workshop efficiency. For fleet operators, the ability to get their vehicles back on the road quickly and safely, with restored structural integrity, is invaluable. For repairers, investing in a Josam system is an investment in quality, precision, and the capacity to undertake complex repairs that were once considered impossible.
