Peering Inside: The Borescope Car Camera Explained

Have you ever found yourself pondering the mysterious inner workings of your car’s engine, but the thought of disassembling it with a plethora of hand tools seems like an insurmountable task? This is precisely where a borescope car inspection camera comes into its own, offering a non-invasive glimpse into the inaccessible.

You might already be familiar with the fundamental concept behind these ingenious devices, as very similar instruments are widely employed in the medical field. They’ve proven invaluable for inspecting the human body and pinpointing the root cause of various conditions, and the same principle applies perfectly to the intricate confines of an automotive engine. Of course, their utility isn't limited solely to engine bays. Anywhere within a vehicle that is difficult to reach or even see can be explored with one of these cameras, bringing back vital images and information. They empower you to diagnose an issue without the arduous and time-consuming process of getting your socket set out to strip the engine apart beforehand, saving precious time and labour.

What Exactly Is a Borescope Car Inspection Camera?

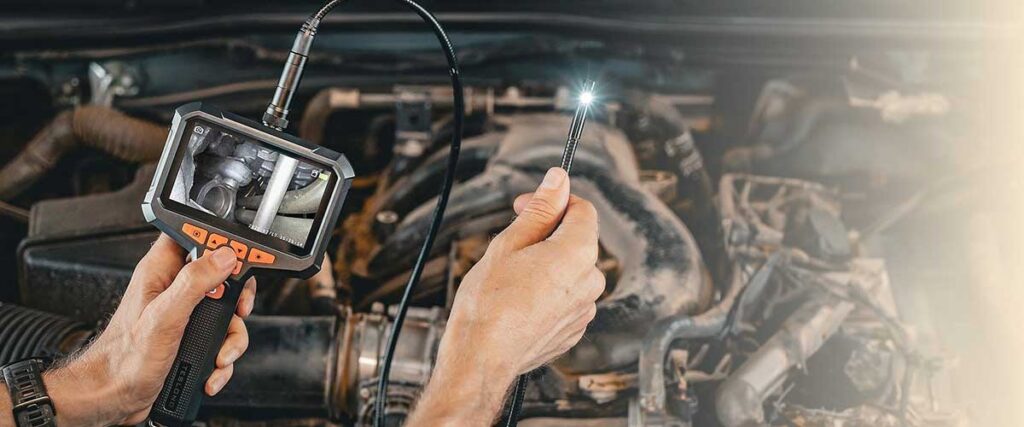

At its heart, a borescope car inspection camera is a sophisticated piece of diagnostic equipment comprising a small camera head attached to a long, flexible or semi-rigid cable. This cable is then connected to a display screen, which can either be integrated into the device itself or an external unit like a smartphone or tablet. Essentially, it’s a tiny eye on a stick, designed to navigate the tightest and darkest spaces within your vehicle. While the term 'borescope' is predominantly used in industrial and automotive contexts, it is interchangeable with 'endoscope', which is more commonly heard in the medical world. Both terms refer to the same fundamental technology: a device that allows visual inspection of internal structures without the need for extensive disassembly.

These cameras are equipped with their own light source, typically adjustable LED lights, to illuminate the dark recesses of an engine bay or chassis. Many also offer features like digital zoom, image capture, and video recording, allowing you to document findings or review them later. The ability to peer into engine cylinders through spark plug holes, inspect valves for carbon build-up, check for fluid leaks in hidden areas, or even locate dropped bolts, makes a borescope an indispensable tool for both professional mechanics and dedicated DIY enthusiasts.

Why Every DIY Mechanic Needs a Borescope Inspection Camera

The simple answer to why you should invest in a borescope is to save yourself potentially thousands of pounds in garage labour costs. We’re all familiar with that nagging feeling when an engine isn't running as smoothly as it should, but diagnosing the precise issue often consumes a huge chunk of your final repair bill. This is where inspection cameras truly shine. Granted, you will need a basic understanding of what you’re looking at inside an engine, but if you can spot anything amiss with your device, it can save a mechanic hours of diagnostic work – or even help you avoid a trip to the garage altogether.

Consider the average hourly labour rates in the UK, which can range anywhere from £50 to £150 per hour, depending on your location and the garage you choose. If it takes a mechanic two working hours just to strip down an engine for a visual diagnosis, you're already looking at a bill of £100-£300 before any actual repairs even begin. By using an inspection camera yourself, you can often pinpoint the problem quickly, potentially saving you a significant portion of that diagnostic fee. Even if you still need professional help, being able to tell your mechanic, “I found carbon build-up on cylinder three’s intake valve,” will dramatically reduce their diagnostic time, directly translating to savings on your bill. It’s a proactive approach to vehicle maintenance that puts more control – and more money – back in your pocket.

Key Features to Consider When Buying Your Borescope

Choosing the right borescope for your needs can feel like navigating a minefield, given the vast array of options available. To make an informed decision, focus on these critical features:

• Cable Length: This is paramount. Engine layouts and vehicle types vary significantly. While a shorter cable might suffice for inspecting spark plug holes, a longer one (1.5 to 2 metres) is essential for reaching deeper into engine bays, exhaust systems, or behind dashboards.
• Screen Quality and Size: The clarity of the image is crucial for effective diagnosis. Look for models with higher resolution (e.g., 1080p HD) and a decent screen size. Integrated screens offer convenience, while models that connect to your smartphone leverage a larger, high-resolution display you already own. Consider features like brightness adjustment and black-and-white modes for challenging lighting.
• Camera Diameter and Flexibility: The smaller the camera head diameter (e.g., 6.2mm), the easier it will be to access extremely tight spaces, such as glow plug apertures or narrow pipework. The cable itself can be flexible for navigating bends or semi-rigid for better control and pushing through obstacles.
• Lighting: Essential for dark environments. Ensure the borescope has adjustable LED lights on the camera head. Brightness control is important to prevent glare in reflective areas.
• Waterproofing: An IP67 rating is highly recommended. You never know what liquids or damp conditions you might encounter inside an engine bay or chassis. A waterproof camera ensures durability and allows inspection of fluid reservoirs or areas with leaks.
• Battery Life and Portability: A good battery life (3-5 hours continuous use) is vital for extended diagnostic sessions. Consider whether the unit is self-contained or relies on an external power source.
• Advanced Features: Some borescopes offer articulating camera tips (allowing you to change the viewing angle without moving the entire cable), temperature sensors (for safety in hot environments), built-in microphones for audio analysis, and SD card slots for saving images and videos. While these add to the cost, they can significantly enhance functionality.

Top Borescope Cameras for Your Toolbox

With so many options on the market, it can be a bit overwhelming to pick the right one. We've done the hard work and compiled some of the best car inspection cameras available, ranking our favourites for various uses and purposes. Please note that prices are approximate and can fluctuate.

In-Depth Look at Featured Models:

Sealey VS8114 Borescope Camera

Often lauded as an editor's pick for its exceptional value, the Sealey VS8114 stands out with a generous two-metre camera cable – a significant advantage over many competitors. It boasts an integrated LCD screen offering up to 1080p HD resolution on a 100mm diameter display. While it doesn't include an SD card or USB connection beyond its charging cable, it compensates with a very competitive price point and useful accessories like a mirror attachment. Its IP67 waterproof rating and continuous run time of five hours make it a robust and reliable diagnostic tool.

Bosch GIC 120

An excellent entry-level option, the Bosch GIC 120 provides great value. It features an LED light on a 1.2-metre cable and a 2.7-inch colour display screen with a resolution of 320 x 240 pixels. It also includes a black-and-white function for challenging lighting conditions and digital zoom for closer inspection. Its affordability makes it a superb choice for those making their first foray into car inspection.

Bosch GIC 120 C

The natural progression from the GIC 120, the 120 C offers several key upgrades. It features a slightly larger 3.5-inch display screen, includes a micro USB cable and SD card for data transfer and storage, and a handy 'up' feature to orient the user. While it represents a technological step up, its cable length remains the same at 1.2 metres.

Depstech DS630

For those seeking a feature-rich inspection camera, the Depstech DS630 is a strong contender. It boasts a large 5-inch display monitor, a built-in microphone for enhanced analysis of internal engine issues, and a claimed run time of 3.5 hours. Its camera cable, at just under 1.5 metres, is longer than the Bosch options, and the camera itself is notably slim at only 6.2mm in diameter. It's also quite clever, with the ability to shut down automatically if the unit's temperature exceeds 80°C.

Sealey VS8230 Borescope Camera

Ideal for damp conditions, the Sealey VS8230 features a robust IP67 waterproof rating, offering peace of mind when inspecting potentially wet areas. Powered by a lithium-ion battery, it provides up to four hours of continuous use. It comes with a 4GB micro SD card, capable of storing up to 10,000 images and 45 hours of video footage. While its 320 x 240-pixel resolution is average, its durability and storage capacity are significant advantages, though its 90cm cable is shorter than some competitors.

Teslong TD450S Borescope with HD Monitor

Often hailed as an excellent overall choice, the Teslong TD450S provides comprehensive functionality. Its standout feature is an articulating camera on the tip of its 5-foot lead, allowing for dynamic viewing angles. It offers a deep focal length (0.6 – 4.0 inches) with dimmable LED lighting, all viewed on a high-quality 4.5-inch screen. The unit is IP67 water-resistant, rechargeable with a 5-hour battery life, and includes a micro SD card for recording, making it a truly standalone, portable solution.

Depstech Wireless Borescope

For the budget-conscious DIYer, the Depstech Wireless Borescope offers incredible value by leveraging your smartphone as the display. Its low price point makes it highly appealing, and the convenience of storing photos and videos directly on your device is a significant plus. While its 2MP camera may not offer spectacular image quality, it's generally sufficient for close-up inspections, proving that effective accessibility doesn't always require a hefty investment.

Milwaukee M12 Auto Technician Borescope

A premium offering, the Milwaukee M12 Auto Technician borescope is built for professional-grade use. It integrates seamlessly with Milwaukee's M12 battery system, making it a great addition for those already invested in the platform. Key features include a replaceable camera whip (useful if damaged), heat sensors, and a pivoting 4.3-inch screen for optimal viewing angles. While its high price tag makes it a significant investment, its robust construction and advanced features cater to serious automotive technicians.

Maximising Your Borescope's Potential

Owning a borescope is just the first step; knowing what to look for is equally important. While even the best LED lights and highest picture quality can't fully conquer the dark, often intimidating spaces within an engine, familiarity with common internal engine issues will significantly enhance your diagnostic capabilities. A borescope can pick up a huge amount of carbon deposits, a damaged valve or piston, or even something completely unexpected, like a dropped tool or foreign object.

If you're new to engine diagnostics, it's a good idea to research and learn what various internal engine issues and symptoms look like before attempting to identify them on a small camera screen in low light. Understanding signs of wear, cracks, fluid ingress, or unusual deposits will turn your borescope from a mere gadget into a powerful cost-effective diagnostic instrument. Remember, it's a tool for seeing, not for fixing, but what you see can guide your repairs precisely.

Frequently Asked Questions (FAQs)

What’s the difference between a borescope and an endoscope?

Fundamentally, borescopes and endoscopes refer to the same type of instrument: a flexible tube with a camera and light source at one end, designed for visual inspection of internal, inaccessible areas. The distinction lies primarily in their common usage. 'Endoscope' is a broader term often associated with medical applications (e.g., examining the digestive tract), while 'borescope' is typically used in industrial and mechanical fields, such as inspecting engines, pipes, or machinery.

What are the main uses of a borescope in a car?

A borescope allows you to see into places your head simply won’t fit, making it invaluable for automotive diagnostics. Its main uses include:

• Engine Cylinder Inspection: Checking for carbon build-up on valves and pistons, examining cylinder walls for scoring or wear, and inspecting spark plug tips.
• Fluid Leak Detection: Locating the source of oil, coolant, or fuel leaks in hard-to-reach areas.
• Component Inspection: Checking the condition of hidden wires, hoses, belts, and connections without dismantling.
• Foreign Object Retrieval: Identifying and sometimes even retrieving small dropped items within the engine bay or chassis.
• Exhaust System Checks: Inspecting catalytic converters or mufflers for damage or blockages.
• Chassis and Body Inspection: Looking for rust, damage, or hidden issues in structural components.

How do I choose the right borescope for my needs?

To choose the best borescope, consider these factors: Firstly, decide if you need an integrated screen or if you prefer to use your existing smartphone for display and storage – this significantly impacts cost and convenience. Secondly, assess the required cable length and camera diameter based on the typical areas you plan to inspect. Longer cables are better for deep access, while smaller diameters fit into tighter openings. Finally, evaluate the desired image quality (resolution), waterproofing (IP rating), and battery life to ensure it meets your diagnostic demands and usage frequency.

How much money can a borescope save me?

The savings can be substantial. With garage labour rates ranging from £50 to £150 per hour, a borescope can quickly pay for itself. If a mechanic spends two hours diagnosing an issue by dismantling parts of your car, that could cost you £100-£300 just for the diagnosis. By using your own borescope, you can often pinpoint the problem yourself, potentially saving that entire diagnostic labour cost. Even if you still take your car to a garage, providing them with clear evidence of the issue (e.g., photos or videos from your borescope) can drastically reduce their diagnostic time, leading to a smaller bill for you. It's an investment that can yield significant financial returns over time.

What exactly am I looking for with an inspection camera?

To make the most of your borescope, a basic understanding of engine components and common failure points is beneficial. You'll be looking for signs of:

• Carbon Deposits: Excessive build-up on intake valves, pistons, or spark plugs.
• Damage: Cracks, chips, or scoring on cylinder walls, piston tops, or valve seats.
• Fluid Leaks: Traces of oil, coolant, or fuel where they shouldn't be.
• Wear and Tear: Excessive wear on moving parts, or frayed wires/hoses.
• Foreign Objects: Anything that shouldn't be there, like broken plastic pieces, screws, or debris.

Despite excellent LED lights and high picture quality, engines are inherently dark and complex. It's a good idea, if you're unfamiliar, to research what internal engine issues and their symptoms look like before attempting to interpret what you see on a small camera screen in compromised lighting conditions.
