When your vehicle starts to misbehave, whether it's difficult starting, a rough idle, or a sudden loss of power, one often-overlooked culprit could be a faulty ignition coil. These vital components are the unsung heroes of your engine's ignition system, transforming low battery voltage into the powerful spark needed to ignite the fuel. Understanding their function, recognising the signs of failure, and knowing how to address them can save you significant time and money. This comprehensive guide will walk you through everything you need to know about ignition coils, their maintenance, and how to replace them, ensuring your car runs as smoothly and efficiently as it should.
Understanding Your Ignition Coil
An ignition coil serves as a miniature transformer within your vehicle's intricate electrical system. Its primary role is to take the relatively low voltage from your car's battery – typically 12 volts – and convert it into the immensely powerful, high voltage (up to 30,000 volts or more) required to create a spark at the spark plugs. This spark is absolutely crucial for igniting the air-fuel mixture in your engine's cylinders, propelling your vehicle forward.
How an Ignition Coil Works
At its core, an ignition coil is ingeniously simple yet incredibly effective. It consists of two main windings: a primary winding and a secondary winding, both wrapped around a laminated iron core. When an electric current flows through the primary winding, it creates an electromagnetic field. When this current is suddenly interrupted (by the engine's control unit), the magnetic field rapidly collapses, inducing a much higher voltage in the secondary winding. This stepped-up voltage is then delivered to the spark plugs via ignition cables, causing the spark that ignites the fuel.
The number of ignition coils in a vehicle can vary significantly depending on the manufacturer and model. Older vehicles might have a single coil serving a distributor, which then sends the spark to each cylinder. However, most modern vehicles utilise a 'coil-on-plug' system, where each spark plug has its own dedicated ignition coil, or a 'waste spark' system, where one coil serves two cylinders. This design makes diagnosing a fault more challenging, as a problem with a single coil might only affect one or two cylinders.
Spotting the Signs of a Defective Ignition Coil
Identifying a failing ignition coil can be tricky, as its symptoms can often mimic other engine issues. However, there are several key indicators that point towards a defective coil. Paying close attention to your vehicle's behaviour can help you diagnose the problem quickly and prevent further complications.
- Difficult Starting: One of the most common signs is your car regularly failing to ignite on the first attempt, or taking longer than usual to start. This happens because the faulty coil isn't providing a strong enough spark for efficient combustion.
- Rough Engine Idle or Misfires: If your engine sounds 'unclean' or runs out of sync, it's a strong indicator. You might feel a noticeable shudder or vibration, especially when idling. This is often due to one or more cylinders not firing correctly, leading to a 'misfire'.
- Reduced Fuel Economy: An engine that isn't firing on all cylinders will consume more fuel to compensate for the lost power, leading to a noticeable drop in your kilometres per litre.
- Engine Warning Light: The illuminated engine warning light (or engine control light) on your dashboard is a clear sign that the vehicle's onboard diagnostics system has detected a fault. While this light can indicate numerous issues, a misfire code (e.g., P0301 for cylinder 1 misfire) often points directly to an ignition coil problem.
- Loss of Power or Acceleration: If your car feels sluggish, struggles to accelerate, or loses power when going uphill, it could be due to an insufficient spark from a failing coil.
Why Do Ignition Coils Fail?
Ignition coils are robust components, but like many parts of your vehicle, they are susceptible to wear and tear. They are classified as wear parts due to their constant operation under demanding conditions. The high voltages and rapid switching cycles they endure, coupled with the electrical resistance from the spark plugs, contribute to their eventual degradation.
Several factors can accelerate an ignition coil's demise:
- Age and Mileage: The more kilometres your car has covered, the higher the chance of an ignition coil failing. Over time, the internal windings can degrade, or insulation can break down.
- Heat Exposure: Located within the hot engine bay, constant exposure to high temperatures can weaken the coil's insulation and internal components.
- Vibrations: Engine vibrations can cause physical stress on the coil's internal connections and windings.
- Faulty Voltage Supply: Irregular or incorrect voltage supply from the vehicle's electrical system can overstress the coil.
- Moisture Ingress: Water or moisture, perhaps from a leaky engine cover or during engine washing, can short-circuit the coil or corrode its terminals.
- Failing Spark Plugs: Old or worn spark plugs can increase the resistance in the ignition system, forcing the coil to work harder and leading to premature failure.
To Replace or To Have It Replaced?
One of the first questions many car owners ask is whether they can tackle an ignition coil replacement themselves or if it's a job best left to the professionals. The good news is that for many vehicles, replacing an ignition coil is a relatively straightforward task that can be done at home, potentially saving you money on labour costs.
In most cases, ignition coils are designed to be easily accessible, especially on modern engines where they sit directly on top of the spark plugs. The procedure doesn't typically require highly specialised tools or extensive automotive knowledge. If you have basic mechanical skills and are comfortable following instructions, a DIY replacement is a viable option.
However, there are exceptions. Some vehicles, particularly those with V-type engines (like the Toyota Avalon V6 mentioned in your query), might have coils located in less accessible areas, such as the rear bank of cylinders, which could necessitate removing the intake manifold. In such scenarios, the complexity increases significantly, and professional help might be more appropriate.
DIY vs. Professional Replacement: A Comparison
Here's a breakdown to help you decide:
| Aspect | DIY Replacement | Professional Workshop Replacement |
|---|---|---|
| Cost Savings | Significant (only pay for parts) | Labour costs apply (£50-£130 typical) |
| Difficulty | Generally easy, but can vary by vehicle model (e.g., V6 rear coils) | No effort required from car owner |
| Tools Required | Basic hand tools (socket wrench, screwdrivers) | Workshop has all necessary tools |
| Time Commitment | Depends on experience and accessibility (30 mins - few hours) | Usually quick service (often less than an hour) |
| Warranty/Guarantee | None on labour; only on parts purchased | Work typically guaranteed by the workshop |
| Expertise/Diagnosis | Requires self-diagnosis or basic fault code reading | Workshop can provide comprehensive diagnosis |
Even if you choose to have a workshop replace the coil, the costs are usually quite reasonable. If you supply the new ignition coil yourself, the labour costs often drop significantly, making it a financially justifiable option even for those who prefer not to get their hands dirty.
Step-by-Step Ignition Coil Replacement Guide
While the exact procedure might vary slightly from one vehicle manufacturer to another, the fundamental steps for replacing an ignition coil remain largely consistent. Following these instructions carefully will help you perform the replacement safely and effectively.
Important Safety Note: You will be working on your vehicle's electrical circuit. It is absolutely vital that you disconnect the battery completely from the electrical circuit before you begin any work. Failure to do so could result in serious injury or damage to your vehicle's electrical system.
- Disconnect the Battery: Locate your car battery and use a suitable spanner to loosen the negative terminal clamp. Remove the negative cable and secure it away from the battery terminal to prevent accidental reconnection. This is a crucial safety step.
- Access the Engine: If your vehicle has an engine cover, carefully remove it. This may involve unscrewing bolts or simply lifting it off, depending on your car's design. This step grants you access to the ignition coils.
- Locate the Faulty Coil: If you've identified a specific cylinder misfire (e.g., from an OBD-II scanner), you'll know which coil to target. For a Toyota Avalon with a V6 (2GR-FE) engine, coil C (coil 3) is typically found in the rear bank of the engine. In some cases, accessing these rear coils may require the additional step of removing the intake manifold. While this adds complexity, it's often necessary for proper access.

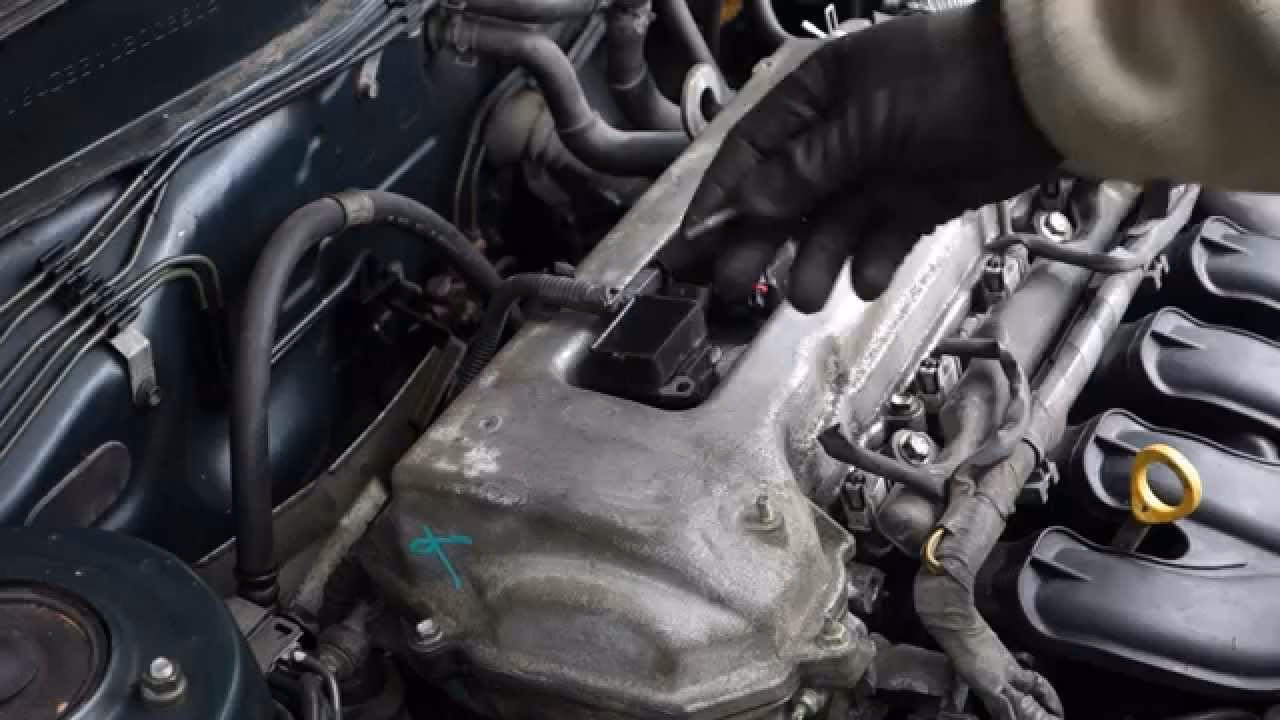

- Disconnect Electrical Connector: Each ignition coil will have an electrical connector plugged into it. Carefully depress the release tab on the connector and pull it away from the coil. Be gentle to avoid damaging the wiring or the connector itself.
- Remove Mounting Bolt: The ignition coil is usually secured by one or two small mounting bolts. Use a socket wrench to unscrew and remove these bolts. Keep them safe as you'll need them for reinstallation.

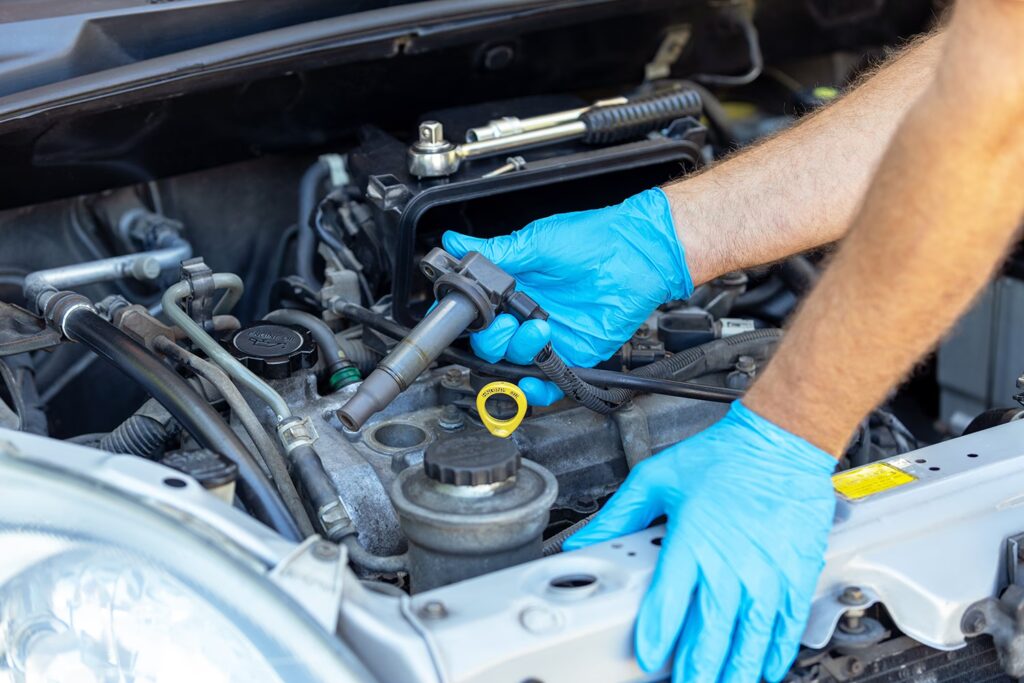

- Extract the Old Coil: Once the bolt is removed and the connector is unplugged, you should be able to carefully pull the old ignition coil straight up and out of its well. It might be a snug fit, so a gentle twisting motion can sometimes help.
- Insert the New Ignition Coil: Take your new ignition coil and carefully slide it into the well, ensuring it seats properly over the spark plug. Make sure it's fully seated before proceeding.
- Secure the New Coil: Reinsert the mounting bolt(s) you removed earlier and tighten them down with your socket wrench. Do not overtighten, as this can damage the coil or the engine's cylinder head.
- Reconnect Electrical Connector: Plug the electrical connector back into the new ignition coil. You should hear or feel a click, indicating it's securely latched.
- Reassemble and Reconnect Battery: Replace the engine cover if you removed it. Then, reconnect the negative battery cable to the battery terminal and tighten the clamp securely.
- Test the Engine: Start your engine. It should start immediately and run significantly smoother than before. Listen carefully to the engine's sound – you should be able to tell if all cylinders are firing correctly and the misfire has been resolved. If the engine warning light was on, it might turn off after a few driving cycles, or you may need to clear the fault code with an OBD-II scanner.
Important Notes During Replacement
- Mark Connections: When disconnecting electrical cables, especially if you're dealing with multiple coils or other components, it's wise to mark all connections or, even better, take a clear photo of the setup before you start. This way, you'll have an accurate reference when reconnecting, ensuring no mistakes are made that could lead to non-functioning cylinders.
- Consider Replacing All Coils: Unlike spark plugs, which are often replaced in sets, ignition coils can usually be replaced individually without issue. However, if your vehicle model is known to have a common fault with its ignition coils, or if your car has very high mileage and one coil has failed, it might be sensible to consider replacing all of them. This preventative measure can save you from having to deal with subsequent failures of other coils in the near future.
- Visual Guides: For complex access scenarios, such as the rear bank coils on a Toyota Avalon V6, searching for a step-by-step video guide online can be incredibly helpful. Visual aids often clarify steps that might be ambiguous in written instructions.
Costs to Be Expected
Understanding the financial implications of an ignition coil replacement can help you budget and decide whether to DIY or go to a workshop.
Cost of a New Ignition Coil:
- Ignition coils are generally not excessively expensive. Depending on your vehicle's make, model, and the specific manufacturer of the coil, you can expect to pay anywhere between £50 and £160 for a single new ignition coil.
- If your vehicle uses coils that serve multiple cylinders, or if you opt to replace all coils, the total part cost will increase, but the per-coil cost remains consistent.
Workshop Labour Costs:
- Should you decide to have a professional handle the replacement, the labour costs are typically reasonable. For a straightforward replacement, workshops usually charge between £50 and £130.
- This cost can be higher if the coil is difficult to access, requiring additional labour time (e.g., for intake manifold removal on certain V6 engines).
Overall, even if you factor in both parts and labour, an ignition coil replacement remains a financially manageable repair. It's a small price to pay to restore your vehicle's performance and prevent more severe engine problems down the line.
Frequently Asked Questions (FAQs)
Q: Can I drive with a bad ignition coil?
A: While you might be able to drive short distances with a failing ignition coil, it's strongly advised against. Driving with a misfiring cylinder can lead to several problems, including reduced power, poor fuel economy, increased emissions, and potentially severe damage to other engine components like the catalytic converter due to unburnt fuel entering the exhaust system. It's best to address the issue as soon as possible.
Q: How long do ignition coils typically last?
A: The lifespan of an ignition coil can vary significantly, but they typically last between 100,000 to 150,000 kilometres. However, factors like driving conditions, engine heat, and the quality of the coil can cause them to fail earlier.
Q: Do I need to replace all ignition coils at once if one fails?
A: Not necessarily. If only one coil is found to be defective and your vehicle model isn't known for widespread coil failures, replacing just the faulty one is usually sufficient. However, if your car has very high mileage or if you plan to keep it for a long time, replacing them in sets or all at once can be a good preventative measure, especially if they are all of a similar age and wear.
Q: What tools do I need to replace an ignition coil?
A: For most coil-on-plug systems, you'll typically need basic hand tools such as a socket wrench with an extension, appropriate sockets (usually 8mm, 10mm, or 12mm), and possibly a flat-head screwdriver or trim removal tool for engine covers or electrical connectors. For more complex jobs like those involving intake manifold removal, a more extensive toolkit might be required.
Q: Is it safe to replace an ignition coil myself?
A: Yes, it is generally safe to replace an ignition coil yourself, provided you follow safety precautions, especially disconnecting the battery before starting work. If you're unsure at any point or if the job seems more complex than anticipated, don't hesitate to consult a professional mechanic.
