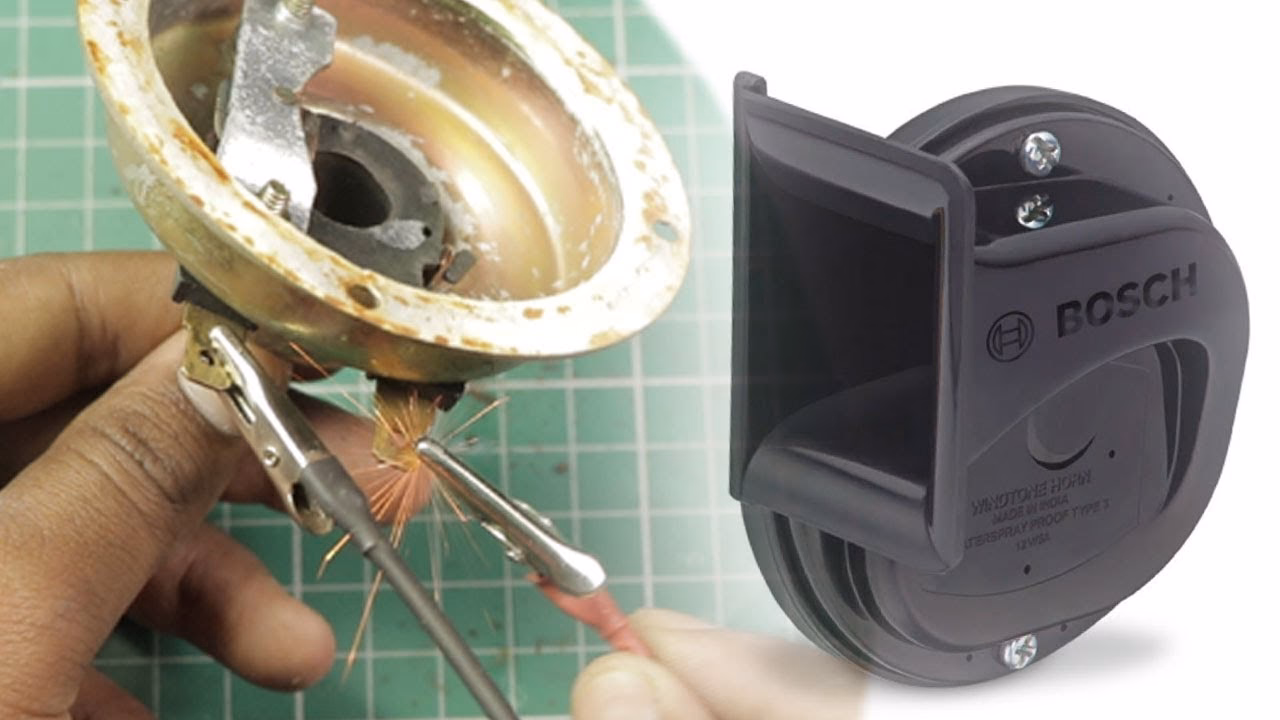

Fixing a Car Horn: A Practical Guide

The humble car horn. Often overlooked until it's needed most, a malfunctioning horn can be more than just an annoyance; it's a safety issue. Whether you're trying to warn a pedestrian of a hazard or alert another driver to your presence, a silent horn leaves you vulnerable. Fortunately, in many cases, fixing a car horn is a manageable DIY task. This comprehensive guide will walk you through the common culprits and the methods to get your horn sounding again, ensuring you can communicate effectively on the road.

Understanding Your Car Horn System

Before diving into repairs, it's helpful to understand the basic components of a car horn system. Typically, it involves:

• The Horn Button/Switch: Located on the steering wheel, this is the trigger for the system.
• The Horn Relay: A high-current switch that allows the low-current signal from the horn button to activate the high-current circuit powering the horn.
• The Fuse: Protects the horn circuit from electrical surges.
• The Horn(s): The actual sound-producing devices, usually electric electromagnets that vibrate a diaphragm.
• Wiring: Connects all these components.

When you press the horn button, a low-current circuit is completed, energising the horn relay. The relay then closes a high-current circuit, sending power from the battery to the horn(s), making them sound. If any part of this chain is broken, your horn won't work.

Common Causes of a Non-Working Car Horn

Several issues can lead to a silent horn. Here are the most frequent offenders:

• Blown Fuse: The simplest and often the first thing to check.
• Faulty Relay: The relay can fail, preventing power from reaching the horn.
• Damaged Wiring: Corroded connections, frayed wires, or loose connections can interrupt the electrical flow.
• Defective Horn Button/Switch: The switch itself might be worn out or broken.
• Failed Horn Unit: The horn itself can corrode internally or its electromagnet can burn out.
• Clock Spring Failure (Steering Wheel): This component allows electrical connections to pass through the steering column while it rotates. A broken clock spring will disconnect the horn button from the rest of the system.

Troubleshooting Steps: A Step-by-Step Approach

Let's systematically diagnose and fix the problem. Always ensure the engine is off and the parking brake is engaged before working on your car's electrical system.

Step 1: Check the Fuse

This is the easiest fix. Consult your car's owner's manual to locate the fuse box and the specific fuse for the horn. It's usually labelled with a horn symbol or 'Horn'.

1. Locate the fuse box (often under the dashboard or in the engine bay).
2. Remove the fuse using a fuse puller or a pair of needle-nose pliers.
3. Inspect the fuse. If the metal filament inside is broken or looks burnt, the fuse is blown.
4. Replace it with a new fuse of the exact same amperage rating. You can find this information on the fuse itself or in your owner's manual. Using a fuse with a higher rating can be dangerous.

If replacing the fuse solves the problem, great! If not, move on to the next step.

Step 2: Inspect the Horn Relay

The horn relay is another common point of failure. Again, your owner's manual is your best friend for locating it. Often, there's a spare relay in the fuse box that you can use for testing.

1. Locate the horn relay.
2. If you suspect it's faulty, try swapping it with an identical relay from a non-essential system (like the fog lights or radio, if they use the same type).
3. If the horn now works after swapping relays, you've found your culprit. Purchase a new relay of the correct part number and install it.
4. If you don't have a spare relay to swap, you can test the relay itself. Most automotive relays have a diagram on their casing. You can use a multimeter to test for continuity when power is applied to the coil, or more simply, listen for a 'click' when the horn button is pressed (if the wiring to the relay is intact).

Step 3: Examine the Horn Unit(s)

The horn itself might be the issue. Horns are usually located behind the front grille or bumper. They can corrode, get damaged, or simply wear out.

1. Locate the horn(s). There might be one or two.
2. Visually inspect the wiring connections to the horn. Look for corrosion, loose wires, or damaged insulation. Clean any corroded terminals with a wire brush and ensure connections are secure.
3. To test the horn directly, you'll need to bypass the car's wiring. With the engine off, disconnect the wires from the horn. Connect one wire from the car's battery (positive terminal) to the positive terminal on the horn, and the other wire from the car's battery (negative terminal) to the negative terminal on the horn. If the horn sounds, it's working, and the problem lies further up the circuit (wiring, relay, or switch). If it doesn't sound, the horn unit itself is likely faulty and needs replacement.
4. If you need to replace the horn, disconnect the old one, unbolt it, and install the new one, reconnecting the wiring.

Step 4: Inspect Wiring and Connections

Damaged or corroded wiring is a common cause of electrical faults. This can be more time-consuming to diagnose.

1. Trace the wiring from the horn back towards the relay and fuse box.
2. Look for any signs of damage: cuts, abrasions, corrosion on connectors, or loose wires.
3. Pay particular attention to areas where the wiring might flex or rub, such as near the engine or steering column.
4. Use a multimeter to check for continuity and voltage. With the ignition on and the horn button pressed, check for voltage at the horn connector. If there's no voltage, work your way back along the circuit to find where the power is being lost.
5. Repair any damaged wires by splicing in new sections and using heat-shrink tubing for a secure, insulated connection. Clean any corroded terminals with a wire brush and apply dielectric grease to prevent future corrosion.

Step 5: Check the Horn Button and Clock Spring

If the fuse, relay, wiring, and horn unit all seem fine, the issue might be with the horn button itself or the clock spring within the steering column. This is a more advanced repair.

1. Horn Button: Sometimes the button can become stuck or its internal contacts can fail. You might be able to access the back of the horn button by removing trim panels around the steering wheel. Inspect for obvious damage or debris.
2. Clock Spring: This is a more complex component located behind the steering wheel. It's a ribbon cable that allows electrical signals to pass through the steering wheel without breaking as it turns. If the clock spring fails, the horn (and often the airbag and steering wheel controls) will stop working. Replacing a clock spring typically requires removing the steering wheel and is best left to experienced mechanics due to the presence of the airbag.

Table: Common Horn Problems and Solutions

Frequently Asked Questions (FAQs)

Q1: Can I drive my car without a working horn?

A1: While it's not illegal in all jurisdictions to drive with a non-functional horn, it is a significant safety hazard. It's highly recommended to get it fixed as soon as possible.

Q2: How much does it cost to fix a car horn?

A2: The cost varies greatly depending on the cause. A blown fuse is a few pounds. A new relay or horn unit might cost £20-£100 for the part, plus labour if you take it to a garage. Clock spring replacement can be considerably more expensive, potentially hundreds of pounds.

Q3: Do all cars have two horns?

A3: Most modern cars have two horns, often tuned to different frequencies to produce a more complex sound. Some older or smaller vehicles might only have one.

Q4: What tools do I need to fix a car horn?

A4: Basic tools usually include a set of screwdrivers, pliers, a socket set, a multimeter, a fuse puller, and possibly a wire brush. For more complex jobs like clock spring replacement, specialised tools might be required.

When to Call a Professional

While many horn issues are straightforward, some repairs, particularly those involving the steering column, airbags, or complex wiring, are best left to qualified mechanics. If you've checked the fuse, relay, and visible wiring and still can't identify the problem, or if you're uncomfortable working with electrical systems or removing steering wheel components, don't hesitate to seek professional help. Safety should always be your top priority.

A functioning car horn is essential for safe driving. By understanding the system and following these troubleshooting steps, you can often resolve common horn issues yourself, saving time and money. Remember to always consult your vehicle's specific manual for precise locations of components and recommended procedures.
